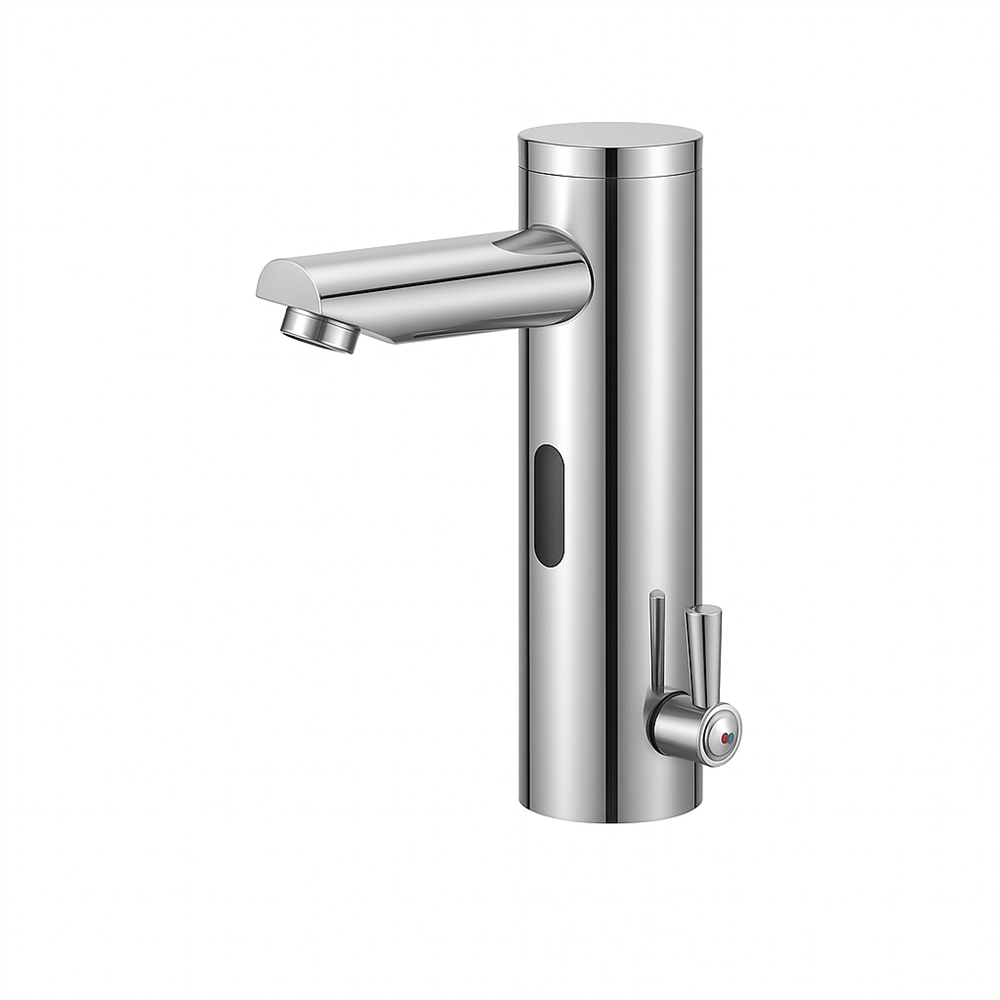

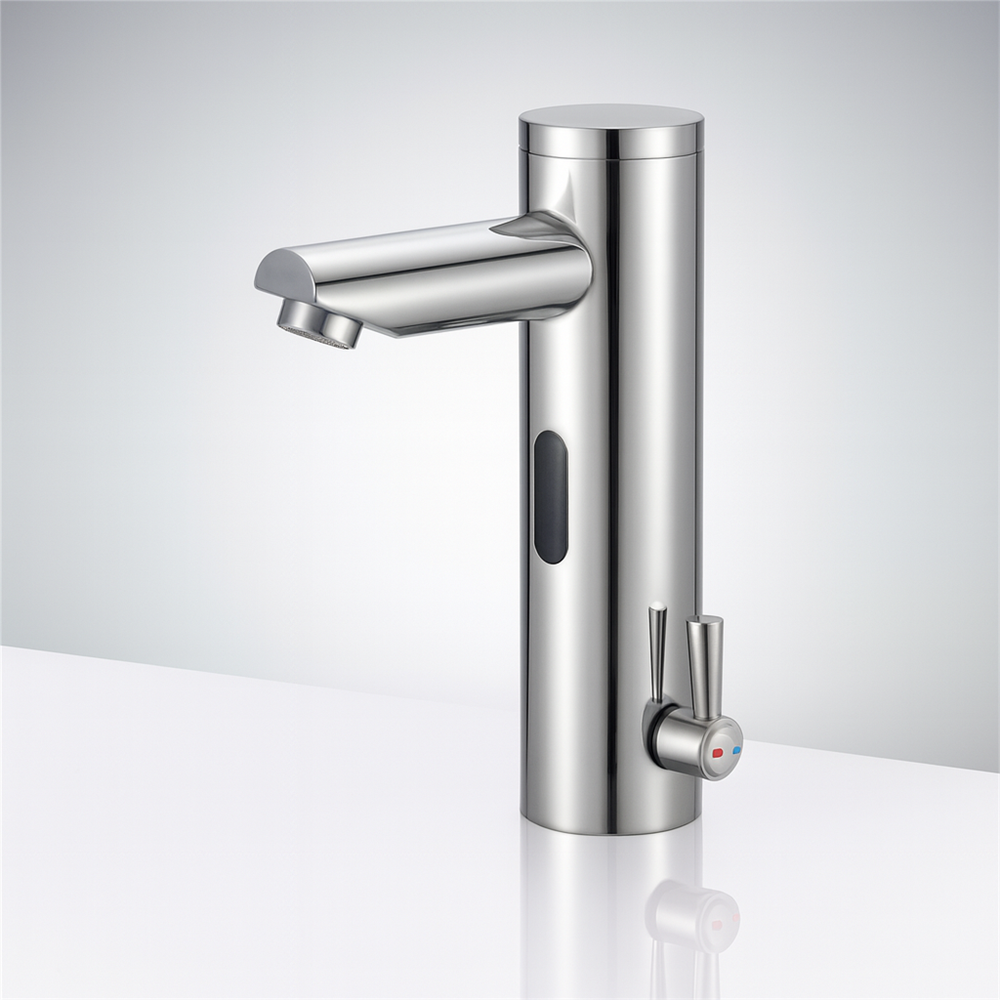

Something it's best listened to this hierarchy of technology makes worthwhile the example provided by the Fontana Elyntro Series Deck Mounted Automatic Infrared Sensor Bathroom Faucet. Solid brass forms its body while the shiny chrome covering radiates quality and beauty that lasts forever. The contemporary infrared detection system allows for trouble-free, touch-free operation which not only improves hygiene but also preserves water in precise amounts.
It is a product for single-hole deck installation that goes well with residential as well as commercial designs. The ceramic valve core ensures perfect working of the faucet and has a very good life span even if used continuously. Having support for both hot and cold water, it provides a good temperature regulation that is easy and safe for the user. It is designed to work from 0.1 to 1.6 MPa and hence guarantees constant flow in different conditions. FontanaShowers is a combination of beauty, functionality, and eco-friendliness, giving a superb, contactless option that elevates the daily routines through the era of innovation, efficiency, and design excellence that is timeless.
ELYNTRO™ SERIES
Fontana Elyntro Touchless Faucet FAQs
Deck-mounted automatic infrared faucet with solid brass
construction, polished chrome finish, ceramic valve control,
single-hole installation, and hot-and-cold water capability.
✥
Infrared Sensor Commissioning?
+
Complete infrared sensor commissioning after the basin,
countertop, backsplash and nearby accessories are installed.
Verify reliable hand detection across the intended activation
field and confirm reflective surfaces do not produce
unintended faucet operation.
◇
Hydraulic Checks During Installation?
+
Flush the hot and cold supply lines before final connection.
Confirm secure fittings, unrestricted inlet flow and stable
dynamic pressure before testing automatic valve opening
and complete shutoff.
◯
Operating Water Pressure?
+
The specified operating pressure range is approximately
0.1–1.6 MPa. Maintain stable dynamic inlet pressure and
regulate excessive supply pressure where required for
dependable hydraulic and valve performance.
↻
Continuous Water Flow Diagnostics?
+
Clean the infrared sensor window and remove reflective
objects from the sensing field. If water continues flowing,
inspect the electronic valve and internal water passages
for debris or incomplete seating.
⌁
Ceramic Valve Maintenance?
+
The Elyntro uses a ceramic valve core for controlled water
delivery. During scheduled maintenance, inspect the valve,
supply fittings and internal passages for mineral buildup
or debris that may affect positive shutoff.
⌂
Deck Installation Requirements?
+
The faucet uses a single-hole deck-mounted configuration.
Maximum published deck thickness is approximately 1.38 inches,
with a base diameter of approximately 2.64 inches. Verify
countertop dimensions before installation.
⚡
Hot and Cold Water Connection?
+
The faucet supports both hot and cold water supplies.
Coordinate supply routing and upstream temperature control
with the plumbing design, then verify acceptable mixed-water
delivery during final commissioning.
⌕
Routine Maintenance Requirements?
+
Periodically clean the infrared sensor window and outlet,
inspect supply fittings for leakage, remove mineral deposits,
and verify reliable sensor activation and complete valve
shutoff during scheduled maintenance.
Chrome
♧
0.1–1.6 MPa
Operating Pressure
◇
Solid Brass
Durable Construction
⌁
Infrared Sensor
Touchless Activation
⚙
Ceramic Valve
Reliable Control
◇
Single Hole
Deck Installation
