Matte Black

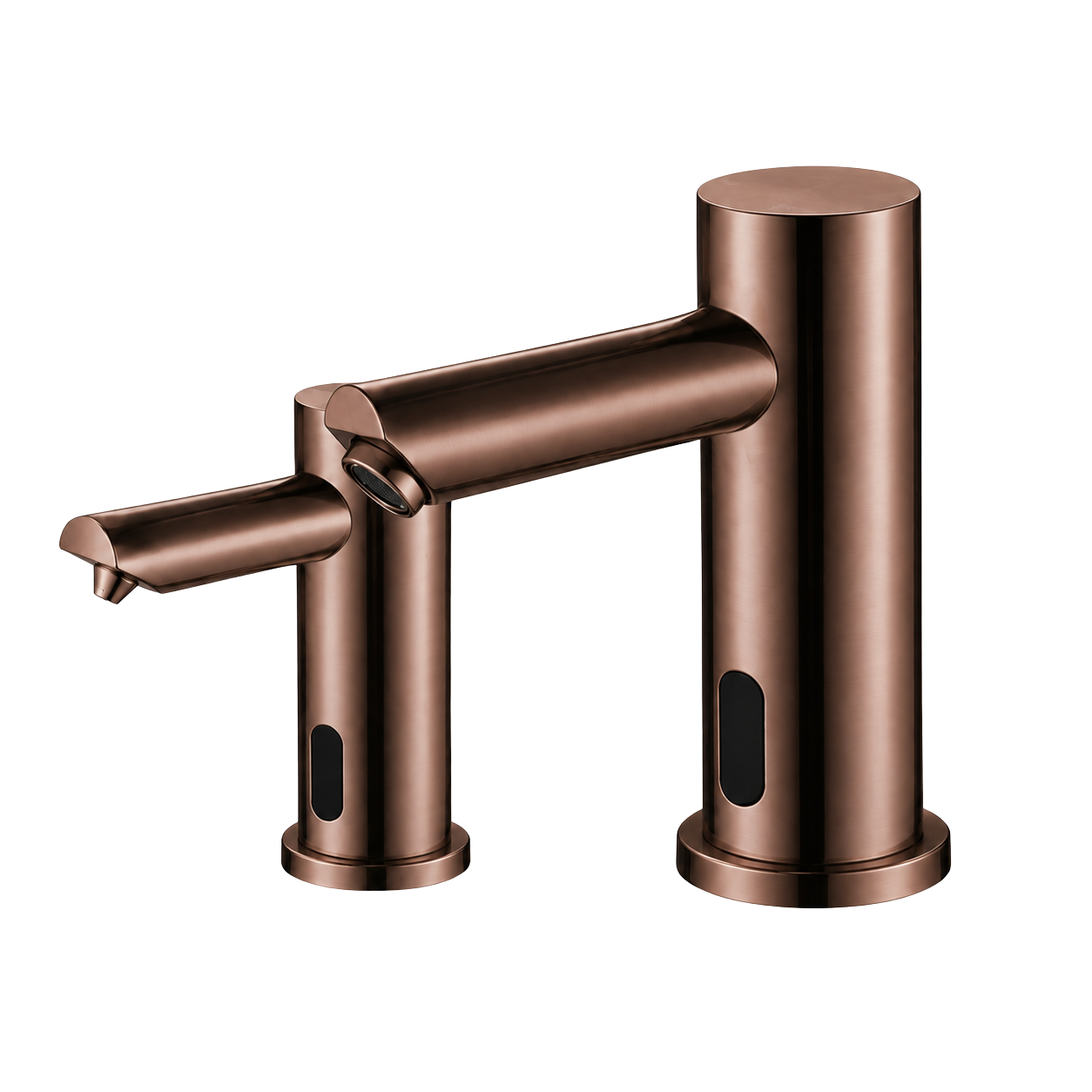

Oil Rubbed Bronze

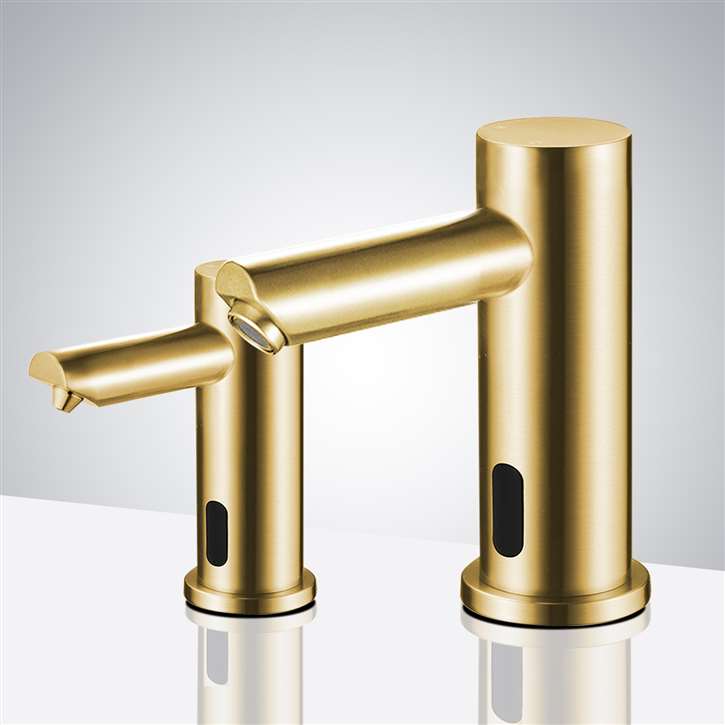

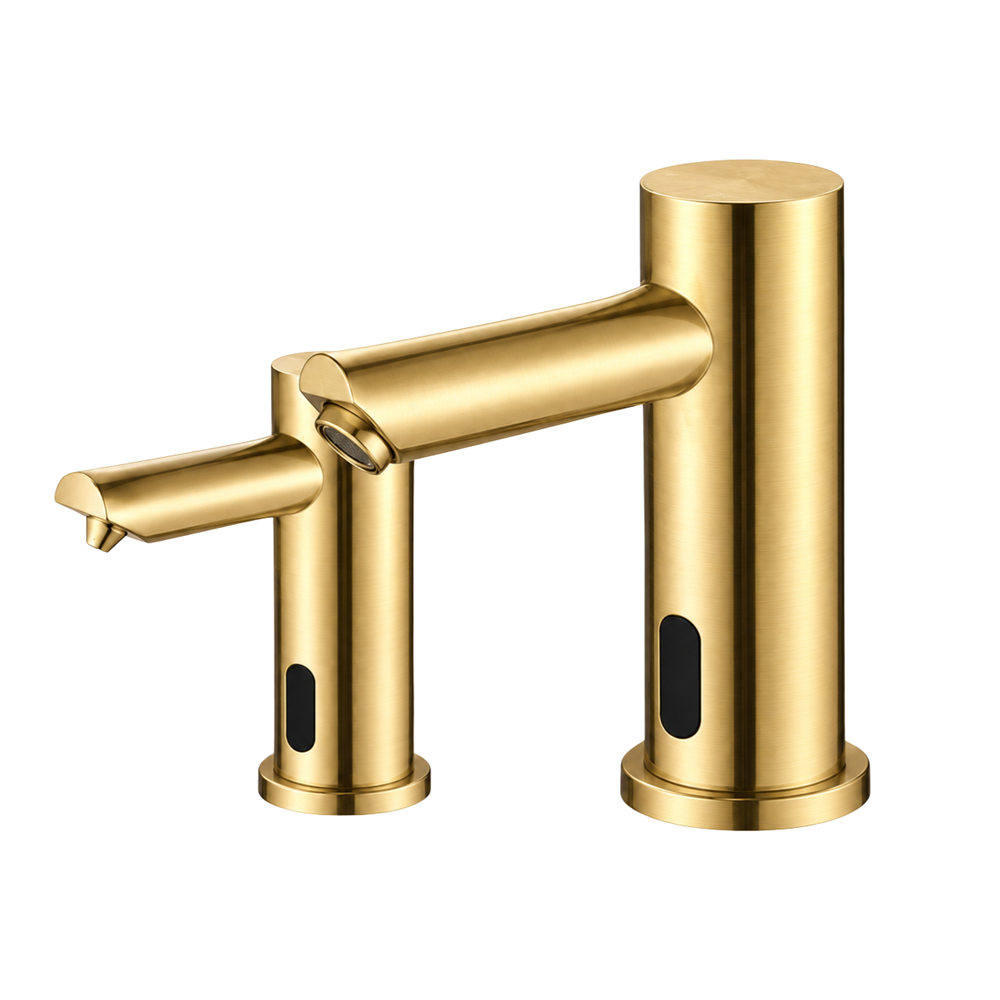

Commercial Hands Free Bathroom Sink Faucet and Soap Dispenser

Minimize waste of water, by using the automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow. The automatic faucet provides water only when needed. Additionally, since these faucets are preset to shut off after approximately 30 seconds, accidental flooding can't occur if a person leaves it running. And, because they are hands-free, they help reduce the spread of germs and keep the vanity area clean. Fits all standard US plumbing. Uses 4AA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi. Intelligent: with its micro-computer controlling its action, the faucet can self adjust its best detection zone as per the color and shape of lavatory! Sensor Faucet finish is brushed gold, with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation.

Motion detection touchless sensor faucet operation Sensitive Sensor with Infrared AI Smart-Chip Factory set to 30-second Auto Shutoff (can be adjusted). Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi Solid Brass Construction, Brushed Gold Easy to Install - Instructions Included Water resistant solenoid enclosure Advanced energy saving design for long lasting battery life Comes complete with Hoses & Accessories Power Supply: AC110V And DC6V (batteries not included) AC/DC power option. ADA Compliant. Can be installed easily in new or retrofit applications. Usage: Commercial / Residential Touch-free operation ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow.

Sensor Activated Faucet Special Features

• Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
• Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
• Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
• Meaning of the codes are described in the installation instructions.
• Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
• Faucet can be mount to any sink surface.
• ADA Compliant.
• Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
• Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.

Specifications

• Brand Name: FontanaShowers
• Model Number: FS-509BG
• Diameter of inlet pipe: DN15
• Diameter of outlet pipe: DN15
• Water Pressure: 0.05Mpa - 0.7Mpa
• Power: DC.6V
• Power Consumption: 0.5MW
• Detection Zone: Factory set 25cm/10" (based on standard inductive board)
• Ambient Temperature: 1 - 45 °C / 33.8 -113 °F
• Degree of protection by enclosure: 1P56
• Battery: 4 x 'AA' size cells
• Operational water pressure range: 0.05 - 0.6MPa
• US standard water supply pipe size: DN15 (G1/2")
• Ambient temperature range: 0.1 - 45ºC
• Sensing distance: 9.84" (25cm)
• Time delay: > 0.5 seconds
• Operation duration: Power will automatically cut off after continuous use for 60 seconds
• Manufacturer Warranty: 10-Years
• Color: Brushed Gold

Features

1. Infrared sensor operated, touch-free operation
2. Advanced energy saving design for long lasting battery life
3. Waterproof sensor
4. Battery low LED light indicator
5. Sensing distance adjusted automatically
6. Long life durable body
7. Advanced circuit design saves electricity and water

Sensor Tap Advantage

1. Conserves water
2. Saves energy during water heating process
3. Hygienic, no-touch activation
4. Easy installation
5. Durable, solid all-brass construction
6. Built-in filter
7. ADA complaint Ideal for use by disabled people
8. Vandal resistant
9. Waterproof Components
