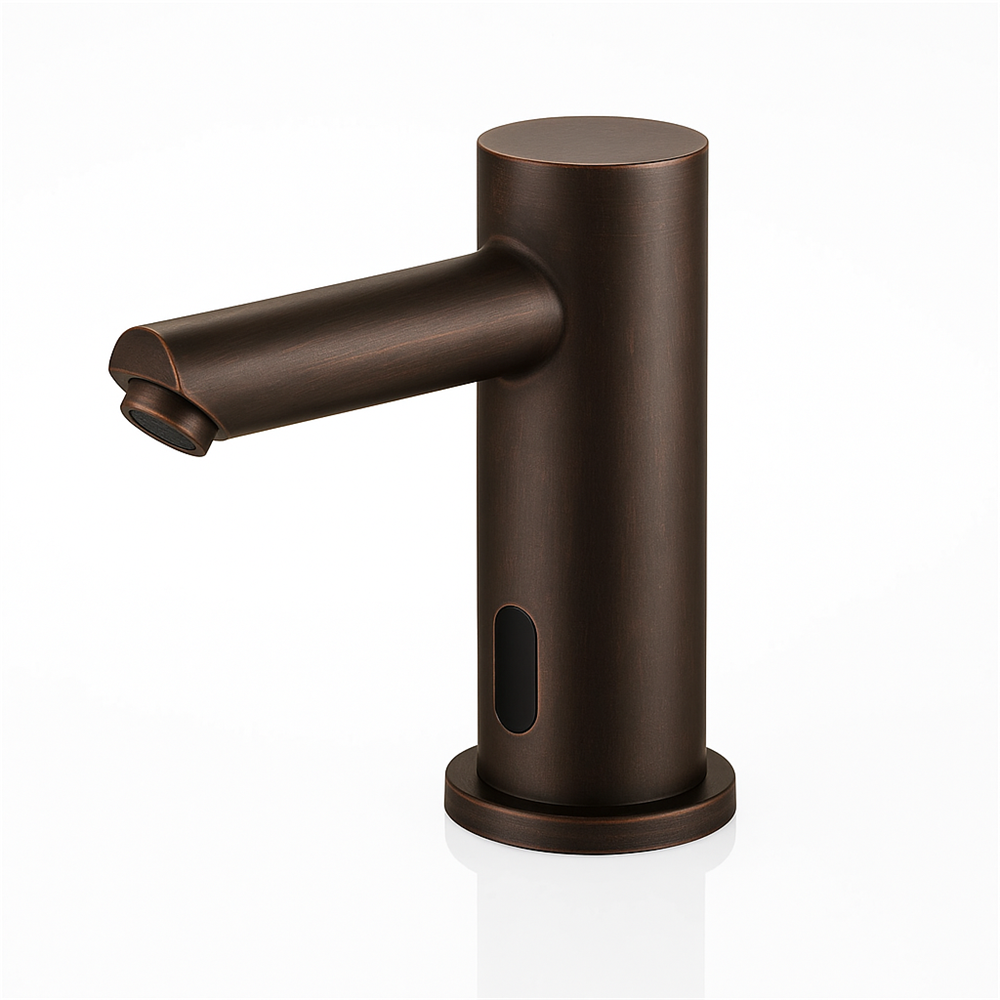

Oil Rubbed Bronze

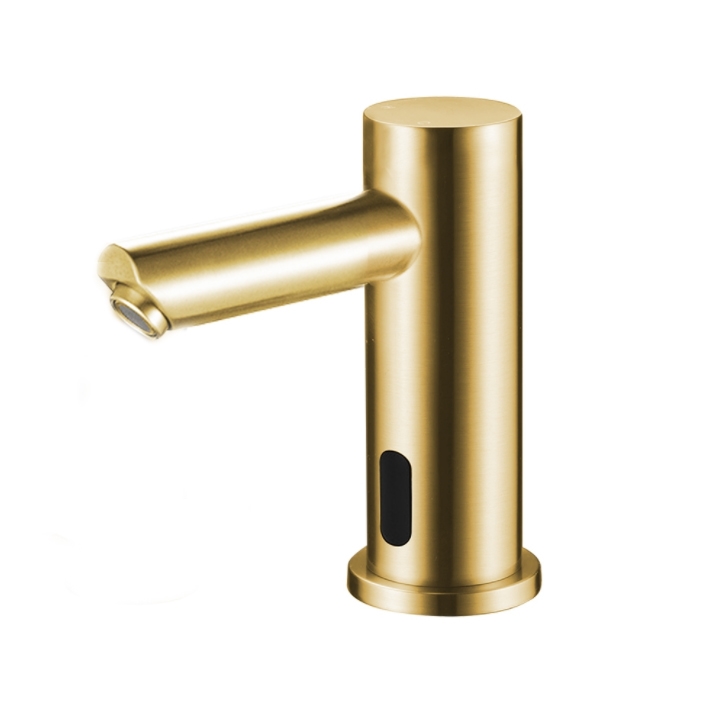

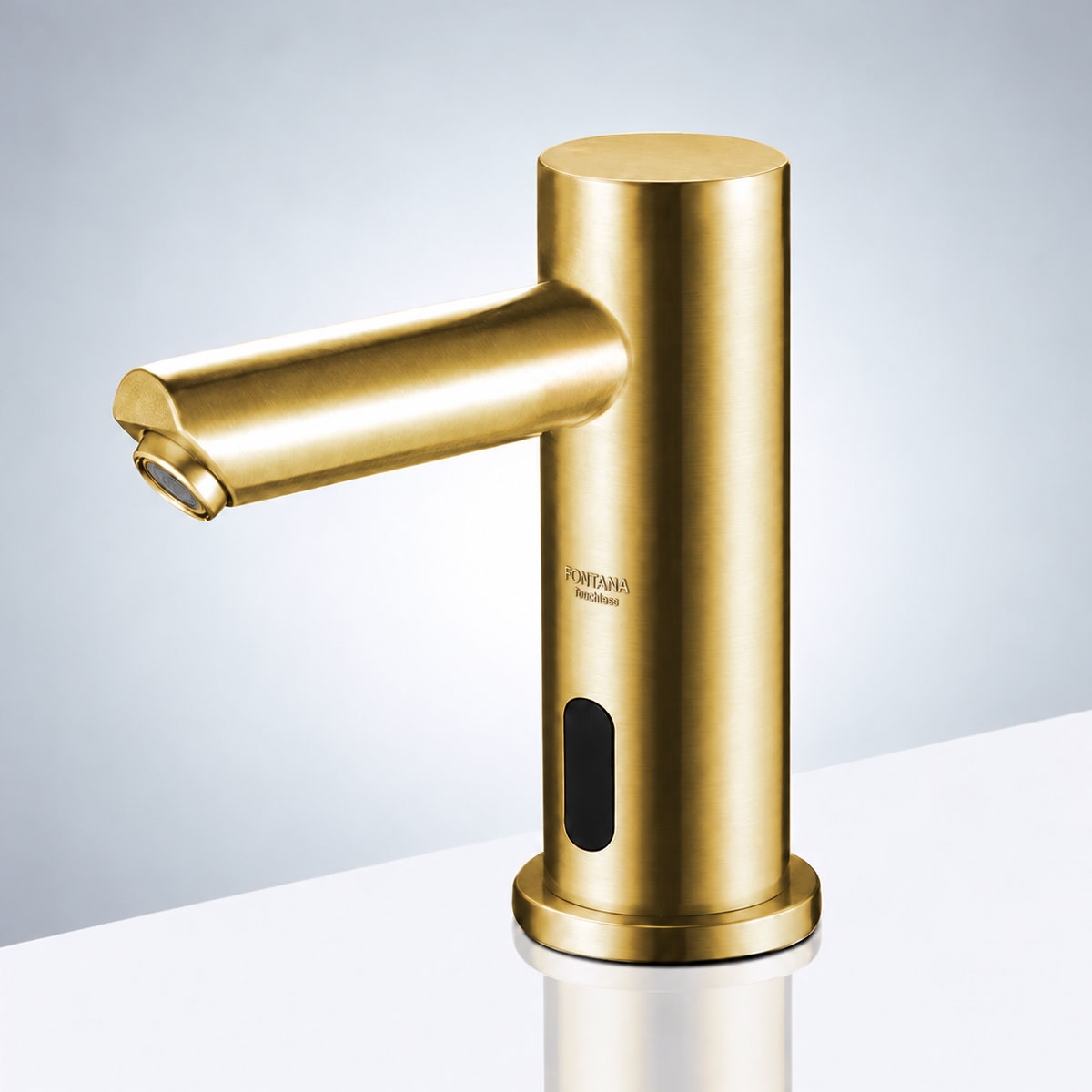

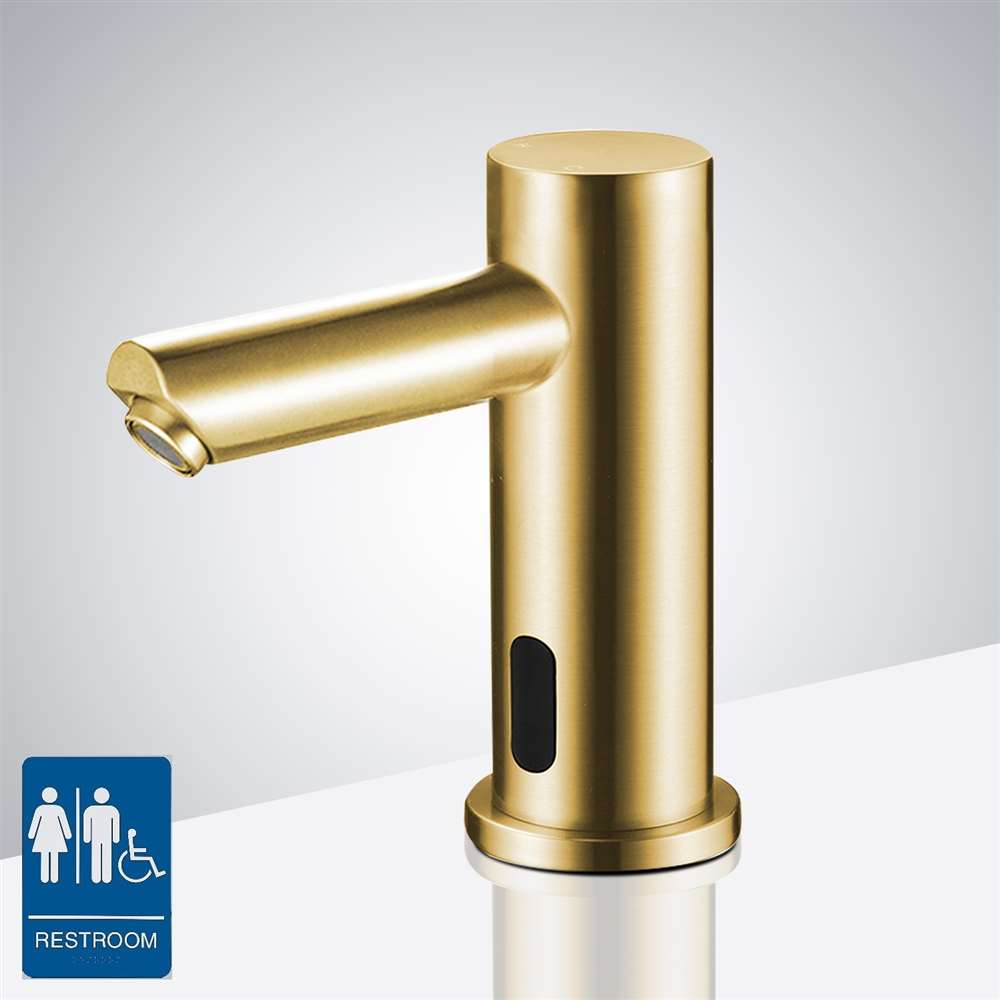

Fontana Solo Commercial Automatic Brushed Gold Touchless Sensor Faucet

Avoid contamination and cross-contamination, and minimize waste of water by using this smart automatic faucet. In any high-traffic restrooms avoiding contact with manual faucets helps avoid contact with germs that are collected on handles and this smart faucet is not only hygienic but will immediately reduce water waste by eliminating unnecessary and unattended water flow. The automatic faucet provides water only when needed. Additionally, since these faucets are preset to shut off after approximately 30 seconds, accidental flooding can't occur if a person leaves it running. And, because they are hands-free, they help reduce the spread of germs and keep the vanity area clean. Intelligent: with its micro-computer controlling its action, the faucet can self-adjust its best detection zone as per the color and shape of the lavatory! The faucet employs sealed electronics and moisture-resistant housings to protect internal controls from water intrusion, cleaning chemicals, and environmental exposure.

Sensor Activated Faucet Special Features

• Durable Vandal-Resistant Brass Body; Ideal for commercial high use applications
• Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
• Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
• The meanings of the codes are described in the installation instructions.
• Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
• The faucet can be mounted to any sink surface.
• ADA Compliant.
• The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
• Adjustable sensing range; while the factory range is set about 4" to 5" from the sensor, it can be adjusted.

Fontana Solo Commercial Brushed Gold Touchless Sensor Faucet FAQ

Self-Adapting IR Detection, IP56 Controls; Built-In Strainer & AC/DC Commercial Power

The Fontana Solo FS-509BGSF combines intelligent infrared sensing, solid-brass construction, protected electronics, and dual AC/DC power.

How does the self-adjusting infrared sensor adapt to different lavatories?

The micro-computer evaluates reflected infrared signals and adapts the sensing field to the basin color and geometry. Complete commissioning only after the basin, countertop, mirror, and lighting are installed. The nominal detection zone is approximately 25 cm, but final response should be checked from several normal hand-entry positions.

How should the diagnostic LED be used during troubleshooting?

Observe the flashing indicator during power-up and repeated activation cycles. The indicator supports diagnosis of power condition, low battery, sensor response, and solenoid operation. If activation becomes irregular, check the LED condition before disturbing the hydraulic components, then inspect wiring, batteries, sensor alignment, and valve connections.

Why should the built-in strainer be serviced in high-traffic installations?

The internal strainer limits sediment, pipe scale, and construction debris from entering the solenoid valve. Flush the DN15/G1/2-inch supply before initial connection and clean the strainer whenever discharge becomes restricted or valve response changes. Maintain below-deck access so filter servicing does not require faucet removal.

How should the IP56 enclosure and AC/DC power components be coordinated?

Keep the controller, water-resistant solenoid enclosure, transformer, DC6V battery pack, and wiring accessible but protected from standing water. Verify AC110V operation and the four-AA battery circuit independently. After power testing, cycle the faucet repeatedly and confirm stable sensor response throughout the specified pressure range.

Brushed Gold

• Brand Name: FontanaShowers
• Model Number: FS-509BGSF
• Diameter of inlet pipe: DN15
• Diameter of outlet pipe: DN15
• Water Pressure: 0.05Mpa - 0.7Mpa
• Power: DC.6V
• Power Consumption: 0.5MW
• Detection Zone: Factory set 25cm/10" (based on standard inductive board)
• Ambient Temperature: 1 - 45 °C / 33.8 -113 °F
• Degree of protection by enclosure: 1P56
• Battery: 4 x 'AA' size cells
• Operational water pressure range: 0.05 - 0.6MPa
• US standard water supply pipe size: DN15 (G1/2")
• Ambient temperature range: 0.1 - 45ºC
• Sensing distance: 9.84" (25cm)
• Time delay: 0.5 seconds
• Operation duration: Power will automatically cut off after continuous use for 60 seconds
• Manufacturer Warranty: 10-Years
• Color: Chrome

Features

1. Infrared sensor operated, touch-free operation
2. Advanced energy-saving design for long-lasting battery life
3. Waterproof sensor
4. Battery low LED light indicator
5. Sensing distance adjusted automatically
6. Long life durable body
7. Advanced circuit design saves electricity and water

Sensor Tap Advantage

1. Conserves water
2. Saves energy during the water heating process
3. Hygienic, no-touch activation
4. Easy installation
5. Durable, solid all-brass construction
6. Built-in filter
7. ADA compliant Ideal for use by disabled people
8. Vandal resistant
9. Waterproof Components

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow.
