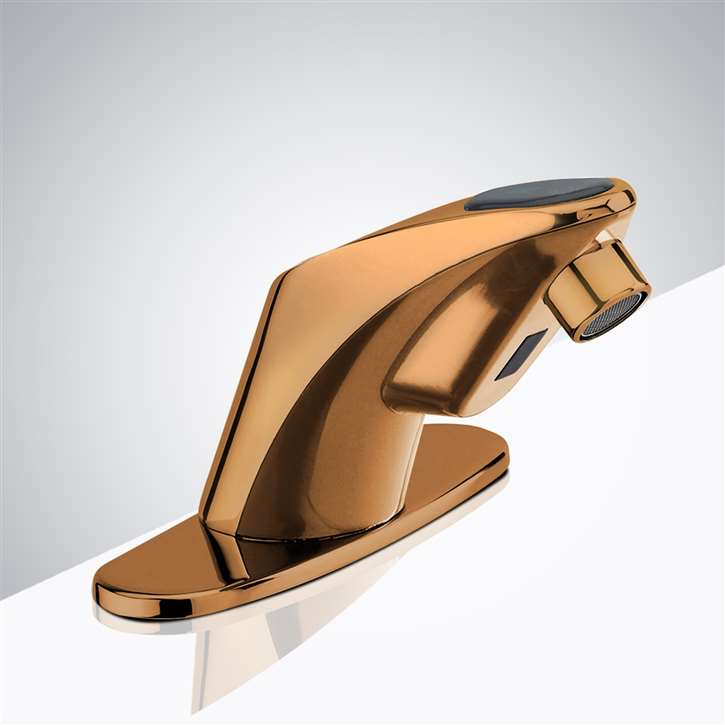

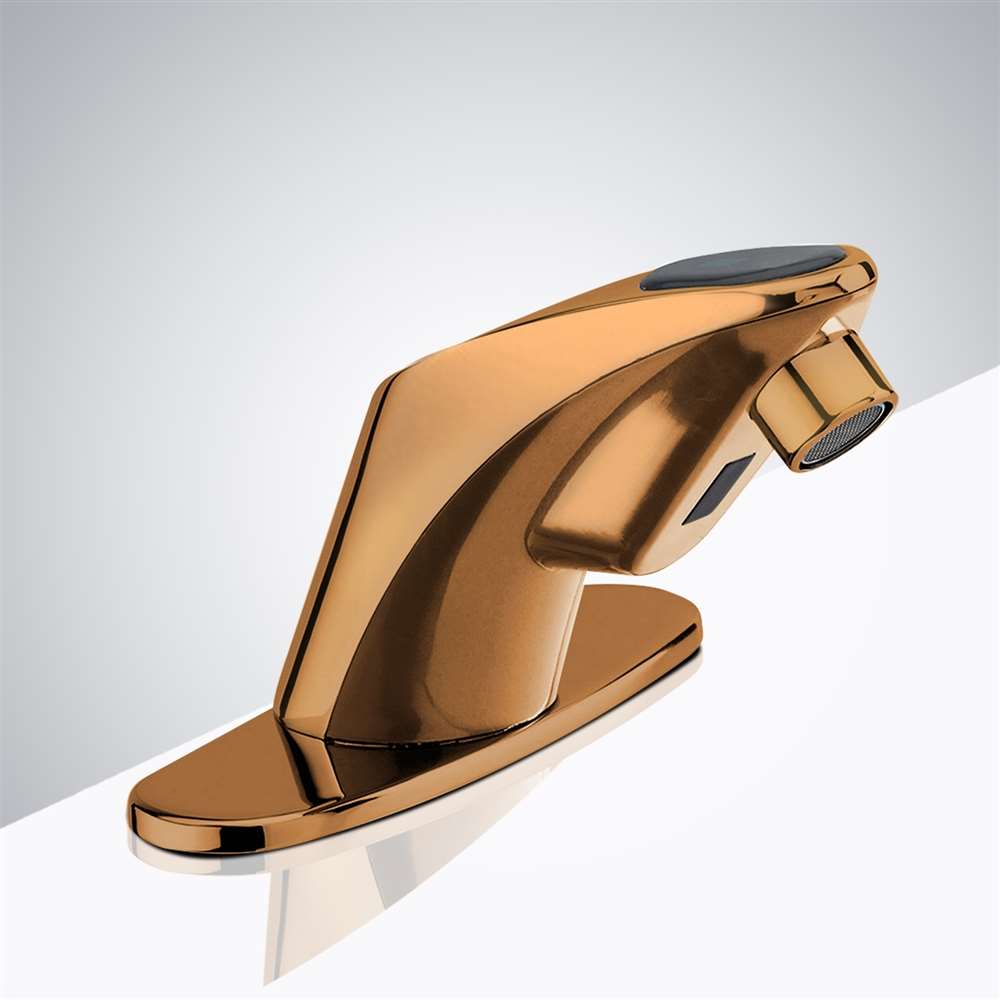

Fontana Brima Oil Rubbed Bronze Finish Sensor Faucet

Thermal mixing valve compatible design supports safe tempered water delivery and scald mitigation. Minimize waste of water, by using the automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow. The automatic faucet provides water only when needed. Additionally, since these faucets are preset to shut off after approximately 30 seconds, accidental flooding can't occur if a person leaves it running. And, because they are hands-free, they help reduce the spread of germs and keep the vanity area clean. Fits all standard US plumbing. Uses 4AA Alkaline Batteries (purchase separately). Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi. Fontana Brima Oil Rubbed Bronze Finish Sensor Faucet Infrared Detection Geometry, Solenoid Shutoff Control & Commercial Brass Waterway Engineering Engineered for touch-free basin applications, this oil rubbed bronze sensor faucet combines automatic infrared activation with durable brass construction for controlled, hygienic water delivery. How should the infrared detection zone be coordinated with basin geometry? The sensing field should terminate within the normal handwashing zone rather than on the basin surface. During commissioning, installers should verify detection with the completed basin and countertop because reflective finishes, bowl depth, and faucet setback can influence infrared return intensity and unintended activation. How does the electronic solenoid control hydraulic opening and shutoff? The sensor sends an electrical command to the solenoid when valid hand presence is detected. The solenoid opens the internal waterway and then closes it when the detection signal ends, separating user detection from hydraulic control and eliminating the need for a manually operated valve handle. Why should dynamic supply pressure be checked instead of relying only on static pressure? Static pressure represents the system with little or no flow, whereas dynamic pressure reflects conditions while fixtures are operating. Verifying pressure during simultaneous demand helps determine whether the faucet receives sufficient hydraulic energy for stable discharge without excessive velocity or upstream pressure loss. What commissioning procedure protects the sensor faucet from installation debris? Hot and cold supply lines should be thoroughly flushed before final connection so pipe scale, sealant fragments, and construction debris do not enter the valve assembly. After connection, repeated activation and shutoff cycles should be performed while checking flow stability, leakage, and sensor response. Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow.

Intelligent: with its micro-computer controlling its action, the faucet can self-adjust its best detection zone as per the color and shape of the lavatory!
Sensor Faucet finish is polished chrome, with built-in Infrared AI Smart-Chip No Water Dripping Design with 100% Touch-free operation.


Motion detection touchless sensor faucet operation Sensitive Sensor with Infrared AI Smart-Chip Factory set to 30-second Auto Shutoff (can be adjusted). Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi Solid Brass Construction, Light Oil Rubbed Bronze Finish Easy to Install - Instructions Included Water-resistant solenoid enclosure Advanced energy-saving design for long-lasting battery life Comes complete with Hoses & Accessories Power Supply: AC110V And DC6V (batteries not included) AC/DC power option. ADA Compliant. Can be installed easily in new or upgraded retrofit commercial bathrooms. Usage: Commercial Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing.

Sensor Activated Faucet Special Features

• Durable Vandal-Resistant Brass Body; Ideal for commercial high use applications
• Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
• Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
• The meaning of the codes is described in the installation instructions.
• Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
• The faucet can be mounted to any sink surface.
• ADA Compliant.
• The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
• Adjustable sensing range; while the factory range is set about 4" to 5" from the sensor, it can be adjusted.

Specifications

• Diameter of inlet pipe: DN15
• Diameter of outlet pipe: DN15
• Water Pressure: 0.05Mpa - 0.7Mpa
• Power: DC.6V
• Power Consumption: 0.5MW
• Detection Zone: Factory set 25cm/10" (based on standard inductive board)
• Ambient Temperature: 1 - 45 °C / 33.8 -113 °F
• Degree of protection by enclosure: 1P56
• Battery: 4 x 'AA' size cells
• Operational water pressure range: 0.05 - 0.6MPa
• US standard water supply pipe size: DN15 (G1/2")
• Ambient temperature range: 0.1 - 45ºC
• Sensing distance: 9.84" (25cm)
• Time delay: 0.5 seconds
• Operation duration: Power will automatically cut off after continuous use for 60 seconds
• Manufacturer Warranty: 10-Years
• Color: Chrome

Features

1. Infrared sensor operated, touch-free operation
2. Advanced energy-saving design for long-lasting battery life
3. Waterproof sensor
4. Battery low LED light indicator
5. Sensing distance adjusted automatically
6. Long life durable body
7. Advanced circuit design saves electricity and water

Sensor Tap Advantage

1. Conserves water
2. Saves energy during the water heating process
3. Hygienic, no-touch activation
4. Easy installation
5. Durable, solid all-brass construction
6. Built-in filter
7. ADA compliant Ideal for use by disabled people
8. Vandal resistant
9. Waterproof Components
