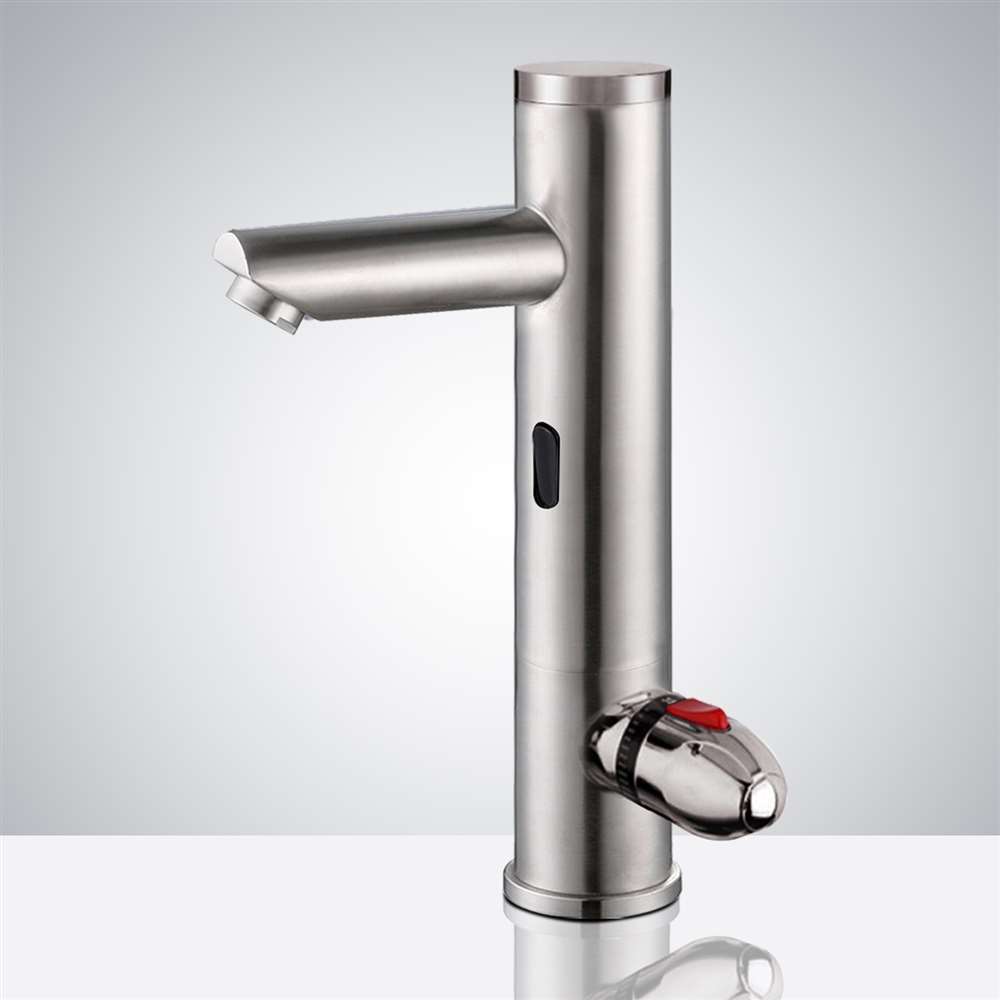

Fontana Brushed Nickel Commercial Temperature Control Automatic Sensor Faucet with Built-In Mixing Valve

This Automatic Sensor Faucet comes with thermostatic technology that controls the temperature fluctuations at the outlet, preventing scalding, and creating the desired temperature at the point of use. This automatic sensor faucet is available in a brushed nickel finish. The faucet features an integrated above-counter mixer built into the faucet body, a 2-8 inch sensor range, and a built-in brass solenoid. Maintenance for this sensor faucet is simple and can be performed in minimal time. The faucet is equipped with a sensor override and a 60-second time-out feature to prevent water waste.

Fontana Brushed Nickel Commercial Temperature Control Automatic Sensor Faucet FAQ

Thermostatic Mixing Technology, Infrared Sensor Control & Commercial Water Management

The Fontana F5129-BN is engineered with thermostatic temperature control, touchless infrared activation, an integrated mixing valve, and a solid brass body for demanding commercial restroom environments. :contentReference[oaicite:0]{index=0}

How does the thermostatic mixing valve prevent temperature fluctuations?

The thermostatic mixing valve continuously balances hot and cold water supplies to maintain a stable outlet temperature while reducing the risk of thermal shock and scalding. :contentReference[oaicite:1]{index=1}

How does the sensor system improve water efficiency?

The adjustable infrared sensor activates water flow only when hand presence is detected and incorporates an automatic timeout function to minimize unnecessary water consumption. :contentReference[oaicite:2]{index=2}

What operating pressure range is supported by the faucet?

The faucet is designed to operate within a pressure range of approximately 0.5 to 7 bar, ensuring compatibility with a wide variety of commercial plumbing systems. :contentReference[oaicite:3]{index=3}

Why is a built-in brass solenoid used in commercial sensor faucets?

The brass solenoid assembly provides reliable electronic flow control, corrosion resistance, and extended durability under continuous high-cycle operation. :contentReference[oaicite:4]{index=4}

• Brand Name: FontanaShowers®
• Model Number: F5129-BN
• Type: Touchless Bathroom Faucet
• Water Pressure: 0.5 to 7Bar
• Finish: Brushed Nickel
• Construction: Solid Brass
• Control Box : Included- Hardwired & Battery Operated
• Supply Hoses: Included
• Other Features: Vandal resistant
• Remote Control: Optional- Reset or Adjust the Sensing Distance or turn off/on
• Flow Rate: Built in Aerator Available from .5 GPM - 1.5 GPM
• Flow Rate Special: Customizable can be provided for any Water Flow Requirement
• Sensor Range: Adjustable
• Mounting Hardware: Included
• Power Supply: AC110V And DC6V
• Batteries Included: No
• Mixing Valve: Water Temperature Mixing Valve Available
• Mixing Valve Material: Solid Brass Thermostatic Mixing Valve Available
• Mixing Valve: Water Temperature Mixing Valve Available
• Mixing Valve Material: Solid Brass Thermostatic Mixing Valve Available
• Mixing Valve Material: Solid Brass Thermostatic Mixing Valve Available
• Mounting Type: Deck Mount
• Usage: Commercial
• Body Material: Brass
• Valve Body: Brass
• Usage: Commercial restrooms including high traffic bathroom facilities
• Touchless operation Hands-free operation Touchless restrooms operation ideal for commercial use applications in restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing.
