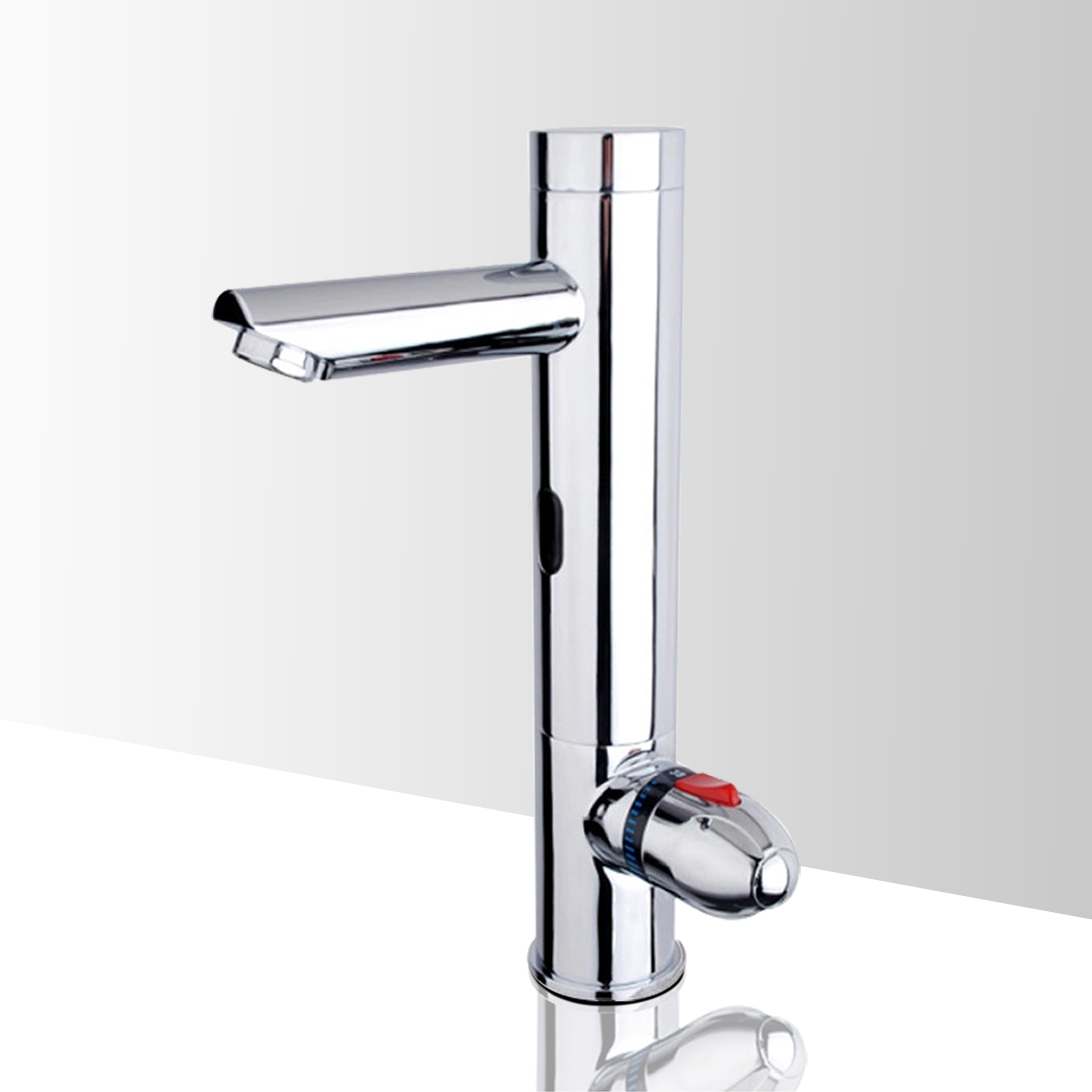

Milano Chrome Thermostatic Automatic Commercial Sensor Faucet
Milano Chrome Thermostatic Automatic Commercial Sensor Faucet
Leo Automatic Sensor Faucet



Alternative Views:


Retail Price: $793.58
Sale Price: $707.67
Savings: $85.91





Availability: Usually Ships in 5 to 10 Business Days
Product Code:
F5129SF
Qty:

Description Technical Specs Extended Information

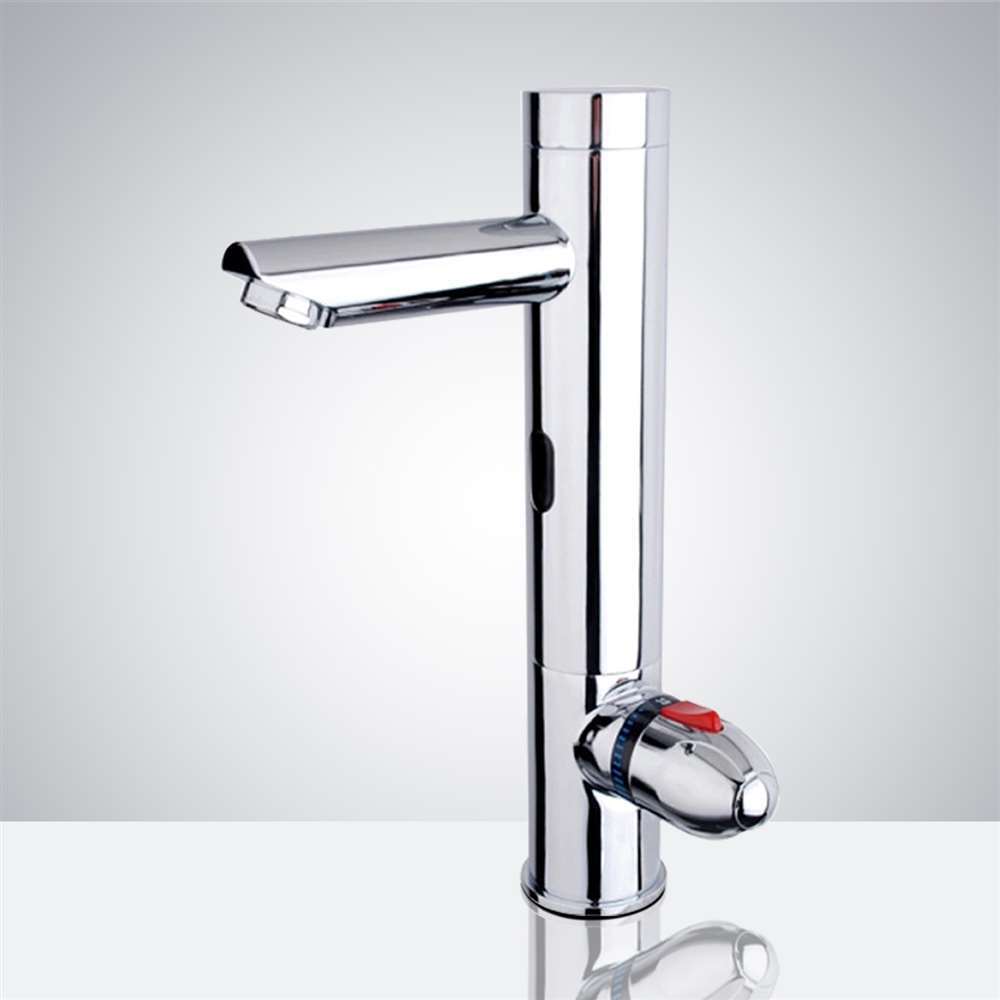

Milano Chrome Thermostatic Automatic Commercial Sensor Faucet

Milano All-in-one Thermostatic Automatic Commercial Sensor Faucet

Automatic Commercial Faucet with Integral Water Mixing Valve, Chrome Finish Thermostatic technology that controls the temperature fluctuations at the outlet, preventing scalding, while mixing the water at the desired temperature at the point of use.

The F5129SF lavatory faucet features an integrated above-counter mixer built into the faucet body, a 2-8 inch sensor range, and a built-in brass solenoid. Maintenance of the F5129SF is simple and can be performed in minimal time.

The faucet is equipped with a sensor override and a 60-second time-out feature to prevent floods. The Fontana® faucet line is certified to meet ASME A112.18.1/CSA B125.1.

These contemporary angel spout single post AC/DC operated faucets provide facilities with ultimate reliability and easy maintenance.

Perfect for hotels, private washrooms, and other public commercial lavatories. Sensor Faucet for Commercial use.

Touchless Operation Sensitive Sensor with Infrared AI Smart-Chip Factory set to 30-second Auto Shutoff (can be adjusted).

Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi Solid Brass Construction, Chrome Finish Easy to Install - Instructions Included Water resistant solenoid enclosure Advanced energy saving design for long-lasting battery life Comes complete with Hoses & Accessories Power Supply: AC110V And DC6V (batteries not included) AC/DC power option. ADA Complaint, commercial sensor faucet. Can be installed easily in new or upgraded retrofit commercial restrooms.

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow. Touchless operation Hands-free operation Touchless restrooms operation ideal for commercial use applications in restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing.

Sensor Activated Faucet Special Features:

  • Durable Vandal-Resistant Brass Body;
  • Touchless operation Hands-free operation Touchless restrooms operation ideal for commercial use applications in restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing.
  • Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
  • Flashing light indicator; diagnostic indicators for power up, low battery, and solenoid function. The meaning of the codes is described in the installation instructions.
  • Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • The faucet can be mounted to any sink surface.
  • ADA Compliant
  • Batteries life is 8,000 cycles per month and with enough water pressure is the approx 5-year service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4" to 5" from the sensor, it can be adjusted.
  • Usage: Commercial restrooms including high traffic bathroom facilities

Diameter of the inlet pipe DN15
Diameter of the outlet pipe DN15
Water Pressure 0.05Mpa - 0.7Mpa
Power DC.6V
Detection Zone Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature 1 - 45 ℃ / 33.8 -113 °F
Degree of protection by enclosure 1P56

Heavy Duty Lavatory Automatic Touchless Sensor Faucet, Solid Brass, Generally Suitable for

Heavy/Medium Traffic Commercial Applications.

  • Specifications: Overall Height: 7" (measured from countertop to the highest part of the faucet)
  • Spout Height: 3-1/2" (measured from countertop to the spout outlet)
  • Spout Reach: 4" (measured from the center of the faucet base to the center of the spout outlet)
  • Mounting Type: Single hole
  • Number of Holes Required for Installation: 1
  • Faucet Centers (Distance Between Handle Installation Holes): Single Hole
  • Flow Rate: 1.3 GPM (gallons-per-minute)
  • Maximum Deck Thickness: 1-5/8" Infrared sensor operation
