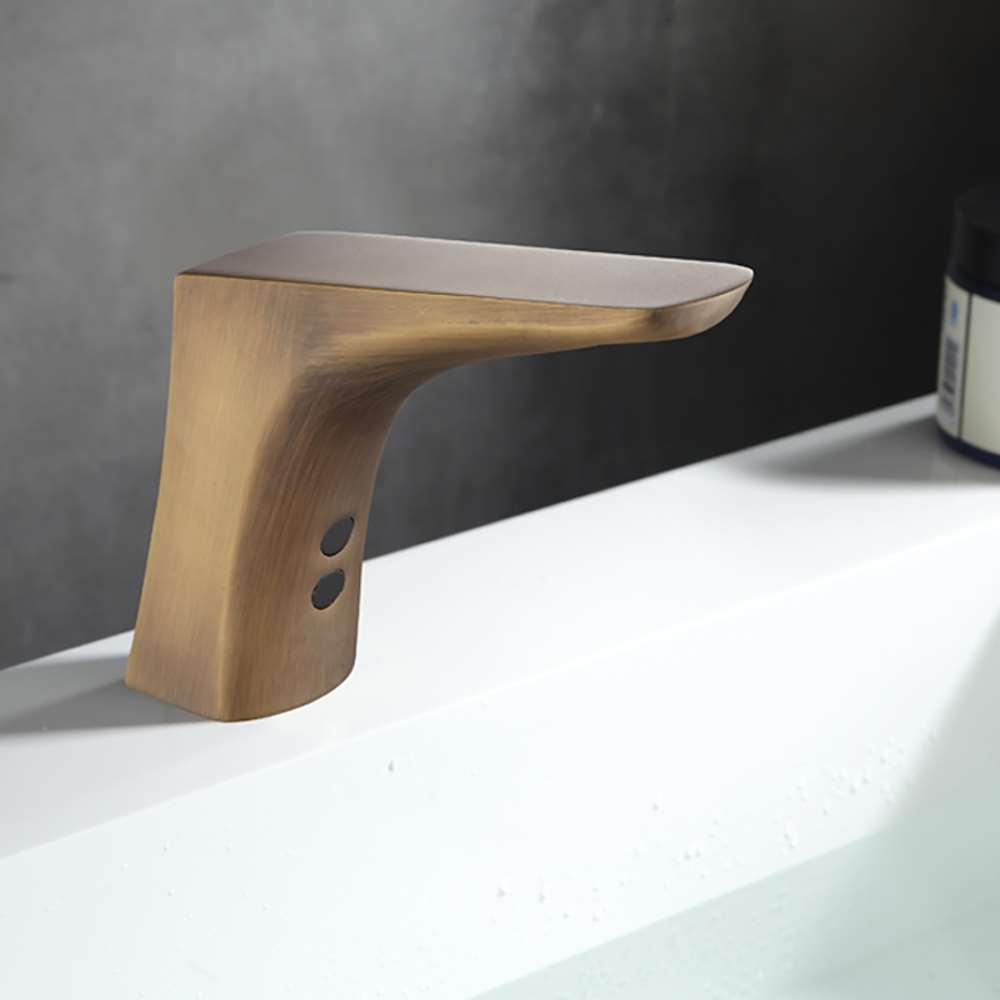

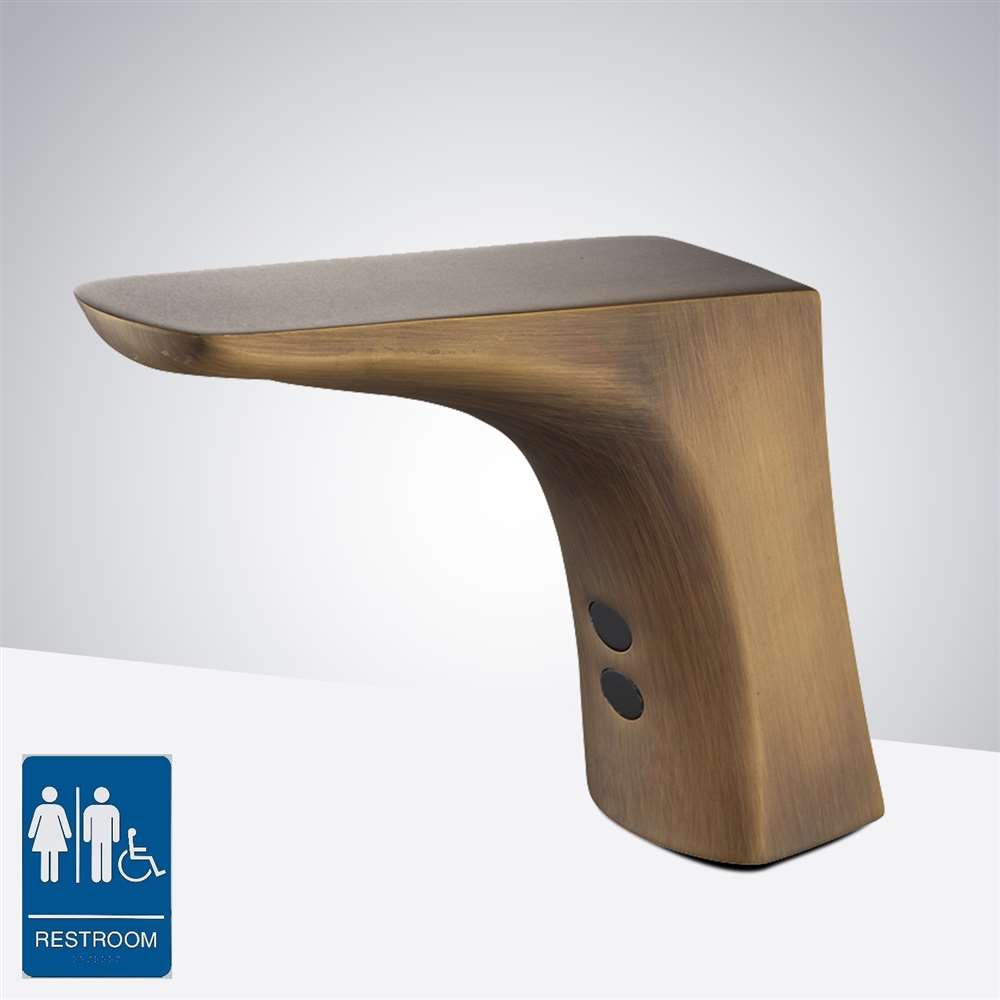

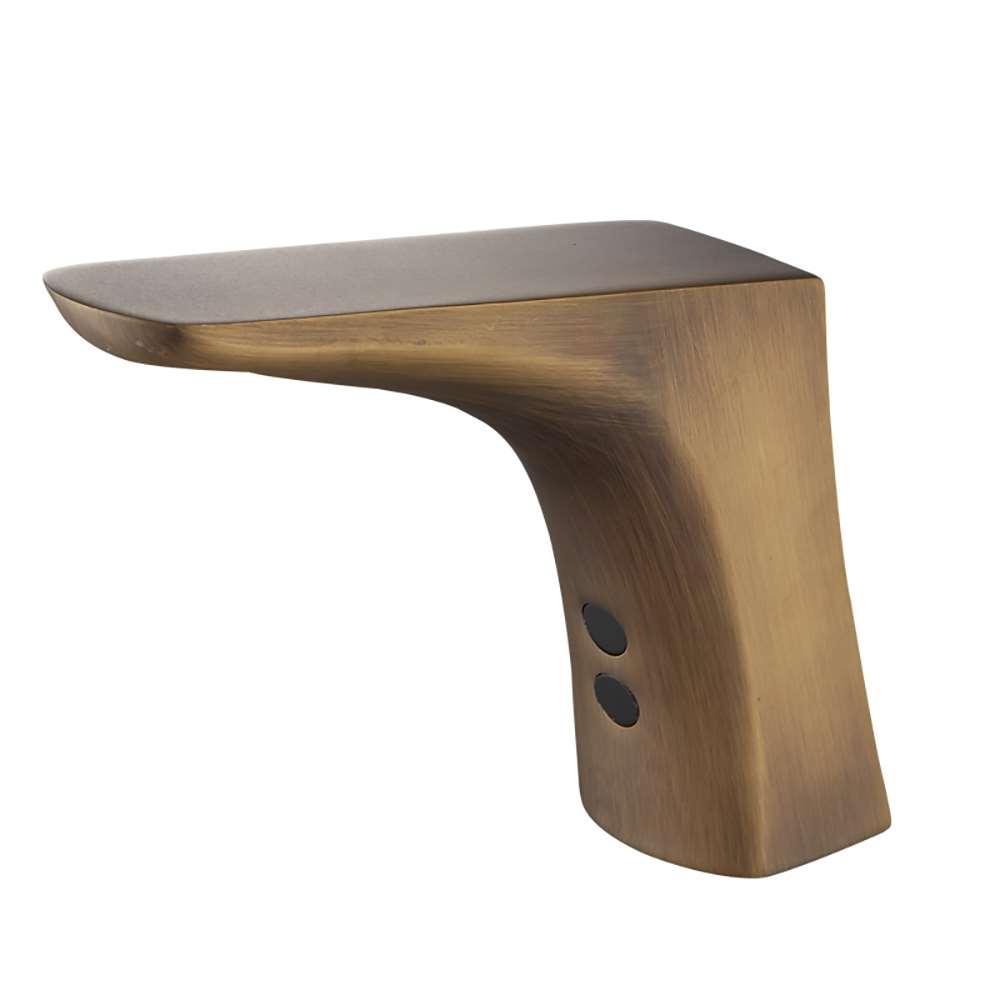

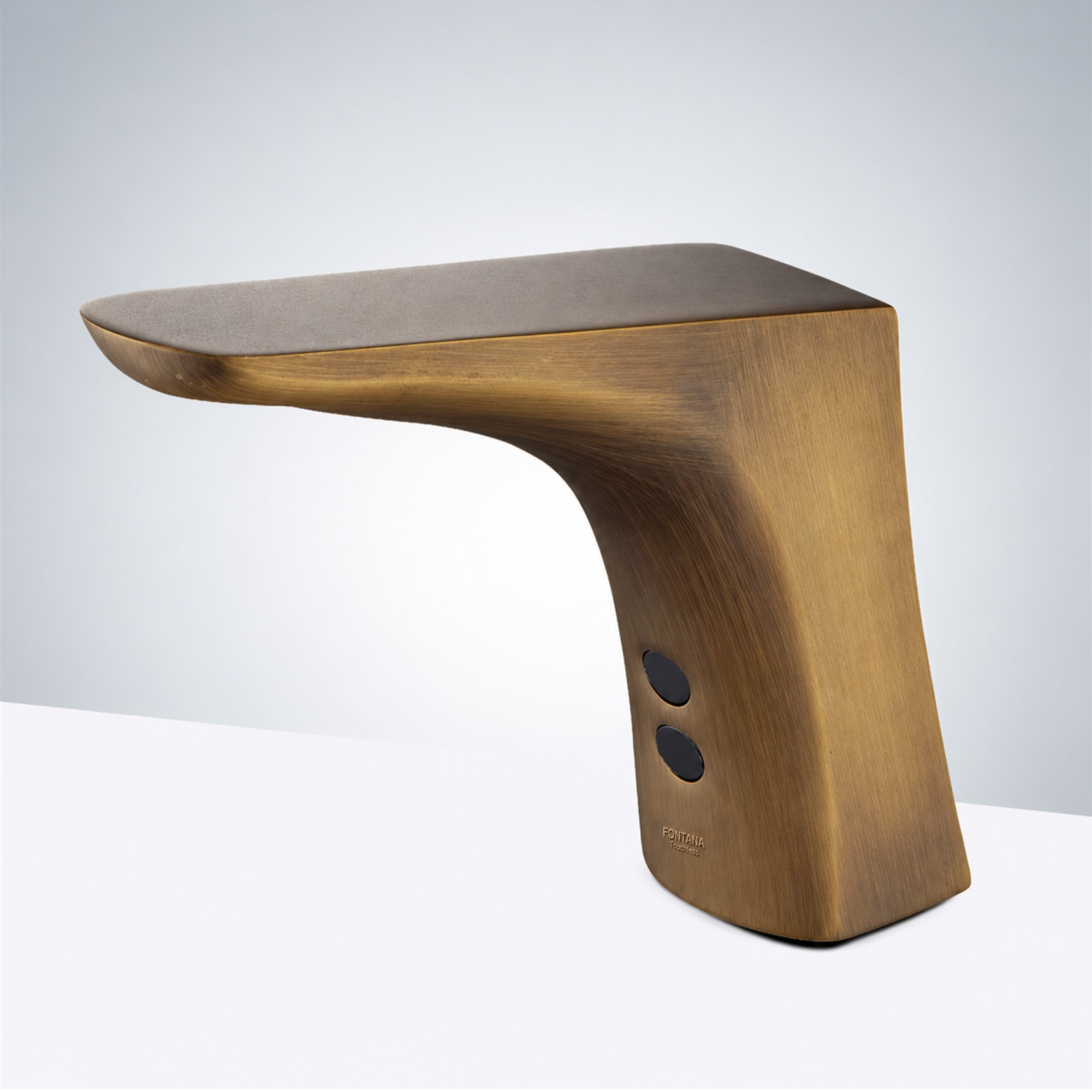

Enhance the elegance of your bathroom project with our Fontana Commercial Automatic Infrared Antique Bronze Deck Mount Touch Free Sensor Faucet. When it comes to new bathroom upgrades, FontanaShowers is offering the shape, finish, and style that you are looking for. It is our goal to provide customers with not only excellent products but also a leading lifestyle.
This is one of the trendiest finishes across bathroom design styles. The faucet has an elegant flowing ideal for hand washing and other everyday tasks. This has an elegant design and elevates the appeal of your decor made from the highest quality and for great taste. It comes with super seal technology inside, capable of delivering superior performance with solid construction for long durability that will upgrade your bathroom with a modern and cool look for a long period of time. Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing. Revit schedules enable side-by-side comparison of flow, power, and compliance attributes.
Fontana Commercial Antique Bronze Automatic Infrared Faucet FAQ
16–32 cm Adaptive Sensing, 1.5 GPM Flow;
Below-Deck Mixing & 30-Second Safety Timeout
The Fontana FS10141AB combines commercial infrared activation,
1.5 GPM delivery, AC/DC power, and below-deck temperature mixing.
How should the 16–32 cm sensor field be commissioned in a high-traffic restroom?
Complete sensor adjustment after the basin, mirror, lighting, and
countertop accessories are installed. Test repeated hand entry across
the 16–32 cm adjustable field and confirm opening in less than one
second. Reduce unnecessary range if reflective surfaces or adjacent
fixtures cause unintended activation.
How should the below-deck temperature mixer be commissioned?
Flush the hot and cold branches before connecting the below-deck
manual mixing valve. Establish the required mixed-water temperature
under normal dynamic pressure, then complete repeated sensor cycles.
Verify temperature stability and retain service access to the mixer
for future adjustment and maintenance.
What should be verified with the 1.5 GPM flow and G1/2-inch water path?
Confirm that the G1/2-inch supply connections are free of construction
debris and restrictions before final commissioning. Operate the faucet
repeatedly and verify stable 1.5 GPM delivery without valve chatter,
excessive splash, or pressure-related fluctuation. Inspect concealed
fittings for leakage under normal operating pressure.
How should the 30-second timeout and valve lifecycle be tested?
Hold a target continuously within the sensing field and verify the
factory-set 30-second maximum run period. After the target is removed,
closure should occur within approximately two seconds. The motor valve
is rated for up to 500,000 cycles, while the battery system is rated
for approximately 100,000 operating cycles.
Traditional Without Handles
Effortless installation
