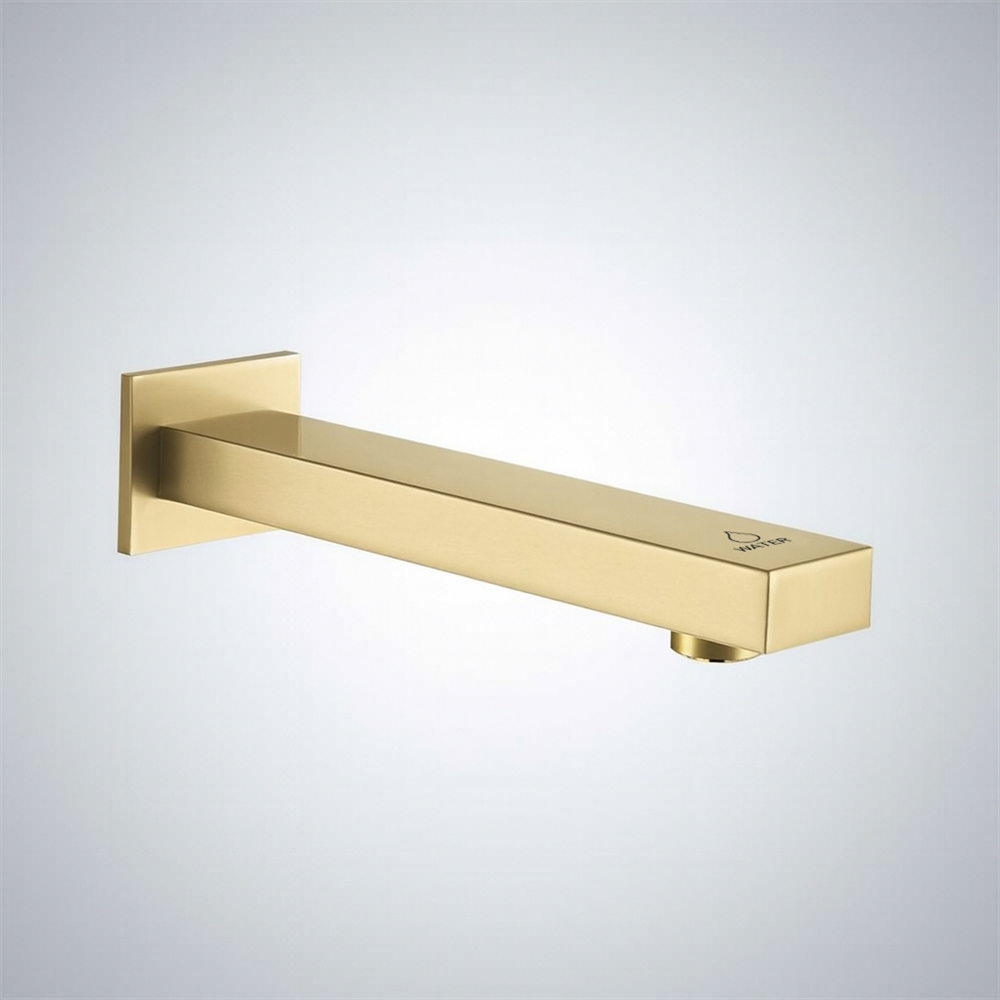

FontanaQuickFlow Champagne Autometic Wall Mounted Faucet

With its refinement and durability from a 24/48-hour salt spray test, the FontanaQuickFlow™ Champagne Automatic Wall Mounted Faucet is a premier commercial fixture which combines modern luxury style with a user-friendly design. Its brushed champagne finish gives the impression of perfection in satin, and great tolerance to use in high traffic public restrooms and commercial facilities. It is commercially sufficient for use in new builds and renovations with a single-hole wall mount option, and its modern-day look fits seamlessly in today's current interior. This arrives with an infrared sensor, which allows the faucet to operate without touching, also ensuring a hygienic environment by reducing the risk of cross-contamination. The ceramic valve core operates quietly and smoothly without leaking even when installed under applicable working pressure of 0.05 - 0.6MPa or working temperature of 0.1 to 50℃. All configurations of installations are crafted, making it DC, AC, or hybrid-ready in electric construction. It sensing distance is 6.30 inches to 12.60 inches (16cm to 32cm), and the response time from sensing to the faucet activating is very fast, coming in at half a second, or five times faster than a fast food service. It is also ADA Compliant and will not only provide a clean and responsive sanitary operation but, also beautify every day commercial spaces with a new modern design.

• Brand Name: FontanaShowers®
• Model Number: FS9825CP
• Finish: Champagne
• Type: Sensor Faucet
• Surface Treatment: Brushed
• Faucet Mount: Single Hole
• Installation Type: Wall Mounted
• Style: Contemporary
• Valve Core Material: Ceramic
• Sensor: Infrared Sensor
• Power Supply: DC or AC
• Sensing Distance: 6.30-12.60 inches (16-32 cm)
• Water Pressure: 0.05-0.6MPa
• Operating Temperature: 0.1-50℃
• Usage: Commercial
• Tap Height: 0.7874" (20 mm)
• Tap Width: 1.5748" (40 mm)
• Tap Depth: 8.6614" (220 mm)
• Motor Case Height: 5.7087" (145 mm)
• Motor Case Width: 4.5866" (116.5 mm)
• Motor Case Depth: 3.3661" (85.5 mm)
• ADA Compliant
