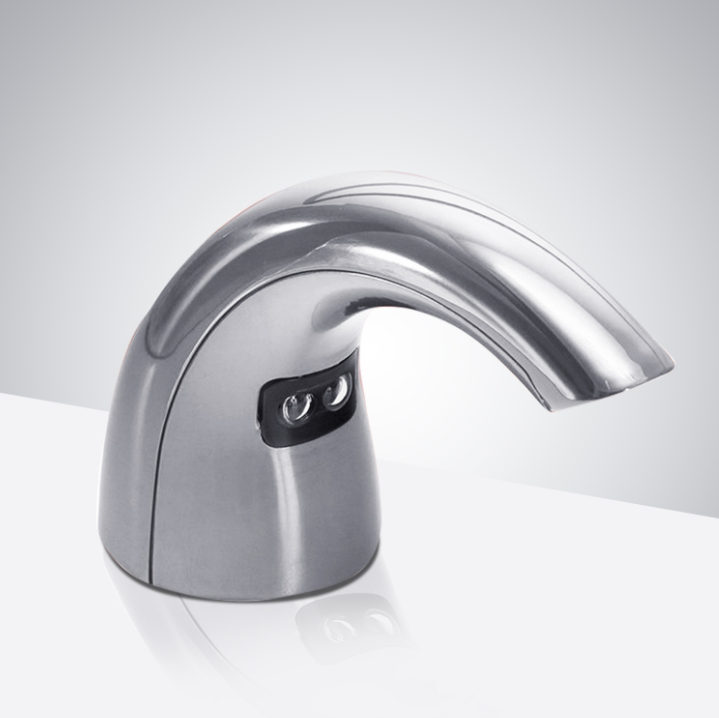

Fontana Commercial Stainless Steel Automatic Chrome Soap Dispenser

This Fontana Commercial Stainless Steel Automatic Chrome Soap Dispenser is ideal for bathroom applications where soap dispensers are an intricate component of the overall interior design elements. This soap touchless dispenser is designed for above sink installation and use. It is installed in the sink vicinity near the faucet. It is available in battery power or optional ac power. Soap is refillable from below the counter. Comes with built-in accurate infrared motion sensor detection technology that detects your hand within one pass and automatically pumps the specified amount of soap with the touch-free operation.

Fontana Commercial Stainless Steel Automatic Chrome Soap Dispenser FAQ

Infrared Soap Dispensing Technology, Stainless Steel Construction & Below-Counter Refill System

The Fontana FB507-SD is a stainless steel automatic soap dispenser featuring infrared motion detection, touchless operation, and a below-counter refill design for commercial washroom applications. :contentReference[oaicite:4]{index=4}

How does the infrared motion sensor improve dispensing accuracy?

The built-in infrared sensor detects hand placement beneath the dispenser and delivers a controlled amount of soap during each activation cycle. :contentReference[oaicite:5]{index=5}

What benefit does the below-counter refill system provide?

The reservoir can be refilled beneath the countertop, reducing visible maintenance activity and supporting cleaner countertop aesthetics. :contentReference[oaicite:6]{index=6}

Can the dispenser operate on both battery and AC power?

Yes, the dispenser supports battery operation and optional AC power configurations to accommodate different installation requirements. :contentReference[oaicite:7]{index=7}

Why is stainless steel preferred for commercial soap dispensers?

Stainless steel provides superior corrosion resistance, structural durability, and simplified cleaning in high-use public washroom environments. :contentReference[oaicite:8]{index=8}

Fontana Commercial Stainless Steel Automatic Chrome Soap Dispenser Features:

• Brand Name: FontanaShowers®
• Model Number: FB507-SD
• Type: Soap Dispenser
• Installation Type: Deck Mount
• Finish: Chrome
• Spout Material: Solid Brass
• Power: 4 (D) Batteries / AC Adapter Optional
• Soap Pump: 6 Volt Noise-Free Peristaltic Pump System
• Sensor type: Active Infrared, Self-Adjusting
• Sensing Range: 2” to 6” Adjustable with optional remote control
• Working Soap: Standard liquid Soap
• Soap Bottle Capacity: 800ML(optional 1 gallon containers)
• Soap Amount Per Use: 0.5ML to 1.5ML(adjustable)
• Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all US Standard plumbing.
