Fontana Cork Matte Black Basin Faucet FAQ
G1/2 Supply Connections, Ceramic Mixing & Widespread Deck Alignment

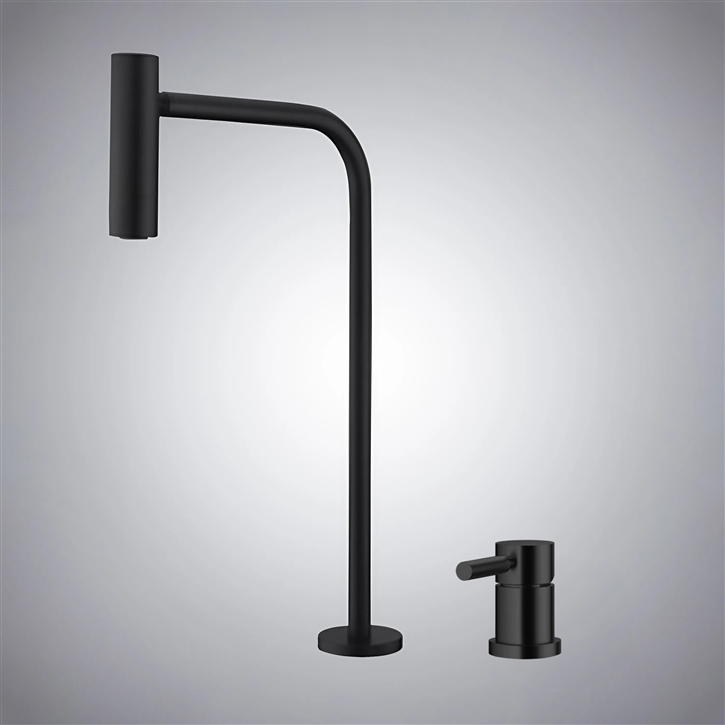

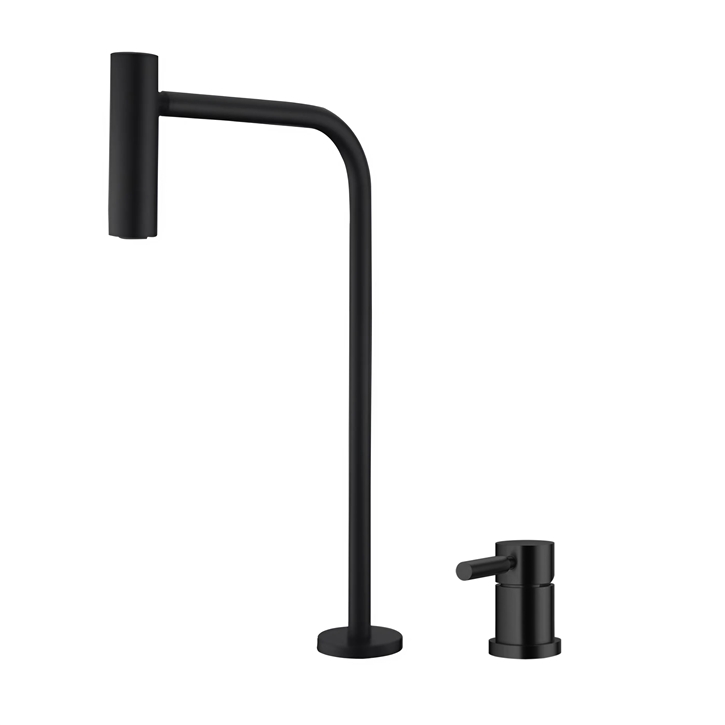

This matte black deck-mounted basin faucet combines a separate single-handle mixer,
elevated curved spout, ceramic valve core, and G1/2 hot-and-cold supply connections.
How should the spout and mixer openings be coordinated before drilling?
Confirm the approved center spacing against the installation template, provide sufficient clearance beneath the countertop for both mounting assemblies, and align the spout outlet with the basin drainage zone before drilling.
How should the G1/2 hot and cold connections be commissioned?
Flush both supply lines independently, connect each feed to its designated mixer inlet, open the isolation valves gradually, and inspect all threaded joints under static and flowing pressure.
What should be checked when testing the ceramic mixing valve?
Cycle the single-handle control through its full operating range, verify smooth movement and progressive temperature blending, and inspect the cartridge housing and supply connections for seepage.
How should the elevated spout be aligned before final tightening?
Position the 9.45-inch-reach outlet over the basin’s effective drainage area, confirm the 11.42-inch spout height does not produce excessive splash, and tighten the mounting hardware without rotating the supply tubing.
