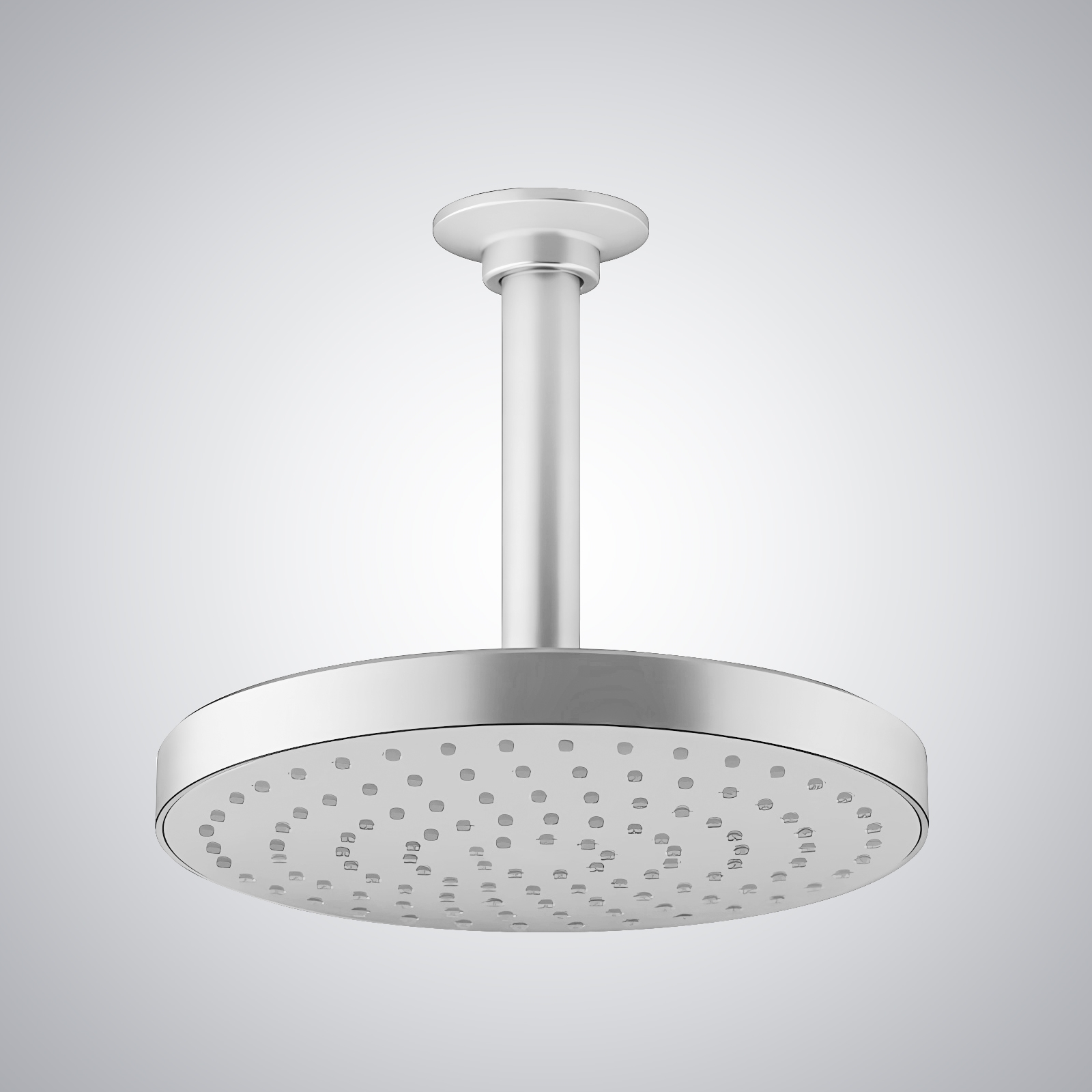

Fontana Creteil Matte White Round Rain Shower Head FAQ
1/2-Inch NPT Rough-In, 1.75 GPM Delivery; Matte White Spray-Face Commissioning
The Fontana Creteil Matte White round rain shower head combines a 9.87-inch metal spray face, single-function 1.75 GPM rainfall delivery, MasterClean easy-service nozzles, and an adjustable swivel connection for wall- or ceiling-arm installation.
How should the shower branch be flushed before final installation?
Operate the open 1/2-inch supply branch until pipe scale, solder residue, sealing debris, and construction sediment are completely discharged, preventing blockage within the flow regulator or individual MasterClean spray outlets.
How should the 1.75 GPM rainfall output be validated?
Test the shower head under stabilized dynamic pressure using a timed volumetric collection, then confirm consistent discharge across the center and perimeter nozzles without pulsing, restricted zones, or excessive stream concentration.
What prevents damage to the Matte White finish during tightening?
Apply installation torque only at the protected threaded inlet using non-marring tools, and avoid gripping the painted spray-face rim or using the swivel joint as leverage when securing the 1/2-inch NPT connection.
How should uneven spray patterns be corrected after commissioning?
Flex and wipe the affected MasterClean nozzles to dislodge mineral accumulation, then repeat the branch flush and inspect the inlet screen or flow-control passage if weak outer streams or inactive outlets remain.
