Fontana Creteil Brushed Gold Round Rain Shower Head FAQ
Branch-Line Flushing, Spray-Field Calibration; Brushed Gold Finish Care

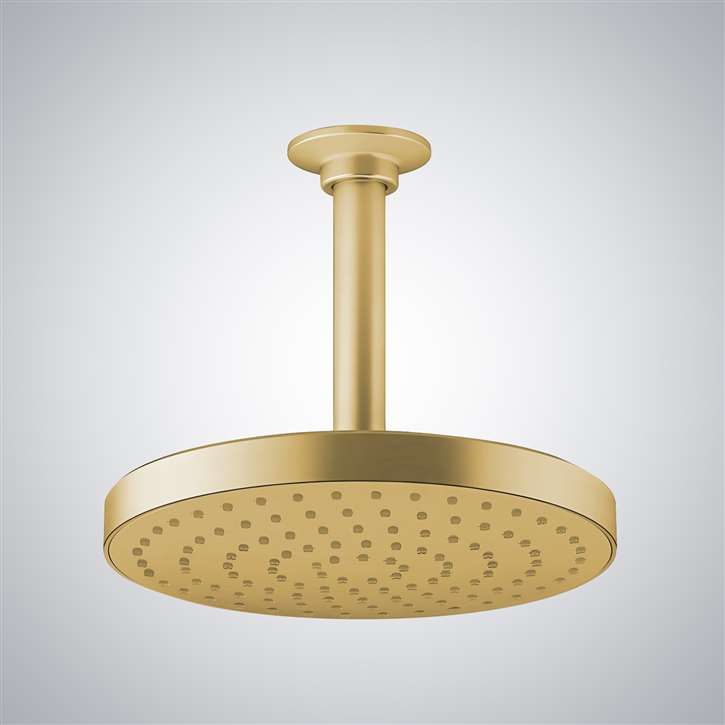

The Fontana Creteil Brushed Gold round rain shower head features a 9.87-inch metal spray face, single-function 1.75 GPM rainfall delivery, MasterClean easy-service nozzles, an adjustable swivel connection, and a standard 1/2-inch NPT inlet.
Why must the shower branch be flushed before connecting the Creteil head?
Flush the open 1/2-inch NPT branch until pipe scale, solder particles, construction sediment, and excess thread compound are fully removed. Debris entering the internal distribution chamber can restrict individual outlets and create weak or uneven rainfall coverage.
How should the inlet connection be tightened without transferring torque into the swivel?
Apply approved thread sealant sparingly and tighten through the shower-arm flats or concealed inlet fitting. Do not rotate the finished shower-head body as a tightening lever, because excessive torque can mark the Brushed Gold surface and place side-loading on the adjustable joint.
What operating conditions are needed to confirm the rated 1.75 GPM flow?
Allow the water temperature and dynamic pressure to stabilize, purge trapped air, and perform a timed volumetric collection test. Reduced delivery may indicate branch-line pressure loss, an upstream valve restriction, residual debris, or a partially obstructed inlet passage.
How should the MasterClean nozzle field be commissioned after installation?
Confirm that water discharges evenly from the center through the outer nozzle rings without inactive outlets, concentrated streams, pulsing, or weak perimeter flow. Gently flex restricted nozzles, repeat the supply flush, and retest the complete spray pattern.
