How should the FS-1198MBN integrated mounting box be positioned for an accurate concealed installation?

Secure the factory-supplied mounting box to rigid wall framing before waterproofing begins. Verify the specified rough-in depth, maintain horizontal and vertical alignment, and ensure the Brushed Nickel touch-button trim will sit flush against the finished wall without placing stress on the concealed valve assembly.

What commissioning procedure should be completed before activating the thermostatic touch-button controls?

Flush both hot and cold supply lines thoroughly to remove construction debris, solder particles, and sealing compounds before operating the mixer. Activate each touch-button function individually while cycling the ceramic valve core to verify smooth switching, consistent thermostatic control, and leak-free operation.

How can installers confirm proper hydraulic separation between the rainfall, hand shower, and spout outlets?

Operate each of the three water outlets independently using the touch-button controls while monitoring inactive circuits. Proper commissioning confirms complete hydraulic isolation, balanced outlet pressure, stable discharge, and the absence of cross-port leakage or unintended simultaneous water delivery.

Why is the removable service-box configuration important for lifecycle maintenance?

The concealed service-box design provides direct access to the ceramic valve core, thermostatic cartridge, and switching mechanism without removing finished tile or damaging waterproofing. This significantly reduces maintenance downtime while simplifying inspection, replacement, and preventive servicing throughout the product's operating life.

How should the ceramic valve core and touch-button switching mechanism be evaluated during acceptance testing?

Cycle the valve repeatedly through every operating sequence while monitoring button responsiveness, ceramic sealing integrity, switching precision, and operating force. Proper performance is verified when every outlet changes smoothly without sticking, delayed engagement, leakage, or inconsistent hydraulic response.

How can thermostatic stability be verified under varying inlet supply conditions?

Operate the mixer while introducing controlled changes in hot and cold inlet pressures and sequentially selecting each outlet. The auto-thermostatic control should maintain consistent mixed-water temperature with rapid recovery, balanced flow distribution, and no noticeable thermal overshoot or fluctuation.

What maintenance practices help preserve the Brushed Nickel finish and internal thermostatic components?

Clean the Brushed Nickel surfaces using a soft microfiber cloth with a pH-neutral cleaner while avoiding abrasive materials, acidic descalers, bleach, and ammonia-based products. Periodically flush the plumbing system to minimize mineral deposits that could affect the ceramic valve core, thermostatic cartridge, and internal switching assembly.

Which final commissioning inspections confirm the FS-1198MBN is ready for commercial operation?

Final acceptance should verify leak-free concealed pipe connections, correct mounting-box alignment, accurate touch-button response, reliable three-way outlet selection, stable thermostatic temperature regulation, smooth ceramic valve performance, flush trim installation, and repeatable hydraulic performance during extended functional testing.

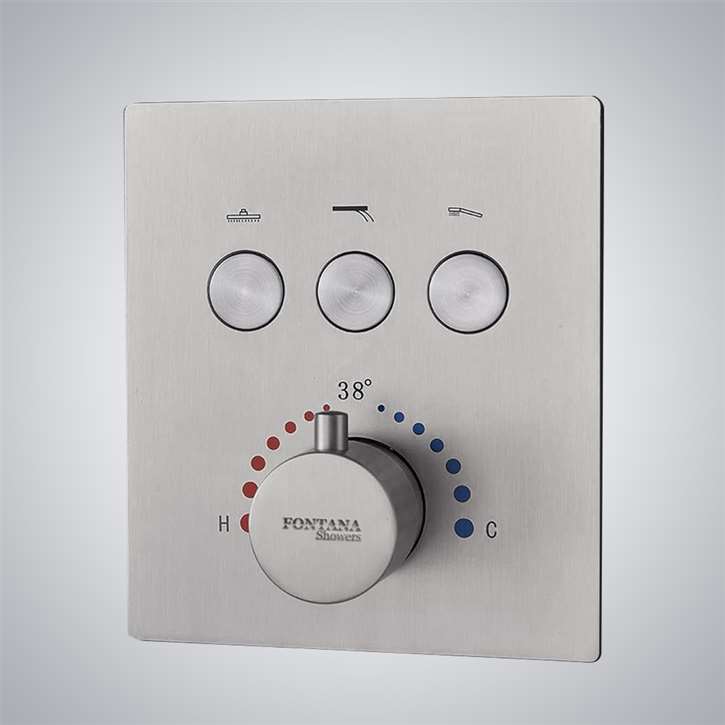

Fontana Lima In Brushed Nickel Touch Button Thermostatic 3-Way Concealed Brass Shower Mixer

Alternative Views:

Availability: Project Pricing Available Request Quote

Product Code: FS-1198MBN

Request Quote

Description

Technical Specs

Chrome

Gold

Brushed Gold

Rose Gold

Oil Rubbed Bronze

Champagne

Matte White

Matte Black

Gun Metal Gray

Fontana Lima In Brushed Nickel Touch Button Thermostatic 3-Way Concealed Brass Shower Mixer

Elevate the refinement of your bathroom project with the Fontana Lima In Brushed Nickel Touch Button Thermostatic 3-Way Concealed Brass Shower Mixer, embodying the epitome of contemporary bathroom design trends. This mixer boasts a captivating and chic design, skillfully crafted from premium materials to enhance the allure of your decor. With super-seal technology ensuring superior performance and robust construction guaranteeing enduring durability, it promises to infuse modern and stylish aesthetics into your bathroom for an extended period. Crafted to be the focal point in modern bathrooms, the Fontana Lima In Brushed Nickel Touch Button Thermostatic 3-Way Concealed Brass Shower Mixer seamlessly merges aesthetic appeal with cutting-edge technology. The concealed brass shower mixer not only introduces an element of elegance to your decor but also reflects a dedication to quality craftsmanship. With its innovative touch-button operation, this mixer ensures convenience and precise control over water temperature and flow. Fontana Lima In Brushed Nickel Touch Button Thermostatic 3-Way Concealed Brass Shower Mixer provides a distinctive fusion of style and functionality, enabling you to transform your bathroom into a luxurious sanctuary that withstands the test of time. Stay on-trend and elevate your bathing experience with FontanaShowers.

Fontana Lima In Brushed Nickel Touch Button Thermostatic 3-Way Concealed Brass Shower Mixer Features:

Brand Name: FontanaShowers
Model Number: FS-1198MBN
Type: Shower Mixer
Valve Core Material: Ceramic
Style: Contemporary
Type: Fixed Support Type
Number of Handles: Single Handle
Size: 7.91-11.81" (201-300mm)
Feature: Thermostatic Shower Valve
Specification: Shower Mixer available in Revit Families, and BIM Object
Finish: Brushed Nickel
Material: Solid Brass
Control Type: Auto-Thermostat Control
Mixing Valve Water Way 1: Rainfall
Mixing Valve Water Way 2: Hand Shower
Mixing Valve Water Way 3: Spout
Mixing Valve Function 1: Comes with mount Box
Mixing Valve function 2: No need remove the wall when maintance
Mixing Valve: Shower Switch
Shower Switch Valve: Brass Shower Switch Valve
Mixing Valve Switch: Concealed Shower Valve
Installation Type: Wall Mount

Fontana Lima In Brushed Nickel Touch Button Thermostatic 3-Way Concealed Brass Shower Mixer

Features

Fontana Lima Brushed Nickel Touch-Button Thermostatic Mixer FAQ

Three-Way Outlet Routing, Thermostatic Balancing & Service-Box Access

This brushed nickel concealed shower mixer combines solid brass construction, automatic thermostatic regulation, and three independently controlled water outlets.

How should the three concealed water outlets be assigned?

Route and label the rainfall, hand-shower, and spout branches during rough-in, then verify that each touch button operates its designated outlet before waterproofing and wall closure.

How should the thermostatic cartridge be commissioned?

Flush the hot and cold supplies independently, establish balanced inlet pressure, and verify stable mixed-water temperature while each outlet is operated under normal flow conditions.

How should the brass shower-switch valves be tested?

Cycle every touch-button control repeatedly and confirm positive engagement, complete shutoff, correct outlet indexing, and no hydraulic communication between inactive branches.

What service clearance must remain after installation?

Keep the supplied mounting box accessible so the thermostatic cartridge, shower-switch valves, internal seals, and control components can be serviced without removing the finished wall.
