How should the FS-1186 concealed five-function thermostatic mixer be rough-installed to ensure proper valve accessibility and trim alignment?

Install the brass valve body within the manufacturer's rough-in tolerance while considering the complete finished wall assembly, including waterproof membrane and tile thickness. Secure the valve rigidly so all six control shafts remain centered and aligned with the trim plate, allowing unrestricted operation after wall completion.

How should the 3/4-inch water inlet and 1/2-inch outlet connections be commissioned for balanced hydraulic performance?

Flush all supply piping before valve installation, connect the 3/4-inch inlet and each 1/2-inch outlet using approved sealing methods, then conduct both static and flowing pressure tests. Confirm uniform pressure distribution across all five outlet circuits without measurable leakage or pressure imbalance.

What procedure verifies accurate operation of the five-function diverter assembly during commissioning?

Operate every shower function individually and then through all manufacturer-approved outlet combinations while monitoring flow transition, outlet isolation, and hydraulic stability. Proper commissioning confirms smooth switching without internal crossover or unintended activation of inactive outlets.

How should the thermostatic cartridge be calibrated to maintain consistent mixed-water delivery?

Allow both water supplies to stabilize at normal operating conditions before measuring discharge temperature with a calibrated thermometer. Adjust the thermostatic reference setting until the selected temperature matches the measured outlet, then verify stability by introducing controlled inlet pressure variations.

Why is ceramic valve core performance testing important on a multi-function shower mixer?

Repeated operation confirms that the ceramic sealing surfaces provide smooth modulation, precise flow regulation, and positive shutoff across every outlet selection. This testing also identifies contamination or installation-related resistance before the concealed assembly is placed into continuous service.

How can installers confirm hydraulic balancing across all five shower outlets?

Measure outlet flow consistency while sequentially activating each function and approved outlet combinations. Balanced hydraulic performance is demonstrated by stable discharge, minimal pressure fluctuation, rapid thermostatic recovery, and equal distribution without excessive restriction between individual circuits.

What preventive maintenance helps preserve long-term thermostatic accuracy and diverter reliability?

Inspect inlet strainers periodically, flush mineral deposits from the supply system when required, verify unrestricted movement of all six control knobs, clean exposed trim with pH-neutral nonabrasive cleaners, and confirm thermostatic response during scheduled maintenance intervals.

Which final acceptance inspections verify the FS-1186 is ready for commercial service?

Acceptance should verify secure concealed mounting, leak-free 3/4-inch inlet and 1/2-inch outlet connections, accurate thermostatic calibration, dependable ceramic valve performance, smooth six-knob operation, correct five-function outlet sequencing, stable hydraulic balancing, and repeatable temperature control under extended operational testing.

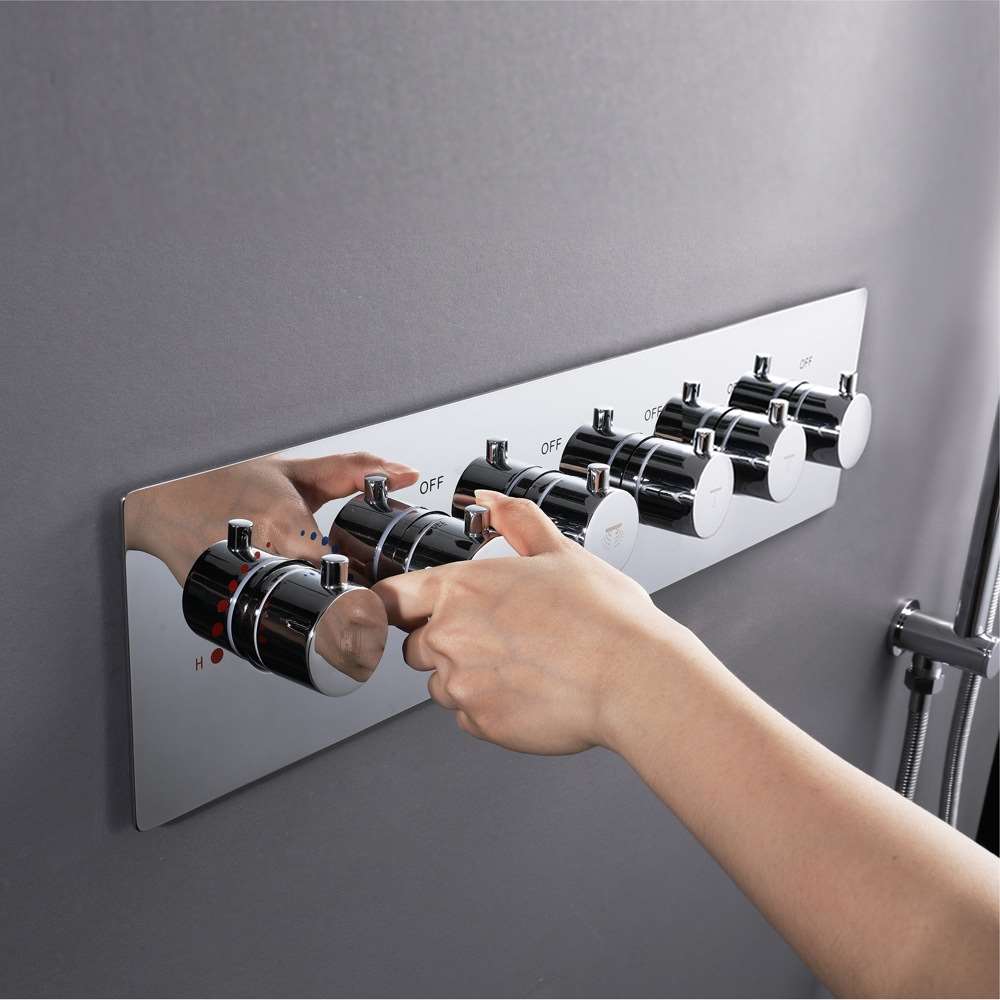

Fontana Shower Five Function Shower Mixer Thermostatic Valve

Alternative Views:

Retail Price: $1,344.00

Sale Price: $943.84

Savings: $400.16

Availability: Usually Ships in 2 to 3 Weeks

Product Code: FS-1186

Qty:

Description

Technical Specs

Extended Information

Fontana Shower Five Function Shower Mixer Thermostatic Valve

This Fontana Shower Mixer is capable of delivering superior performance with a solid construction for long durability that will upgrade your bathroom with a modern and cool look for a long period of time. When it comes to new bathroom upgrades, Fontana Showers offers shape, finishes and styles that you've been looking for.

Fontana Shower Five Function Shower Mixer Thermostatic Valve Features:

Brand Name: FontanaShowers

Model Number: FS-1186

Type: Shower Mixer Valve

Surface Finish: Brass

Surface Treatment: Polished

Valve Core Material: Ceramic

Type: Fixed Support Type

Feature: Auto-Thermostat Control

Style: Contemporary

Size: 201-300mm

Number of Handles: 6 Knobs

Type: Wall Mounted

Strong Anti-Corrosion

High Quality

Water inlet Thread size: 3/4 Inch

Water outlet Thread size: 1/2 Inch

Features

Fontana Shower Five Function Shower Mixer Thermostatic Valve

Five-Outlet Thermostatic Distribution, Six-Handle Control & High-Capacity Hydraulic Management

Built for sophisticated concealed shower installations, this five-function thermostatic mixer integrates a six-handle control system, precision ceramic valve technology, and engineered brass waterways to independently regulate five shower outlets while maintaining stable mixed-water temperature.

How does the six-handle configuration optimize multi-function shower operation?

A dedicated thermostatic control manages water temperature while five independent outlet controls allow precise activation of each connected shower function without disturbing the selected temperature setting.

What enables the mixer to supply five shower outlets efficiently?

The solid brass valve body incorporates dedicated internal hydraulic passages that distribute mixed water evenly across five independent outlet circuits while reducing flow interference between activated functions. :contentReference[oaicite:1]{index=1}

Why are 3/4-inch water inlets paired with 1/2-inch outlet connections?

The larger 3/4-inch inlet capacity improves water supply to the thermostatic mixing chamber, while standardized 1/2-inch outlet connections simplify integration with concealed shower components and branch circuits. :contentReference[oaicite:2]{index=2}

How do ceramic valve cartridges improve long-term control accuracy?

Precision ceramic sealing discs resist wear, maintain smooth rotational movement, provide dependable shutoff performance, and support accurate outlet regulation during frequent multi-function switching cycles.
