How should the FS-1200DP concealed brass valve body be coordinated with the finished-wall datum during rough-in?

Establish the final tile and substrate thickness before fixing the concealed mixer to rigid framing. Position the valve body within the manufacturer’s installation envelope, keep the control axis square to the wall, and confirm that the Black trim can seat uniformly without compressing the waterproofing or loading the connected pipework.

What flushing sequence protects the internal thermostatic and three-function switching components during startup?

Flush the hot and cold branches separately before connecting them to the mixer, then purge each outlet line independently. This removes flux, scale, thread-sealant fragments, and construction debris that could obstruct the thermostatic element, score ceramic sealing surfaces, or prevent complete closure of the three outlet ports.

How should the three outlet circuits be identified and verified before the trim assembly is installed?

Label every concealed outlet branch and operate the selector through each indexed position while the wall remains accessible. Confirm that each control position supplies the intended fixture, inactive branches remain isolated, and the routing does not create reversed functions or cross-connections that would complicate final commissioning.

What hydraulic test reveals excessive downstream resistance in one of the three shower functions?

Operate each outlet separately at the same inlet conditions and compare discharge stability, pressure behavior, and temperature recovery. A significant reduction at one function may indicate undersized piping, restrictive fittings, blocked strainers, or an outlet device whose flow demand is incompatible with the branch design.

How can installers confirm that the thermostatic mechanism responds correctly during simultaneous building demand?

Monitor mixed-water temperature with a calibrated thermometer while another nearby fixture is opened and closed to create controlled supply disturbances. The FS-1200DP should limit temperature deviation, recover promptly, and avoid sustained oscillation while any one of the three selected outlets remains in operation.

What pressure-testing procedure should be completed before waterproofing conceals the valve assembly?

Cap all three outlet branches and test the concealed hot, cold, and mixed-water connections under the pressure required by the project specification. After the static test, conduct a flowing test through each function and inspect the brass body interfaces, threaded joints, and branch connections for leakage, movement, or pressure decay.

How should the three-function selector be assessed for repeatability during acceptance testing?

Cycle the selector through every function repeatedly while observing indexing force, port isolation, residual discharge, and return consistency. Acceptance requires positive engagement at each position, no unintended flow from inactive outlets, and no increase in operating resistance that could indicate debris or misalignment inside the switching assembly.

Which records should be included in the final commissioning documentation for the FS-1200DP?

Document the installed depth, supply orientation, outlet assignments, pressure-test results, temperature-response measurements, selector-cycle results, and service-access condition. Final records should also confirm secure trim attachment, uniform Black finish condition, complete outlet isolation, and stable operation during an extended three-function performance test.

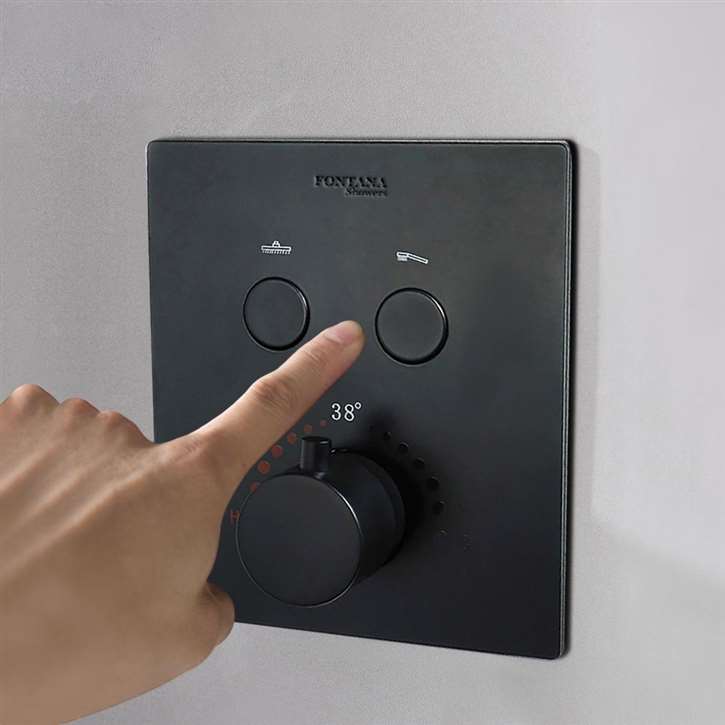

Fontana Showers Bathroom Faucet Brass Concealed Mixer built-in Thermostat 3 function Mixer, Black

Fontana Showers Bathroom Faucet Brass Concealed Thermostat Mixer 3 function Black

Alternative Views:

Retail Price: $843.60

Commercial Price $638.06

Savings: $205.54

Availability: Project Pricing Available Request Quote

Product Code: FS-1200DP

Qty:

Description

Technical Specs

Extended Information

Chrome

Fontana Showers Bathroom Faucet Brass Concealed Mixer built-in Thermostat 3 Function Mixer, Black Finish

This Fontana Shower Mixer is capable of delivering superior performance with a solid construction for long durability that will upgrade your bathroom with a modern and cool look for a long period of time. When it comes to new bathroom upgrades, FontanaShowers offers shape, finishes and styles that you've been looking for.

Fontana Showers Bathroom Faucet Brass Concealed Mixer built-in Thermostat Mixer Features:

Brand Name: FontanaShowers

Model Number: FS-1200DP

Finish : Black

Size : 131-200mm

Shower Valve Functions: 3

Installation: Wall Mounted

Cold/Hot Water Control Type: Auto-Thermostat Control

Material: Brass

Style: Contemporary

Quantity: 1 Pc

Features

Fontana Black 3-Function Thermostatic Mixer FAQ

Three-Way Outlet Routing, 38°C Calibration & Concealed Valve Testing

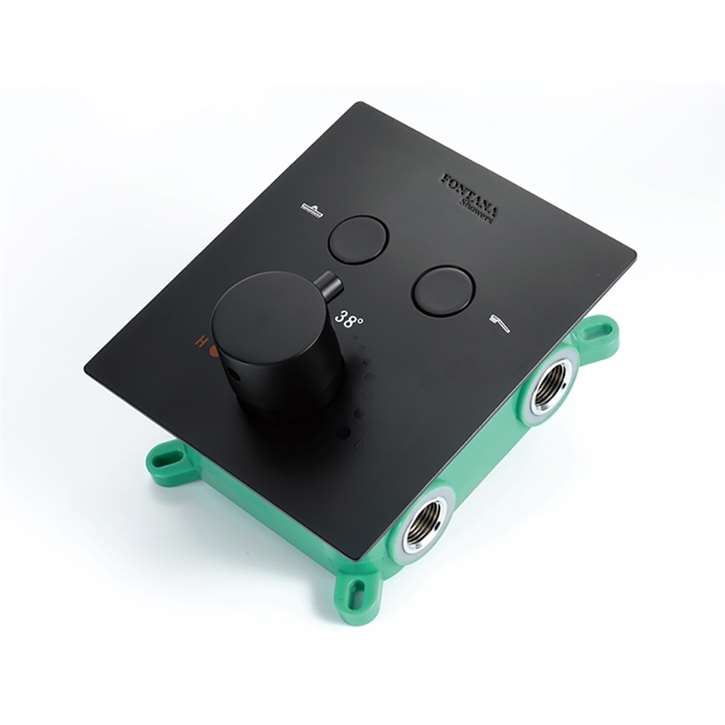

This black wall-mounted shower mixer combines a concealed brass valve body, automatic thermostatic control, and three independently controlled water outlets.

How should the three outlet branches be assigned during rough-in?

Route and label each concealed branch for its designated rainfall shower, hand shower, or tub-spout function, then verify every push control activates the correct outlet before waterproofing and wall closure.

How should the thermostatic control be calibrated at commissioning?

Operate one outlet until the mixed-water temperature stabilizes, measure the discharge with a calibrated thermometer, and realign the temperature handle so its 38°C reference corresponds with the measured output.

How should inactive-outlet isolation be verified?

Activate each function independently under normal supply pressure and confirm that the two inactive branches remain sealed without dripping, pressure migration, internal cross-flow, or unintended discharge.

Which concealed components require testing before wall closure?

Pressure-test the hot and cold inlet connections, brass valve body, thermostatic cartridge chamber, three outlet-control seals, threaded joints, and every concealed branch while all rough-in components remain accessible.
