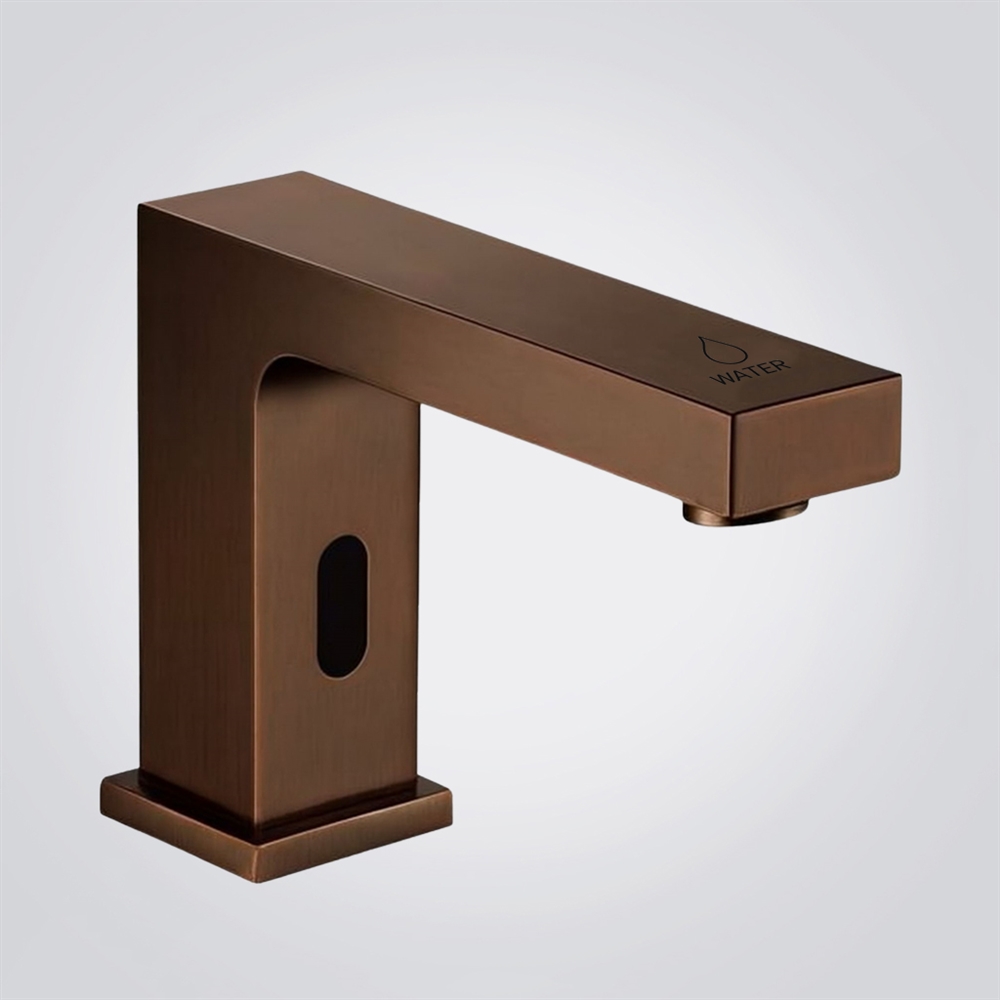

FontanaAquaLoomis Oil Rubbed Bronze Deck Mounted Automatic Faucet

The FontanaAquaLoomis™ Oil Rubbed Bronze Sensor Faucet harmonises advanced technology with refined craftsmanship and is a perfect choice for modern commercial restrooms. With a deck-mounted design providing a contemporary, slim profile, it also frees up space and focuses on utility. Combined with the durable, polished oil rubbed bronze finish, it offers enhanced longevity, balanced with warmth and elegance.

It draws power from flexible supply options: DC, AC, or a combination of both, giving the unit great versatility to meet ever changing installation requirements. The integrated infrared sensor will produce touch-free water activation, for quick, responsive, hands-out use while promoting more hygiene and a reduced risk of cross contamination in high use environments. The ceramic valve core ensures responsive, reliable operation and offers long-term leak resistance. The size of the faucet, 125 mm height x 40 mm wide x 170 mm deep, means it can be incorporated into many varied layouts with ease. The shape of the motor case is designed to provide structural integrity while aiding cleaning and maintenance. All Fontana products are ADA compliant, and it will provide reliability, style and convenience in this single modern fixture.

FontanaAquaLoomis™ Oil Rubbed Bronze Automatic Sensor Faucet FAQ

Infrared Calibration, Ceramic Valve Commissioning; Oil Rubbed Bronze Finish Care

The FontanaAquaLoomis™ Oil Rubbed Bronze sensor faucet combines a compact deck-mounted profile, infrared touchless activation, a ceramic valve core, flexible AC or DC power compatibility, and ADA-compliant operation for high-use commercial washrooms.

How should the infrared sensing field be commissioned after deck installation?

Complete sensor testing after the basin, backsplash, mirror, soap dispenser, and countertop accessories are installed. Confirm that normal hand entry activates water promptly without detecting the basin surface, reflected light, nearby movement, or objects positioned outside the intended washing zone.

What should be checked if the ceramic valve closes slowly or allows dripping?

Flush the supply line, clean the inlet filter, verify stable AC or DC power, and inspect the ceramic valve passage for construction debris. Sediment at the valve seat can prevent complete closure and cause delayed shutoff, intermittent dripping, or repeated automatic activation.

How should the faucet and motor case be arranged beneath the countertop?

Maintain clear access to the power connection, sensor cable, supply hose, valve assembly, and mounting hardware. Avoid sharp hose bends, cable tension, or contact with plumbing components that could transmit vibration, restrict water flow, or complicate future maintenance.

How should the Oil Rubbed Bronze finish be cleaned without changing its dark coloration?

Remove soap residue, fingerprints, and water spots using a soft damp microfiber cloth, then dry the faucet immediately. Use diluted pH-neutral soap only and avoid abrasive pads, acidic descalers, bleach, ammonia, steel wool, metal polish, and concentrated disinfectants.

Oil Rubbed Bronze

• Brand Name: FontanaShowers®
• Model Number: FS201ORB
• Surface Finish: Oil Rubbed Bronze
• Type: Sensor Faucet
• Installation Type: Deck Mounted
• Style: Contemporary
• Valve Core Material: Ceramic
• Sensor: Infrared Sensor
• Power Supply: DC, AC or DC&AC
• Usage: Commercial
• Tap Height: 4.92 in (125 mm)
• Tap Width: 1.57 in (40 mm)
• Tap Depth: 6.69 in (170 mm)
• Motor Case Height: 5.71 in (145 mm)
• Motor Case Width: 4.59 in (116.5 mm)
• Motor Case Depth: 3.37 in (85.5 mm)
• ADA Compliant
