125mm height, 40mm width, 170mm depth, allowing for flexibility in design layout. It's capable of being powered by an AC or DC supply, and the streamlined design enables placement in various installations with ease. The built-in proximity sensor operates quickly with a response time of <1 second, providing users with hands-free operation, improved hygiene and less opportunity for potential cross-contamination in high traffic environments. The ceramic valve core provides smooth operation, long-term durability and leak-proof performance. The motor case has dimensions of 145mm height, 116.5mm width, and 85.5mm depth, offering superior strength and easy maintenance. It meets the current ADA Guidelines and will show your commitment to contemporary style and expandable/ touchless operation while endorsing reliable engineering products to your patrons and facilities. This will enhance the ambience of a touch-less faucet in labs, hotels, restaurants, spas, gyms, and luxury facilities to meet both luxury appeal and functional requirements.

FontanaAquaPurea™ Champagne Automatic Sensor Faucet FAQ

Sensor Response Calibration, Ceramic Valve Commissioning; Champagne Finish Protection

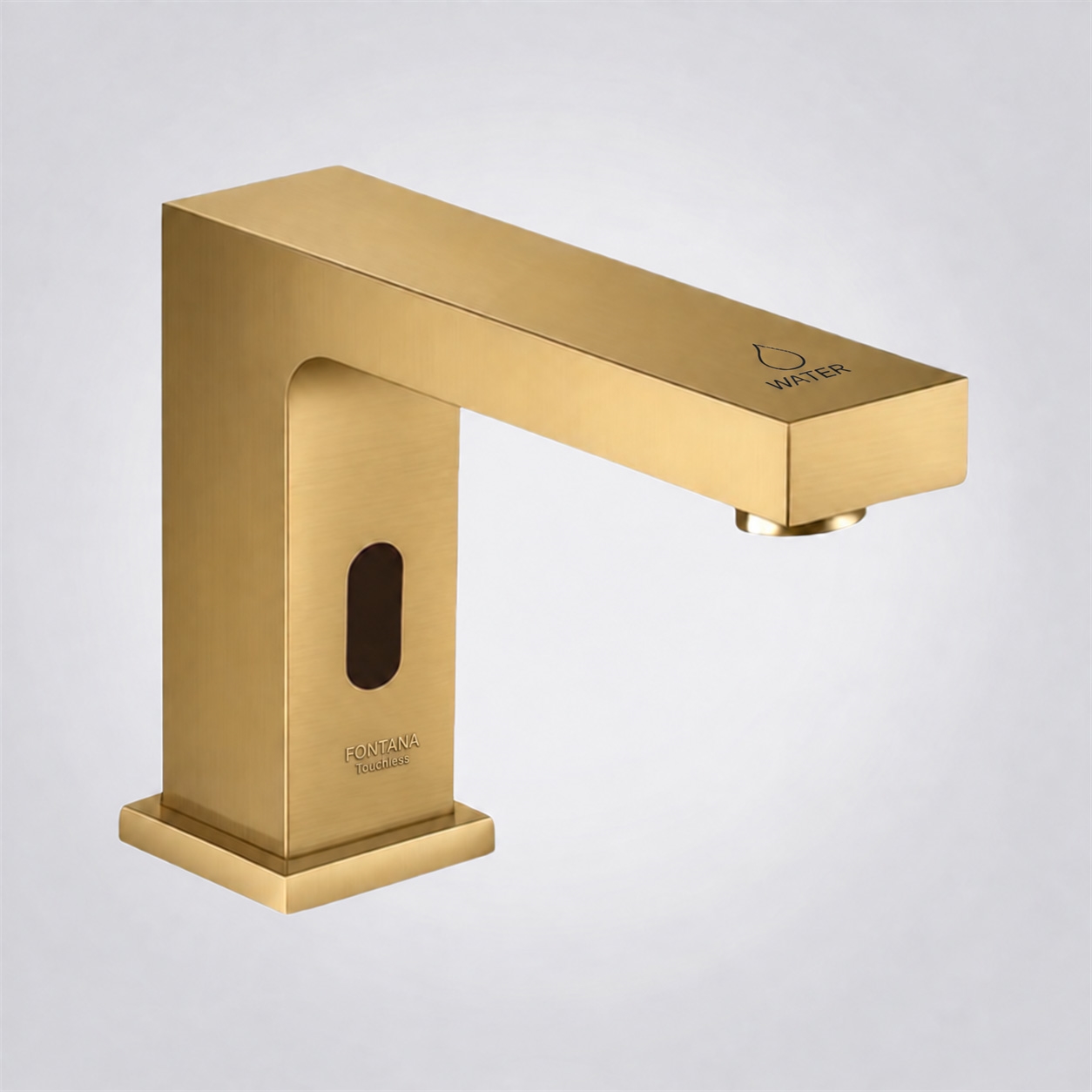

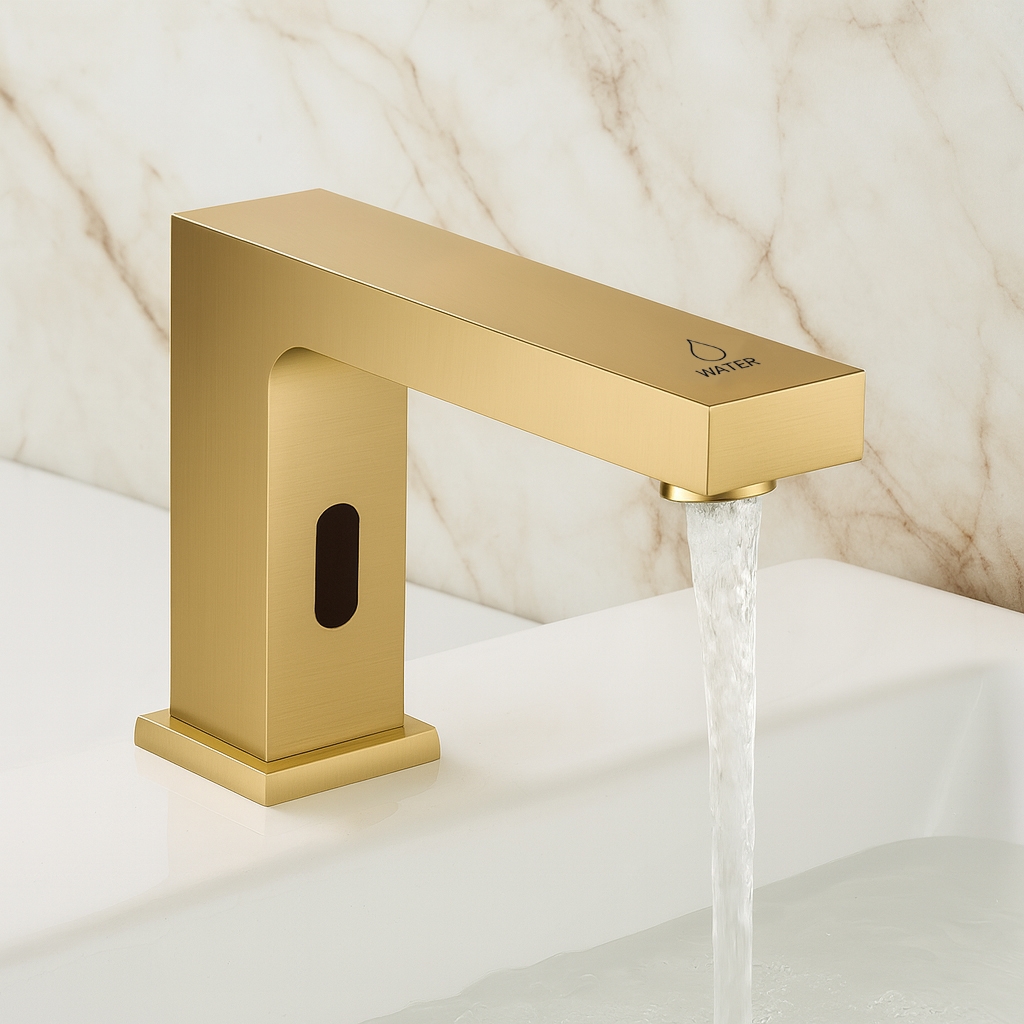

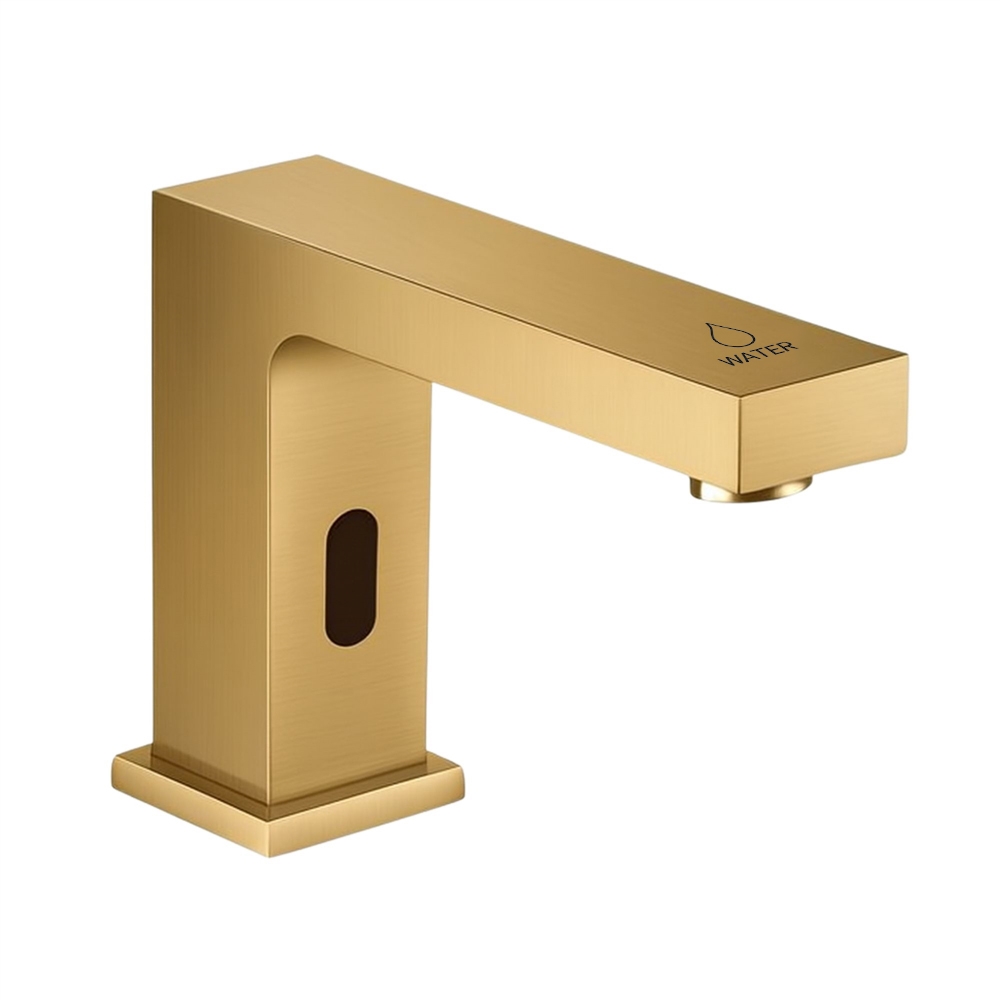

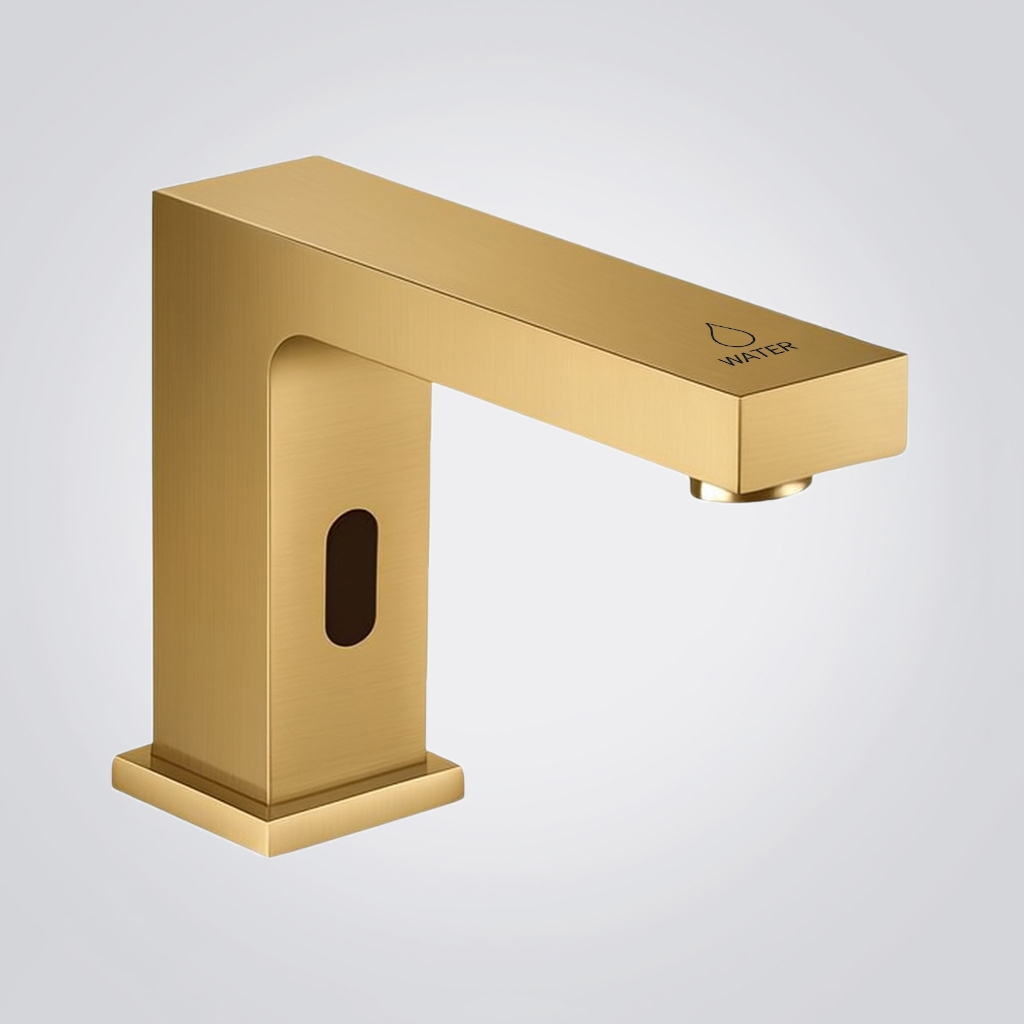

The FontanaAquaPurea™ Champagne automatic faucet combines a compact deck-mounted profile, infrared touchless activation, a ceramic valve core, flexible AC or DC power compatibility, sub-one-second sensor response, and ADA-compliant operation for commercial washrooms.

How should the infrared sensor be tested after the faucet is installed?

Complete sensor testing after the basin, backsplash, mirror, soap dispenser, and countertop accessories are in their final positions. Confirm that normal hand entry activates water promptly without detecting the basin surface, reflected light, passing movement, or objects outside the intended washing zone.

What should be checked if the faucet response becomes slower than one second?

Clean the infrared sensor window, verify stable AC or DC power, inspect the sensor cable connections, and remove reflective objects from the detection field. Low battery voltage, contamination, loose wiring, or poor sensor alignment can delay activation even when the water supply remains unrestricted.

How should the ceramic valve be commissioned to prevent dripping or delayed shutoff?

Flush the supply line before final connection, inspect the inlet filter, and cycle the faucet repeatedly under normal dynamic pressure. Confirm immediate opening and complete shutoff after hand removal, because construction sediment or debris at the ceramic valve seat can produce intermittent dripping.

How should the Champagne finish be cleaned without changing its polished appearance?

Remove fingerprints, soap residue, and water spots with a soft damp microfiber cloth, then dry the faucet immediately. Use diluted pH-neutral soap only and avoid abrasive pads, acidic descalers, bleach, ammonia, steel wool, metal polish, and concentrated disinfectants.

Champagne
