An OLED touch control panel offers the user the ability to easily control either flow through a filtered water vortex to maintain a user-selectable comfortable water temperature, preset between 25–45 °C. The smart sensor provides ease of use, a completely touchless experience, and encourages the highest level of hygiene while thirsty, and touch can still be activated if the situation demands. The design includes built-in overheat protection during frequent touchless operation and performance levels during operation at 0.05 to 0.6 MPa. The ADA-compliant, touchless tap provides accessibility for all users and is functionally stylish. The FontanaAquaTronix™ is a durable and highly reliable intelligent water tap designed to elevate your restroom with a sleek finished look, practical safety features, and dependable smart performance.

FontanaAquaTronix™ Oil Rubbed Bronze Intelligent Faucet FAQ

OLED Temperature Calibration, Dual-Mode Activation; Oil Rubbed Bronze Finish Protection

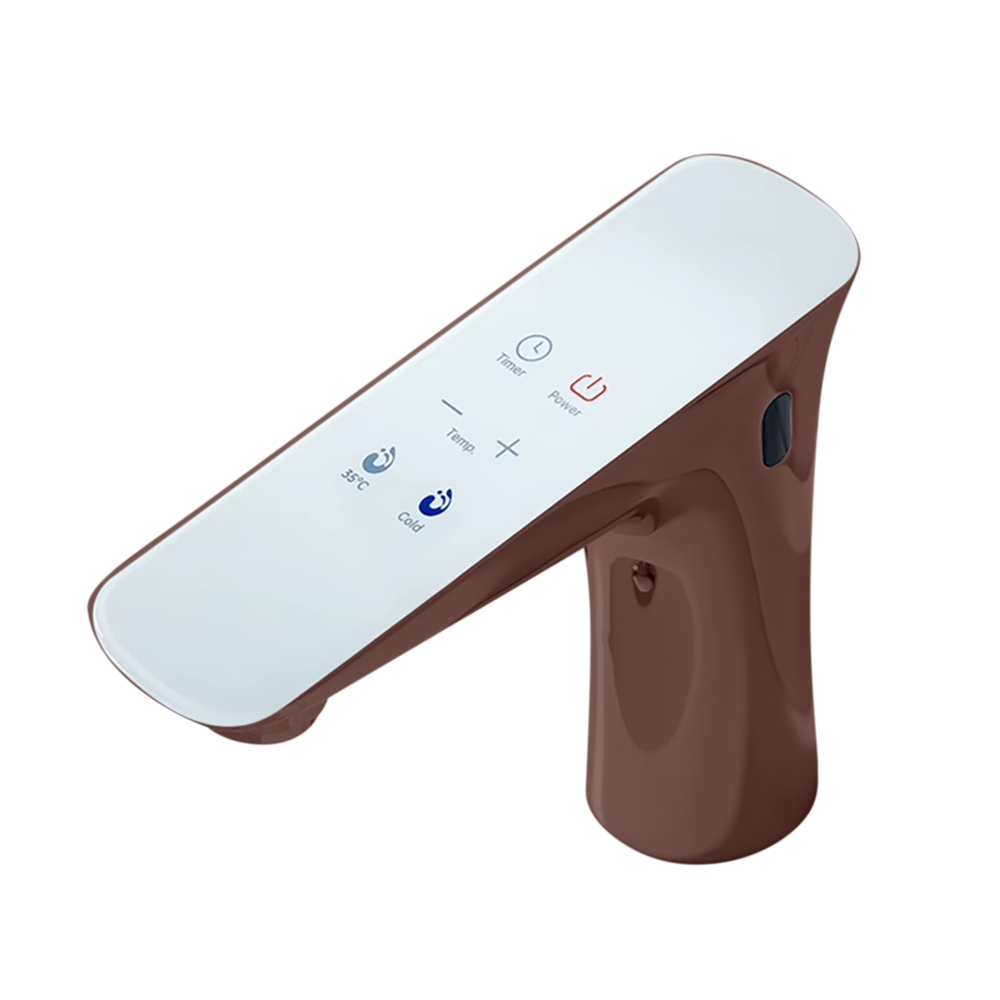

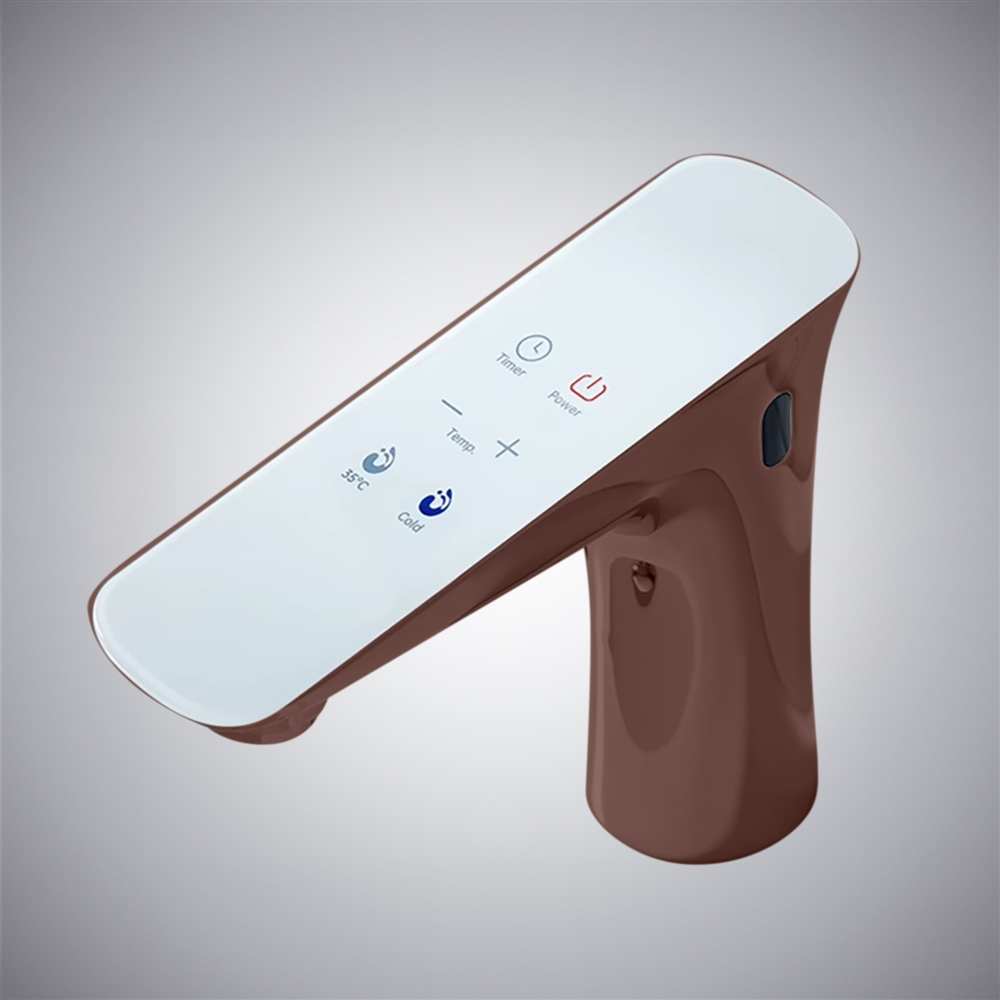

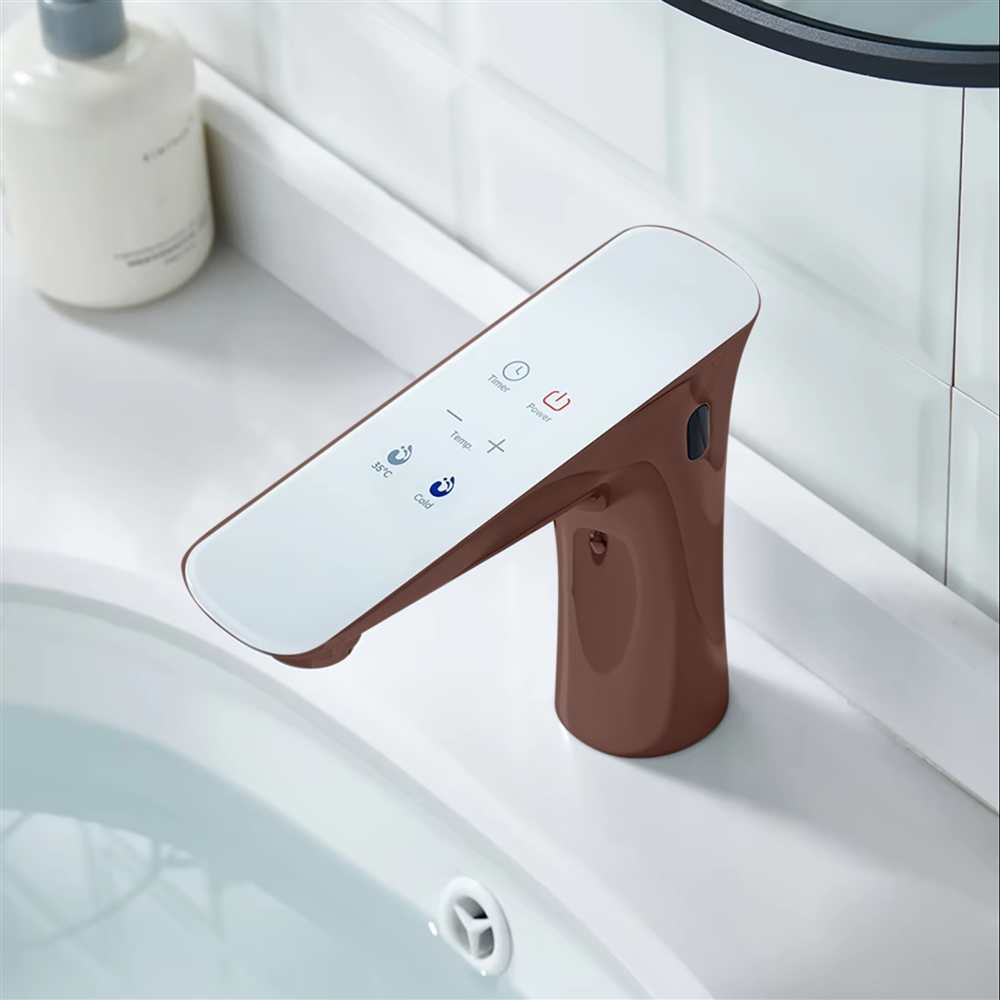

The FontanaAquaTronix™ Oil Rubbed Bronze intelligent faucet combines solid-brass construction, single-hole deck mounting, touchless sensor activation, manual touch control, an OLED interface, adjustable 25–45°C water temperature, and built-in overheating protection.

How should the OLED temperature controls be verified during commissioning?

Operate the faucet through several settings between 25°C and 45°C and compare the displayed value with water measured using a calibrated thermometer. Allow the outlet temperature to stabilize at each setting and investigate supply-pressure imbalance, restricted inlets, or unstable power if the displayed and measured temperatures differ materially.

How should the touch and touchless operating modes be tested?

Test infrared activation from normal hand-entry positions, then verify that the touch-control surface starts and stops water independently. The sensor should not respond to the basin, nearby movement, or reflective accessories, while the touch interface should operate without delayed response or unintended repeated activation.

What should be checked if temperature regulation becomes unstable?

Flush the hot and cold branches independently, inspect the inlet passages, fully open both service stops, and compare dynamic pressure while water is flowing. Construction debris, restricted hoses, trapped air, or unequal supply pressure can slow temperature response and reduce the useful 25–45°C adjustment range.

How should the Oil Rubbed Bronze body and OLED panel be cleaned safely?

Wipe the faucet and control panel with a soft damp microfiber cloth, then dry both surfaces immediately. Use diluted pH-neutral soap only and avoid abrasive pads, acidic descalers, bleach, ammonia, steel wool, metal polish, alcohol-heavy cleaners, and concentrated disinfectants that may damage the bronze finish or display surface.

Oil Rubbed Bronze
