FontanaPrismFlow Rose Gold Automatic Touchless Faucet, Soap Dispenser & Hand Dryer

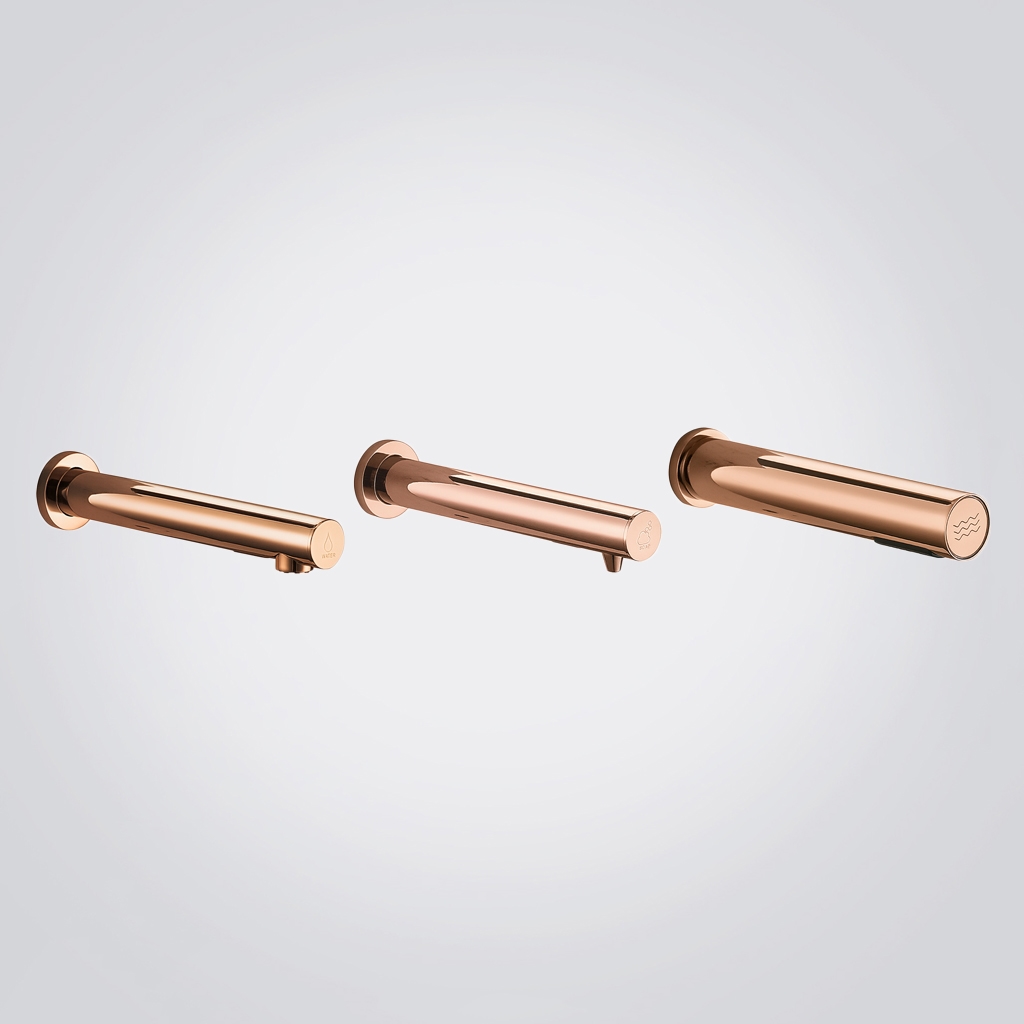

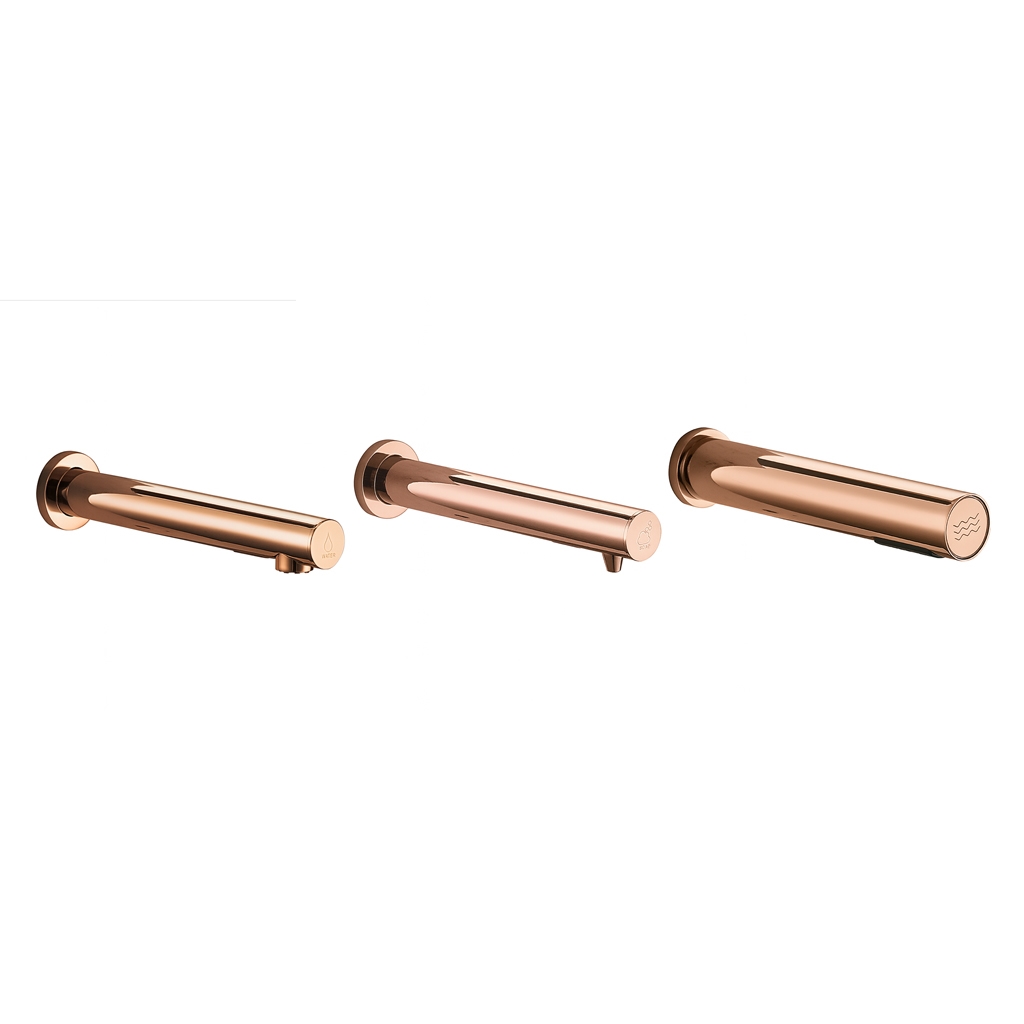

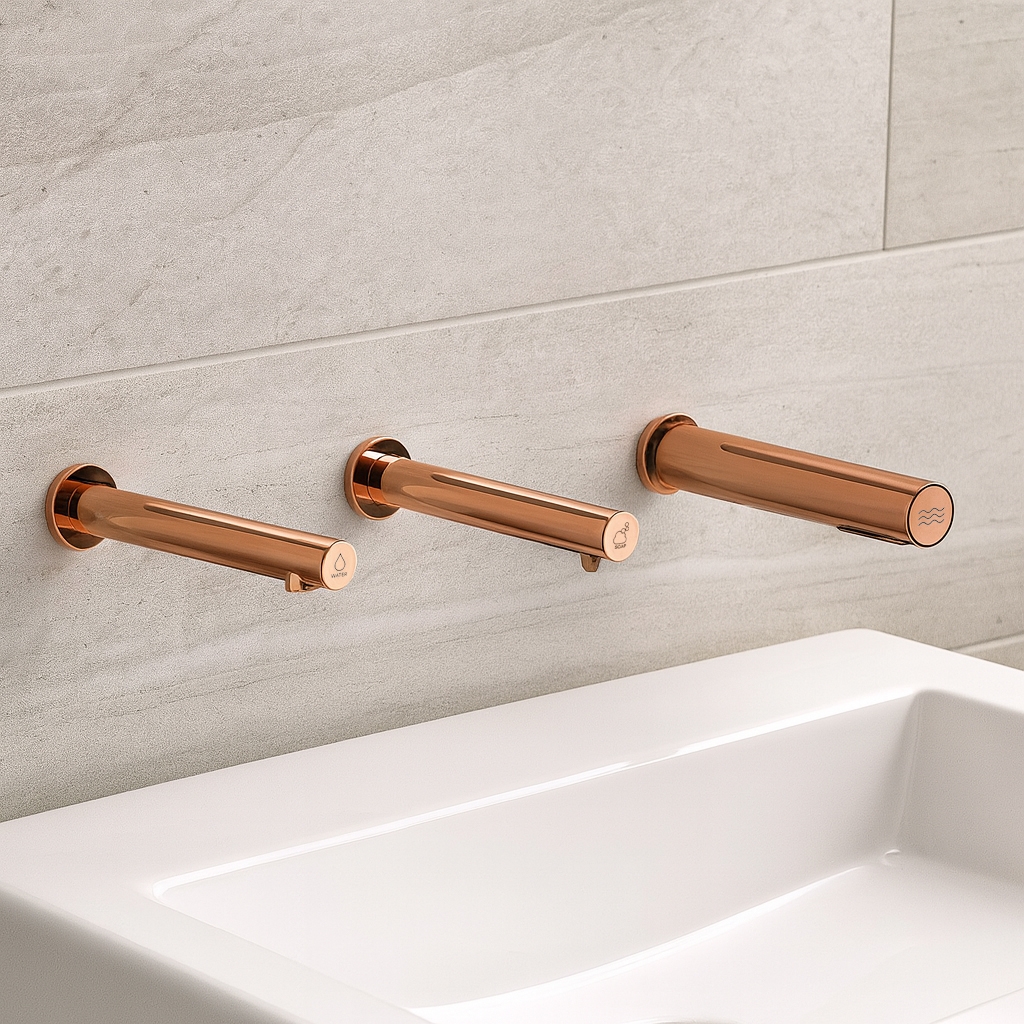

Refine convenience with the FontanaPrismFlow™ Rose gold, a versatile 3-in-1 fixture devoted to modern restroom evolution. A well-crafted wall-mounted system with polished stainless steel creates a perfect union between an anti-bacterial soap dispenser, sensor faucet, and high-speed hand dryer in one slimline unit. The shining finish truly sets the stage for commercial sites, hotels, apartments, and sumptuous baths, giving just a little bit of glamour while providing a hygienic sterilization treatment with full-touchless operation.
Ceramic valve cores are perfectly machined to guarantee purity. The dryer boasts a very strong blower with airflow of 95 meters per second, drying hands quickly while producing noise on a minimum level of 70db measured at two meters. HEPA filters provide the best air quality for promoting cleanliness in a high-traffic environment. With all its options for motors and both liquid and foam soap outlets, it can be adapted to a wide range of installations. Beauty, utility, and technology are well soldered into this model, a great solution the Rose Gold provides for those contemporary interiors that want efficiency with style.
FontanaPrismFlow™ Rose Gold 3-in-1 Touchless System FAQ
Sensor-Zone Coordination, HEPA Airflow Control; Rose Gold Surface Protection
The FontanaPrismFlow™ Rose Gold system integrates an automatic soap dispenser, touchless water faucet, and high-speed hand dryer in a three-hole wall-mounted configuration with stainless steel construction, ceramic valve control, a 1-liter soap reservoir, HEPA filtration, and 95 m/s airflow.
How should the soap, water, and dryer sensor zones be separated during installation?
Position the three outlets according to the installation drawing and complete sensor testing after the basin, mirror, backsplash, and surrounding accessories are installed. Each function should activate only when hands enter its intended zone, without false triggering from adjacent outlets or reflective surfaces.
What commissioning checks are required for the 1–6 bar water-pressure range?
Flush the G1/2-inch supply before connection, confirm stable dynamic pressure while the faucet operates, and inspect the inlet filter for construction debris. Pressure below the specified range can weaken discharge, while excessive or unstable pressure may affect sensor-valve closure and stream control.
How should reduced dryer performance or extended drying time be diagnosed?
Inspect the HEPA filter, motor intake, internal air path, and outlet nozzle for restriction. Reduced airflow below the intended 95 m/s performance may result from a loaded filter, blocked ventilation, loose internal connections, unstable power, or insufficient service clearance around the motor housing.
How should the polished Rose Gold finish be cleaned in a high-use restroom?
Remove fingerprints, soap residue, and water spotting with a soft damp microfiber cloth, then dry the surface immediately. Use diluted pH-neutral soap only and avoid abrasive pads, acidic descalers, bleach, ammonia, metal polish, and concentrated disinfectants that may scratch or discolor the finish.
Read More
- Brand Name: FontanaShowers®
- Model Number: FS10506RG
- Style: Modern Simplicity
- Type: Touchless Basin Faucet
- Material: Stainless Steel
- Finish: Rose Gold
- Number of Holes for Installation: Three Hole
- Features: Electric Faucets, Sense Faucets
- Function: Soap Dispenser, Faucet, Hand Dryer
- Installation Type: Wall Mounted
- Valve Core Material: Ceramic
- Surface Treatment: Polished
- OEM and ODM: Highly Welcomed
- Capacity: 1 L
- Dispenser Type: Available with Liquid or Foam Outlets
- Inlet Connection: G1 /2"
- Operating Water Pressure: 1 - 6 bar
- Available with Brushless or Brush Motor: Yes
- Filter Type: HEPA
- Air Speed: 95m/s
- Noise Level at 2m: 70db
- Application: Hotel, Apartment, Bathroom
Distinctive 3-in-1 Sensor Design
|
Rose Flow
