How to Install Four Function Shower Mixer Thermostatic Valve | FS-1185

https://www.fontanashowers.com/Fontana-Shower-Four-Function-Shower-Mixer-p/fs-1185.htm

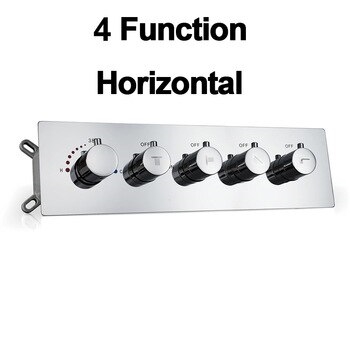

Step by Step installation Instructions for Shower Four Function Shower Mixer Thermostatic Valve Horizontal

Before you begin, please read the installation instructions below. Observe all local building and safety codes.

1. Unpack and inspect the product for any shipping damages. If you find damages, do not install.

2. Please be advised that all products must be installed by a professional and certified plumber. Failure to comply with this requirement may result in the warranty being voided.

Shower Thermostatic Mixer Installation Instructions

Size

Step 1: Step 2:

Mixer Valve

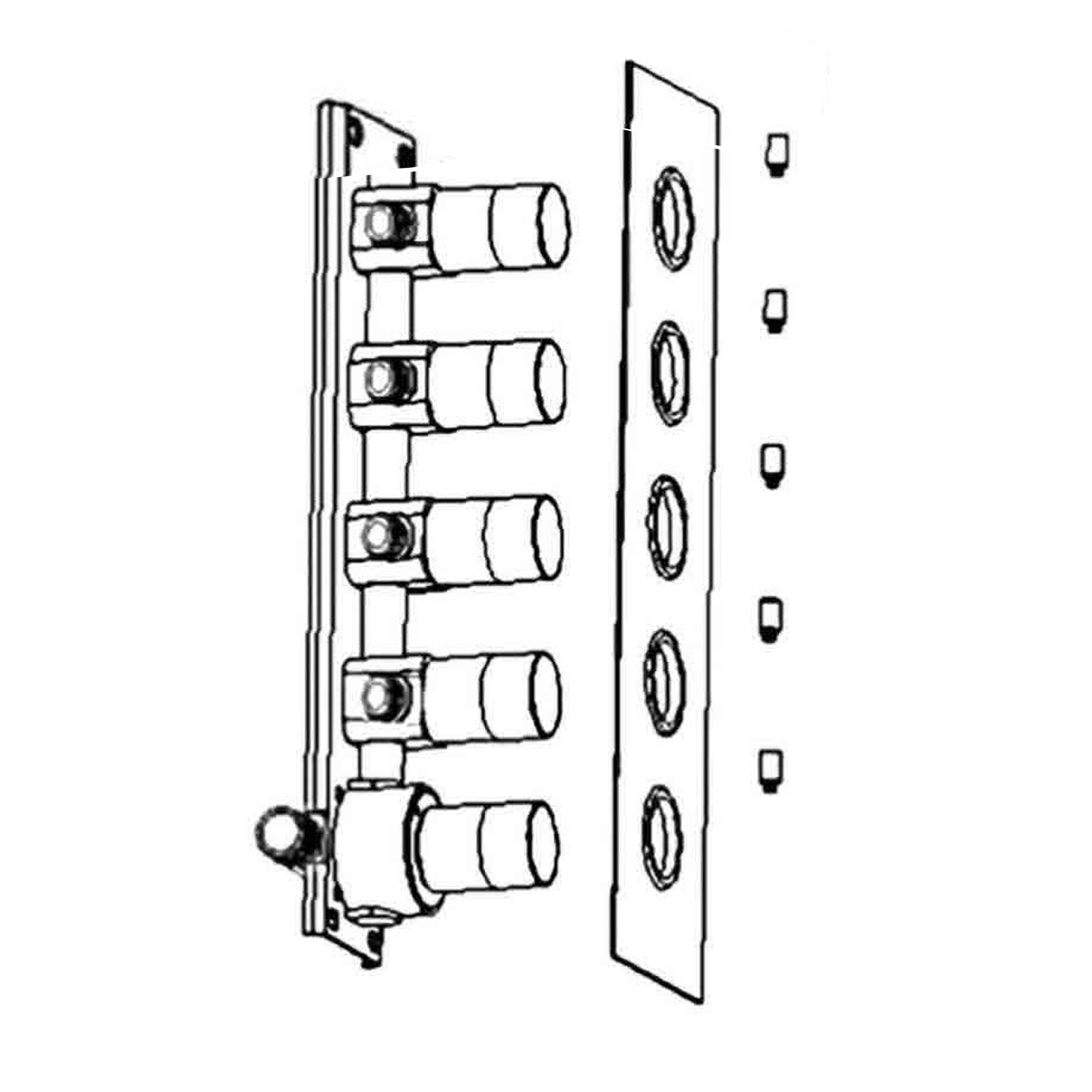

Release 5 handwheel levers Take apart the embed valve, panel, and handwheel
Mixer Control Valve Installation Instructions
Step 3: Step 4:

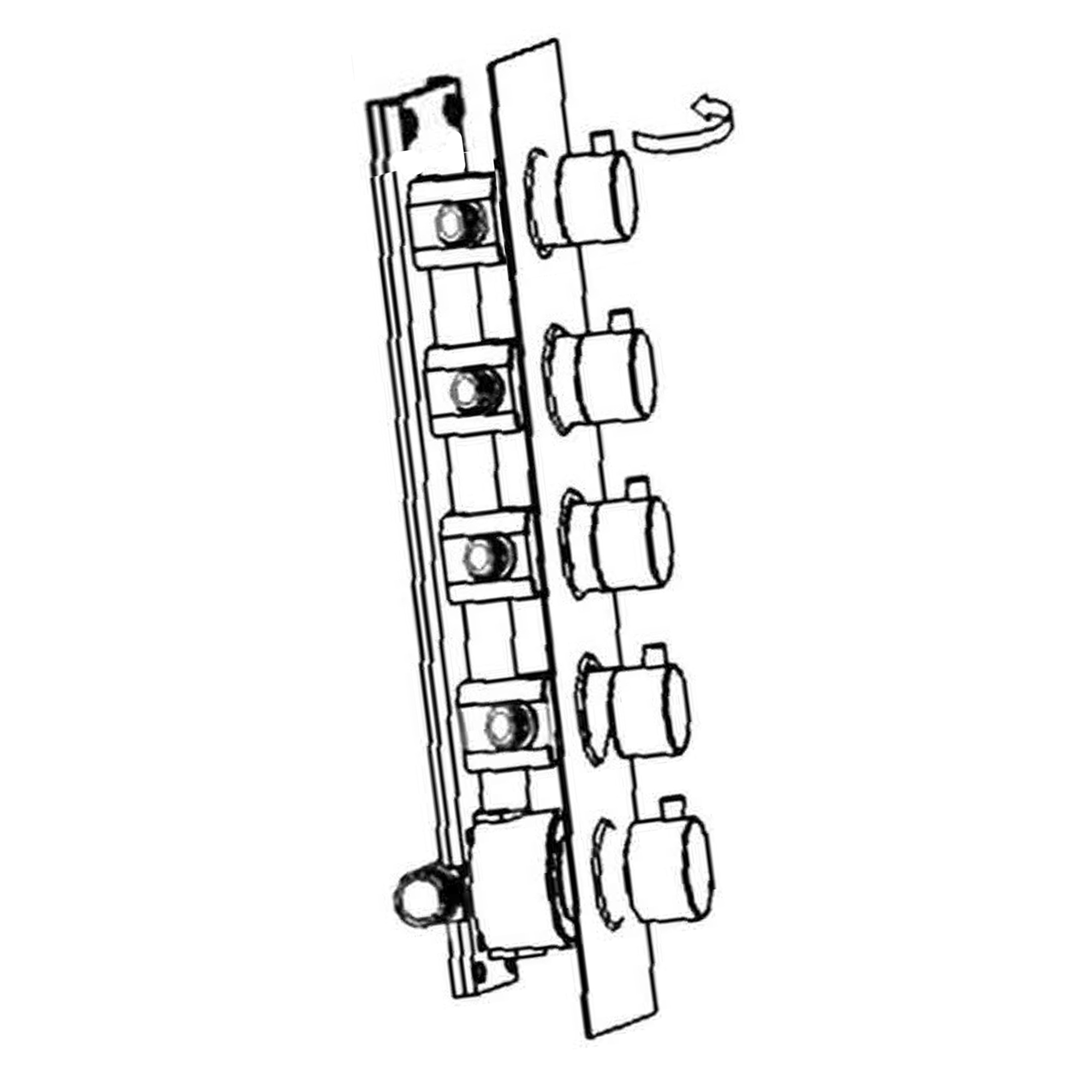

Mixer Control Valve Installation Instruction
Step 5: Step 6:

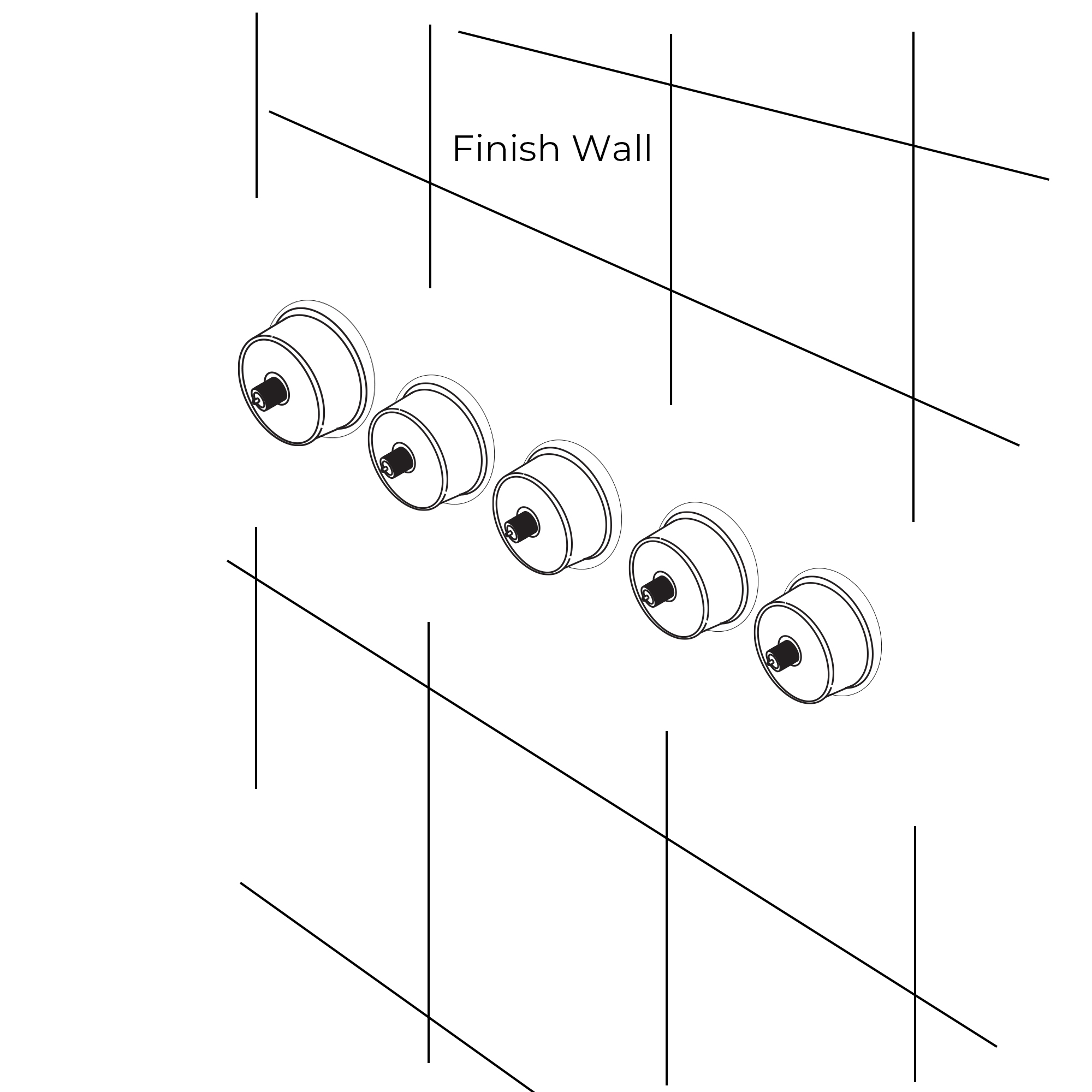

Mixer Control Valve Installation Instruction
Step 7:

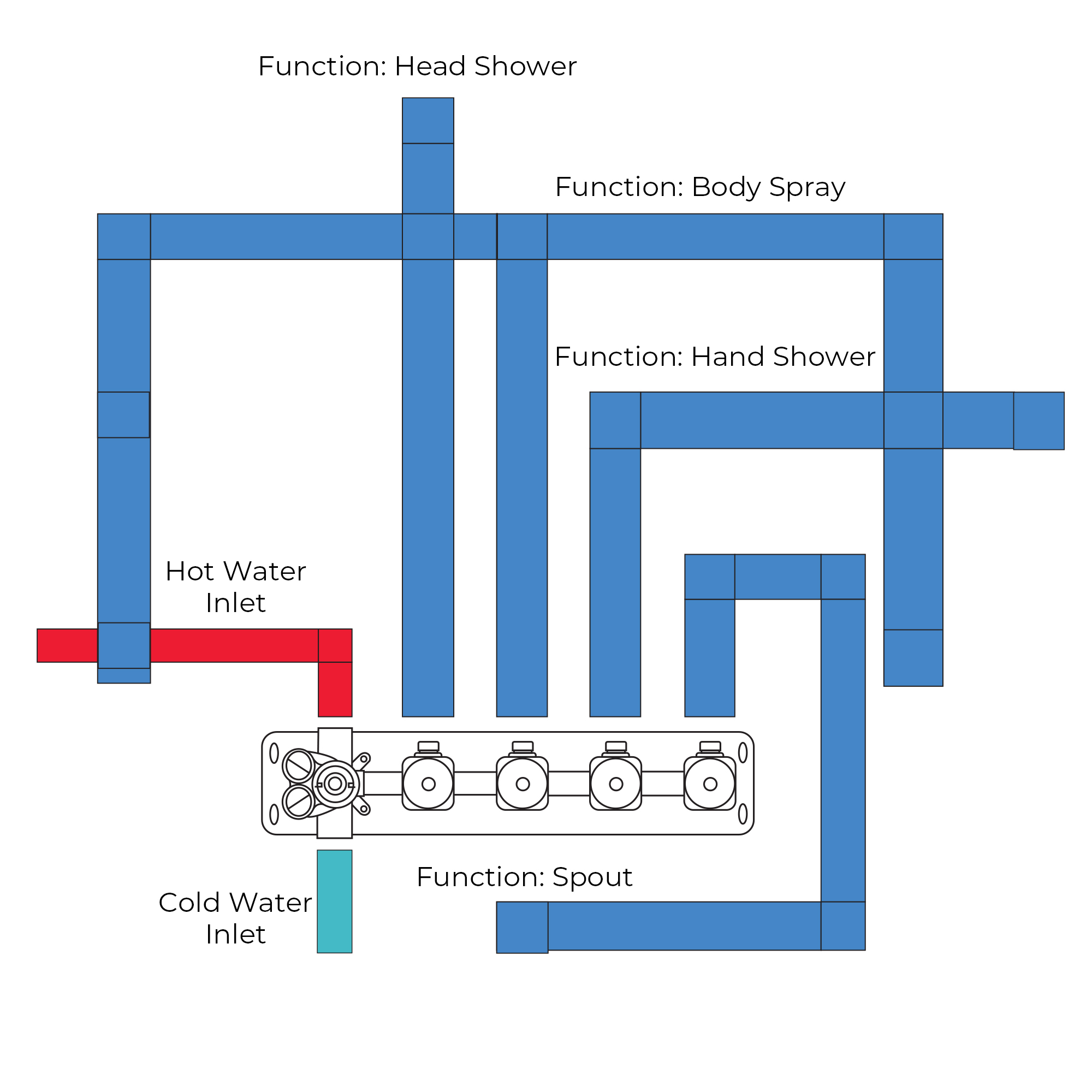

Shower Mixer Connection










Fontana Shower Four Function Shower Mixer Thermostatic Valve

This Fontana Shower Mixer is capable of delivering superior performance with a solid construction for long durability that will upgrade your bathroom with a modern and cool look for a long period of time. When it comes to new bathroom upgrades, FontanaShowers offers shape, finishes and styles that you've been looking for.

Features:

  • Brand Name: FontanaShowers
  • Model Number: FS-1185
  • Type: Shower Mixer Valve
  • Surface Finishing: Brass
  • Surface Treatment: Polished
  • Valve Core Material: Ceramic
  • Type: Fixed Support Type
  • Feature: Auto-Thermostat Control
  • Style: Contemporary
  • Size: 201-300mm
  • Number of Handles: Five Handle
  • Type: Wall Mounted
  • Strong Anti-Corrosion
  • High Quality
  • Interface Thread Size: G1/2 Inch
    		•  Fontana Shower Four Function Shower Mixer Thermostatic Valve

    Four-Function Thermostatic Valve Resources
    Plan a Four-Function Shower Valve Installation
    Coordinate four water outlets, thermostatic mixing, supply orientation, rough-in depth and control access.
    Installation Guides
    All FontanaShowers Installation Guides Shower Mixer Installations
    Four Functions
    Four-Function Valve Guide Six-Function Valve Guide
    Valve Rough-In
    Thermostatic Valve Detail Wall Rough-In Dimensions
    Outlet Planning
    Rain & Waterfall Requirements Body-Jet Installation Handheld Installation
    Technical Files
    BIM / Revit Library Architect Resources
    Project Support
    Shower Installation Details Installation & Maintenance
    ALL FONTANASHOWERS INSTALLATION GUIDES →

    Four-Function Valve Installation Questions

    Why should every outlet branch be labeled?

    Labeling prevents crossed functions and allows the installer to verify each diverter position before the wall is closed.

    Can all four functions operate simultaneously?

    Only use combinations permitted by the valve design, and verify that water pressure, pipe sizing and hot-water capacity support them.

    What should be confirmed before securing the valve?

    Confirm hot and cold orientation, finished-wall depth, upright position, handle clearance and future service access.

    Where can broader mixer guidance be found?

    Use the shower mixer installation hub for related thermostatic valve and control resources. Open Mixer Installations

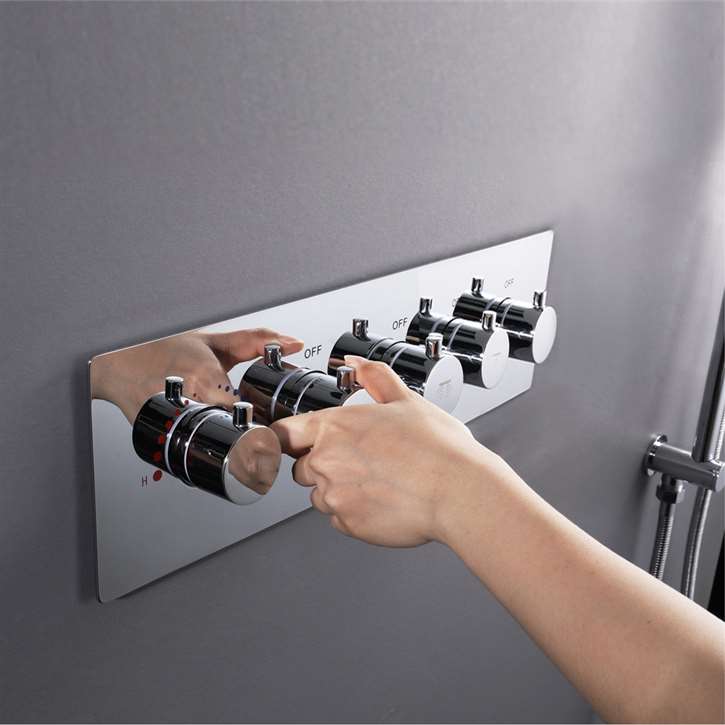

    Four-function thermostatic shower valve and outlet installation planning
