How to Install Fontana Luigi 8-Inch Chrome Finish Rainfall Square Shape Shower Head | FS9761


Easy Installation Steps For Shower Head Visit Product Page

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the products for any shipping damages. If you find damages, do not install.
  • Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
 shower

Shower Head Installation Instructions


Specs:

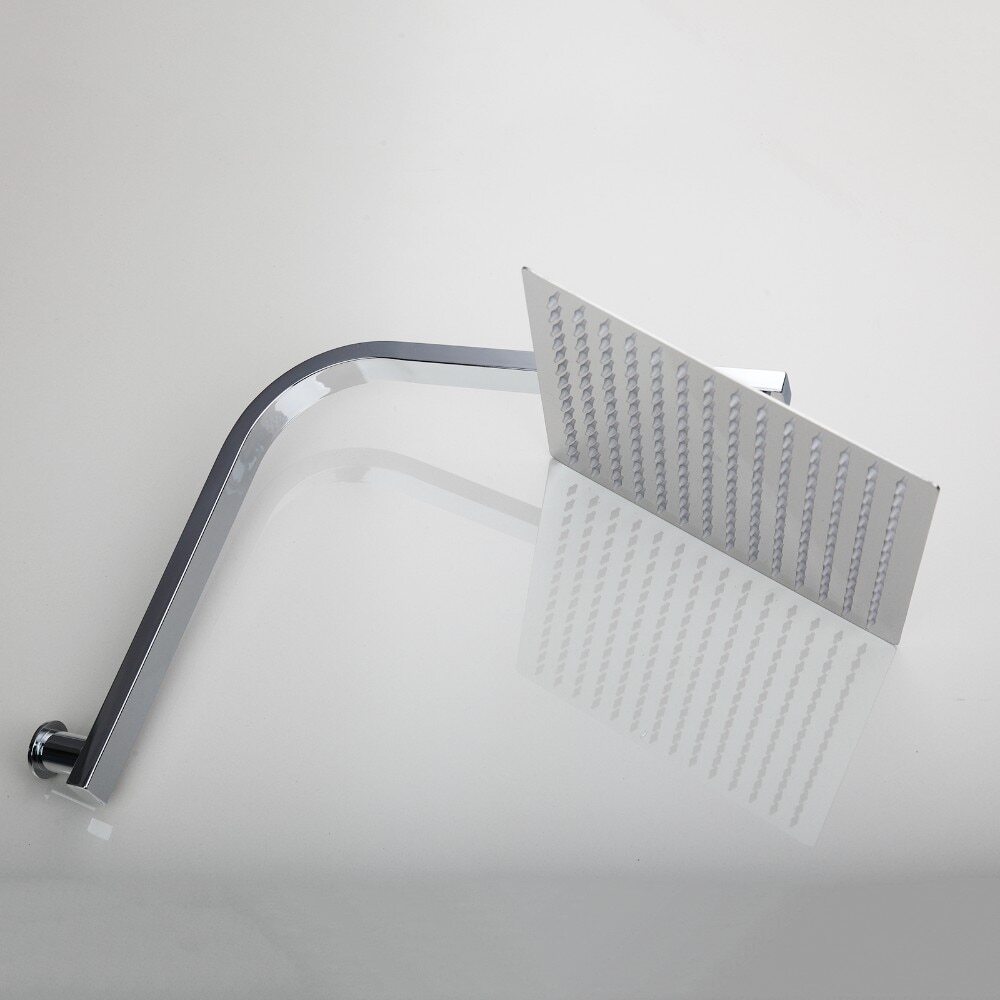

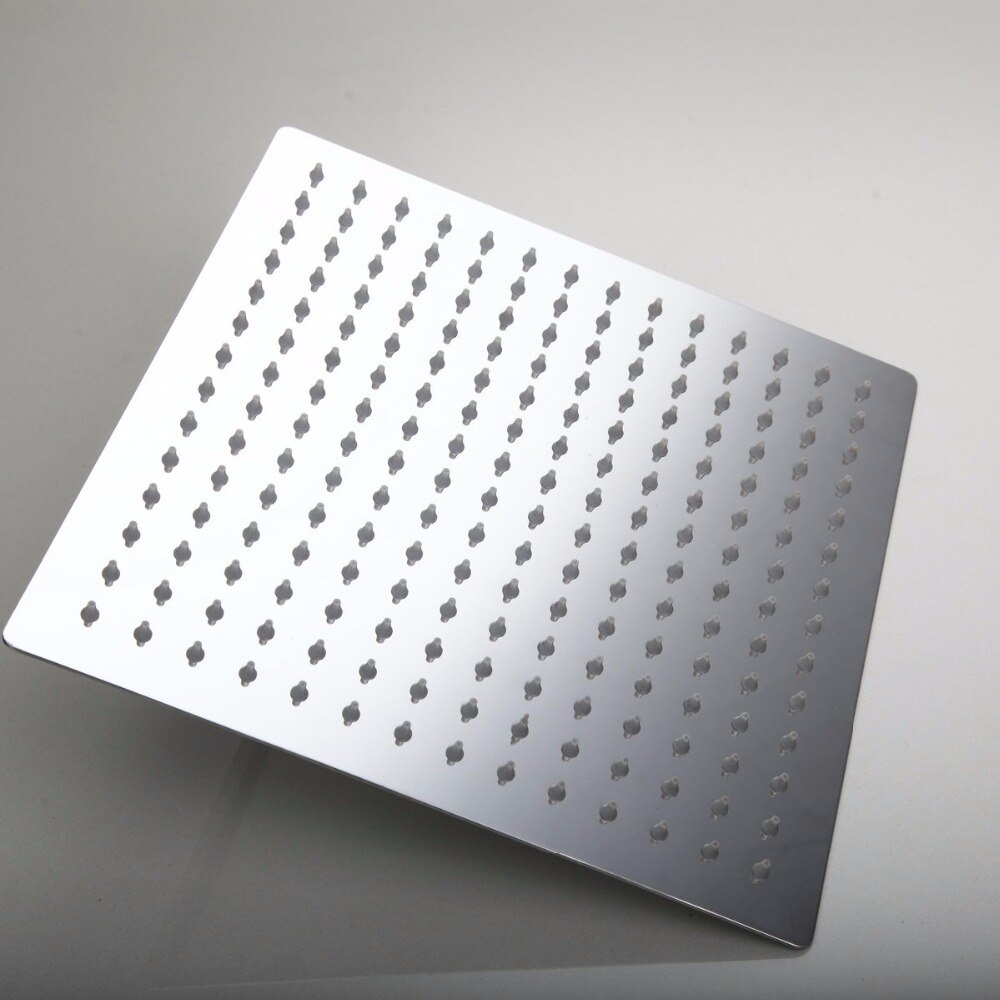

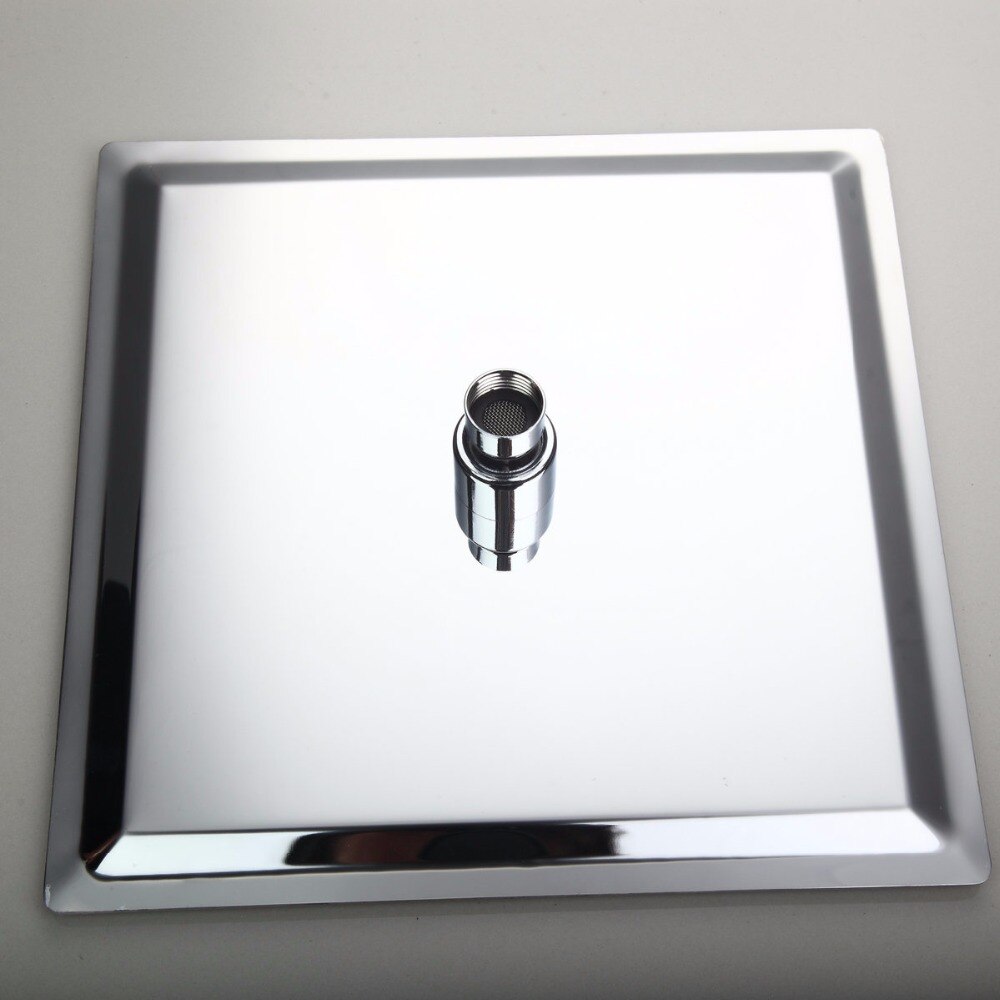

Square shower head
Shape: luxury square designed
Material: Grade stainless steel with painted finish
Size: 2mm thick

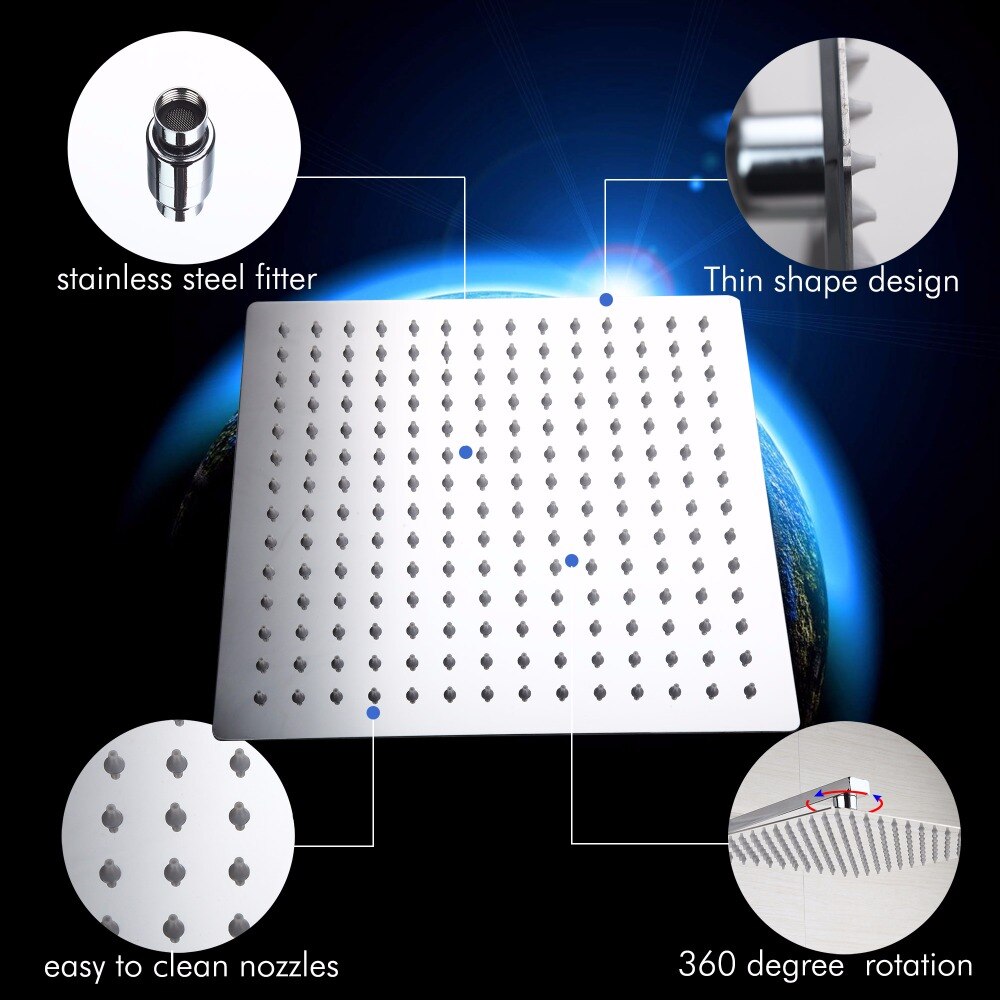

ABS rubber nozzles that allow easy cleaning if clogged with debris
Australian Standard Water and Energy Savings

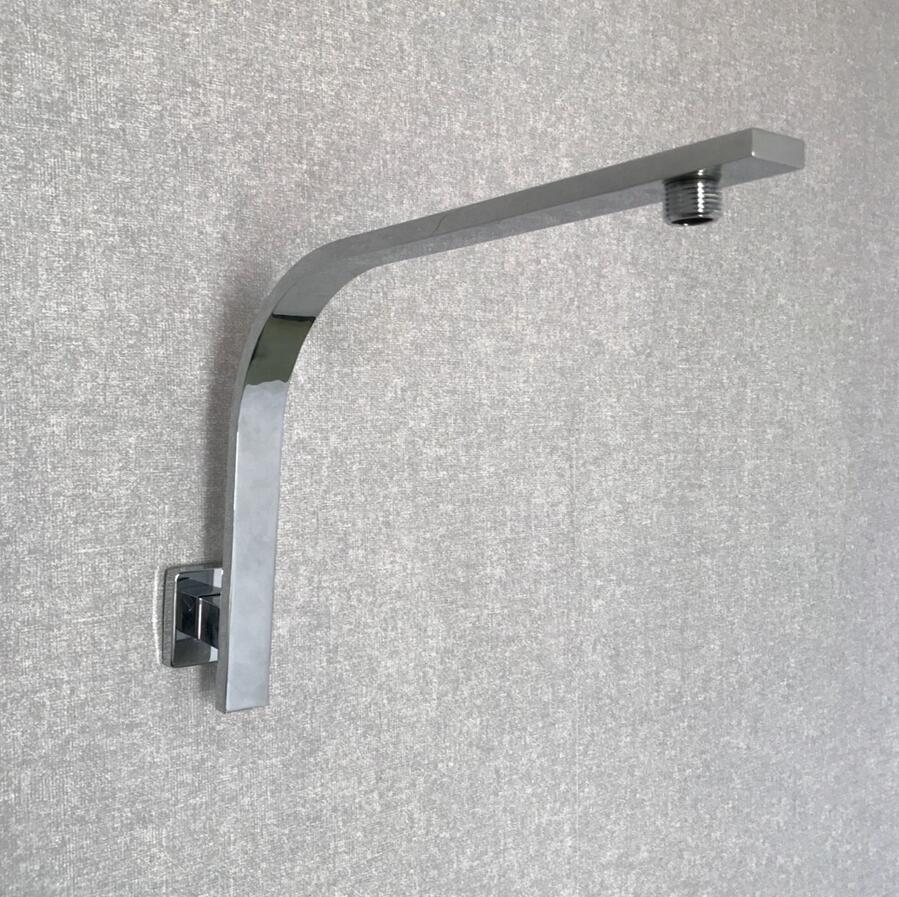

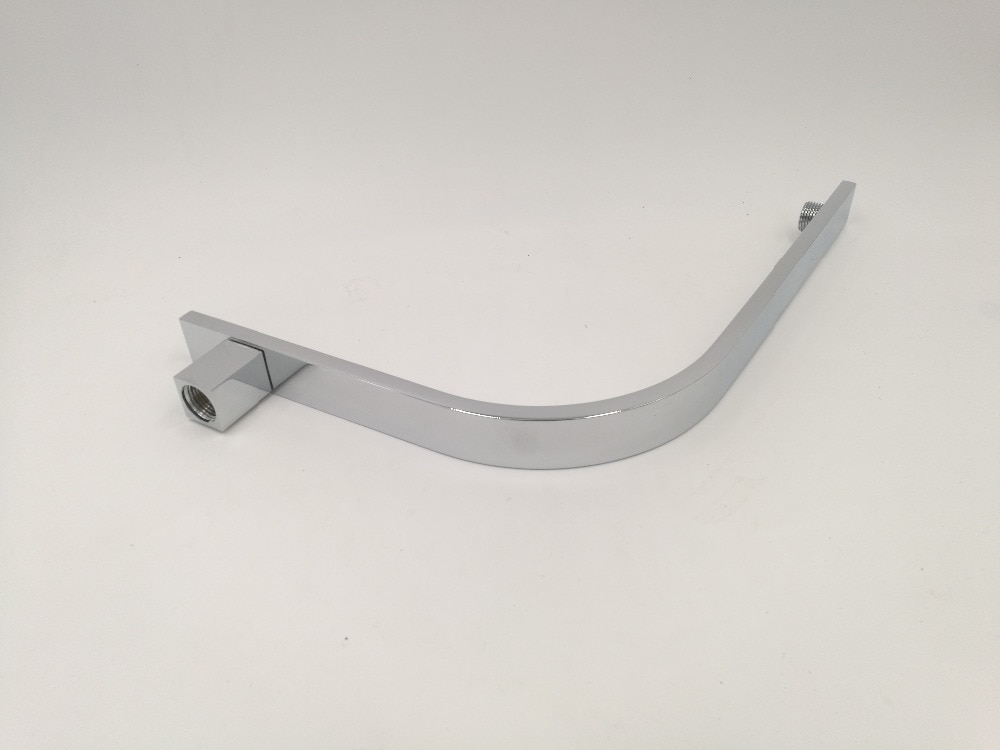

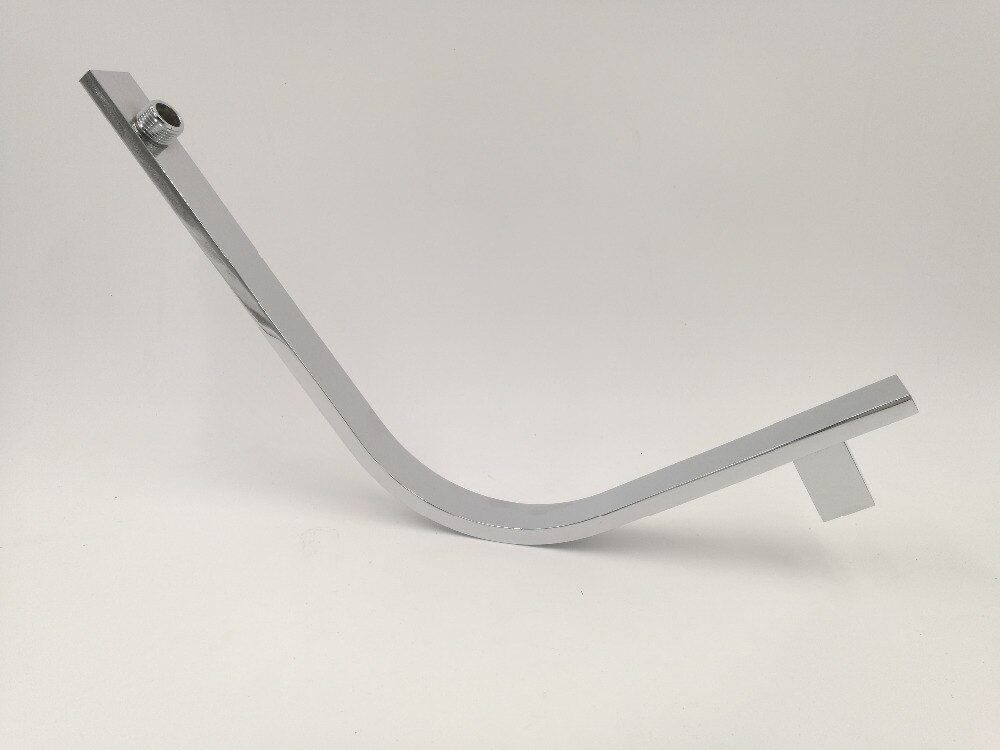

Gooseneck shower arm
Size: 370mm x 270mm (14.5" x 10.6" inch)
Feature: Wall Mounted
Material: solid brass construction
Female end of the wall, Australia standard
Package includes:
Square shower head x 1
Gooseneck shower arm x 1



Step 1: shower Step 2:



Step 3: Step 4:


Step 5: Step 6:


Step 7: Step 8:

Step 9:

1. Loosen set screw by supplied Hex Wrench, and remove the adaptor from the body. NOTE: there is a seal in the adaptor. Leave it in the adaptor.
2. Slide the adaptor over the stub-out pipe and screw onto the threaded end. Tighten it with a 3/8" Hex Wrench (not included).
3. Slide wall escutcheon over the stub-out pipe to cover the wall hole.
4. Gently slide the body over the adapter, make sure it touch the wall escutcheon firmly. Tighten the set screw with Hex Wrench.
5. Install showerhead: Wrap pipe sealant tape around threads and install showerhead. Tighten securely.

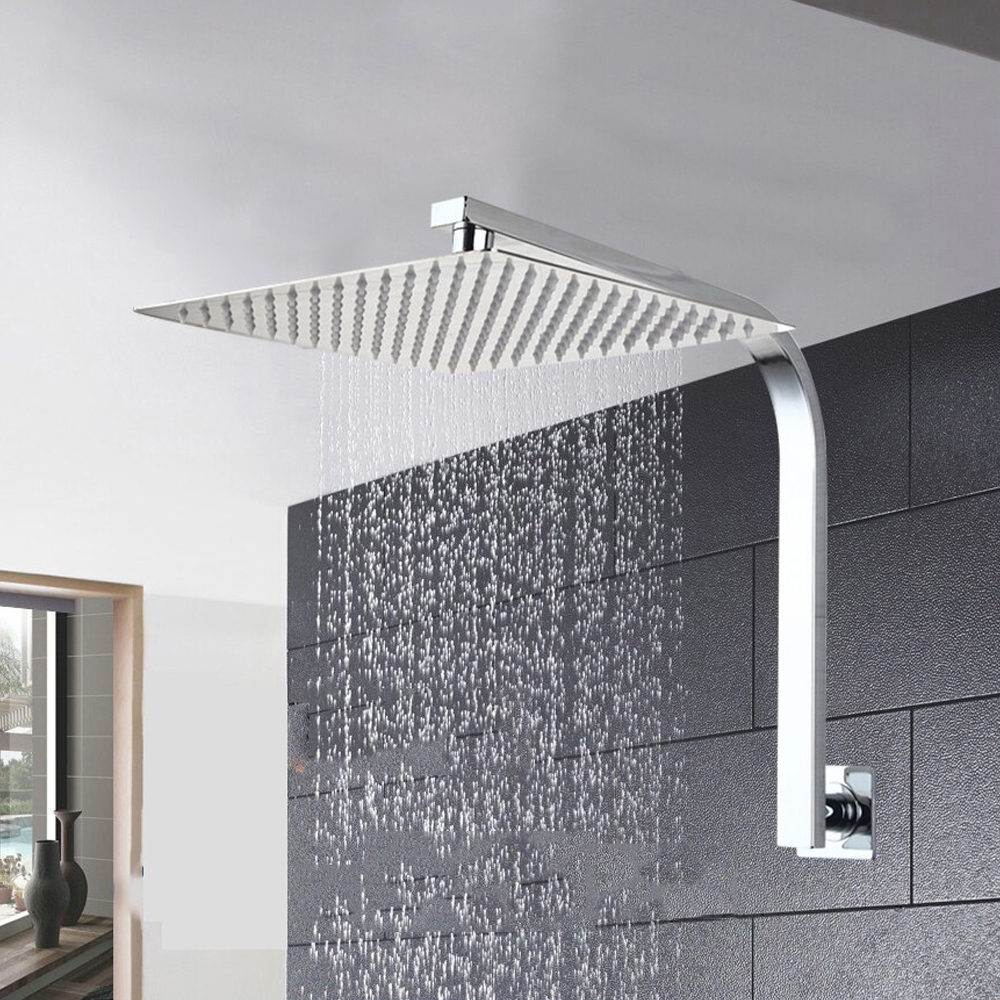

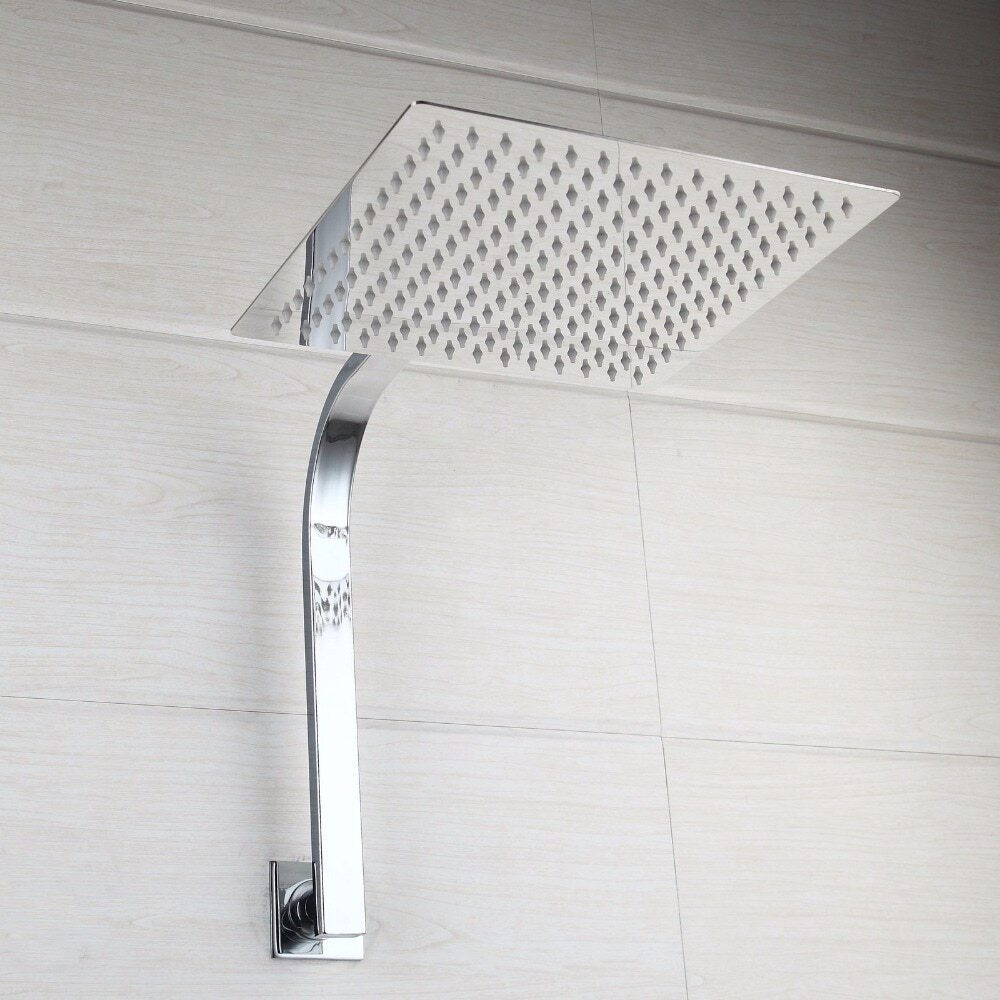

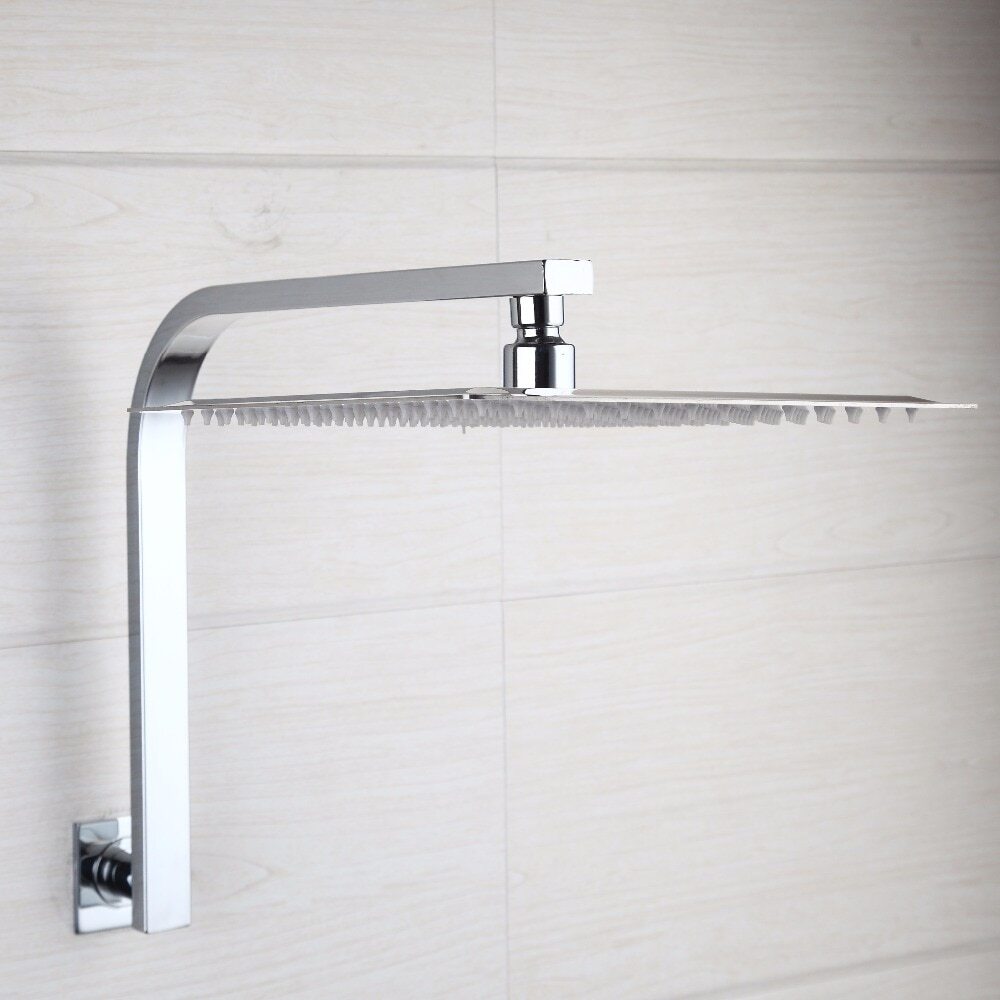

Fontana Luigi 8-Inch Chrome Finish Rainfall Square Shape Shower Head


When it comes to new bathroom Showerheads, FontanaShowers is offering the shape, finishes, and styles that you've looking for. Give your bathroom an elegant glance with this beautiful Showerhead. This is one of the trendiest finishes across decor styles in the bathroom. The Showerhead has an elegant flowing and will give you a better shower experience. This has an elegant design and elevates the appeal of your decor made from the highest quality and for great tastes. It comes super seal technology inside, capable of delivering superior performance with solid construction for long durability that will upgrade your bathroom with a modern and cool look for a long period of time. It is our goal to provide the customer with not only excellent products but also a leading lifestyle.

Features:

  • Brand Name: FontanaShowers
  • Model Number: FS9761
  • Installation Type: Wall Mount
  • Shower Head Shape: Square
  • Material: Brass
  • Type: Fixed Rotatable Type
  • Surface Finish: Polished Chrome
  • Size: 8 inches
  • Material: A-Grade Stainless Steel with Chrome Finish
  • Shower Head Feature: Rainfall Shower Head
  • Cold/Hot Water Control Type: Single Holder Dual Control
  • Shower Arm Style: Gooseneck Shower Arm
  • Material: Solid brass construction
    		•  shower set


    Fontana Luigi Rainfall Shower Head Resources
    Install the Luigi 8-Inch Rainfall Shower Head
    Review wall-arm preparation, threaded connections, shower-head alignment, leak testing and chrome-finish care.
    Installation Guides
    All FontanaShowers Installation Guides Shower Installation Details Rain-Shower Requirements
    Shower Head
    Luigi Installation Guide Wall Rough-In Dimensions
    Installation
    Water-Supply Planning Handheld Installation
    System Components
    Shower Mixer Installations Thermostatic Valve Rough-In
    Technical Files
    BIM / Revit Library Architect Installation Resources
    Project Support
    Installation & Maintenance Compliance Records
    ALL FONTANASHOWERS INSTALLATION GUIDES →

    Luigi Shower Head Installation Questions

    What should be checked before installing the Luigi shower arm?

    Verify that the wall connection is securely supported, correctly threaded and positioned to let the escutcheon sit evenly against the finished surface.

    Where should thread-sealing material be applied?

    Apply compatible thread-sealing material only to the threaded plumbing connections, following the supplied instructions and keeping excess material out of the waterway.

    How should the chrome shower head be tightened?

    Use protected tools and avoid gripping the visible chrome surface directly. Tighten sufficiently to seal the connection without damaging the finish or threads.

    What should be verified during final testing?

    Inspect the wall and head connections for leakage and confirm that the spray face is level and produces uniform rainfall coverage. Review Rain-Shower Requirements
