How to install Fontana Multifunction Shower Control Switch Valve Triple Handle | FS-1177

Installation Instructions for Bathroom Shower Mixer		Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the product for any shipping damages. If you find damages, do not install. Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.	shower

Thermostatic Shower Mixer Installation Instruction

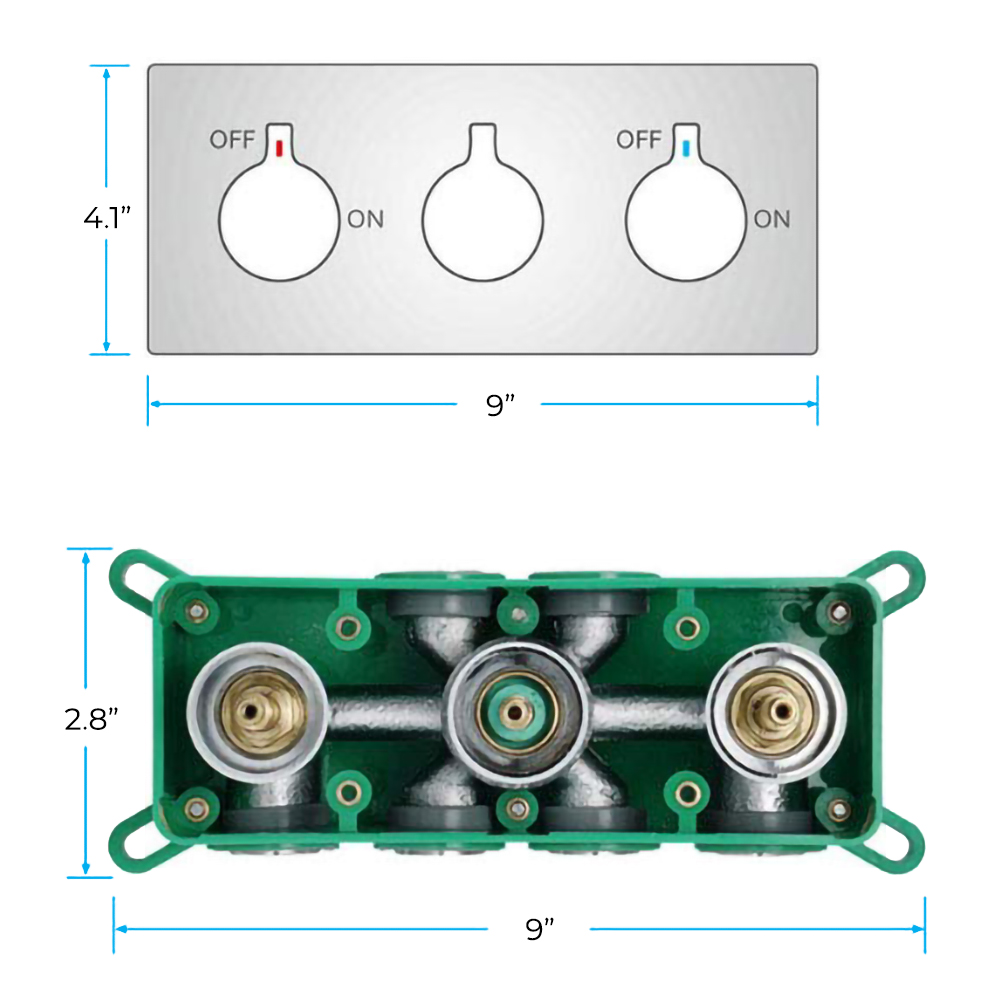

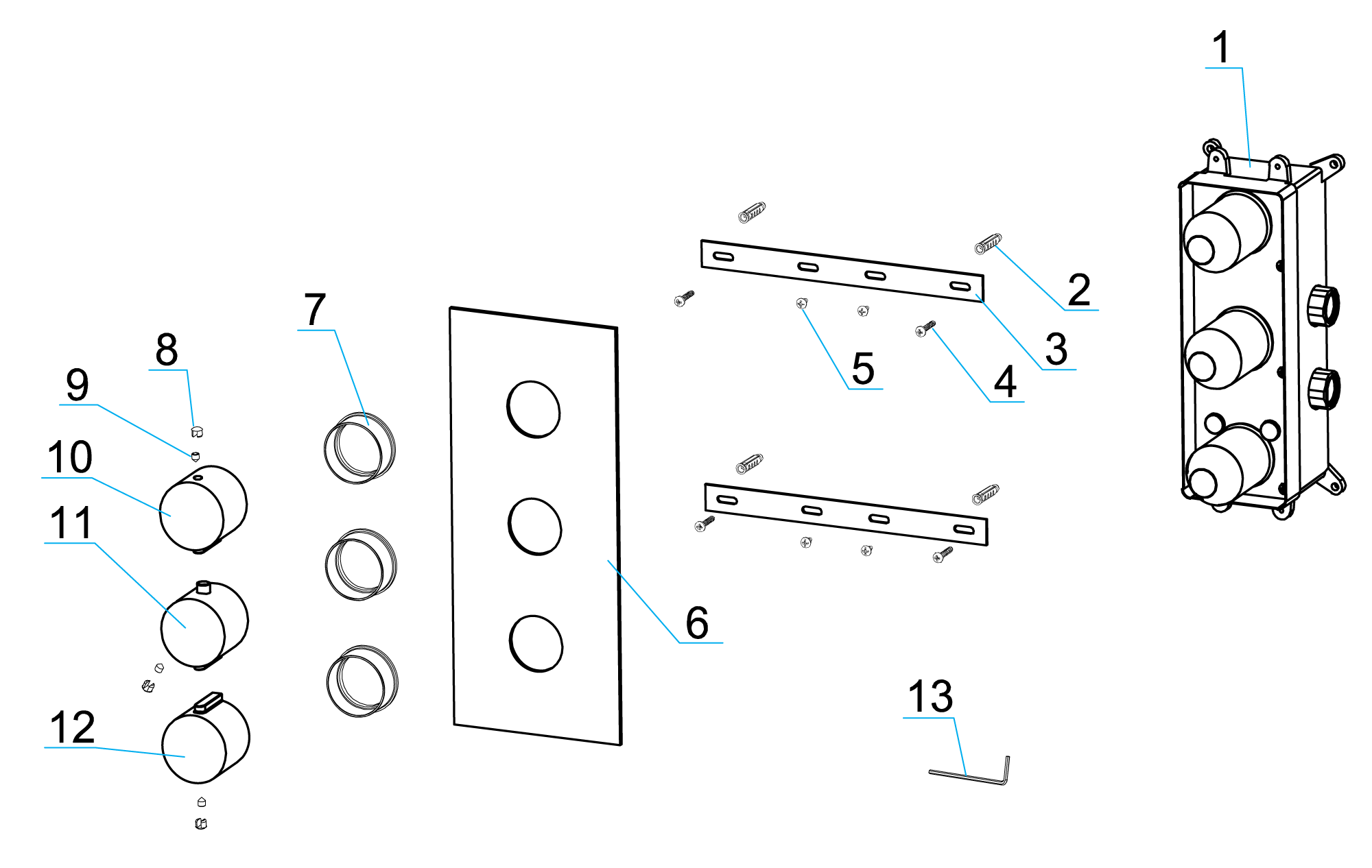

Parts: 1. Rough-In Body x1 2. Anchor x4 3. Positioning Bar x2 4. Tapping Screw 1 x4 5. Tapping Screw 2 x4 6. Plate x1 7. Cover x3 8. Button x3 9. Screw 1 x3 10.Diverter Handle x1 11. Temperature Handle x1 12. Volume Handle x1	Shower Mixer

Step 1:	shower mixer	Step 2:


Step 3:		Step 4:

		Make connections according to your shower system

1. Attach the positioning bar to the rough-in body with tapping screws. Mark the location of the mounting holes. 2. Remove the rough-in body and drill pilot holes at the locations marked in the previous step. Insert anchors. 3. Attach the rough-in body to the wall. 4. Connect the rough-in body to the water supply pipes. 5. Finish the wall surrounding the mixer with a thickness of 1/2"-1-1/2". a) The finished wall surface should not exceed the upper edge of the installation box. 6. If the tile exceeds the edges of the installation box, trim the tile as necessary to install the trim plate. b) Trim the tile around the installation box as necessary. 7. Remove the plastic guard and place the trim plate over the installation box. 8. Install the screws covers, handles and buttons.

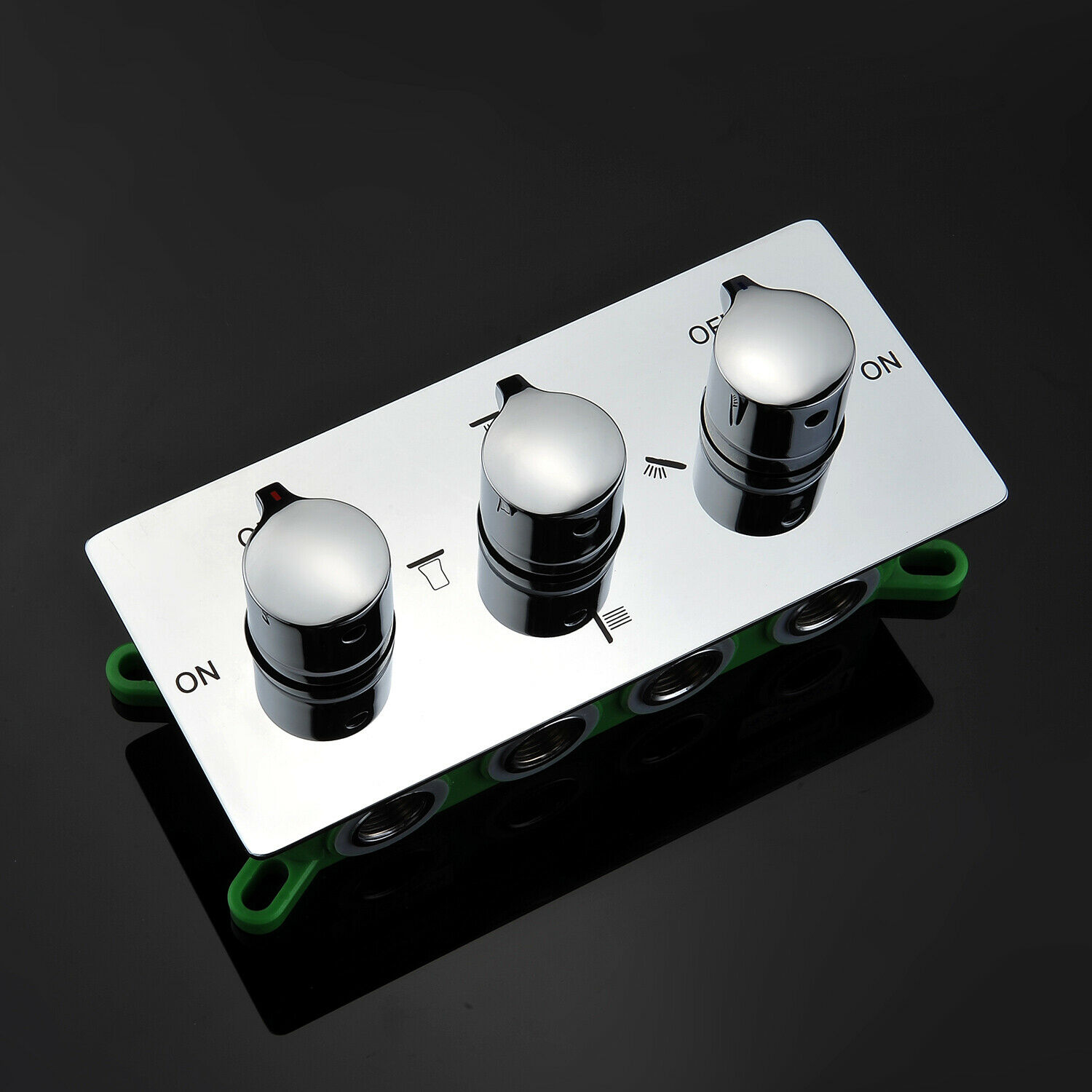

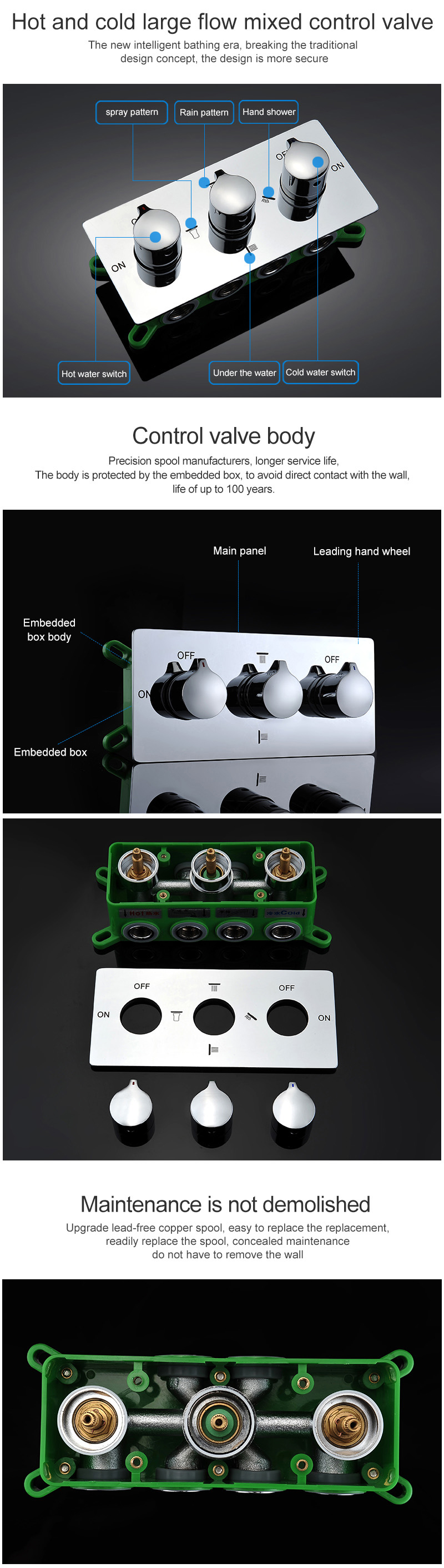

Fontana Multifunction Shower Control Switch Valve Bathroom Shower

This Fontana Shower Mixer is capable of delivering superior performance with a solid construction for long durability that will upgrade your bathroom with a modern and cool look for a long period of time. When it comes to new bathroom upgrades, FontanaShowers offers shape, finishes and styles that you've been looking for.

Features:

Brand Name: FontanaShowers

Model Number: FS-1177

Type: Shower Mixer Valve

Finish: Chrome

Surface Treatment: Polished

Size: 201-300mm

Valve Core Material: ceramic

Feature: Cold and Hot

Cold/Hot Water Control Type: Dual Holder Dual Control

Type: Fixed Support Type

Surface Finishing: Brass

Style: Contemporary

Number of Handles: Triple Handle

Mixing Valve Water way 1: Rainfall

Mixing Valve Water way 2: Hand shower head

Mixing Valve Water way 3: Shower Valve

Shower Switch Valve: Brass Shower Switch Valve

Brass Mixing valve: Filling Valves

Mixing Valve Material: Brass

Solid Brass Mixing Valve Switch: Concealed Shower Valve

Type: Bath & Shower Faucets, Thermostatic Shower Faucet Mixing Valve

Installation Type: Wall Mounted

Bath & Shower Faucet Type: In-Wall Shower Faucets

Fontana Multifunction Shower Control Switch Valve Bathroom Shower

Fontana Four-Way Shower-Control Installation Resources

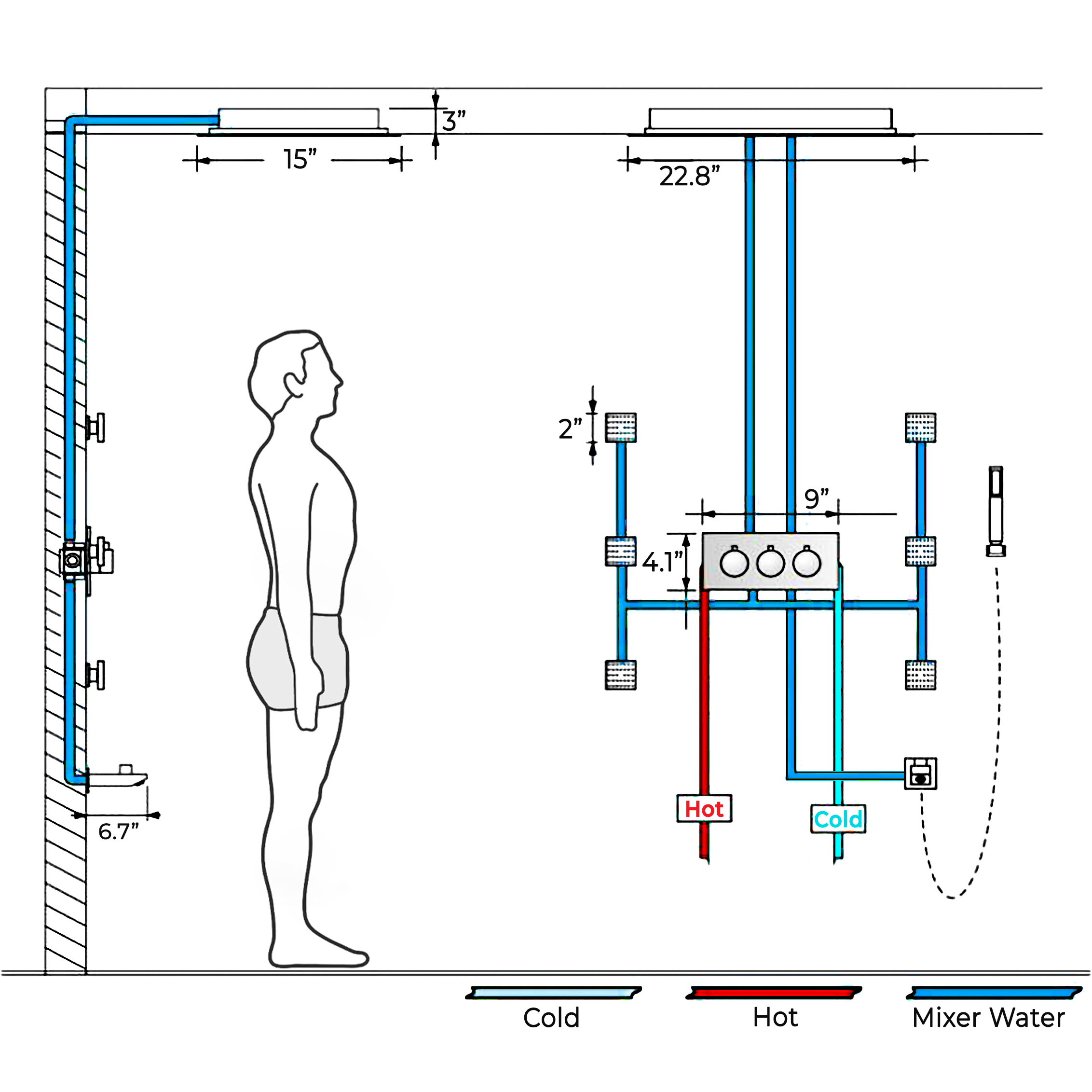

Map the Multifunction Shower-Control System

Coordinate the rough-in body, triple-handle controls, four outlet circuits, finished-wall thickness and testing sequence before wall closure.

Installation Guides

Four-Way Mixer

Outlet Circuits

Rain Shower

Project Files

Commissioning

VIEW ALL FONTANASHOWERS INSTALLATION GUIDES →

Four-Way Shower-Control Installation Questions

How should four shower outlets be mapped?

Label every valve port and pipe run, then verify each connection against the approved shower-system drawing before closing the wall. Review Mixer Installation Guidance

What finished-wall thickness does this guide identify?

The live installation instructions identify a finished-wall range of 1/2 inch to 1-1/2 inches, subject to confirmation against the exact FS-1177 documentation. Review Wall Rough-In Dimensions

How should the system be tested before tiling?

Pressure-test concealed connections and operate each outlet individually to verify routing, flow control and leak-free operation. Open Shower Testing Details

Where can related installation categories be found?

The main hub connects this guide with mixer, valve, body-jet, handheld and rain-shower resources. All FontanaShowers Installation Guides
