Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the products for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
sensor
Hand Held Shower Installations Instructions
Specifications:
1, designed for use in pressure regulated portable water
System with a maximum operating pressure of 40psi.
2, Maximum flow rate with valves fully open -2.5 gpm.
3, do not let freeze.
4, do not directly connect to a residential high pressure water supply.
Installation Instructions:
1, choose a flat area and have a minimum of 10 ”
Rear clearance for hose and water connections.
2, using the dotted line on this sheet as a template, cut the
Opening for the main body of the shower.
3, connect the female spray hose to the male clamp
Mounting at the back of the shower using Teflon tape.
4, insert the shower and drill the screw holes with a 1/8 ”bit.
5, Caulk the mounting flange with suitable weather resistance,
Flexible sealing material.
6, Drive # 8 flat head screws until secure.

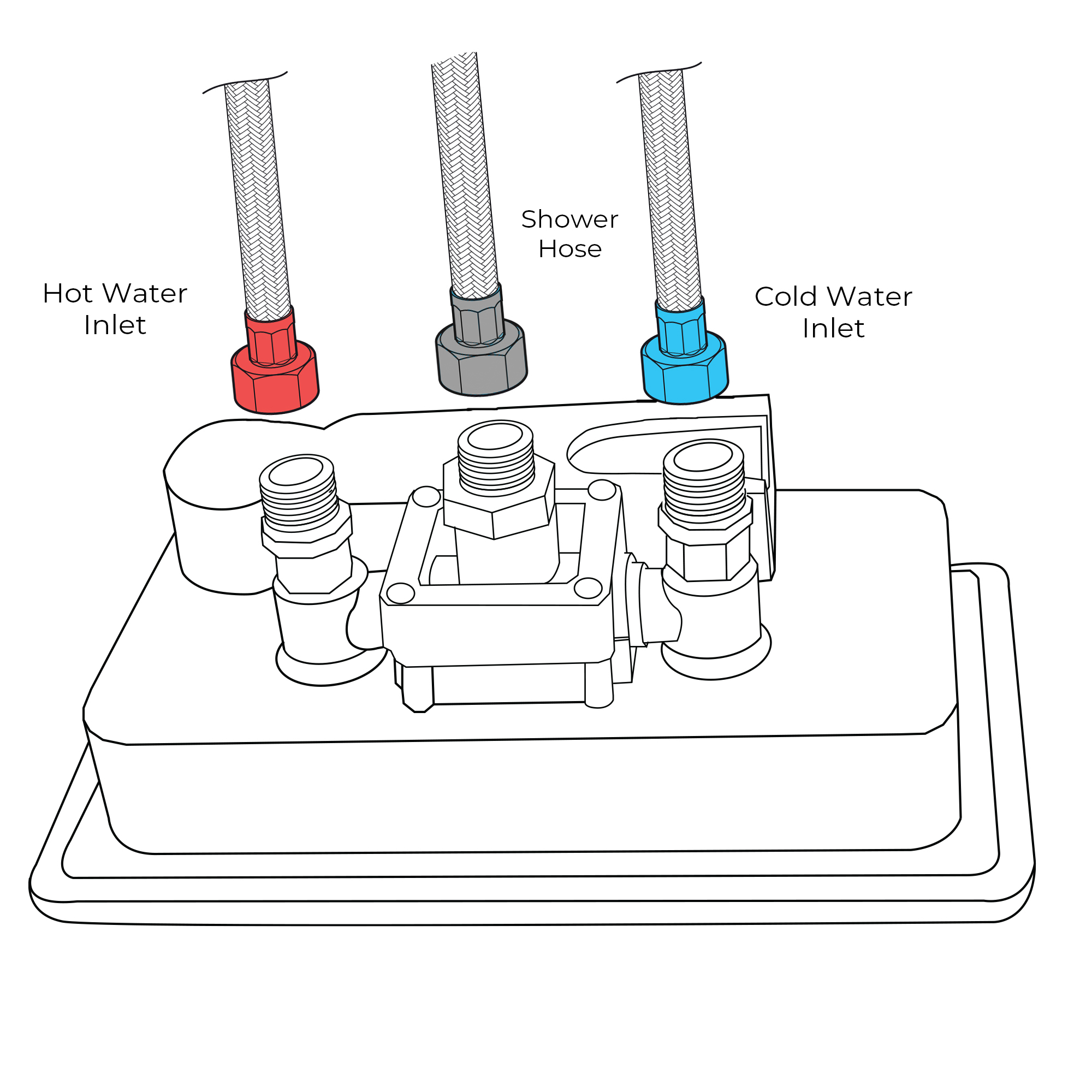

7, Connect the set of faucets to the on-board water system.

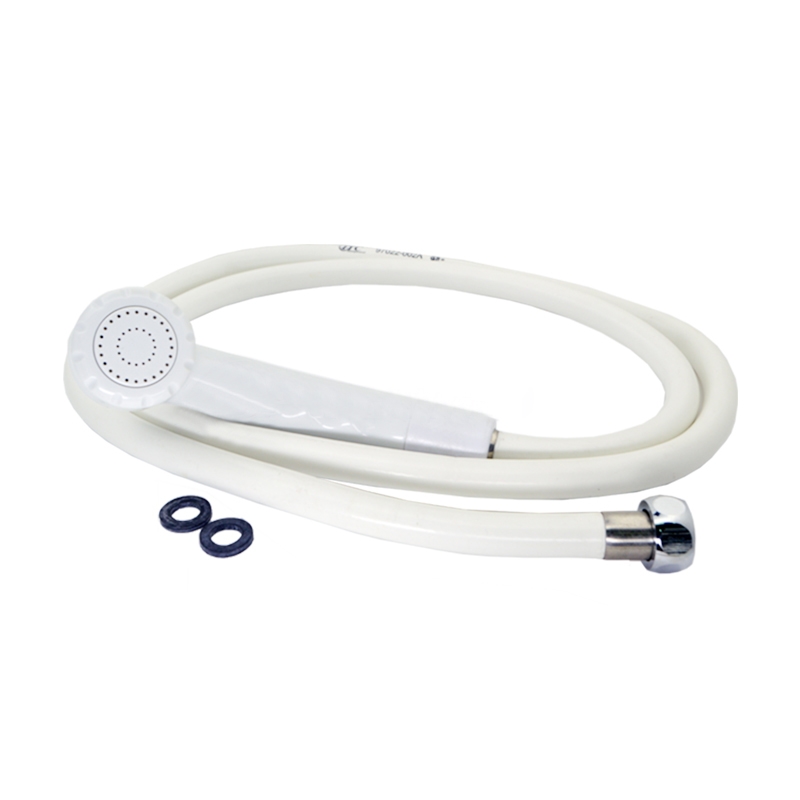

8, Attach the hose and the shower head.
Step 1:
Step 2:
Hand Held Shower
Hand Held Shower
Handheld Shower
Step 3:
Step 4:
Handheld Shower
Step 5:
Step 6:

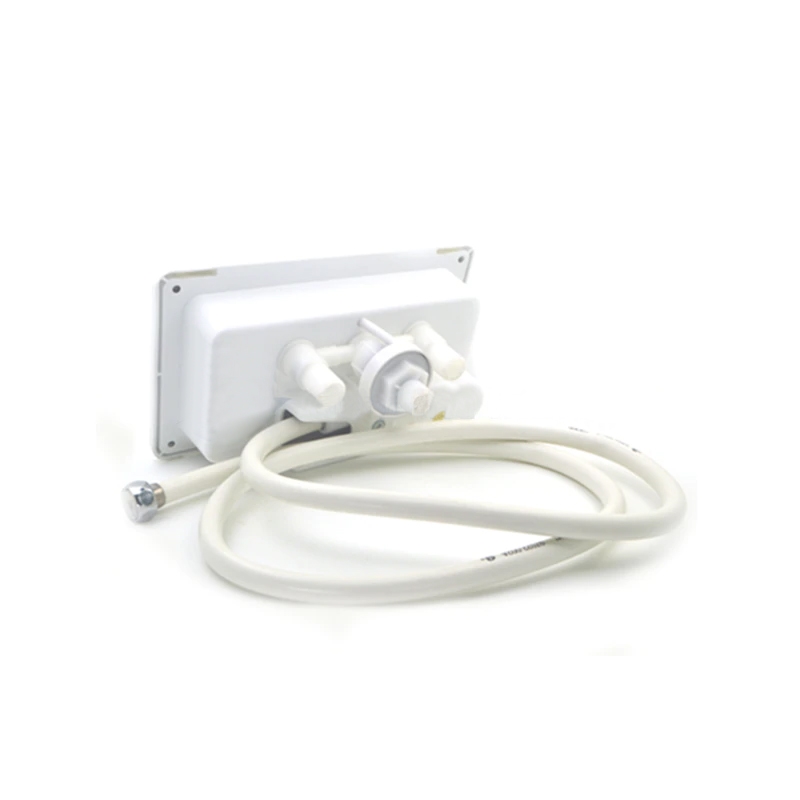

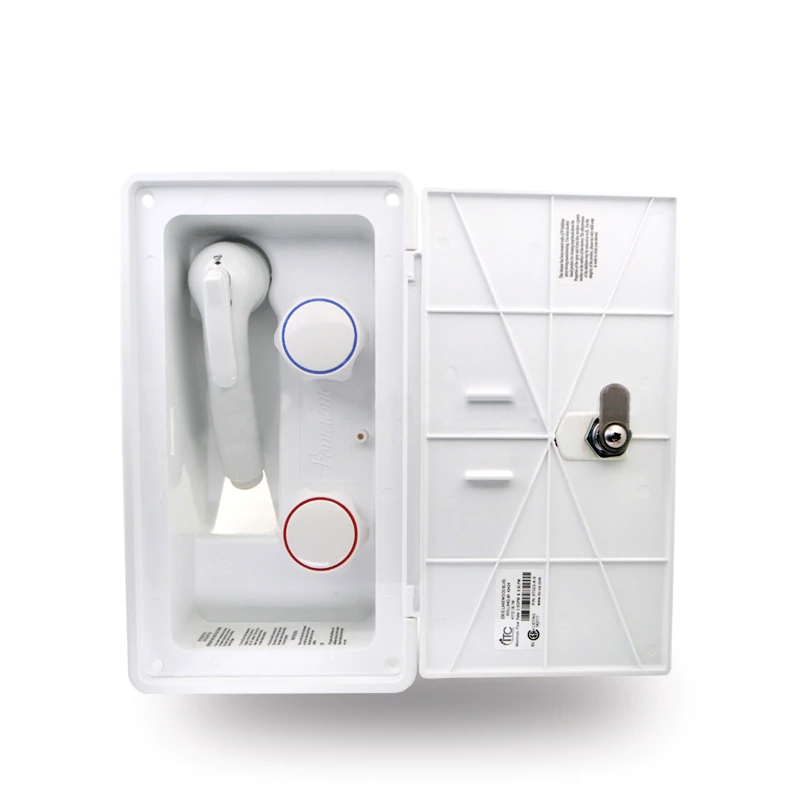

Fontana Atlanta Showers RV Exterior Shower Box Kit

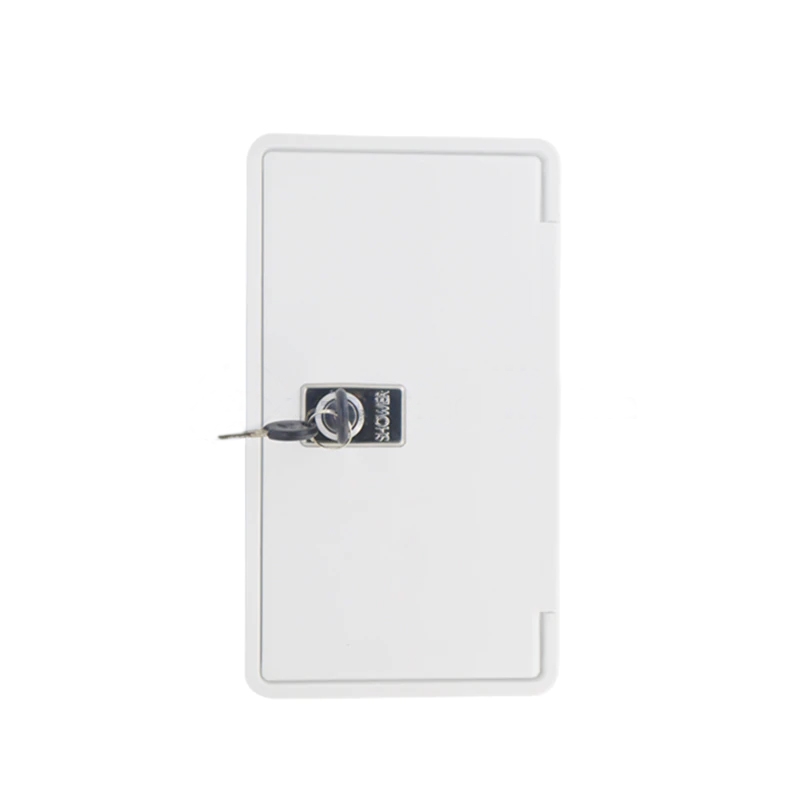

This sprayer has an ultra-tight seal. the outside spray box features an easy-to-open door for fast external access. This kit has been designed for a fast no-hassle connection between the sprayer hose and water supply. The spray box mounts flush to stay unassuming on your vehicle and has 2 simple turn knobs for temperature management. This sprayer and the matching hose are made with premium-grade light-weight artificial resins, and spray box is created with industrial-grade ABS for unique sturdiness and a period of use.
