Home > Touchless Bathroom Faucet Installation Instructions for Fontana Reno Commercial Temperature Control Chrome Plated Automatic Infra-Red Sensor Sink Faucet

How to install Fontana Reno Commercial Temperature Control Chrome Plated Automatic Infra-Red Sensor Sink Faucet | FS9830

Easy step by steps installation instructions for Sensor Faucet

Visit Product Page
  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the products for any shipping damages. If you find damages, do not install.
  • Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.

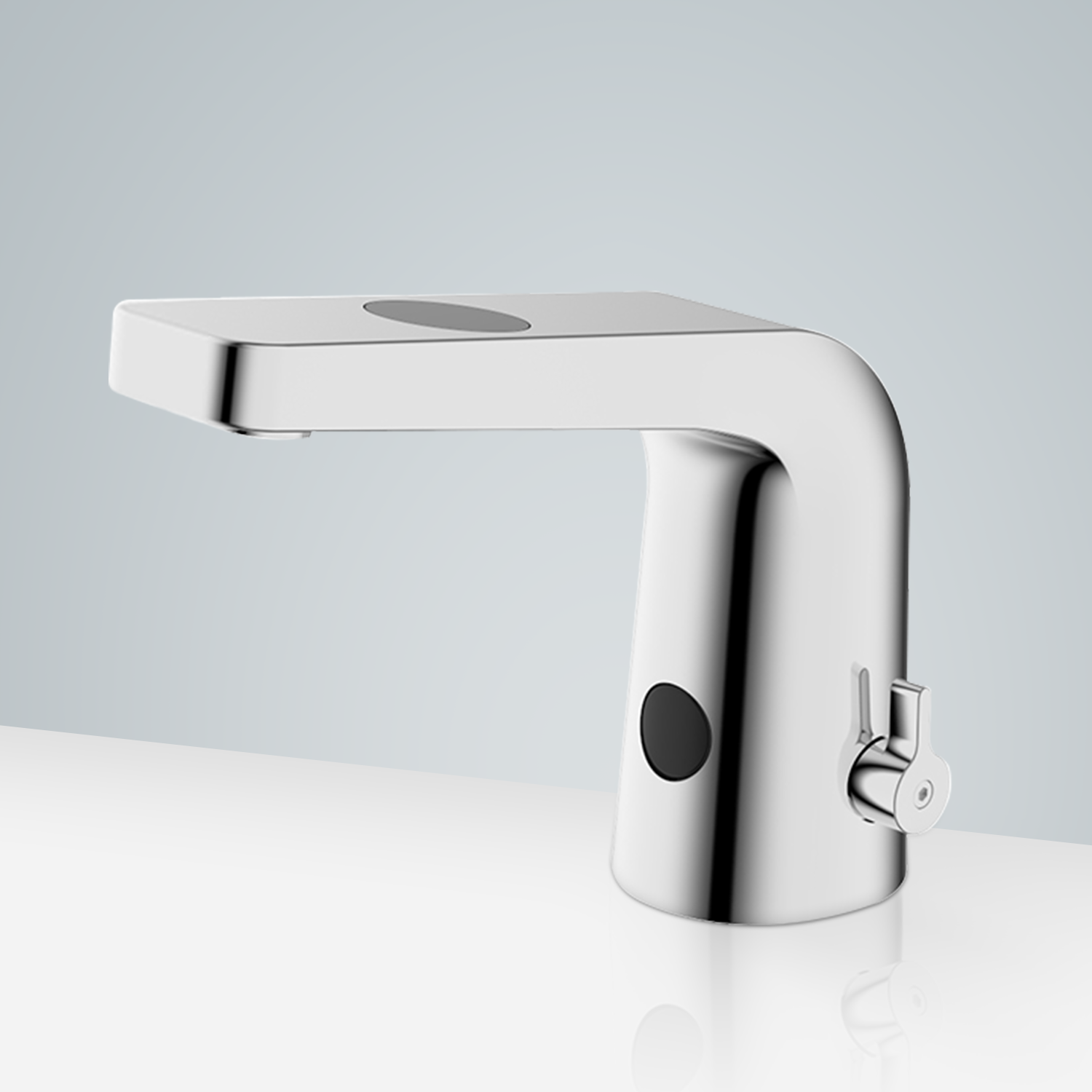

sensor Fontana Reno Commercial Temperature Control Chrome Plated Automatic Infra-Red Sensor Sink Faucet

Sensor Faucet Installations Instructions

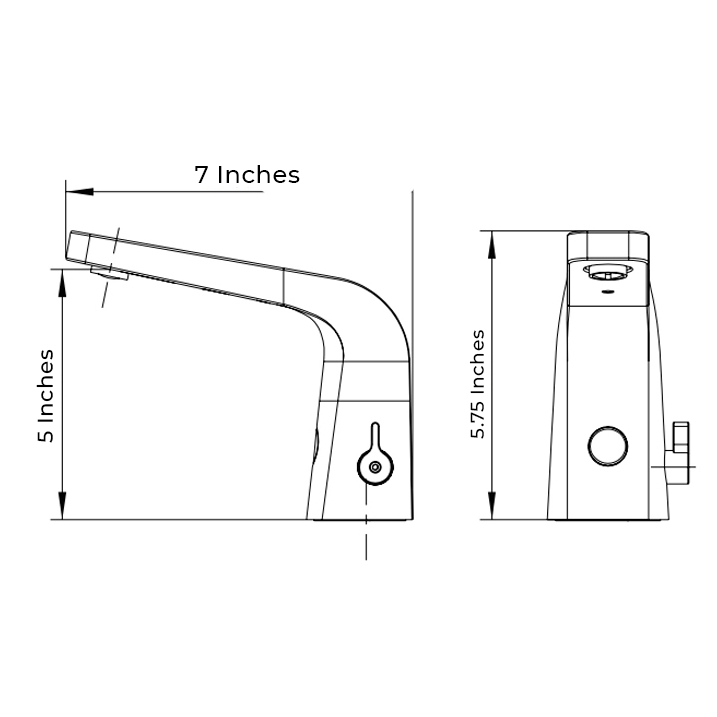

Size: Hole Size:

sensor



Size 1: Deck Mount InstallationStep 2:
sensor


Step 3: Connect to Power SupplyStep 4:



Step 5:Step 6: (Correct way for Hose)




Before installing your new mixer, flush through the pipework to ensure removal of debris, turn off the water supply.

Ensure the ‘O’ ring is in place at the bottom of the mixer body.

Push the control cable down through the hole and position the mixer on the basin. From the underside of the basin fit the rubber washer, metal washer onto the threaded tube followed by the nut. Tighten the nut to clamp the mixer to the basin. Tighten the 2 side screws up onto the washer.

CAUTION: Do not over tighten the nut/bolts as this may damage the basin.

Screw the two flexible pipes to the mixer body, but do not over tighten, hand tighten only.

Connect the water supply to the inlet pipes. The hot water should be connected to the front pipe.

Plug together the connectors coming from the mixer to the transformer. Line up the flats on both the plug and socket and firmly push together.




Flexible Connecting Hose

Care must be taken when connecting the flexible connection hose from the power supply box to the spout to ensure it does not bend sharply and kink or twist.
See above for recommended ways to fit the flexible connecting hose.

Important: Failure to follow these guidelines may result in poor performance and damage to the flexible connection hose.

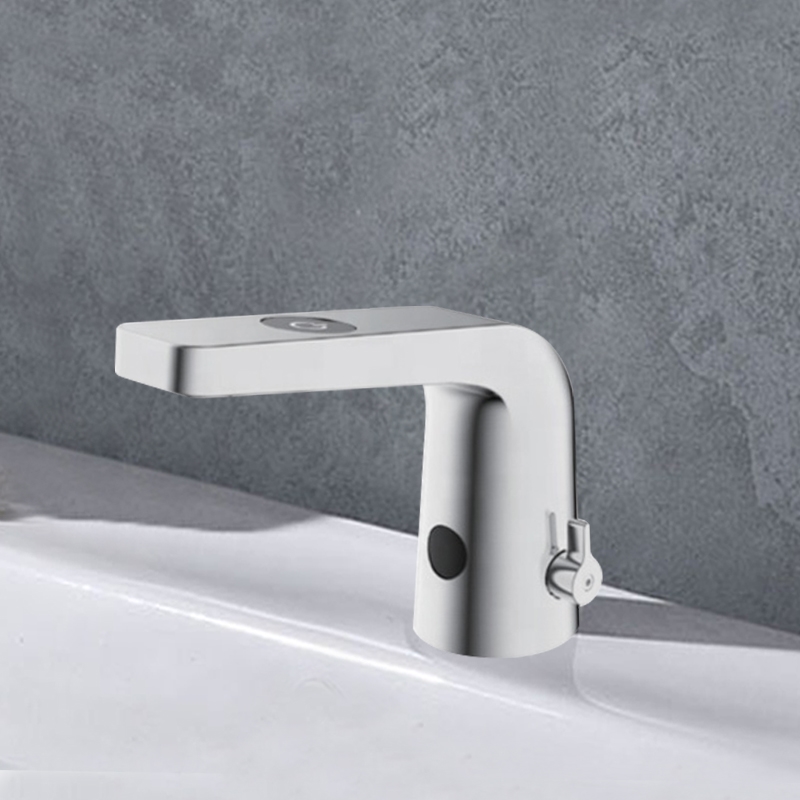

Fontana Reno Commercial Temperature Control Chrome Plated Automatic Infra-Red Sensor Sink Faucet


The Fontana Reno Commercial Temperature Control Chrome Plated Automatic Infra-Red Sensor Sink Faucet is a residential faucet that eliminates the need to touch or turn handles. Preset the temperature and flow rate to ensure consistency. Through the use of sensor beams, the automatic faucet determines when an object is in front of it and automatically turns on the faucet. The automatic motion sensor faucet provides water only when needed to reduce water waste. Unlike regular faucets where sometimes we turn the water on and then walk away, this faucet is preset to shut off after approximately 30 seconds. And, because they are hands-free faucets, they help reduce the spread of germs and keep the vanity area clean. Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.

Features:


Visit Product Page
  • Brand Name: FontanaShowers
  • Model Number: FS9830
  • Type: Sink Faucet
  • Installation Type: Deck Mount
  • Style: Traditional
  • Faucet Mount: Single Hole
  • Sensing Distance: 6.2-12.5 Inches or adjustable
  • Water Pressure:0.05-0.6MPa
  • Surface Treatment: Polished
  • Valve Core Material: Ceramic
  • Power Supply: DC, AC or DC&AC
  • Chrome plating: 24/48 Hours Salt Spray Test
  • Water Temp: Cold Water
  • Operating Temperature: 0.1-50℃
  • Usage: Commercial / Residential
Fontana Reno Commercial Temperature Control Chrome Plated Automatic Infra-Red Sensor Sink Faucet
