How to install Fontana Rio Chrome Touchless Motion Activated Sensor Hands Free Bathroom Commercial Sink Faucet | FS9853
Easy step by steps installation instructions for Sensor Faucet
Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the products for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
sensor
Sensor Faucet Installations Instructions

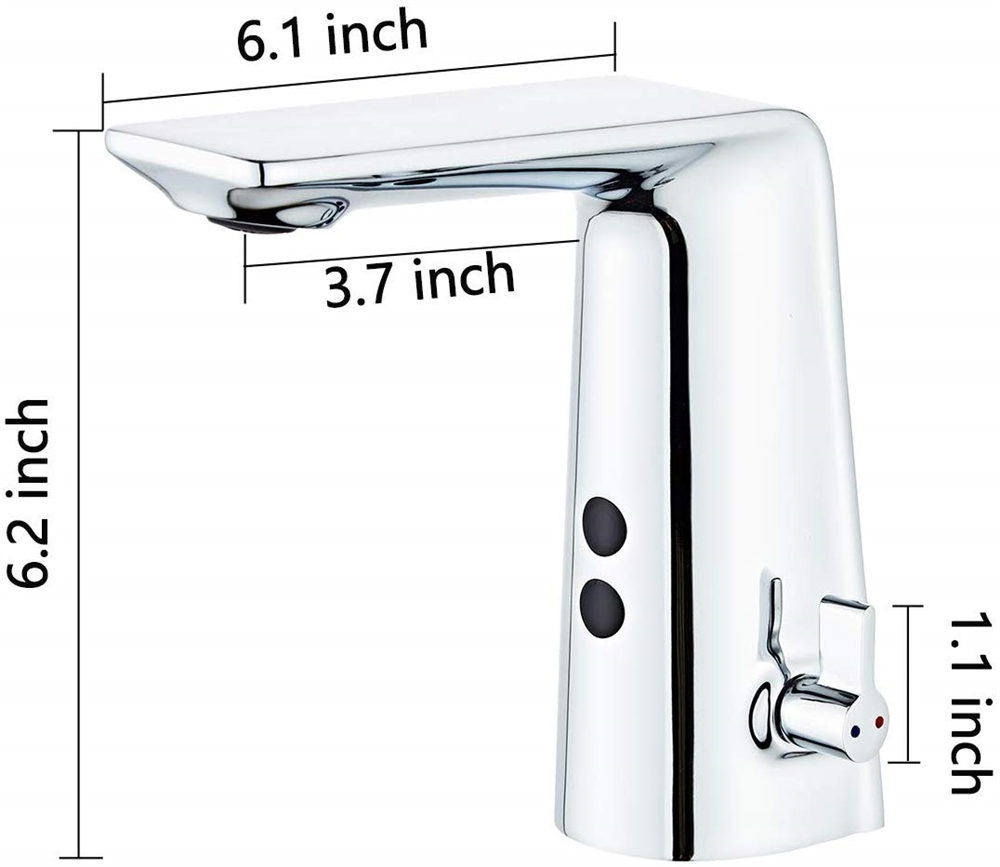

Size:
Hole Size:
sensor

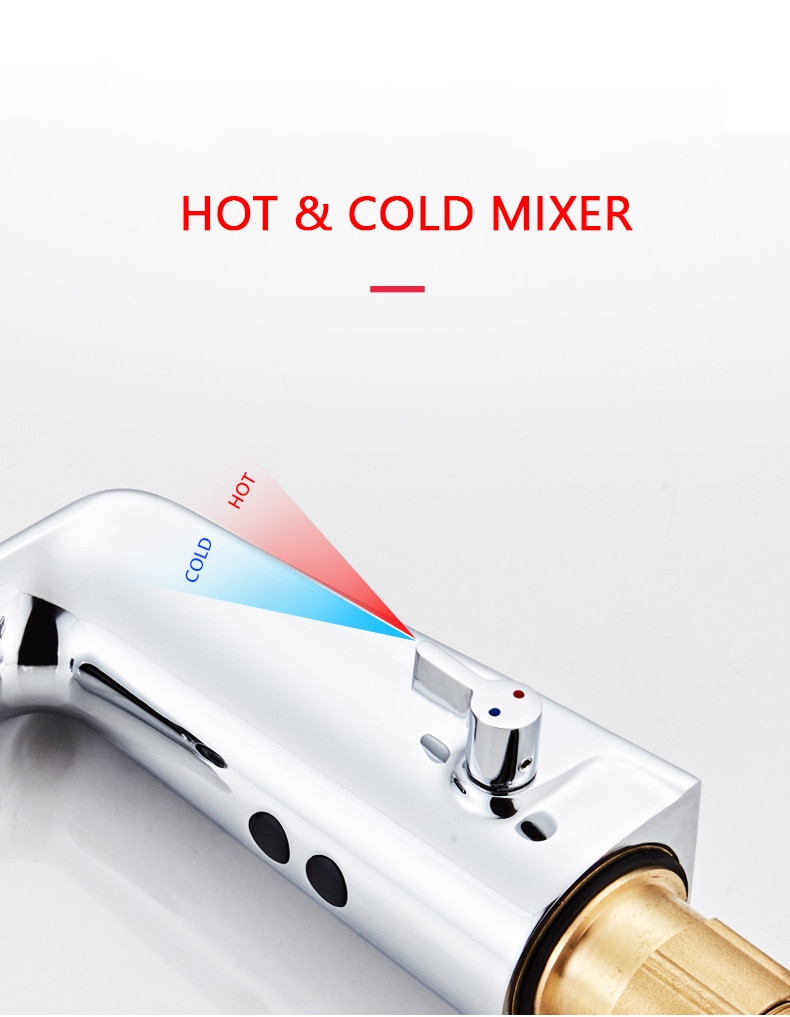

Features: - Cold and Hot integration. It is a mixer with the cold water in the left turning and hot water in the right turning. - Water-saving: Water flows out when your hands approach the induction zone, and stop immediately once you draw back your hands. - Low power,electricity-saving: For DC type, 4pcs AA batteries can be used for about 2 years, if the faucet working 200 times a day.
Specification: - Installation Type: Deck Mounted - Installation Holes: One Hole - Valve Type: Ceramic Valve - Temperature of environment:1-45°C (cold & hot water ) - Water Pressure: 0.05 Mpa - 0.7 Mpa - Dia of inlet pipe: G1/2" - Dia of outlet pipe: G1/2"

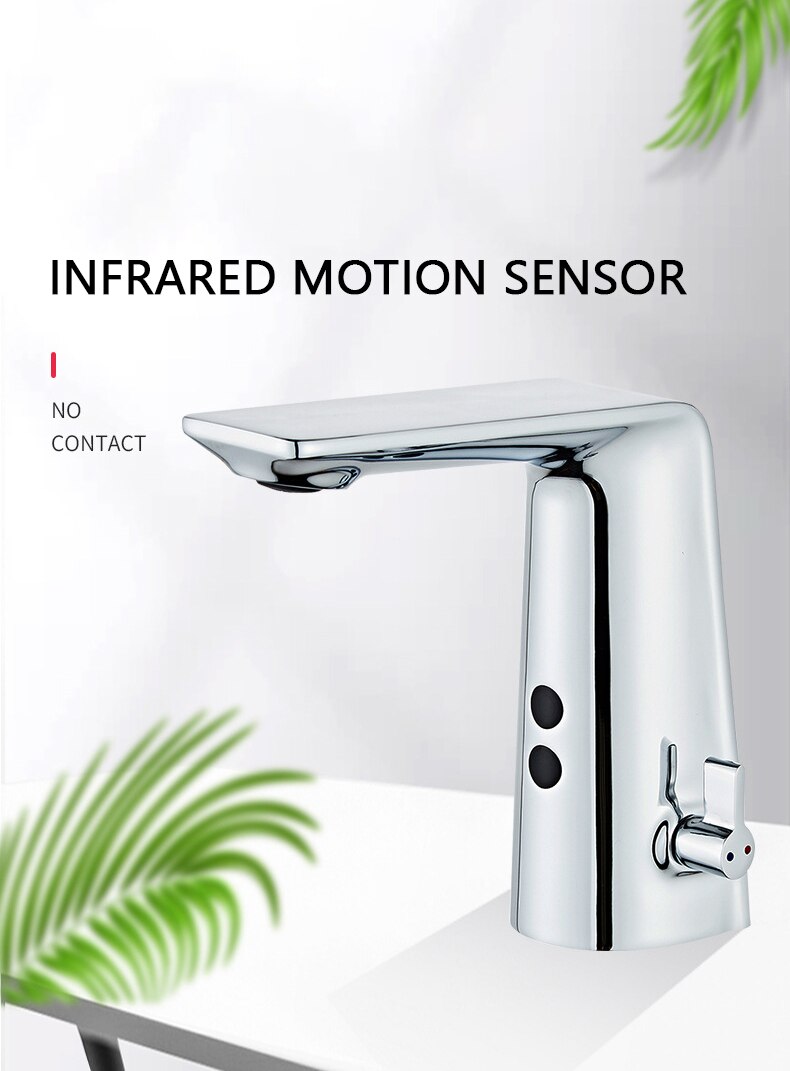

Smart infrared sensor automatically adjusts the distance according to the environment.
Size 1: Deck Mount Installation
Step 2:
sensor
Step 3: Connect to Power Supply
Step 4:
Step 5:
Step 6: (Correct way for Hose)
Before installing your new mixer, flush through the pipework to ensure removal of debris, turn off the water supply.
Ensure the ‘O’ ring is in place at the bottom of the mixer body.
Push the control cable down through the hole and position the mixer on the basin. From the underside of the basin fit the rubber washer, metal washer onto the threaded tube followed by the nut. Tighten the nut to clamp the mixer to the basin. Tighten the 2 side screws up onto the washer.
CAUTION: Do not over tighten the nut/bolts as this may damage the basin.
Screw the two flexible pipes to the mixer body, but do not over tighten, hand tighten only.
Connect the water supply to the inlet pipes. The hot water should be connected to the front pipe.
Plug together the connectors coming from the mixer to the transformer. Line up the flats on both the plug and socket and firmly push together.
Flexible Connecting Hose Care must be taken when connecting the flexible connection hose from the power supply box to the spout to ensure it does not bend sharply and kink or twist. See above for recommended ways to fit the flexible connecting hose.
Important: Failure to follow these guidelines may result in poor performance and damage to the flexible connection hose.
Features:

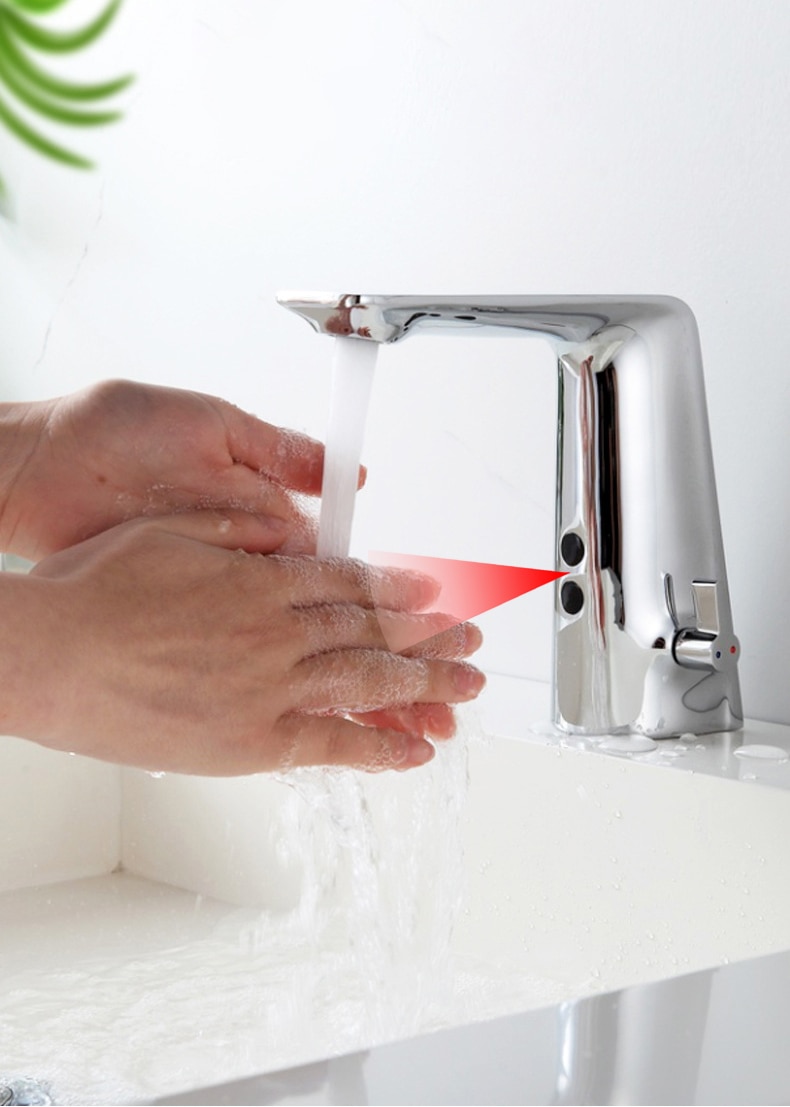

1. Intelligent Detecting: Water comes out once your hands get into the detection zone. And it will stop once you leave the detection zone. Sensor Confirming Time is less than 0.7s.
2. Super mini designed PCB is controlled by computer chip, saving power intelligently. With mini chip controlling, the static power consumption will be no more than 60uA.

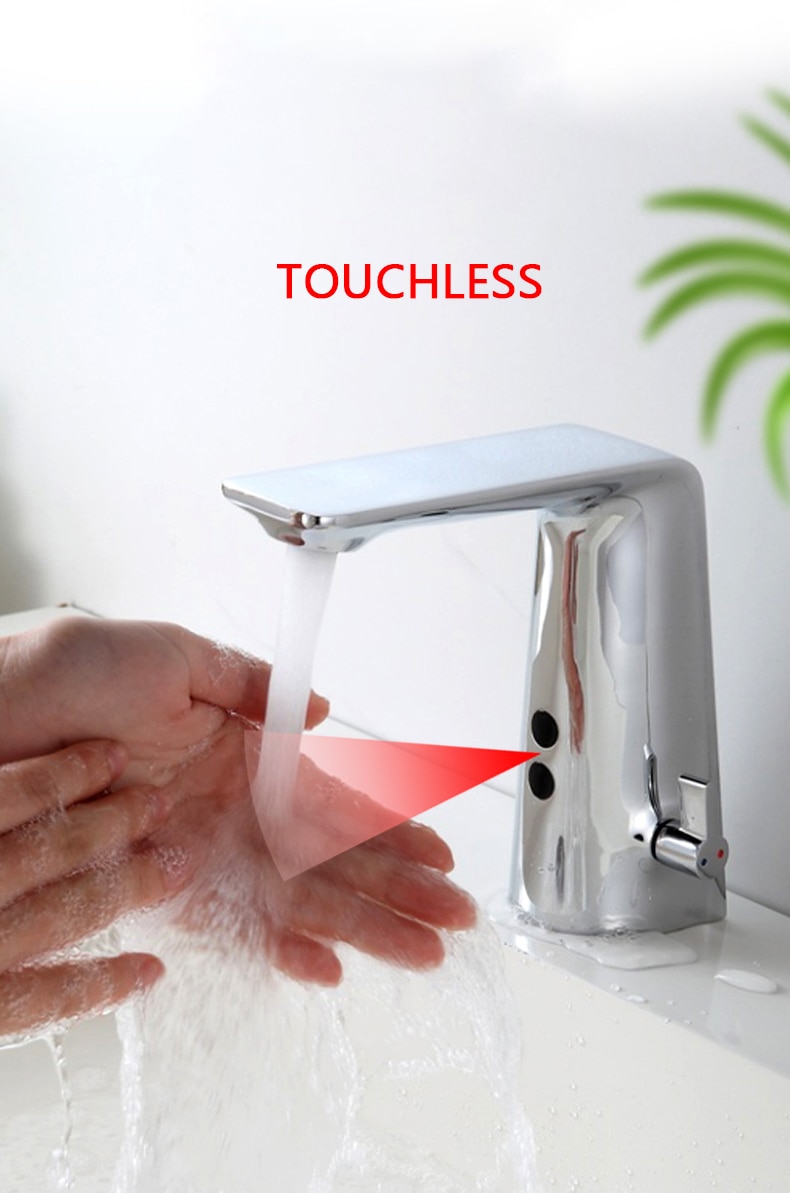

3. Hygienic: Self-open and close to free hands from any touching, which can prevent you from bacteria mutual infections.
4. Overtime Protection: It will shut off automatically when it flows more than 1 minute continuously to avoid water wasting caused by obstacles inside detection zone.
5. Detection Zone Adjusting Automatically: With controlling of mini-computer, it can set up the best detection zone according to the environment automatically.
6. Intelligent Power-Saving: Controlled by low-consumption chips and with power-saving working mode, the faucet is super low-consumption. (DC-type products use 4pcs of AA Alkaline batteries. Its statics current is no more than 60μA. Its lifetime can reach 2 years when it uses 300cycles per day.)
It is our goal to provide customer not only excellent products but also leading lifestyle. This is one of the most trendiest finishes across decor styles in the bathroom. Fontana Rio Touchless Motion Activated Sensor Hads Free Bathroom Sink Fauce has an elegant design that elevates the appeal of your decor made from the highest quality and for great tastes. Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all US standard plumbing. It comes super seal technology inside, capable of delivering superior performance with a solid construction for long durability that will upgrade your bathroom with a modern and cool look for a long period of time. Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
