How to install Commercial Automatic Temperature Control All-In-One Thermostatic Brushed Nickel Finish Sensor Faucet | FS-5137B
Easy step by steps installation instructions for Sensor Faucet
Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the products for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
sensor
Sensor Faucet Installations Instructions
Size:
Hole Size Chart:
Auto Sensor Faucet Specifications:
Power and voltage
DC6V AC220V - 50 / 60Hz
Body Material:
Brass with chrome
Work pressure:
0.5 ~ 7 Bar
Water supply pipe size:
DN15 (G1/2")
Ambiance Temp
Range: 0.1 ~ 60 Degrees Celsius
Distance detection:
Adjustable 5 ~ 25cm (default 25cm)
Setting range:
Digital
Response time:
0.3 seconds (default)
Time delay:
0.5 seconds (default)
The weakness of the battery:
Red LED on
Size 1: Deck Mount Installation
Step 2:
sensor
Step 3: Connect to Power Supply
Step 4:
Step 5:
Step 6: (Correct way for Hose)
Before installing your new mixer, flush through the pipework to ensure removal of debris, turn off the water supply.
Ensure the ‘O’ ring is in place at the bottom of the mixer body.
Push the control cable down through the hole and position the mixer on the basin. From the underside of the basin fit the rubber washer, metal washer onto the threaded tube followed by the nut. Tighten the nut to clamp the mixer to the basin. Tighten the 2 side screws up onto the washer.
CAUTION: Do not over tighten the nut/bolts as this may damage the basin.
Screw the two flexible pipes to the mixer body, but do not over tighten, hand tighten only.
Connect the water supply to the inlet pipes. The hot water should be connected to the front pipe.
Plug together the connectors coming from the mixer to the transformer. Line up the flats on both the plug and socket and firmly push together.
Flexible Connecting Hose Care must be taken when connecting the flexible connection hose from the power supply box to the spout to ensure it does not bend sharply and kink or twist. See above for recommended ways to fit the flexible connecting hose.
Important:Failure to follow these guidelines may result in poor performance and damage to the flexible connection hose.
Automatic faucet functions:
1) Water saving: water flows when your hands approach and stop immediately
2) Hygienic: auto-open and close to the hands free from any touch, which can Avoid mutual bacteria infections
3) smart: with its microcomputer to control its action, the tap can AUTO adjusts its best detection zone based on bath color and shape
4) Low power consumption: For DC scrubbers, 4AAA alkaline batteries can be used to 2 years at 200 cycles per day
5) Samples: low cost and freight available
Automatic faucet advantage:
Works with infrared sensor, works without contact;
Advanced energy-saving design for long battery life;
Intelligent: with its micro-computer smart chip controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory Low power consumption: 4AA alkaline batteries can be used for 2 years at 200 cycles a day Convenient to maintain: Built-in strainer prevents sundries from entering the solenoid valve and the strainer is easy to clean
Water conservation isn't a novel concept, but emerging forces are creating renewed attention among consumers. With the prospect of water resources drying up, facility executives and home owners must find new ways to conserve water. Sensor Faucets for residential use have been the latest trend.
The battery-powered faucets features an infrared sensor and:
Easy to operate;
Stop the spread of germs & bacteria;
Environment friendly Minimize waste of water;
Prevent scalding injury;
Power Consumption: 0.5mW
Power : DC6V (4AA Alkaline batteries)
Touch free operation!!!
The automatic faucet provides water only when needed.
Additionally, since these faucets are preset to shut off after approximately 30 seconds, accidental flooding can't occur if a person leaves it running.
And, because they are hands-free, they help reduce the spread of germs and keep the vanity area clean.
Fits all standard faucets.
The faucet is powered by four batteries which eliminates the need to run any electrical lines to the system.
It is designed for ease of installation in new and retrofit applications.
Uses 4AAA Alkaline Batteries.
Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.
Diameter of inlet pipe
DN15
Diameter of outlet pipe
DN15
Water Pressure
0.05 Mpa - 0.7 Mpa
Power and Voltage
DC.6V AC.220V - 50/60Hz
Power Consumption
0.5MW 2W
Detection Zone
Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature
1 - 45 °C / 33.8 -113 °F
Degree of protection by enclosure
1P56

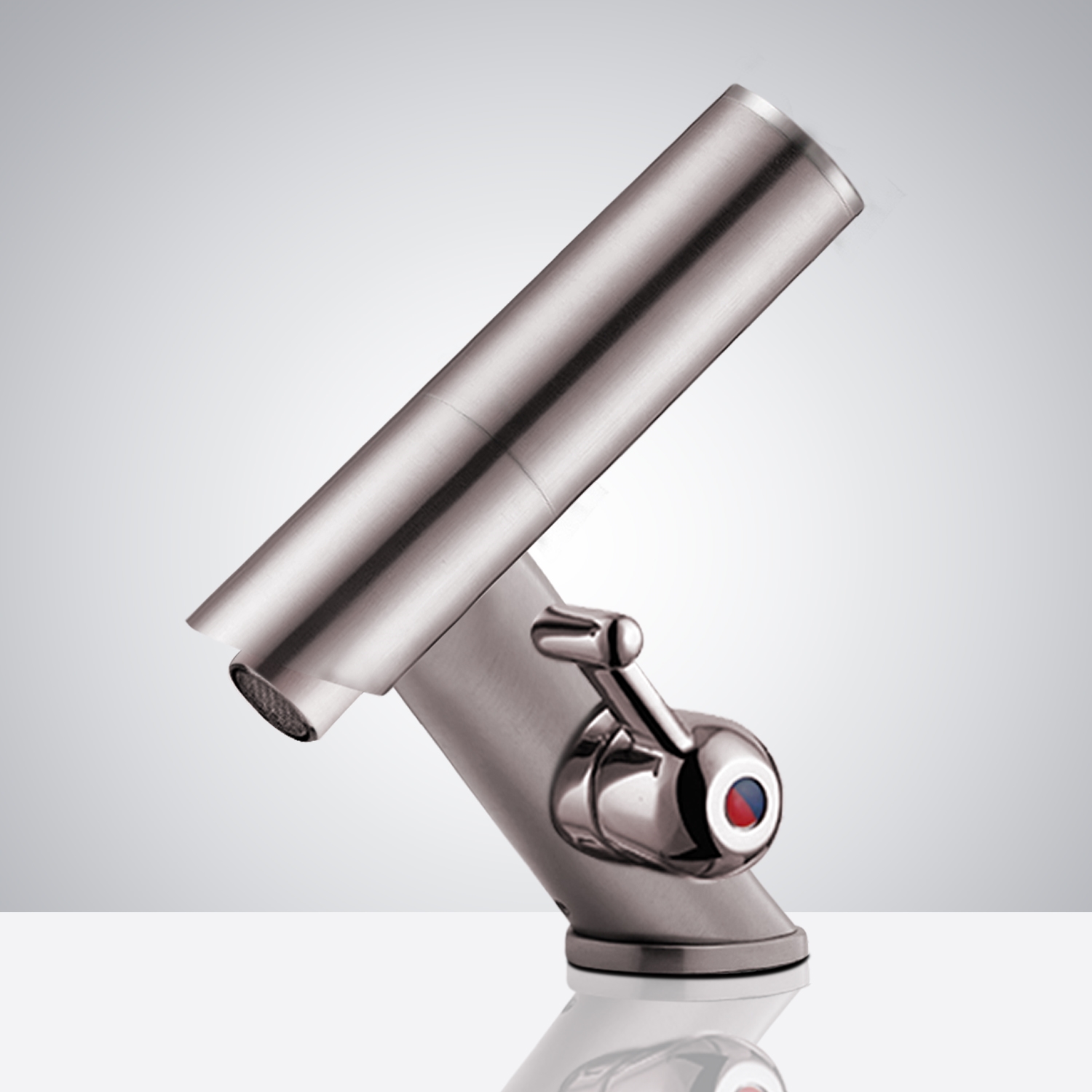

Commercial Automatic Temperature Control All-In-One Thermostatic Brushed Nickel Finish Sensor Faucet
Thermostatic technology that controls the temperature fluctuations at the outlet, preventing scalding, while mixing the water at the desired temperature at the point of use. This contemporary angled spout single post AC operated faucets provide facilities with ultimate reliability and easy maintenance. Perfect for hotels, private washrooms and other public commercial lavatories, the FS-5137 lavatory faucet features an integrated above counter mixer built into the faucet body, a 2-8 inch sensor range, and built in brass solenoid. maintenance of the FS-5137 is simple and can be performed in minimal time. The faucet is equipped with a sensor override and a 60-second time out feature to prevent floods. The Fontana® faucet line is certified to meet ASME A112.18.1/CSA B125.1.All Parts in one perfect product; Ceramic Cartridge; Built-in check valve; Sensor control; Thermostatic sensor faucet (mixer) with advanced infrared sensor technology.
Features:
Brand Name: FontanaShowers
Model Number: FS-137B
Type: Automatic Faucet
Water Pressure: 0.05Mpa - 0.7Mpa
Finish: Brushed Nickel
Construction: Solid Brass
Power Supply: AC110V And DC6V
Batteries Included: Not
Mounting Type: Deck Mount
Useage: Commercial and Residential
Body Material: Brass
Style: Contemporary
Sensing distance: Remote Control
Mounting Type: Single hole
Valve Core Material: Ceramic
Supply: DC6V (4 X AAA Battery)
Usage: Commercial / Residential
Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
