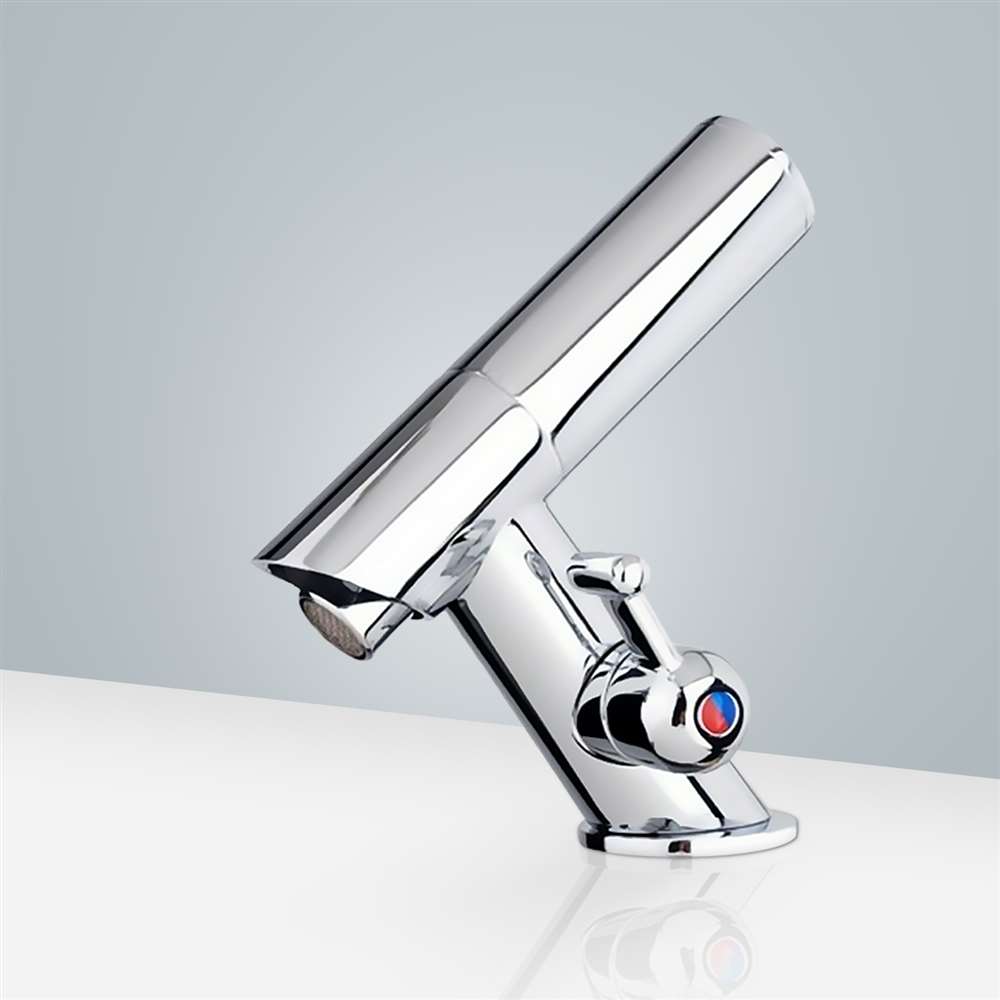

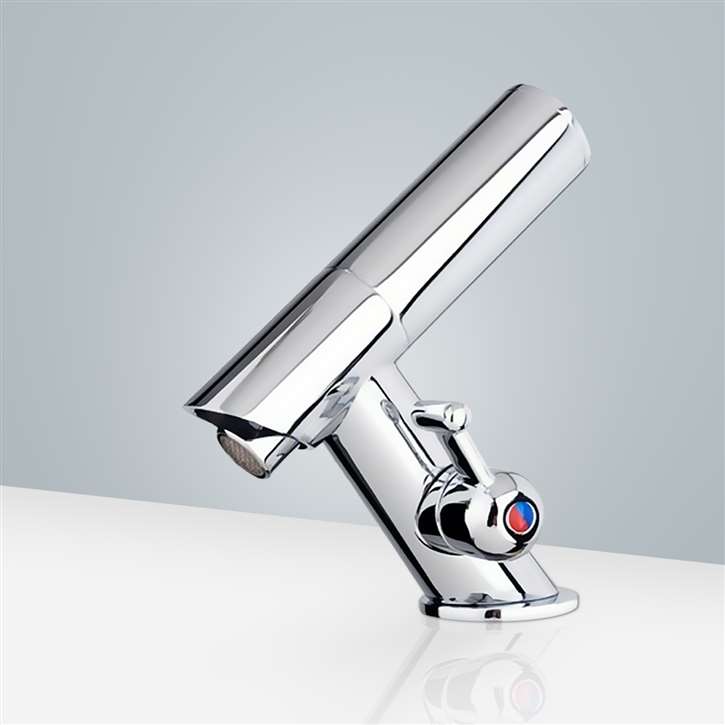

Juno Commercial Automatic Temperature Control All-in-one Thermostatic Chrome Finish Sensor Faucet
Thermostatic technology controls the temperature fluctuations at the outlet, preventing scalding while mixing the water at the desired temperature at the point of use. These contemporary angled spout single post-AC-operated faucets provide facilities with ultimate reliability and easy maintenance. Perfect for hotels, private washrooms, and other public commercial lavatories, the FS-5137 lavatory faucet features an integrated above-counter mixer built into the faucet body, a 2-8 inch sensor range, and a built-in brass solenoid. maintenance of the FS-5137 is simple and can be performed in minimal time. The faucet is equipped with a sensor override and a 60-second time-out feature to prevent floods. The Fontana® faucet line is certified to meet ASME A112.18.1/CSA B125.1.All Parts in one perfect product; Ceramic Cartridge; Built-in check valve; Sensor control; Thermostatic sensor faucet (mixer) with advanced infrared sensor technology.
Juno Commercial Automatic Temperature Control All-in-one Thermostatic Chrome Finish Sensor Faucet Features:
- Brand Name: FontanaShowers®
- Model Number: FS-5137
- Type: Touchless Bathroom Faucet
- Water Pressure: 0.05Mpa - 0.7Mpa
- Finish: Chrome
- Construction: Solid Brass
- Control Box : Included- Hardwired & Battery Operated
- Supply Hoses: Included
- Other Features: Vandal resistant
- Remote Control: Optional- Reset or Adjust the Sensing Distance or turn off/on
- Flow Rate: Built in Aerator Available from .5 GPM - 1.5 GPM
- Flow Rate Special: Customizable can be provided for any Water Flow Requirement
- Sensor Range: Adjustable
- Mounting Hardware: Included
- Power Supply: AC110V And DC6V
- Batteries Included: No
- Mixing Valve: Water Temperature Mixing Valve Available
- Mixing Valve Material: Solid Brass Thermostatic Mixing Valve Available
- Mixing Valve: Water Temperature Mixing Valve Available
- Mixing Valve Material: Solid Brass Thermostatic Mixing Valve Available
- Mixing Valve Material: Solid Brass Thermostatic Mixing Valve Available
- Mounting Type: Deck Mount
- Usage: Commercial
- Body Material: Brass
- Valve Body: Brass
- Style: Contemporary
- Sensing distance: Remote Control
- Mounting Type: Single hole
- Valve Core Material: Ceramic
- Supply: DC6V (4 X AAA Battery)
- Usage: Commercial

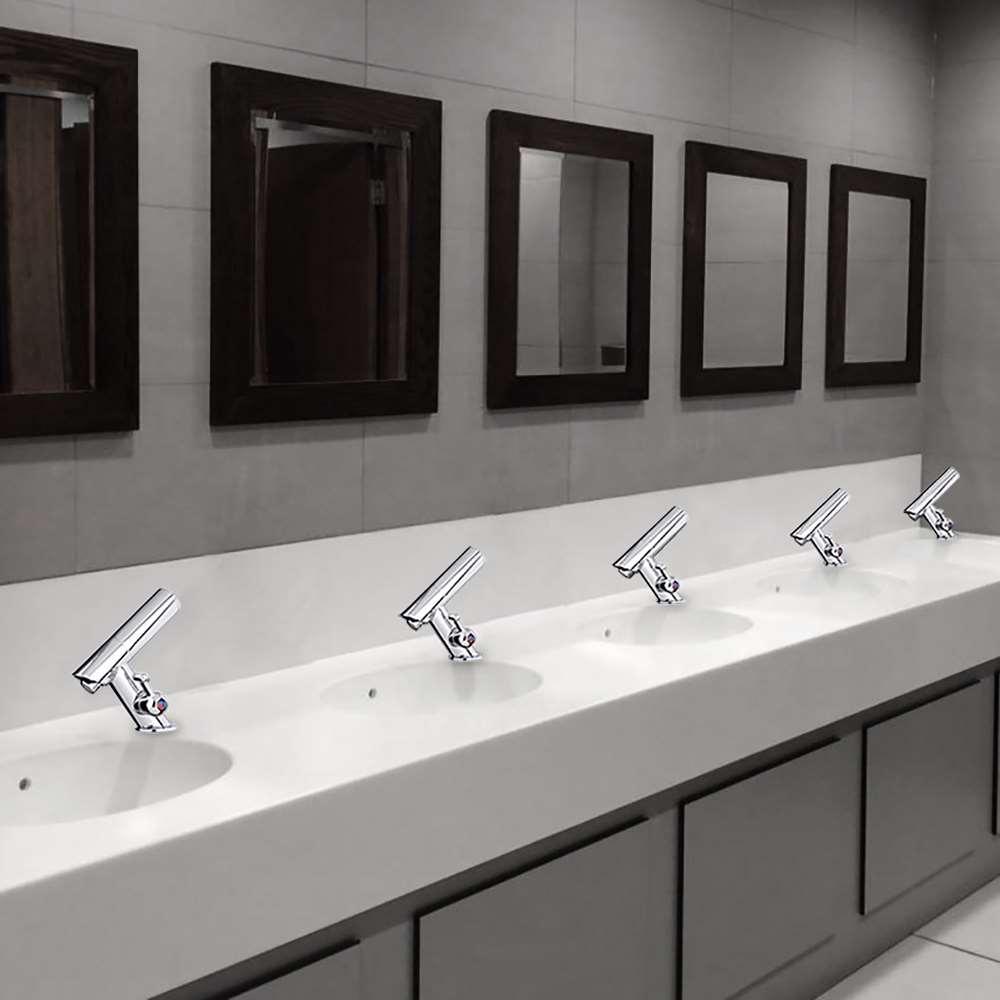

- Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing.
Sensor Faucet water-saving; hygienic; automatically opens and closes
to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!
This Sensor Faucet Applications; Residential, Commercial use & ADA
- This faucet is shipped complete. ANSI A112.18.1M
CSA Standard B125, 2.2 U.S.
- GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
- All the hardware necessary for satisfactory installation
Specifications and Dimensions
|
Spout
|
Chrome Plated Solid Brass
|
|
Power
|
4 (AA) Alkaline Batteries or AC Adapter
|
|
Battery life expectancy
|
250,000 cycles
|
|
Solenoid valve
|
6 Volt magnet latching
|
|
Working Water Pressure
|
1 PSI -100 PSI
|
|
Supply Inlet Size
|
1/2” NPT Male
|
|
Water Temperature Control
|
Built-in
Pop-Up Drain
|
|
Sensor type and Location
|
Active Infrared, Neck mount Sensor
|
|
Microprocessor
|
Digital, Pug And Play
|
|
Sensing Range
|
2” to 6”
|
|
Response Time
|
0.3 Second
|
|
Shut-Off Delay Time
|
2 Seconds
|
|
Anti vandalism maximum Running Time
|
60 Seconds
|
|
Particle filter size
|
50
|
|
Mesh Aerator
|
2.2 GPM Standard
|
|
|
|
