Lano Commercial Sensor Faucet

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow. Commercial Motion Sensor Faucet; Built for institutional use with stable sensing performance, controlled discharge, auto shut-off timing, and long-cycle operational reliability.

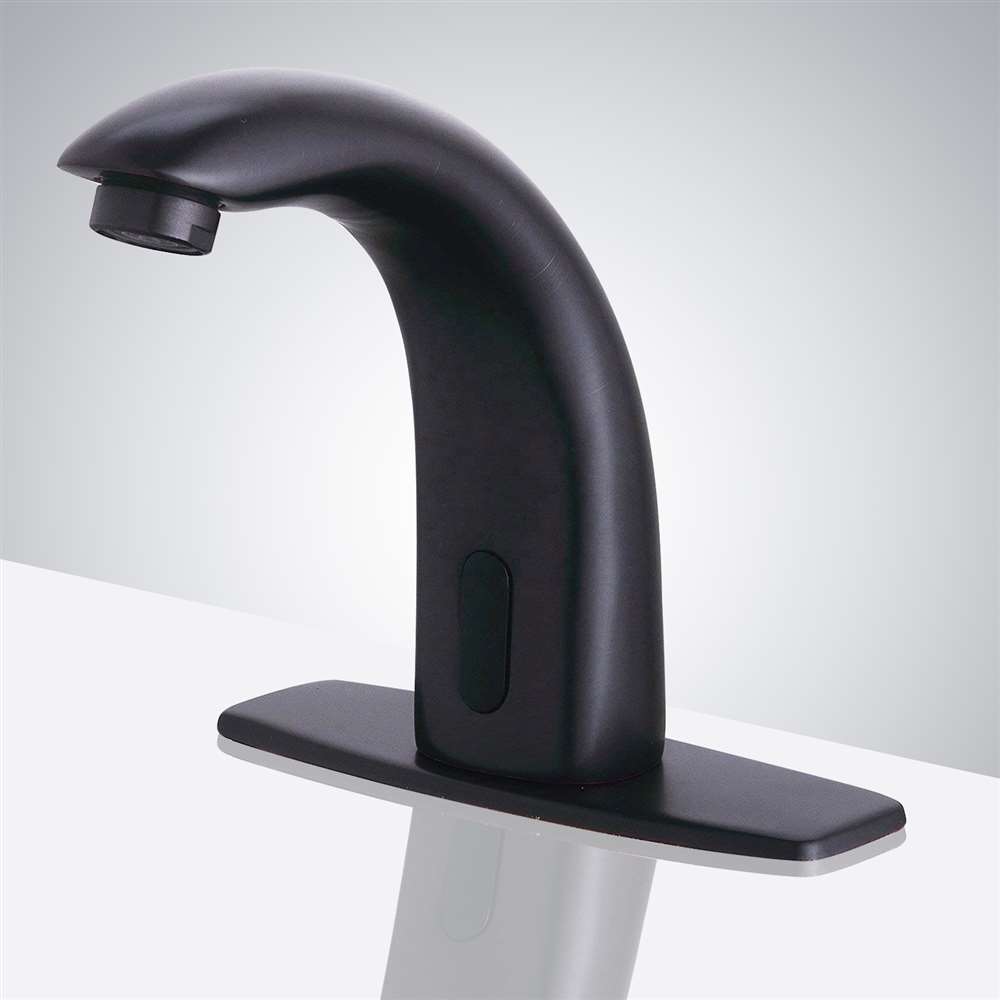

Lano Commercial Oil Rubbed Bronze Automatic Motion Sensor Faucet

16–32 cm Adaptive Sensing, Rapid Valve Response & 500,000-Cycle Commercial Engineering

Engineered for high-use commercial washrooms, the Lano combines adaptive infrared sensing, rapid valve actuation, G1/2" connections, and durable automatic control.

How does the 16–32 cm adjustable sensing range improve installation commissioning?

The 16–32 cm adjustable detection range allows the infrared activation envelope to be coordinated with basin depth, faucet position, and surrounding reflective surfaces. Automatic sensing-distance adjustment further supports stable commissioning by helping the control system maintain dependable hand detection while reducing unnecessary activation in varying commercial lavatory conditions.

How do the <1-second opening and <2-second closing times improve operational control?

The sensor valve is specified to initiate opening in less than one second and close in less than two seconds after detection conditions change. This rapid response minimizes unnecessary discharge between handwashing cycles and provides predictable automatic valve operation for high-frequency commercial restroom applications.

How should the 0.05–0.7 MPa pressure range and G1/2" connections be coordinated?

The specified 0.05–0.7 MPa water-pressure envelope establishes the hydraulic conditions for reliable operation, while G1/2" inlet and outlet connections provide defined interfaces for supply coordination. Engineers should verify available dynamic pressure, pipe sizing, and upstream losses during design so the sensor faucet receives adequate pressure under simultaneous fixture demand.

What does the 500,000-cycle motor-valve rating indicate for commercial service life?

The motor valve is rated for up to 500,000 operating cycles, supporting repetitive automatic actuation in high-traffic installations. Combined with solid-brass construction, a built-in filter, waterproof components, and vandal-resistant design, the valve architecture is intended to provide dependable operation while supporting routine preventive maintenance.

• Diameter of inlet pipe: DN15
• Diameter of outlet pipe: DN15
• Water Pressure: 0.05Mpa - 0.7Mpa
• Power and Voltage: DC.6V / AC.110-220V - 50/60Hz
• Power Consumption: 0.5MW / <2W
• Detection Zone: Factory set 25cm/10" (based on standard inductive board)
• Ambient Temperature: 1 - 45 °C / 33.8 -113 °F
• Degree of protection by enclosure: 1P56
• Battery: 4 x 'AA' size cells
• Operational water pressure range: 0.05 - 0.6MPa
• US standard water supply pipe size: DN15 (G1/2")
• Ambient temperature range: 0.1 - 45ºC
• Sensing distance: 9.84" (25cm)
• Time delay: 0.5 seconds
• Operation duration: power will automatically cut off after continuous use for 60 seconds
• Pop-up drain: Yes
• Color: Matte Black

Commercial Sensor Faucet Features

• Infrared sensor operated, touch-free operation
• Advanced energy-saving design for long-lasting battery life
• Waterproof sensor
• Battery low LED light indicator
• Advanced circuit design saves electricity and water
• Sensing distance adjusted automatically

Sensor Tap Advantage

1. Conserves water
2. Saves energy during the water heating process
3. Hygienic, no-touch activation
4. Easy installation
5. Durable, solid all-brass construction
6. Built-in filter
7. ADA compliant Ideal for use by disabled people
8. Vandal resistant
9. Waterproof Components
