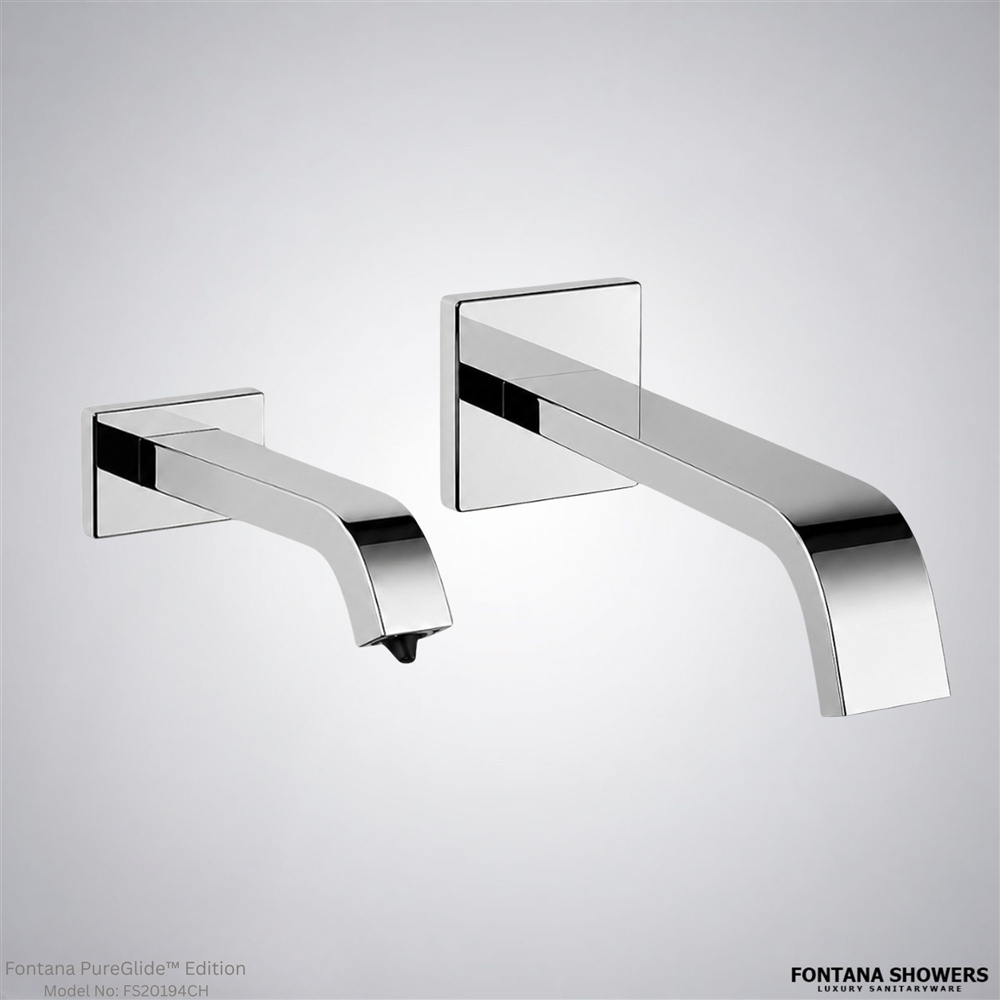

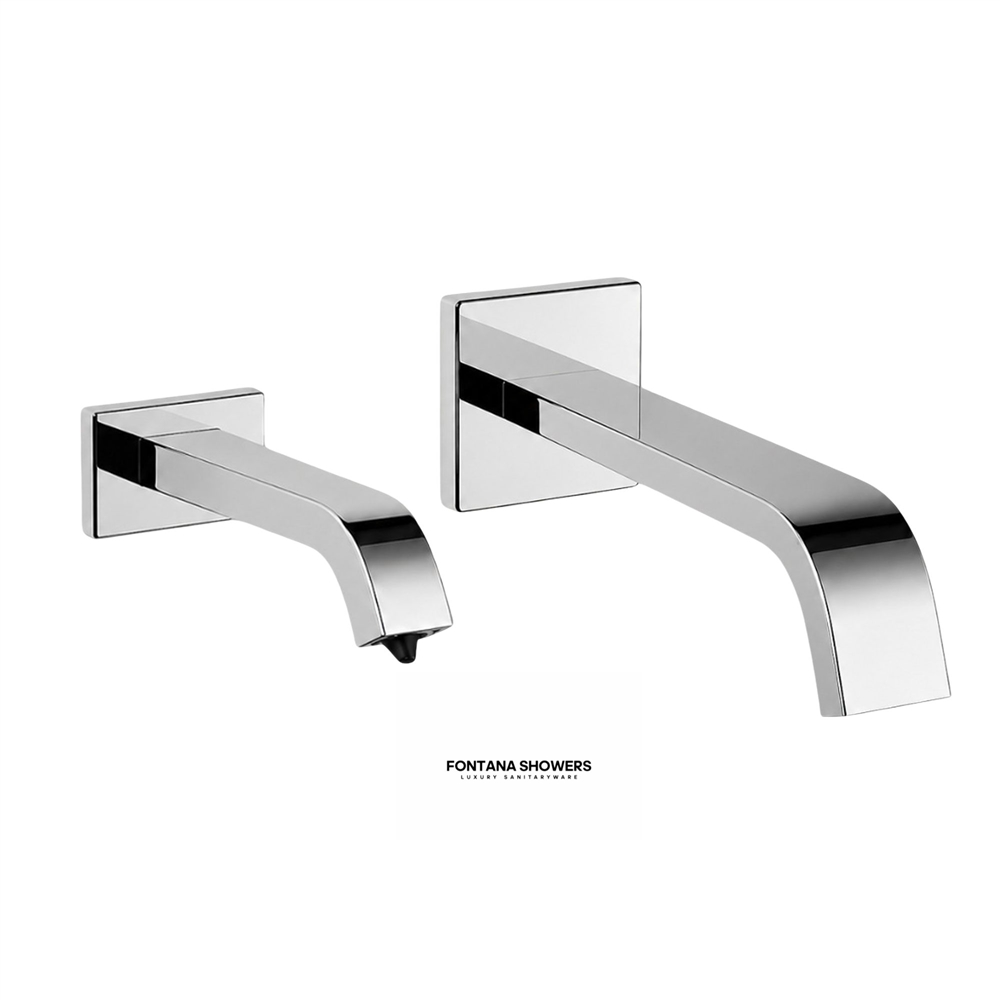

Fontana PureGlide Edition Chrome Automatic Faucet and Soap Dispenser System

The Fontana PureGlide™ Edition – Chrome Automatic Faucet and Soap Dispenser System displays its advanced touch-free features and modern design. The system serves commercial spaces which require safe hygienic conditions and efficient operations and unified design elements. The chrome finish creates a highly reflective surface which increases the brightness of modern bathroom designs while protecting against corrosion and moisture damage and daily use for extended time periods. The system uses solid brass construction to deliver permanent structural strength which ensures steady system operation during busy commercial times. The wall-mounted two-hole design creates an architectural feature which uses less space on countertops and makes it easier to clean sink areas. The system functions as a complete faucet and soap dispenser solution which uses infrared sensors to detect users and provides hygienic operation through hands-free design with a response time of less than 0.7 seconds. The system provides uninterrupted operation through its ability to work with both AC 110–220V and DC 6V battery power sources in all installation settings. A rectangular profile soap dispenser profile, having a dimension measuring 8.39 inches in height, 1.57 inch width, and 0.79 inch length, is indicative of this system's ability to prevent any bulky machinery and accessories and meet the requirements of modern commercial restrooms. ADA standards use designs providing access, allowing professional installation for businesses, installs. The licensed chrome PureGlide model merges infrared technology and solid brass construction, achieving touchless operation, to offer an intelligent faucet with soap during high traffic restroom cleaning efforts.

• Brand Name: FontanaShowers®
• Model Number: FS20194CH
• Type: Sensor Faucet and Soap Dispenser
• Finish: Chrome
• Shape: Rectangle
• Number of Holes: Two Hole
• Installation: Wall Mount
• Number of Handles: None
• Style: Modern
• Material: Brass
• Power Supply: AC 110–220V 50Hz, DC 6V (4 × AA Alkaline Batteries)
• Function: Automatic Infrared Sensor
• Current: DC, AC, AC/DC
• Sensor Time: <0.7S
• Dispenser Height: 8.39" (213 mm)
• Dispenser Width: 1.57" (40 mm)
• Dispenser Length: 0.79" (20 mm)
• Dispenser Mounting Hole Height: 2.76" (70 mm)
• Dispenser Mounting Hole Width: 1.97" (50 mm)
• Compliant: ADA
• Usage: Commercial
