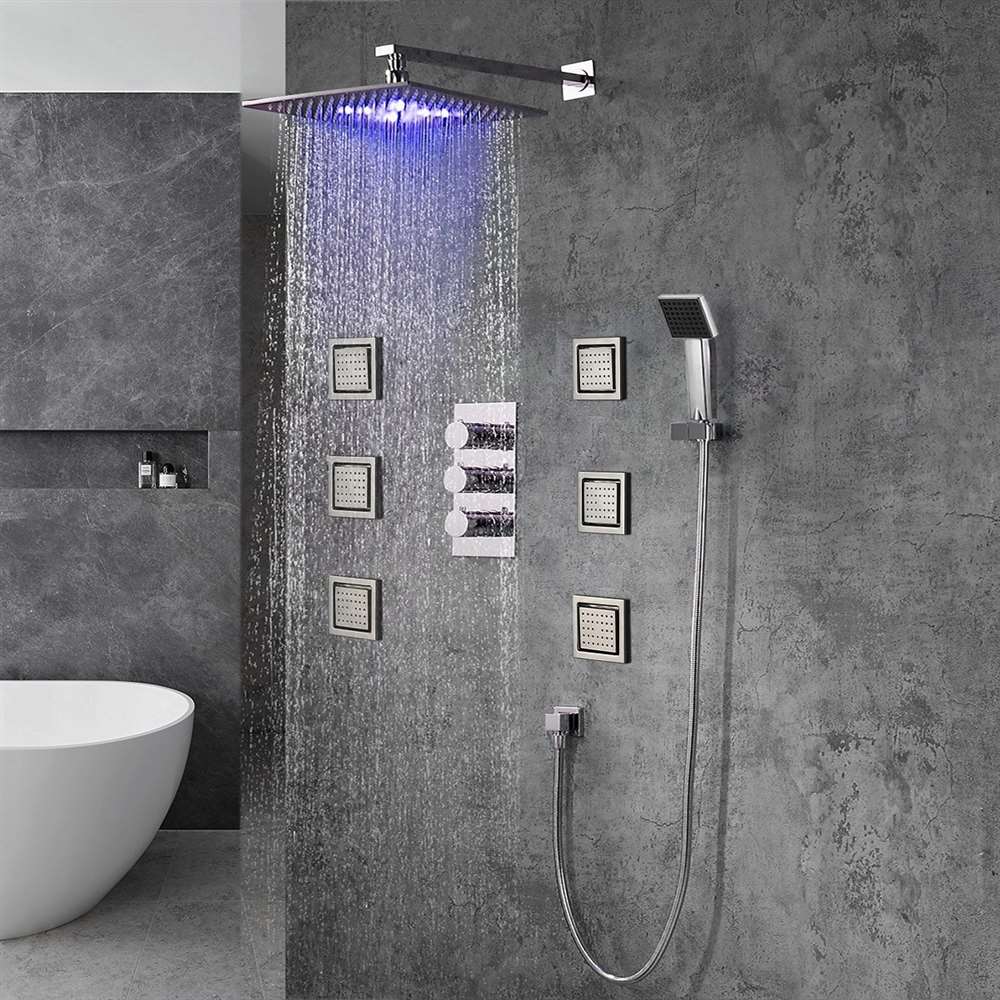

How to install Fontana Milan Stainless Steel Jetted Body Massage LED Shower Head Set With Handheld Shower | FS-5027-SHOWER-SET

Easy step by step Installation Instructions for Fontana Milan Stainless Steel Jetted Body Massage LED Shower Head Set With Handheld Shower Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the product for any shipping damages. If you find damages, do not install. Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.

sensor

Wall Mount Shower Head Installation Instructions

Additional Information:
- The LED lights are powered by water flow and will be activated once the water is turned on.
- The LED light will change its color by detecting water temperature:
- 0-30 °C (32-86 °F): Blue LED
- 30-40 °C (86-104 °F): Green LED
- 40-50 °C (104-122 °F): Red LED
- 50-100 °C (122-212 °F): Flashing Red LED

		Step 1:	shower	Step 2:
		Step 3:		Step 4:
		Step 5:		Step 6:
		Step 7:		Step 8:

1. Apply plumber's tape to the threads on both ends of the shower arm and slide on the decorative escutcheon. 2. Insert the new arm into the fitting in the wall and twist to tighten. Finish tightening with your adjustable wrench. Wrap a dry cloth around the shower arm to protect the finish while tightening with an adjustable wrench. 3. Thread the new showerhead onto the arm and hand-tighten. Hold the shower arm in place with groove joint pliers and finish tightening the shower head with your adjustable wrench. Wrap both in a dry cloth to protect the finish. 4. Before securing the decorative escutcheon, turn on the water supply to make sure that all connections are tight and there is no leaking. If no leaks are detected, continue with the installation. If leakage does occur, use your adjustable wrench to tighten the connections as necessary. 5. Apply a bead if silicone sealant to the back of the escutcheon and press firmly into place against the installation surface. Wipe away any excess sealant with your damp cloth.

Hand Held Shower Installation Instructions

Step 1:		hand shower	Step 2:
				HAND HELD SHOWER
Step 3:

Shower Body Jets Installation Instructions

Step 1:	Body	Sprays	Step 2:
Remove the decorative plate (A) out of the body.			Remove the screws from the outlet face (B) and connector body (C) with the Allen key (D).
Step 3:			Step 4:
Screw the threaded pipe (E) to the water supply fittings. Push the plastic box (F) into the wall through the threaded pipe (E). Then, install the decorative plate (I) into the plastic box (F). Make sure the position is correct according to the diagram.			Screw the connector (G) into the threaded pipe (E) with the Allen key (H). Install the connector body (C) to the connector (G). When finish installation, please check to make sure the connection is completed. Then, fix the screws into the body (C) with Allen key (D) and make sure the body (C), connector (G) and decorative plate (I) are tightened. Make sure the one side with the bulge is in the top position.
Step 5:			Step 6:
Install the outlet face (B) to the body (C). Make sure the connection of body (C) and outlet face (B) are completed. Tighten the screw through the outlet face (B) into the body (C) with the Allen key (D).			Install the decorative plate (A) into the outlet face (B) tightly. Make sure the hole and the raised dot are in the correct position when you push the decorative plate (A) into the outlet face (B).

Shower Mixer Installation Instructions

			Shower Mixer

Step 1:			Step 2:
		Thermostatic Mixer
Thermostatic Mixer
Step 3:			Step 4:
Thermostatic Mixer
Step 5:			Step 6:
Thermostatic Mixer
Step 7:			Step 8:
Thermostatic Mixer

Brand Name: FontanaShowers Model Number: FS-5027-SHOWER SET Type: Bath & Shower Set Cold/Hot Water Control Type: Auto-Thermostat Control Feature: Thermostatic Number of Handles: Triple Handle Bath & Shower Faucet Type: Exposed Shower Set Valve Core Material: Ceramic Exposed Shower Faucet Feature: Without Slide Bar Surface Treatment: Polished Surface Finish: Chrome Style: Contemporary Shower Head Sizes: 8", 10", 12", 16", 20", 24" Shower Head Installation Type: Wall Mount Water temperature ≤89 °F (≤32 °C): Blue color will show Water temperature between 97 to 107 °F (36-42 °C): Green color will show Water temperature is between 109 to 122 °F (43-50 °C): Red color will show Water temperature above 122 °F (>50 °C): Red color will flash
