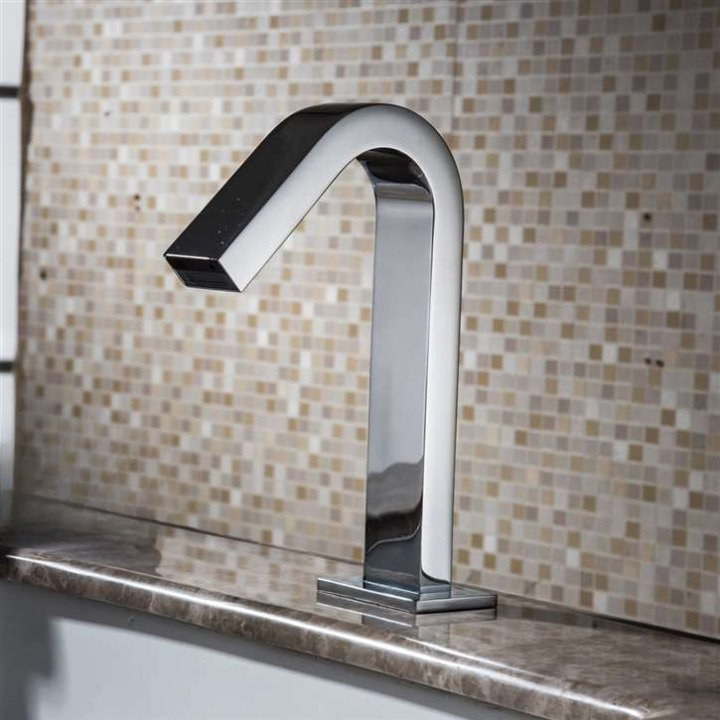

Fontana Atlanta Commercial Automatic Sensor Faucet
The Fontana Atlanta Commercial Automatic Sensor Faucet delivers a modern hands-free faucet solution for commercial restrooms, public facilities, restaurants, office buildings, healthcare spaces, and high-traffic washroom environments. Designed with infrared sensor technology, a polished chrome finish, durable construction, and single-hole deck mount installation, this faucet supports cleaner daily use while adding a sleek contemporary look to the sink area. Its touchless operation helps reduce physical contact, while the ceramic valve core, AC/DC compatible power option, and commercial-grade performance make it a practical choice for dependable restroom upgrades.
ATLANTA™ COMMERCIAL LINE
Fontana Atlanta Touchless Faucet FAQs
Commercial infrared touchless faucet with adjustable sensing,
AC/DC power, ceramic valve control, single-hole installation,
and automatic water-saving operation.
✥
Sensor Detection Range?
+
The Atlanta faucet provides an adjustable sensing field
from approximately 5–30 cm. Complete sensor commissioning
after the basin, countertop and surrounding surfaces are
installed to verify reliable hand detection and minimize
unintended activation.
◇
Power Supply Configuration?
+
The FS9831 specification supports DC 6V operation using
four AA alkaline batteries or AC 220–240V at 50/60 Hz.
Confirm the selected power configuration before commissioning
the infrared sensor and electronic valve assembly.
◯
Flow Rate Verification?
+
The technical specification limits water delivery to
approximately 2.0 L/min maximum at 0.3 MPa. If field
output is reduced, inspect dynamic pressure, inlet
restrictions, filtration and the outlet before servicing
the electronic valve.
↻
Sensor Response And Shutoff?
+
Published sensor response is less than 0.5 seconds,
followed by approximately 0.5–1 second shutoff delay
after hands leave the sensing field. Clean sensor optics
and stable electrical power support consistent operation.
⌁
Operating Water Pressure?
+
The FS9831 technical specification identifies an operating
pressure range of approximately 0.05–0.86 MPa. Maintain
stable dynamic pressure and flush the supply piping before
final faucet connection.
⌂
Plumbing Connection Requirements?
+
The technical sheet specifies G1/2-inch inlet and outlet
connections. The faucet uses single-hole deck mounting,
so verify mounting clearance, supply routing and access
to the below-deck control components before final tightening.
⚡
Motor Valve Service Life?
+
The motor-valve assembly is rated for up to approximately
500,000 operating cycles. Published battery service life
is approximately 100,000 cycles, although actual intervals
depend on traffic, battery quality and operating conditions.
⌕
Routine Maintenance Requirements?
+
Periodically clean the infrared sensor window and faucet
outlet, inspect supply connections and inlet filtration,
remove mineral accumulation, and verify consistent activation
and complete automatic shutoff.
‹
›
Chrome
⌁
5–30 cm
Adjustable Sensing
⚙
500K Cycles
Motor Valve
Read More

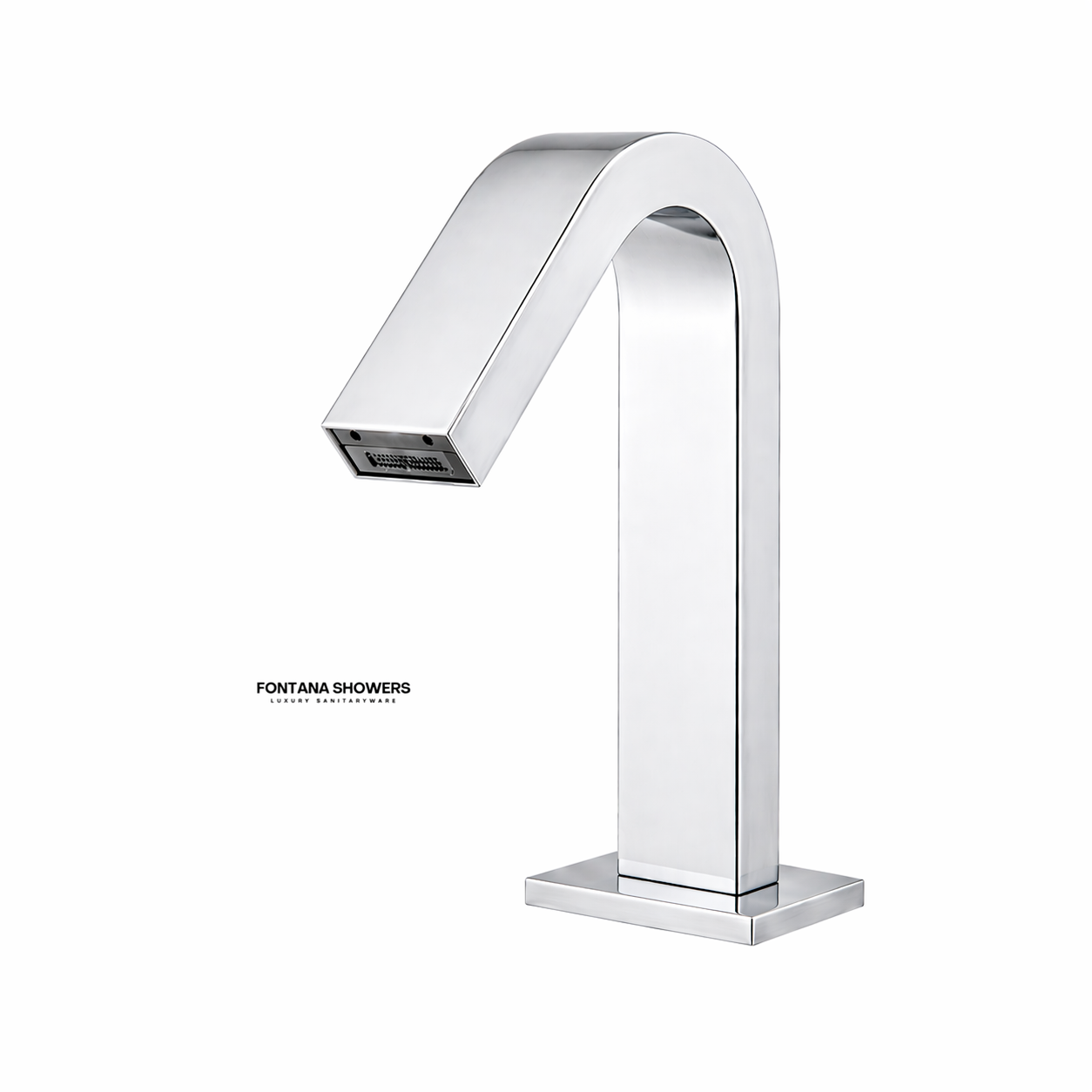

Fontana Atlanta Commercial Automatic Sensor Faucet

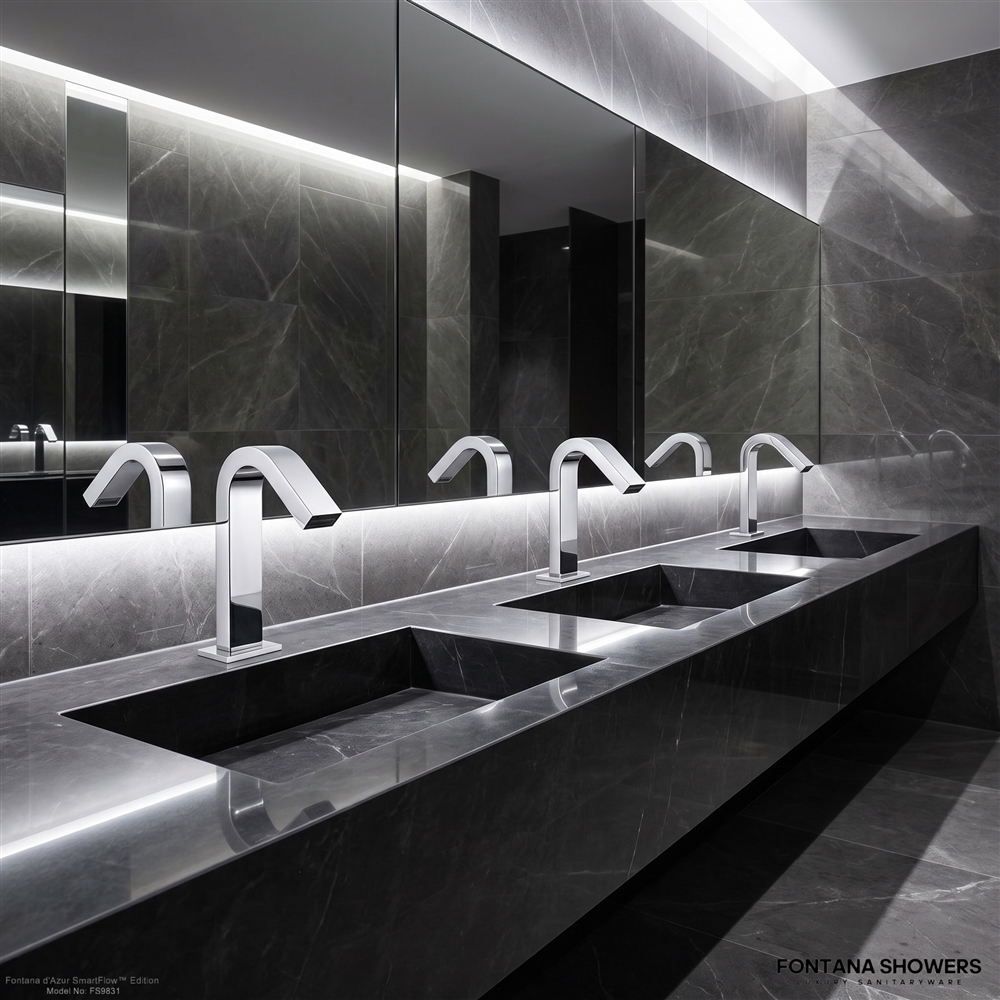

Bring streamlined touchless performance into commercial restroom planning with the Fontana Atlanta FS9831 Automatic Sensor Faucet. Its polished chrome profile, modern geometric spout, and sensor-based function support a cleaner, more efficient user experience in workplace, hospitality, healthcare, restaurant, and public restroom design.
Polished Chrome Commercial Finish
The bright chrome surface gives this faucet a clean, professional look that works well with modern restroom interiors. Its contemporary form supports specification-friendly commercial layouts while adding a refined fixture presence above the basin.
Touchless Sensor Efficiency
Infrared activation supports hands-free use, helping reduce repeated contact in busy facilities. This makes the Atlanta faucet ideal for high-use applications where hygiene, convenience, and dependable daily operation are important.
Designed for High-Performance Commercial Projects
This automatic faucet offers reliable sensor operation and a sleek architectural profile for demanding restroom
Read more →
applications across office buildings, hospitality spaces, restaurants, healthcare facilities, schools, and public infrastructure. Its touchless function supports cleaner use while maintaining the visual consistency needed for modern commercial washroom planning.

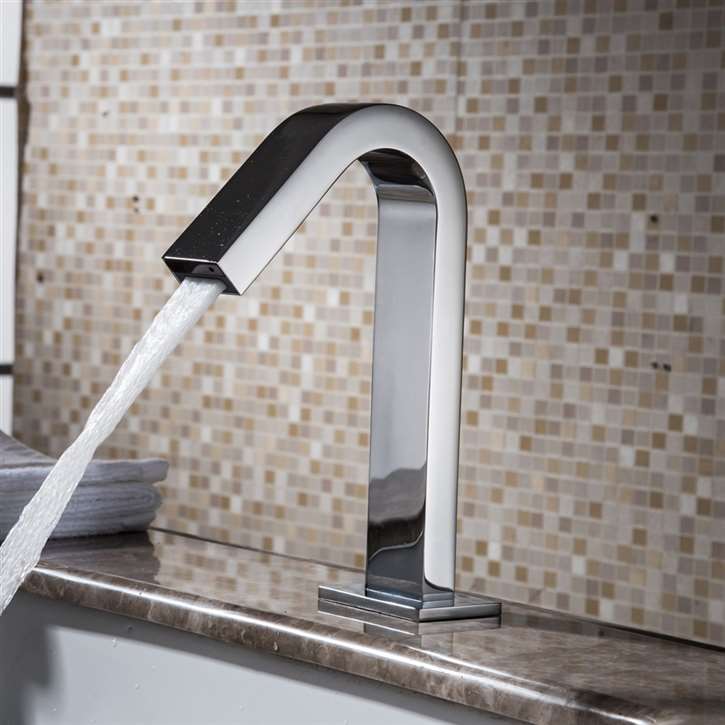

Commercial Sensor Performance
Experience automatic water delivery designed for practical efficiency and cleaner restroom interaction in
Read more →
busy commercial environments. The infrared sensing field, precision outlet, and hands-free operation support dependable use while helping facilities maintain a more hygienic and convenient washroom experience.
Why Choose This Faucet
Touchless infrared operation for hygiene
Chrome finish for modern commercial style
Single-hole deck mount installation
AC/DC compatible operation
Ceramic valve core for drip-free performance
Ideal for public and high-traffic spaces
Upgrade to Intelligent Touchless Reliability
Designed for architects, designers, contractors, and facility teams that need dependable automatic operation and a polished restroom presentation. Introduce commercial-grade sensor convenience with a sleek chrome faucet made for everyday high-traffic use.
✔ Touchless Sensor Operation
✔ Polished Chrome Finish
✔ Commercial Restroom Ready

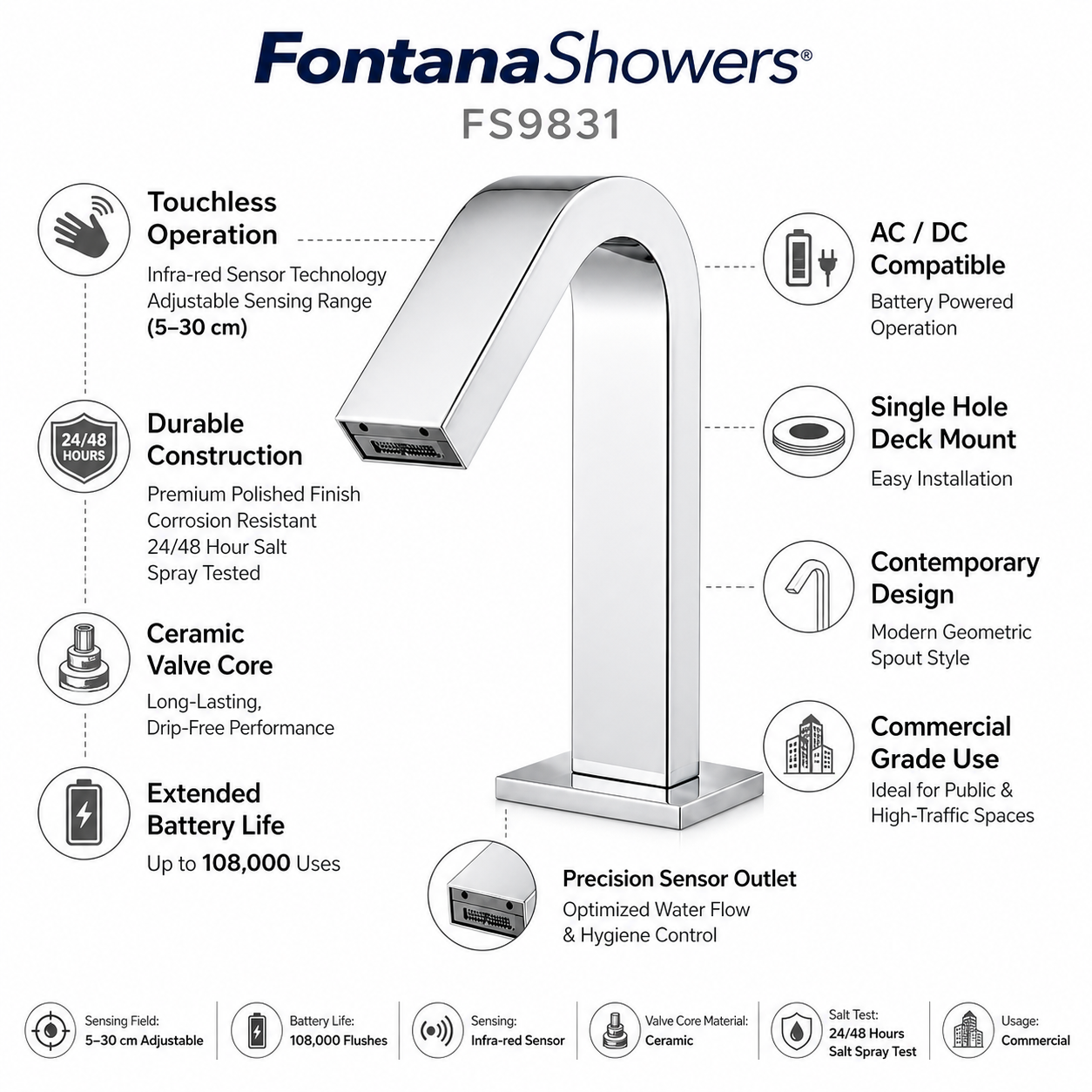

Brand Name: FontanaShowers® Model Number: FS9831 Type: Sink Faucet Installation Type: Deck Mount Style: Contemporary Faucet Mount: Single Hole Sensing field: 5-30cm adjustable Battery life: 108000 flushes Sensing: Infra-red Sensor Surface Treatment: Polished Valve Core Material: Ceramic Salt test: 24/48 Hours Salt Spray
Test
Usage: Commercial
