Fontana Matte Black Concealed Shower Mixer Valve FAQ
Rough-In Depth, Pressure Compensation & Cartridge Service Access

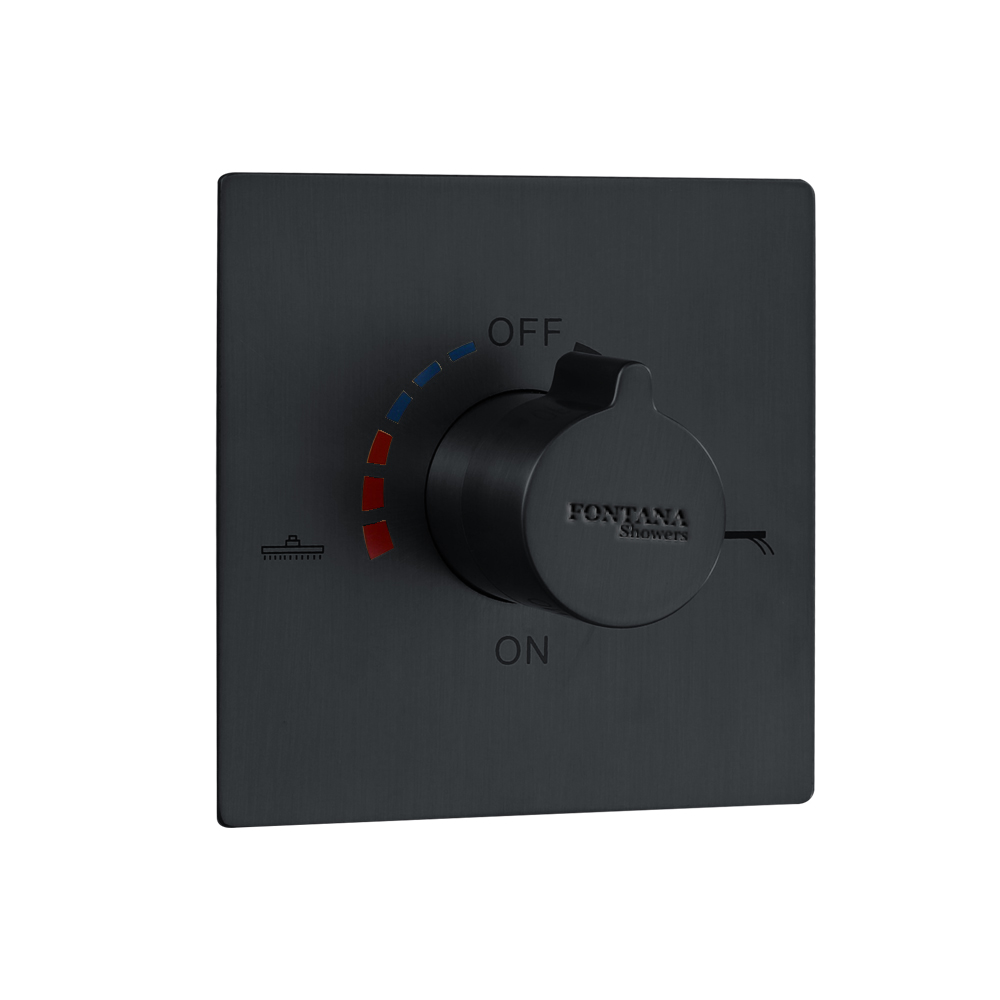

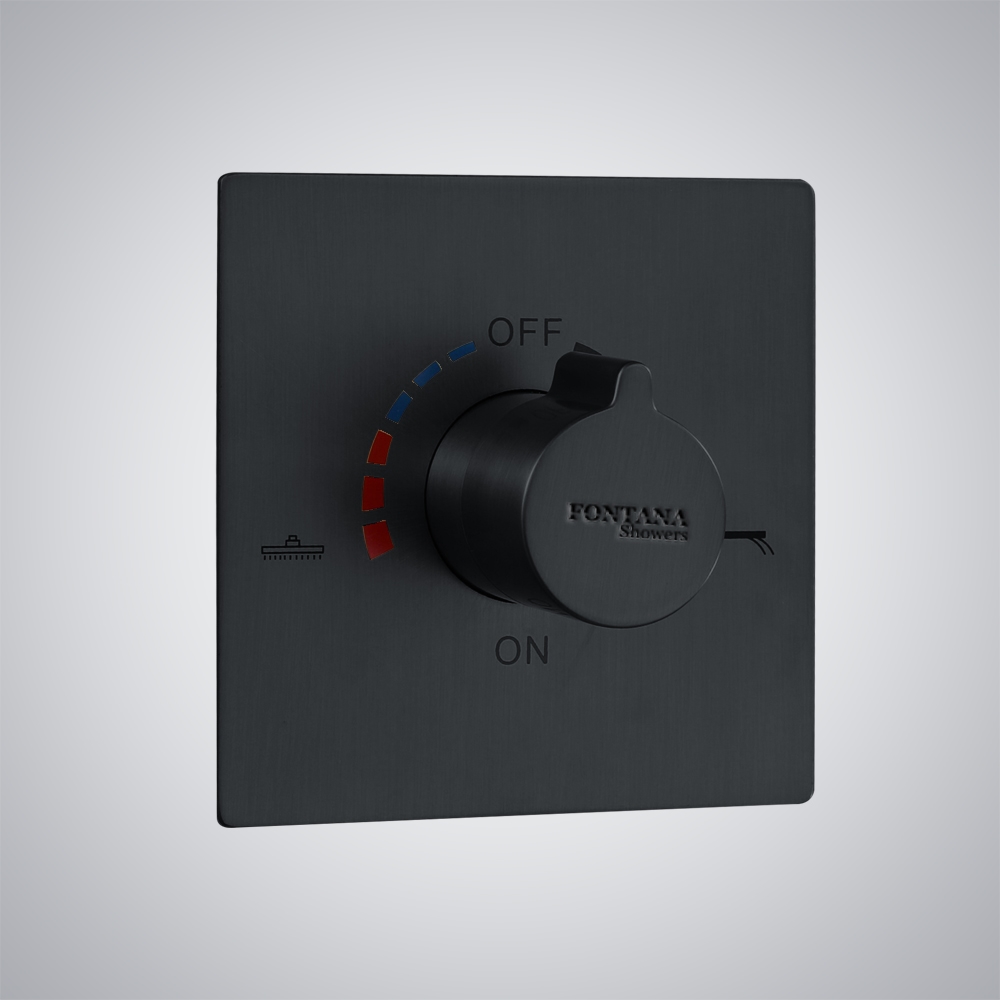

This matte black wall-mounted shower mixer combines a concealed brass valve,
ceramic temperature regulation, pressure balancing, and integrated hot-and-cold water control.
How should the concealed valve depth be coordinated with the finished wall?
Set the brass rough-in body relative to the completed waterproofing, backer board, adhesive, and tile plane so the faceplate seals evenly and the control handle rotates without rubbing or excessive projection.
How should the pressure-balancing cartridge be tested during commissioning?
Operate the shower while nearby fixtures are opened and closed, confirming that the regulating cartridge compensates for hot- or cold-side pressure changes without sustained outlet-temperature fluctuation.
What must be verified before installing the matte black trim?
Flush both supply branches, pressure-test the G1/2-inch joints, confirm correct hot and cold orientation, and check smooth cartridge movement before fitting the faceplate and operating handle.
Why should the integral service stops remain reachable?
Service-stop access allows each inlet to be isolated for cartridge cleaning, temperature-limit adjustment, inspection, or replacement without interrupting water service to the complete plumbing zone.
