How should the FS-1178GL concealed brass mixer body be set relative to the finished wall plane?

Establish the final wall buildup before fixing the valve, including backer board, waterproofing, adhesive, and finish material. Secure the concealed brass body within the permitted rough-in range, verify level and stem alignment, and confirm that the Gold faceplate will compress evenly against the completed wall without restricting handle movement.

How should the single-holder dual-control mechanism be assessed during functional commissioning?

Move the control progressively through its full flow and temperature range while monitoring discharge response. The handle should provide smooth modulation, predictable hot-and-cold blending, stable mechanical resistance, complete shutoff, and no sudden changes caused by incorrect cartridge indexing or trim interference.

What dynamic test confirms correct operation of the pressure-balancing temperature-regulating cartridge?

Run the shower at a stabilized mixed-water setting, then create controlled hot- and cold-side pressure changes by operating other fixtures. Measure the outlet temperature throughout the test and confirm that the pressure-balancing cartridge limits thermal fluctuation without excessive flow collapse or delayed recovery.

How should the adjustable integral temperature limit stop be set for project acceptance?

Allow the hot-water source to reach normal design temperature, place the handle at its maximum permitted position, and record the outlet temperature with a calibrated thermometer. Reposition the integral limit stop as necessary, then retest under dynamic supply conditions to verify that the established upper-temperature threshold remains repeatable.

How can the integral stops be verified for future cartridge isolation and servicing?

Operate the hot- and cold-side integral stops individually to confirm full isolation of each inlet and unrestricted restoration of flow. Inspect for stem leakage and verify that the cartridge can be accessed and serviced without shutting down the broader building water distribution system.

What pressure-testing sequence should be used for the concealed G1/2-inch connections?

Flush the supply branches, connect the G1/2-inch inlets and outlet, and pressure-test the assembly before installing the faceplate. Inspect all threaded joints under static pressure, then cycle the mixer under flowing conditions to identify leakage, pipe movement, sealing defects, or restrictions that may not appear during a static test.

What maintenance procedure should be followed if temperature control becomes slow or inconsistent?

Use the integral stops to isolate the valve, then inspect the inlet passages and pressure-balancing ceramic cartridge for mineral scale or construction debris. Clean or service the affected components without damaging the ceramic surfaces, restore both supplies gradually, and repeat temperature-limit and dynamic-pressure verification before returning the valve to operation.

Which final inspections confirm that the FS-1178GL installation is ready for handover?

Confirm correct concealed depth, rigid valve-body support, leak-free G1/2-inch joints, functional integral stops, smooth single-handle control, reliable ceramic-core shutoff, stable pressure-balancing response, verified maximum-temperature limitation, flush faceplate seating, and preservation of the Gold finish after cleaning and final construction activities.

Browse Fontana Bathroom Gold Shower Faucet Valve Brass Wall Mounted Concealed Mixer at Fontanashowers.com

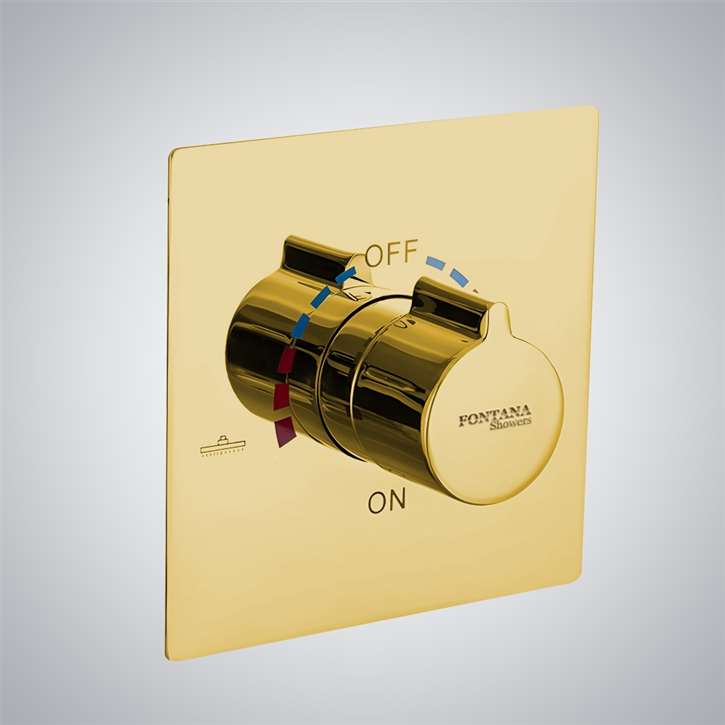

Fontana Bathroom Gold Shower Faucet Valve Brass Wall Mounted Concealed Mixer

Alternative Views:

Availability: Project Pricing Available Request Quote

Product Code: FS-1178GL

Request Quote

Description

Technical Specs

Chrome

Brushed Nickel

Brushed Gold

Rose Gold

Oil Rubbed Bronze

Champagne

Matte White

Matte Black

Gun Metal Gray

Fontana Bathroom Gold Shower Faucet Valve Brass Wall Mounted Concealed Mixer

The Fontana Bathroom Gold Shower Faucet Valve Brass Wall Mounted Concealed Mixer seamlessly fuses style and functionality for contemporary bathrooms. Its sleek finish and sturdy brass construction enhance the elegance of any bathroom, ensuring long-lasting durability and resistance to corrosion. The concealed mixer design not only adds to the visual appeal but also maintains a neat and organized bathroom space. With easy-to-use handles providing precise control over water temperature and flow, the concealed thermostatic mixer ensures a secure and comfortable showering experience. Whether renovating or designing a new bathroom, the Fontana Bathroom Gold Shower Faucet Valve Brass Wall Mounted Concealed Mixer complements various styles, offering versatility in customization. This fixture is an ideal combination of style, durability, and functionality, presenting a modern and sophisticated solution for showering. Whether upgrading an existing bathroom or creating a new one, the Fontana Bathroom Gold Shower Faucet Valve Brass Wall Mounted Concealed Mixer introduces a touch of luxury and visual appeal to your bathing experience.

Fontana Bathroom Gold Shower Faucet Valve Brass Wall Mounted Concealed Mixer Features:

Brand Name: FontanaShowers
Model Number: FS-1178GL
Type: Shower Mixer Valve
Valve Core Material: Ceramic
Number of Handles: Single Handle
Size: 131-200mm
Specification: Shower Mixer available in Revit Families, and BIM Object
Feature: Cold and Hot
Finish: Gold
Surface Finish: Brass
Cold/Hot Water Control Type: Single Holder Dual Control
Style: ContemporaryType: Fixed Rotatable Type
Shower Switch: Mixing valve
Shower Switch Valve: Shower Switch
Mixing Valve Material: Brass
Solid Brass Mixing Valve Switch: Concealed Shower Valve
Maintenance method of faucet shower:
Method 1: In order to keep the surface of the shower clean, use a soft cloth, rub the surface with the flour, and rinse with water to keep the surface smooth;
Method 2: Brush the surface of the shower with a toothbrush and a toothpaste. Brush it for 3 minutes, rinse with water, and dry.
BRASS VALVE: Faucet body is made from high quality brass, ensuring quality and longevity.
EASY OPERATION: Dual handle design for effortless flow and tempreture control.
Pressure balancing and ceramic temperature regulating cartridge, equipped with adjustable temperature integral limit stop and integral stops
Connection Size: G1/2"
Package includes valve, faceplate

Fontana Bathroom Gold Shower Faucet Valve Brass Wall Mounted Concealed Mixer

Features

Fontana Gold Concealed Shower Mixer Valve FAQ

Supply Orientation, Temperature Limiting & Concealed Valve Pressure Testing

This gold wall-mounted shower mixer combines a concealed brass valve, ceramic temperature regulation, pressure balancing, and integrated hot-and-cold water control.

How should the hot and cold inlet orientation be verified during rough-in?

Confirm the designated hot and cold ports before connecting the G1/2-inch supplies, then flush each branch independently to prevent reversed temperature control and cartridge contamination.

How should the adjustable temperature limit stop be commissioned?

Operate the mixer under stable flowing conditions, measure the discharged water with a calibrated thermometer, and adjust the integral limit stop before securing the operating handle.

What concealed pressure testing is required before wall closure?

Pressure-test the brass valve body, inlet joints, and outlet connection before waterproofing and tiling, inspecting every concealed interface for leakage or pressure loss.

How should the pressure-balancing cartridge be evaluated during handover?

Run the shower while nearby fixtures are cycled and confirm that the regulating cartridge limits sustained temperature movement while maintaining stable flow and smooth handle control.
