How should the FS-1178BN concealed mixer valve be installed to maintain accurate valve depth after wall completion?

Position the solid brass valve body within the specified rough-in range while considering the combined thickness of the backer board, waterproof membrane, tile adhesive, and finished tile. Verify the valve remains level and securely braced so the Brushed Nickel trim plate finishes flush with the completed wall.

How should the pressure-balancing cartridge be evaluated during hydraulic commissioning?

With the hot-water system fully stabilized, operate the mixer at several flow rates while monitoring outlet temperature using calibrated measuring equipment. The pressure-balancing cartridge should maintain consistent mixed-water temperature despite variations in supply pressure and fixture demand.

What procedure confirms proper operation of the adjustable anti-scald temperature limit stop?

Rotate the control handle to the maximum allowable setting and measure the stabilized outlet temperature. Adjust the integral temperature limit stop as necessary, then repeat testing while introducing supply-pressure fluctuations to verify reliable thermal protection under dynamic operating conditions.

How should the integral service stops be inspected before the concealed valve is placed into operation?

Cycle both service stops through their complete operating range to confirm smooth isolation and unrestricted reopening of the hot and cold water supplies. Verify that maintenance access can be performed without disturbing the concealed plumbing installation.

Why should the concealed G1/2-inch threaded connections undergo both static and dynamic pressure testing?

Testing under static pressure confirms joint integrity, while dynamic flow testing verifies sealing performance during normal operation. Inspect every G1/2-inch connection for leakage, movement, or pressure loss before installing the decorative trim components.

How can the ceramic valve cartridge be protected from premature wear during initial commissioning?

Flush the hot and cold supply lines independently before connecting the valve to remove solder residue, mineral particles, pipe scale, and thread sealant. Clean supply water minimizes abrasion of the ceramic valve core and helps maintain long-term temperature regulation accuracy.

What maintenance practices preserve the Brushed Nickel finish in high-use commercial environments?

Clean exposed trim with a soft microfiber cloth and a neutral-pH cleaner, followed by rinsing with clean water and drying completely. Avoid abrasive pads, chlorine-based cleaners, acidic descaling chemicals, and metal polishing compounds that may damage the Brushed Nickel protective finish.

Which acceptance tests verify complete FS-1178BN commissioning before the shower system enters service?

Verify proper rough-in depth, leak-free G1/2-inch threaded connections, accurate pressure-balancing performance, correct anti-scald temperature limitation, functional service stops, smooth single-handle movement, stable mixed-water delivery under fluctuating inlet pressures, and secure installation of all exposed trim components.

Browse Fontana Bathroom Brushed Nickel Shower Faucet Valve Brass Wall Mounted Concealed Mixer at Fontanashowers.com

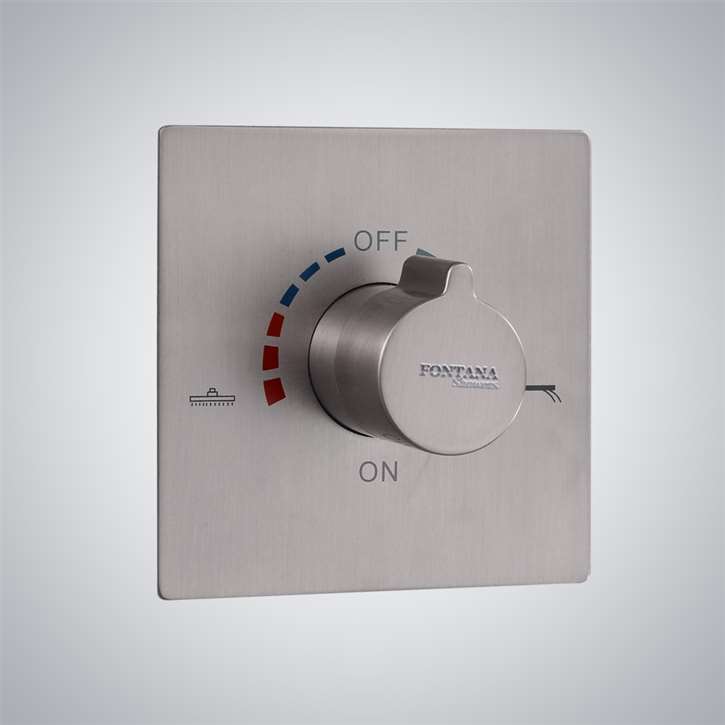

Fontana Bathroom Brushed Nickel Shower Faucet Valve Brass Wall Mounted Concealed Mixer

Alternative Views:

Availability: Project Pricing Available Request Quote

Product Code: FS-1178BN

Request Quote

Description

Technical Specs

Chrome

Gold

Brushed Gold

Rose Gold

Oil Rubbed Bronze

Champagne

Matte White

Matte Black

Gun Metal Gray

Fontana Bathroom Brushed Nickel Shower Faucet Valve Brass Wall Mounted Concealed Mixer

The Fontana Bathroom Brushed Nickel Shower Faucet Valve Brass Wall Mounted Concealed Mixer seamlessly combines style and functionality in contemporary bathrooms. Its sleek finish and robust brass construction elevate the sophistication of any bathroom, ensuring durability and resistance to corrosion. The concealed mixer design not only enhances visual appeal but also maintains a tidy and organized bathroom space. Easy-to-use handles grant precise control over water temperature and flow, while the concealed thermostatic mixer ensures a secure and comfortable showering experience. Whether renovating or designing a new bathroom, the Fontana Bathroom Brushed Nickel Shower Faucet Valve Brass Wall Mounted Concealed Mixer complements various styles, providing versatility in customization. This fixture is a perfect blend of style, durability, and functionality, offering a modern and sophisticated showering solution. Whether upgrading an existing bathroom or creating a new one, the Fontana Bathroom Brushed Nickel Shower Faucet Valve Brass Wall Mounted Concealed Mixer adds a touch of luxury and visual appeal to your bathing experience.

Fontana Bathroom Brushed Nickel Shower Faucet Valve Brass Wall Mounted Concealed Mixer Features:

Brand Name: FontanaShowers
Model Number: FS-1178BN
Type: Shower Mixer Valve
Valve Core Material: Ceramic
Number of Handles: Single Handle
Size: 131-200mm
Specification: Shower Mixer available in Revit Families, and BIM Object
Feature: Cold and Hot
Finish: Brushed Nickel
Surface Finish: Brass
Cold/Hot Water Control Type: Single Holder Dual Control
Style: ContemporaryType: Fixed Rotatable Type
Shower Switch: Mixing valve
Shower Switch Valve: Shower Switch
Mixing Valve Material: Brass
Solid Brass Mixing Valve Switch: Concealed Shower Valve
Maintenance method of faucet shower:
Method 1: In order to keep the surface of the shower clean, use a soft cloth, rub the surface with the flour, and rinse with water to keep the surface smooth;
Method 2: Brush the surface of the shower with a toothbrush and a toothpaste. Brush it for 3 minutes, rinse with water, and dry.
BRASS VALVE: Faucet body is made from high quality brass, ensuring quality and longevity.
EASY OPERATION: Dual handle design for effortless flow and tempreture control.
Pressure balancing and ceramic temperature regulating cartridge, equipped with adjustable temperature integral limit stop and integral stops
Connection Size: G1/2"
Package includes valve, faceplate

Fontana Bathroom Brushed Nickel Shower Faucet Valve Brass Wall Mounted Concealed Mixer

Features

Fontana Brushed Nickel Concealed Shower Mixer Valve FAQ

Pressure Balancing, Integral Stops & Concealed Valve Commissioning

This brushed nickel wall-mounted shower mixer combines a concealed brass valve, ceramic temperature regulation, pressure balancing, and single-control hot-and-cold mixing.

How should the hot and cold supplies be prepared before valve commissioning?

Flush both branch lines independently before connecting the mixer to remove scale, solder residue, joint compound, and construction debris that could obstruct the cartridge or integral inlet passages.

How should the adjustable temperature limit stop be calibrated?

Operate the valve under normal flowing conditions, measure the mixed-water temperature with a calibrated thermometer, and adjust the limit stop before aligning and securing the control handle.

How should pressure-balancing performance be verified?

Run the shower while nearby fixtures are opened and closed, confirming that the ceramic regulating cartridge compensates for inlet-pressure changes without sustained temperature fluctuation or interrupted delivery.

Why must the integral service stops remain accessible?

Accessible stops allow the hot and cold feeds to be isolated for cartridge flushing, adjustment, inspection, or replacement without shutting down the complete building water supply.
