Fontana Rose Gold Concealed Shower Mixer Valve FAQ
Valve Alignment, Thermal Limiting & Pressure-Balance Commissioning

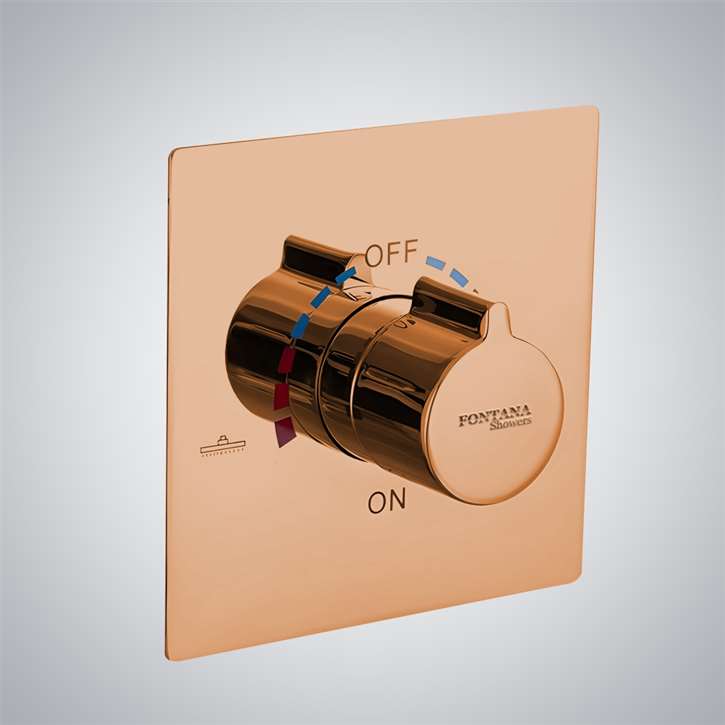

This rose gold wall-mounted shower mixer combines a concealed brass valve,
ceramic temperature regulation, pressure balancing, and integrated hot-and-cold water control.
How should the concealed valve be aligned before the wall is finished?
Secure the brass valve body level and square to the finished-wall reference plane, accounting for waterproofing, backer board, adhesive, and tile thickness so the faceplate seats evenly.
What must be verified before installing the rose gold trim components?
Flush both supply branches, confirm correct hot and cold orientation, pressure-test all G1/2-inch concealed joints, and verify smooth cartridge travel before fitting the faceplate and control handle.
How should the adjustable temperature limit stop be commissioned?
Operate the mixer at a stable flow, measure the discharged temperature with a calibrated thermometer, and adjust the integral limit stop before securing the final handle position.
How should pressure-balancing recovery be evaluated?
Cycle nearby water outlets while the shower is operating and confirm that the ceramic regulating cartridge limits sustained temperature movement during hot- or cold-side pressure changes.
