Fontana Chatou Champagne Rain Shower Head FAQ
1.75 GPM Flow Verification, 1/2-Inch NPT Sealing & Spray-Face Commissioning

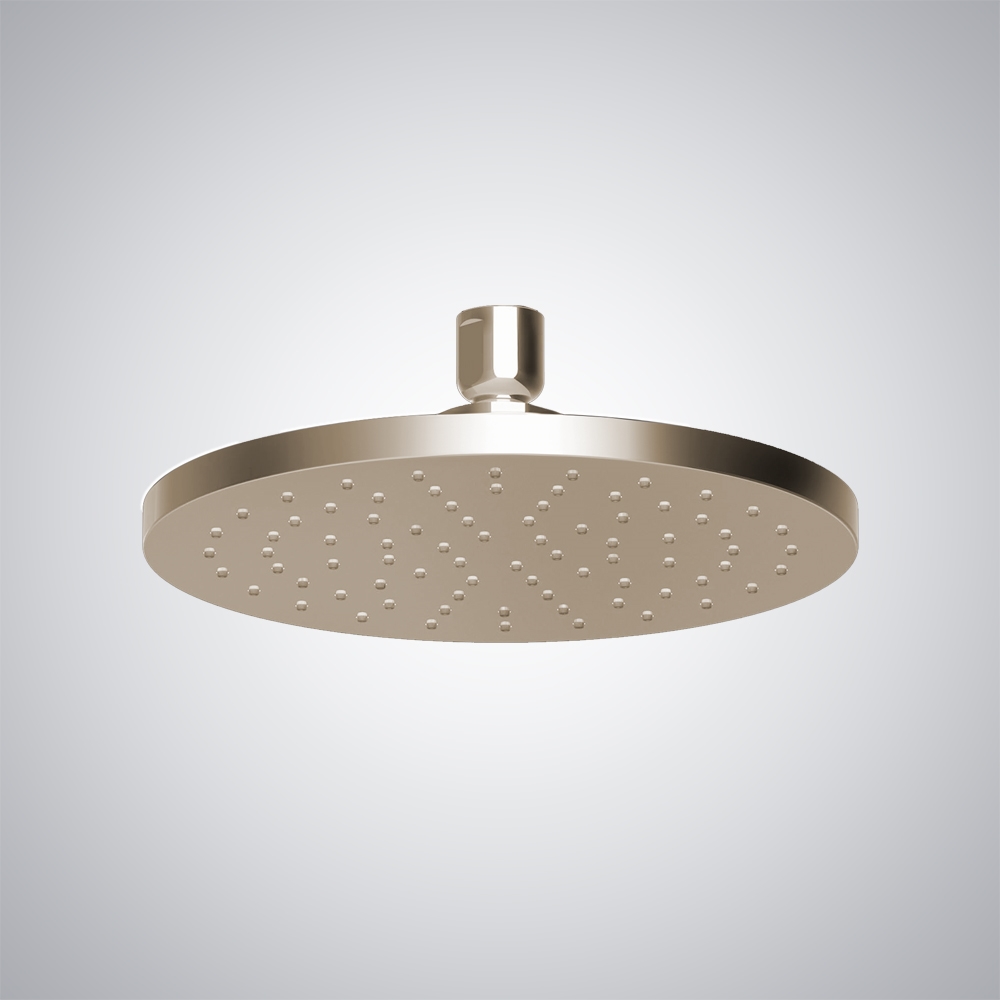

This Champagne 8-inch rain shower head combines solid-brass construction,
a 1.75 GPM single-function spray, Katalyst air-induction technology,
a MasterClean spray face, and a standard 1/2-inch NPT connection.
How should the 1/2-inch NPT connection be prepared before installation?
Inspect the shower-arm threads for damage, remove residual sealant, apply an approved thread-sealing compound in the tightening direction, and support the arm while threading the brass shower head to avoid stressing the concealed drop-ear connection.
How should the specified 1.75 GPM flow rate be verified?
Stabilize the supply pressure, run the shower head until trapped air is discharged, and perform a timed volumetric test. Investigate inlet debris, excessive pressure loss, or flow restriction when measured delivery falls materially below 1.75 GPM.
What should be checked when commissioning the Katalyst spray pattern?
Confirm uniform discharge across the complete 8-inch spray face, consistent air-enriched droplets, and adequate coverage without isolated weak zones, lateral jetting, pulsing, or pressure-related breakup in the rain pattern.
How should mineral buildup be managed on the MasterClean spray face?
Wipe the spray-face outlets routinely with a soft cloth, loosen deposits without abrasive tools, and flush the head after cleaning. Avoid aggressive chemicals that could damage the Champagne finish or deform the outlet nozzles.
