Fontana Chatou Polished Gold Rain Shower Head FAQ
1.75 GPM Validation, NPT Joint Sealing & Spray-Face Commissioning

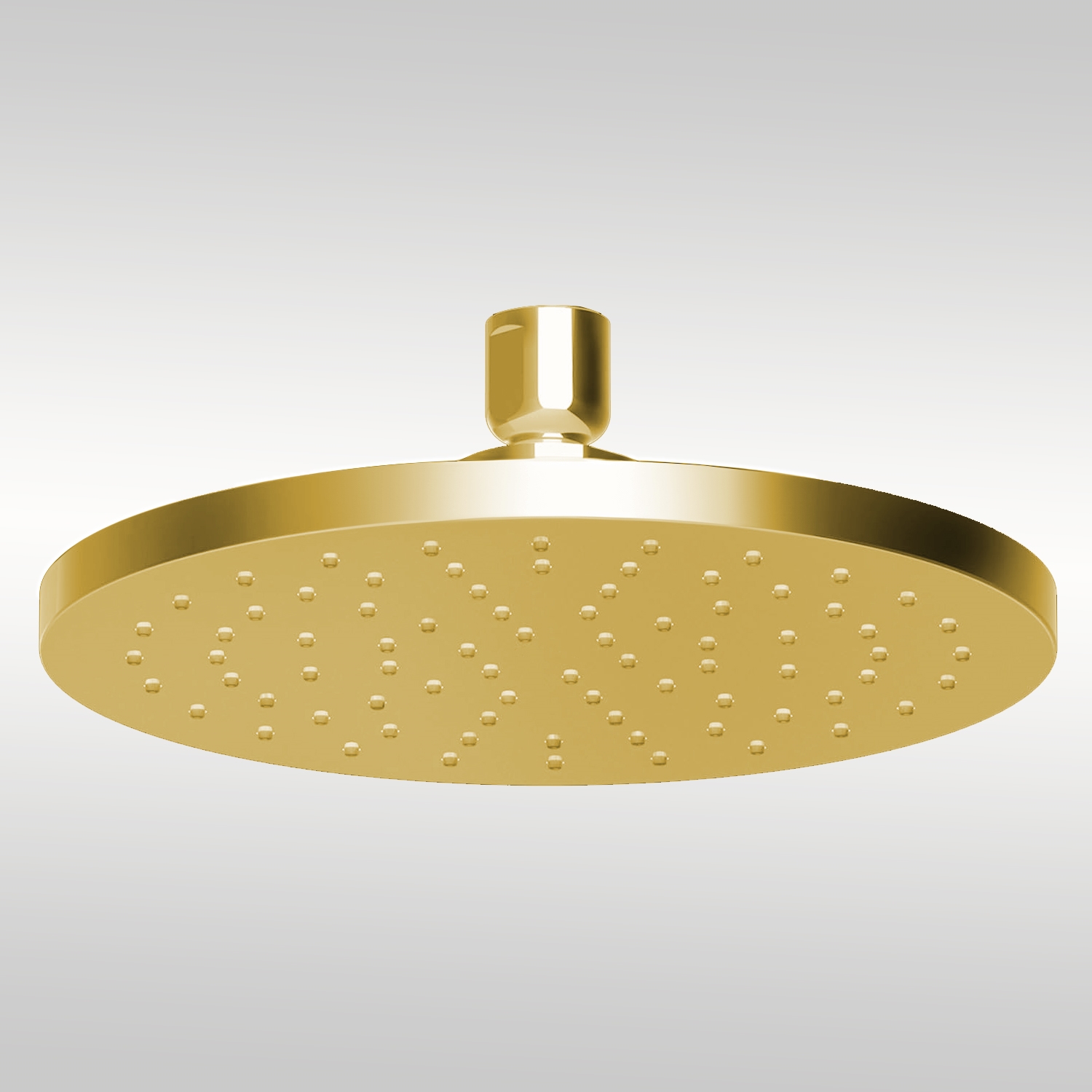

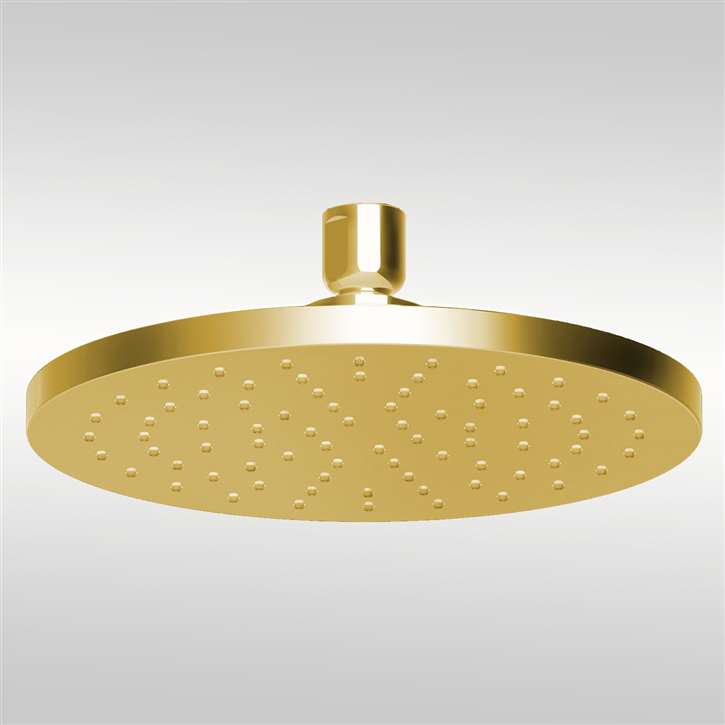

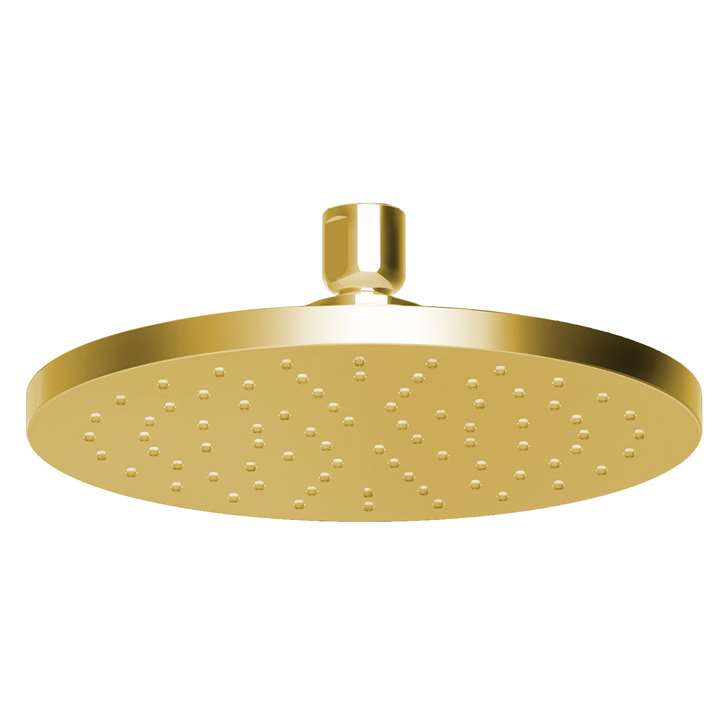

This polished gold 8-inch round rain shower head combines durable
brass construction, a water-efficient 1.75 GPM single-function spray,
Katalyst air-induction technology, a MasterClean spray face, and a
standard 1/2-inch NPT connection.
How should the concealed shower-arm outlet be aligned before installation?
Confirm the drop-ear elbow is securely anchored, perpendicular to
the finished wall, and positioned at the specified projection.
Misalignment can impose bending stress on the shower arm and prevent
the round spray face from remaining level.
How should the 1/2-inch NPT connection be sealed and tested?
Flush the branch line, inspect both threaded surfaces, and apply an
approved thread-sealing material without allowing excess compound
to enter the waterway. Pressure-test the assembled joint and inspect
for leakage before completing commissioning.
How should the specified 1.75 GPM flow rate be field-verified?
Stabilize the supply pressure, purge trapped air, and perform a timed
volumetric test at the shower head. Reduced delivery may indicate
branch-line pressure loss, construction debris, mineral buildup, or
restriction at the internal flow-control component.
What confirms uniform operation across the MasterClean spray face?
Verify consistent discharge across the complete nozzle field without
inactive outlets, isolated weak zones, pulsing, lateral jetting, or
uneven droplet formation. Irregular coverage normally requires
branch-line flushing or localized spray-face cleaning.
