Fontana Sanart Vibrant Brushed Nickel Rain Shower Head FAQ
1.75 GPM Testing, NPT Commissioning & Spray-Pattern Verification

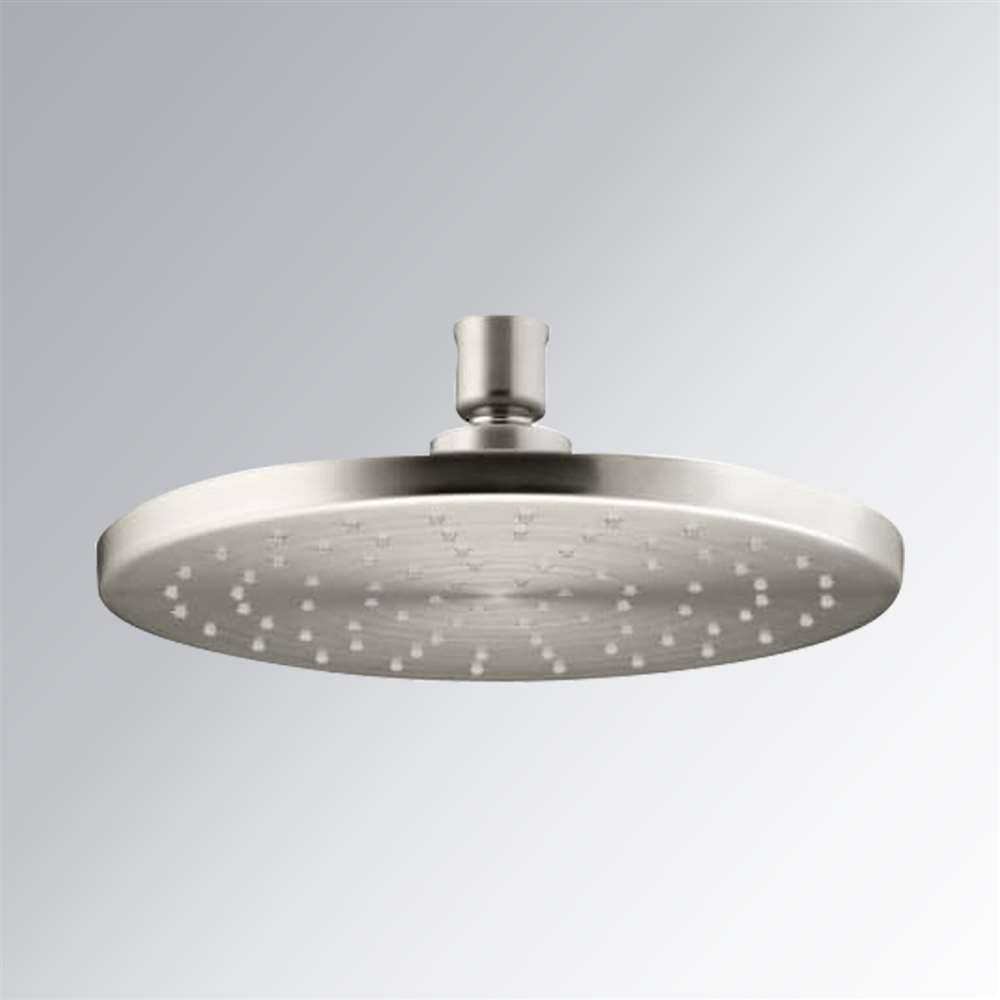

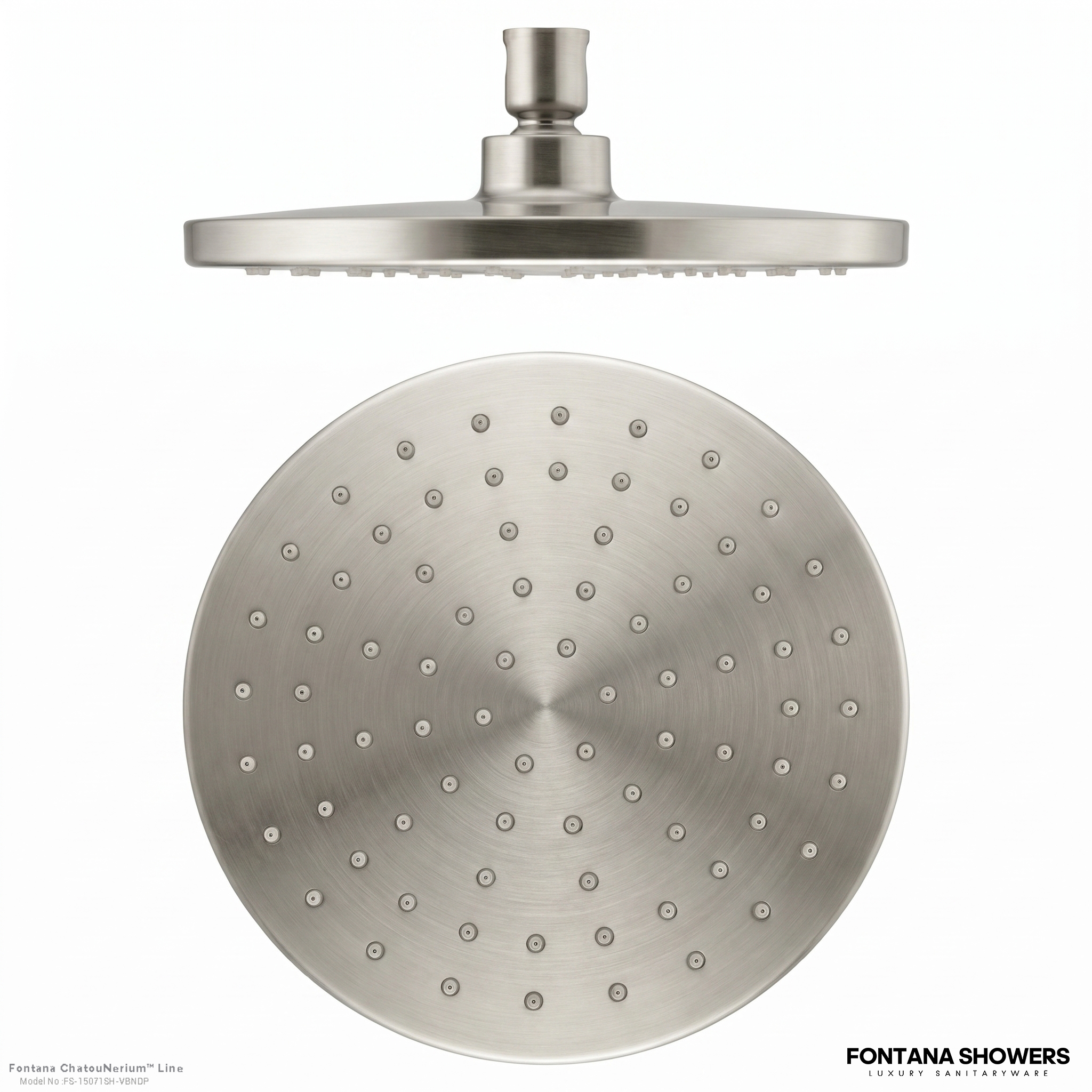

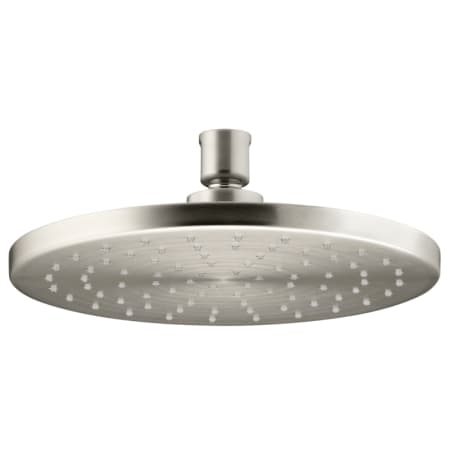

This vibrant brushed nickel 8-inch round rain shower head combines
durable brass construction, a water-efficient 1.75 GPM single-function
rain spray, Katalyst air-induction technology, a MasterClean spray face,
and a standard 1/2-inch NPT connection.
How should the shower branch be flushed before installing the finished head?
Remove the shower head and flush the branch until construction
debris, solder residue, loose scale, and excess thread-sealing
material are fully discharged. Inspect the shower-arm outlet and
1/2-inch NPT threads before final installation.
How should the 1/2-inch NPT connection be sealed and pressure-tested?
Inspect both threaded surfaces, apply approved thread-sealing
material sparingly, and engage the connection without cross-threading.
Tighten without transferring excessive torque to the brass inlet,
then inspect the pressurized joint for seepage.
How should the specified 1.75 GPM discharge be field-verified?
Stabilize the operating pressure, purge entrained air, and perform
a timed volumetric test at the shower head. Reduced delivery may
indicate branch-line pressure loss, construction debris, mineral
restriction, or blockage at the internal flow-control component.
What confirms correct MasterClean spray-face commissioning?
Confirm uniform discharge across the complete 8-inch nozzle field
without inactive outlets, weak zones, pulsing, lateral jetting, or
irregular droplet formation. Uneven coverage normally requires
branch flushing or localized nozzle cleaning.
