The Ready Sensor of the Faucet identifies when an object, like a cup or a hand, is placed beneath the spout.This Gold Sensor Faucet is best for bathroom & kitchen application. With its micro-computer controlling its action, the Automatic Touchless Sensor Faucet can self adjust its best detection zone as per the color and shape of lavatory! Sensor Faucet finish is gold, with built-in infrared AI smart chip, No water dripping and design 100% touch free.

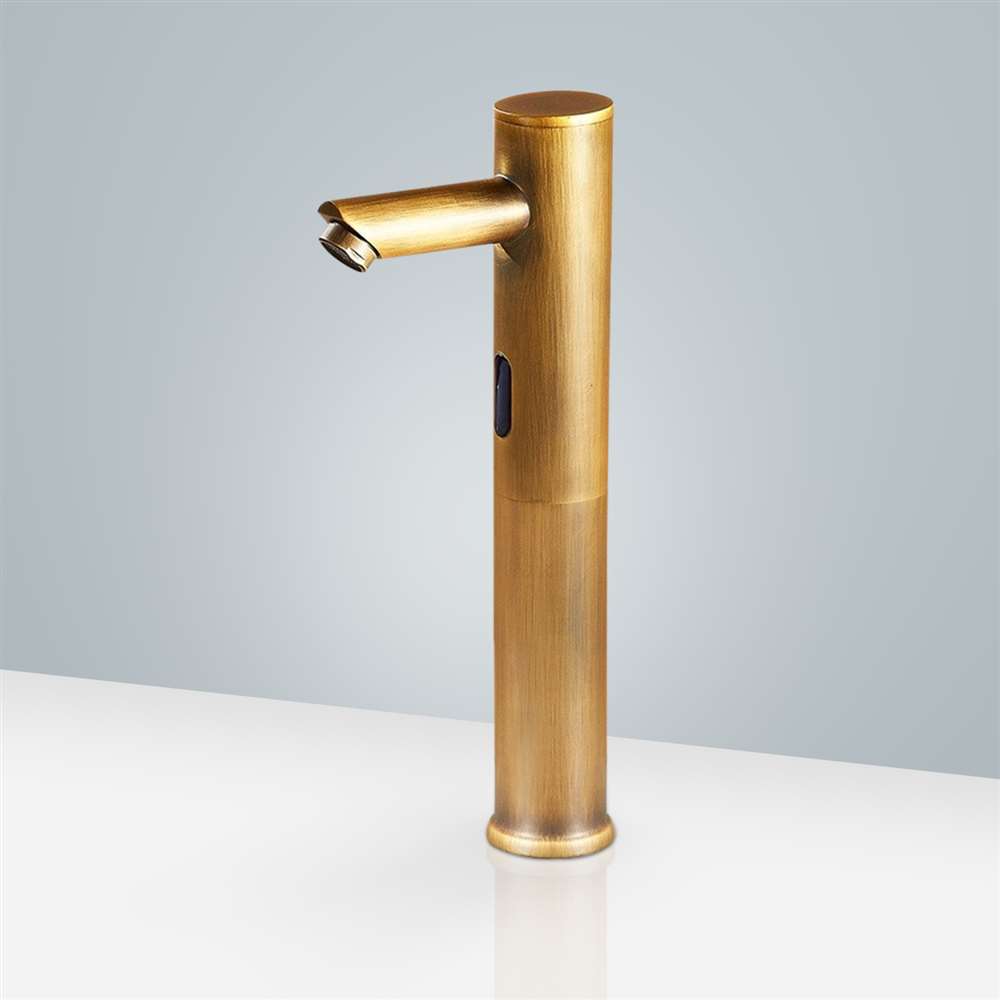

Fontana Commercial Automatic Motion Sensor Faucet
- Touchless Operation
- Sensitive Sensor with Infrared AI Smart-Chip
- Factory set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
- Solid Brass Construction, Gold Finish
- Easy to Install - Instructions Included
- Water resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life
- Comes complete with Hoses & Accessories
- Power Supply: AC110V And DC6V (batteries not included)
- AC/DC power option.
- ADA Complaint
- Can be installed easily in new or retrofit applications.
- Sensor Faucet Applications: Residential & Commercial use.
- Sensor Faucet water-saving: water flows out when your hands approach it and stops immediately.
- Hygienic: self-open and close to free hands from any touching, which can efficiently avoid bacteria mutual infections
- Usage: Commercial / Residential
- Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all US standard plumbing.
This faucet is shipped complete
- ANSI A112.18.1M
- CSA Standard B125,
- 2.2 U.S.
- GPM
- Complies with NSF
- Standard 61, Section 9
- Flow Preventers
- Stainless Steel Hoses
- Mounting Hardware
- Batteries Pre-installed
- All the hardware necessary for satisfactory installation
Dimensions:
- Faucet height: 12.59" (320mm)
- Faucet length: 5.11" (130mm)
- Spout length: 3.14" (80mm)
- Spout height: 10.62" (270mm)
- Power: 4 (AA) Alkaline Batteries or AC Adapter
- Battery life expectancy: 200,000 cycles
- Solenoid valve: 6 Volt magnet latching
- Working Water Pressure: 1 PSI -100 PSI
- Supply Inlet Size: 1/2†NPT Male
- Water Temperature Control: Built-in
- Pop-Up Drain Rod: N/A
- Sensor type and Location: Active Infrared, Neck mount
- Sensor Microprocessor: Digital, Pug And Play
- Sensing Range: 2†to 6â€Â
- Response Time: 0.3 Second
- Shut-Off Delay Time: 2 Seconds
- Maximum Running Time: 60 Seconds
- Particle filter size: 50 Mesh
- Aerator: 2.2 GPM Standard
- Spout: Chrome Plated Solid Brass
FontanaShowers® Product Warranty Information
Installation Instructions for Fontana Gold Commercial Motion Sensor Faucet
|
