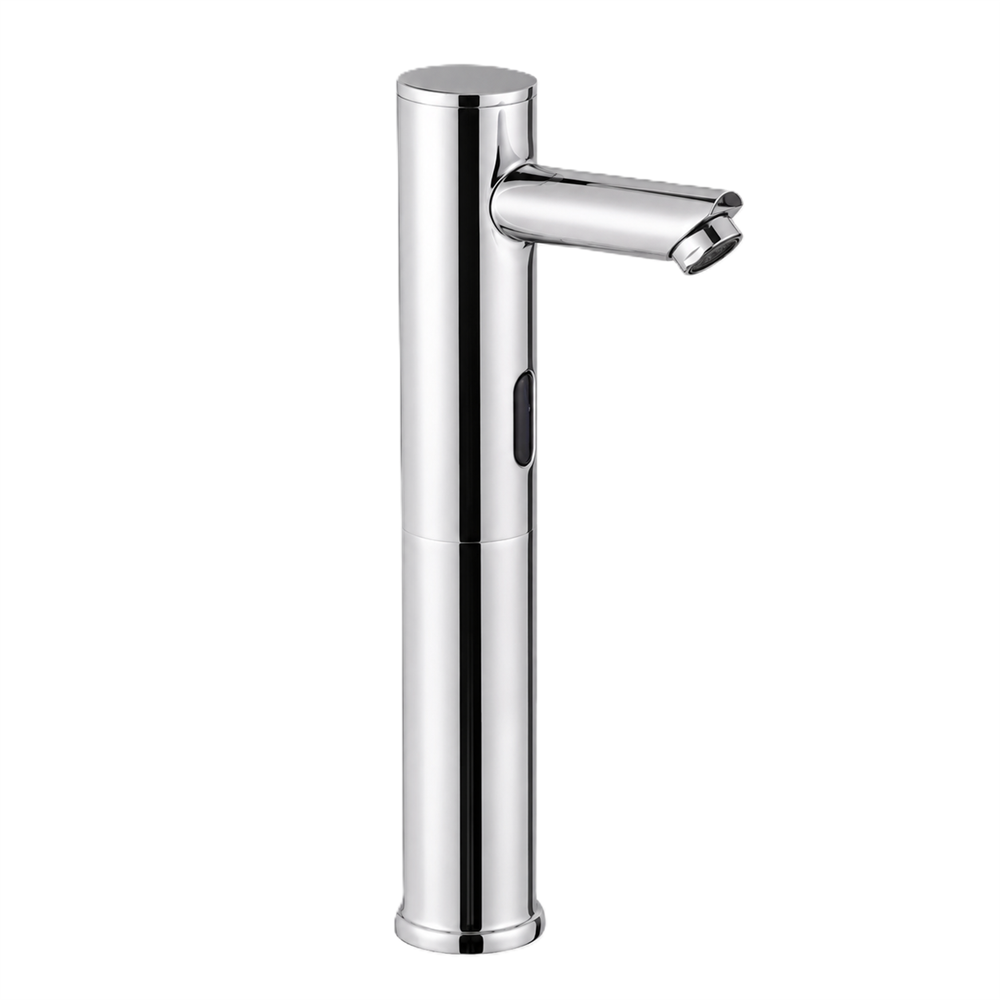

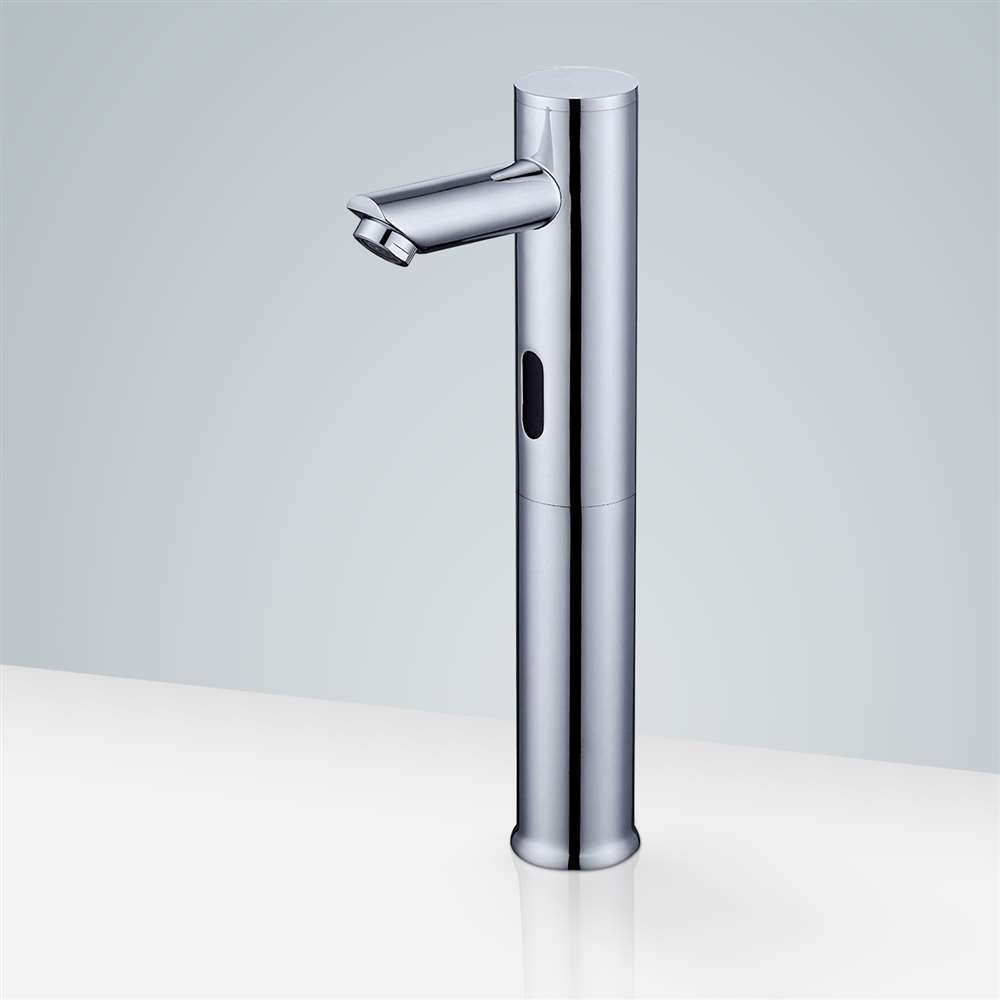

The Velia automatic sink faucet is a great addition to any contemporary bathroom that could benefit from having a taller than average sensor faucet. With a total height of 32 cm and a classic chrome finish, this faucet can blend into any modern facility. It has some undeniable benefits, such as water saving, less waste means less environmental impact, and better protection against germs and bacteria since no touching is needed.
This touchless faucet is built with the best materials, for the best performance that'll last a lifetime. It comes complete with accessories and installation instructions. Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing. Automatic Sensor Faucet; Built with precise infrared sensing, controlled water delivery, anti-false triggering, and consistent performance under repeated use.
Velia Commercial Automatic Sensor Faucet FAQ
32 cm Tall Profile, DC 6V Sensor Control;
Brass Body & G1/2" Commercial Connections
The Fontana Velia FS474BSC combines a tall commercial profile,
touchless activation, brass construction, and single-hole deck mounting.
Which basin geometry works best with the Velia's 32 cm faucet height?
The 32 cm overall height makes basin coordination especially important.
Confirm the finished outlet position against bowl depth, drain location,
and countertop elevation before fabrication. A physical mock-up is
recommended where shallow or compact basins are specified so the stream
lands inside the primary washing zone without excessive counter splash.
What should be coordinated below the deck before the faucet is installed?
Reserve accessible space for the sensor-control components, DC 6V power
arrangement, G1/2-inch plumbing connections, flexible lines, and mounting
hardware. Avoid conflicts with the basin, trap, cabinetry, or structural
supports so routine valve and power-system servicing does not require
removing the faucet or finished countertop.
Why does the ceramic core matter in a high-use commercial installation?
The ceramic control interface provides a durable sealing surface for
repeated operation. Flush both supply piping and connecting lines before
commissioning so construction debris does not reach the internal water
path. Stable supply conditions and clean incoming water help maintain
dependable shutoff performance over repeated restroom cycles.
When should sensor performance be evaluated against the finished restroom environment?
Perform final sensor testing after the basin, countertop, mirror,
lighting, dispensers, and surrounding finishes are installed. Cycle
the faucet from realistic hand positions and check for unintended
activation from reflective surfaces. Final testing should also confirm
prompt shutoff and a controlled stream trajectory inside the basin.
