How should the FS-1184-V vertical thermostatic mixer be aligned during concealed rough-in installation?

Install the mixer body perfectly plumb using a level before wall closure while allowing for the finished wall thickness. Verify that the vertically arranged control stems project evenly through the trim openings and that the valve body is rigidly anchored to prevent movement during long-term operation.

What commissioning procedure confirms proper thermostatic regulation after installation?

Stabilize both hot and cold water supplies, operate each shower function individually, and measure outlet temperatures using a calibrated digital thermometer. Confirm that the thermostatic cartridge restores the selected temperature quickly after intentional inlet pressure or temperature variations.

How should the three outlet circuits be validated before the decorative trim is installed?

Independently activate the rainfall outlet, hand shower outlet, and shower valve outlet while confirming positive flow routing and complete isolation of inactive channels. The diverter assembly should eliminate internal crossover and maintain consistent hydraulic performance throughout all operating modes.

Why is balanced hydraulic pressure important for the vertical four-handle configuration?

Balanced inlet pressure minimizes flow variation between outlets and enables the thermostatic cartridge to regulate temperature accurately. Stable hydraulic conditions also reduce unnecessary wear on ceramic sealing surfaces and improve outlet switching consistency during continuous commercial operation.

How should the ceramic valve core be inspected following system flushing?

After thoroughly flushing all supply lines, operate each control repeatedly while checking for smooth rotation, precise water modulation, positive shutoff, and stable outlet temperature. Any stiffness or irregular movement may indicate debris contamination requiring cleaning before final commissioning.

What inspection should be performed on the concealed G1/2-inch threaded interfaces before wall closure?

Conduct both static and dynamic pressure testing after connecting every G1/2-inch inlet and outlet. Inspect each threaded connection for leakage, thread distortion, pressure loss, and pipe movement while confirming that all joints remain fully accessible until successful testing is completed.

What maintenance practices help preserve long-term performance of the FS-1184-V thermostatic mixer?

Periodically inspect inlet passages for mineral accumulation, verify unrestricted movement of every control handle, clean exposed trim using only pH-neutral nonabrasive cleaners, and confirm thermostatic response during scheduled maintenance to maintain accurate temperature regulation and dependable outlet selection.

Which acceptance criteria demonstrate that the FS-1184-V is ready for operational service?

Successful commissioning includes secure concealed mounting, leak-free G1/2-inch interfaces, accurate thermostatic calibration, reliable ceramic valve performance, smooth four-handle operation, correct routing of all three shower functions, stable outlet temperature during supply fluctuations, and repeatable hydraulic performance under multiple operating cycles.

Fontana Shower Three Function Shower Mixer Thermostatic Valve

Alternative Views:

Retail Price: $952.45

Sale Price: $724.25

Savings: $228.20

Availability: Usually Ships in 1 to 2 Weeks

Product Code: FS-1184-V

Qty:

Description

Technical Specs

Extended Information

Fontana Shower Three Function Shower Mixer Thermostatic Valve Vertical

This Fontana Shower Mixer is capable of delivering superior performance with a solid construction for long durability that will upgrade your bathroom with a modern and cool look for a long period of time. When it comes to new bathroom upgrades, FontanaShowers offers shape, finishes and styles that you've been looking for.

Fontana Shower Three Function Shower Mixer Thermostatic Valve Features:

Brand Name: FontanaShowers

Model Number: FS-1184-V

Type: Shower Mixer Valve

Surface Finish: Brass

Surface Treatment: Polished

Valve Core Material: Ceramic

Type: Fixed Support Type

Feature: Auto-Thermostat Control

Style: Contemporary

Size: 201-300mm

Number of Handles: Four Handle

Mixing Valve Water way 1: Rainfall

Mixing Valve Water way 2: Hand shower head

Mixing Valve Water way 3: Shower Valve

Type: Wall Mounted

Strong Anti-Corrosion

High Quality

Interface Thread Size: G1/2 Inch

Features

Fontana Shower Three Function Shower Mixer Thermostatic Valve Vertical

Vertical Three-Way Routing, Thermostatic Temperature Control & Ceramic Valve Sealing

This vertically arranged concealed shower mixer combines automatic thermostatic control, ceramic valve precision, and three independently managed waterways for coordinated multi-outlet shower operation.

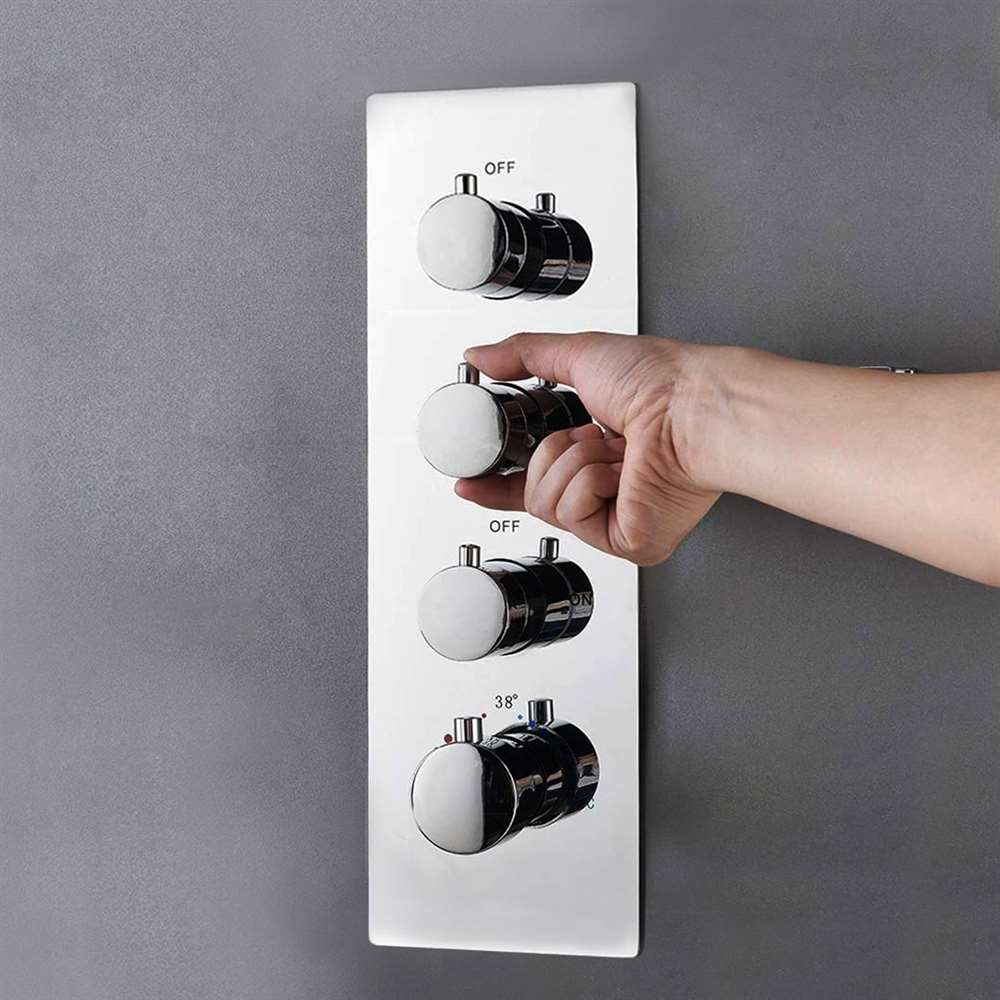

What advantage does the vertical control layout provide?

The stacked four-handle arrangement organizes temperature and outlet controls within a narrow wall footprint, simplifying operation while supporting compact concealed installation.

How are the three shower functions routed through the mixer?

Dedicated internal waterways distribute mixed water to the rainfall outlet, hand shower, and third shower outlet according to the selected control positions.

What maintains temperature stability when inlet conditions change?

The auto-thermostatic cartridge adjusts the hot and cold water ratio as pressure or supply temperature varies, helping reduce sudden outlet-temperature fluctuations.

Why are ceramic valve cores suitable for this four-handle assembly?

Ceramic sealing surfaces provide low-friction rotation, precise flow control, and dependable shutoff across repeated temperature and outlet-selection cycles.
