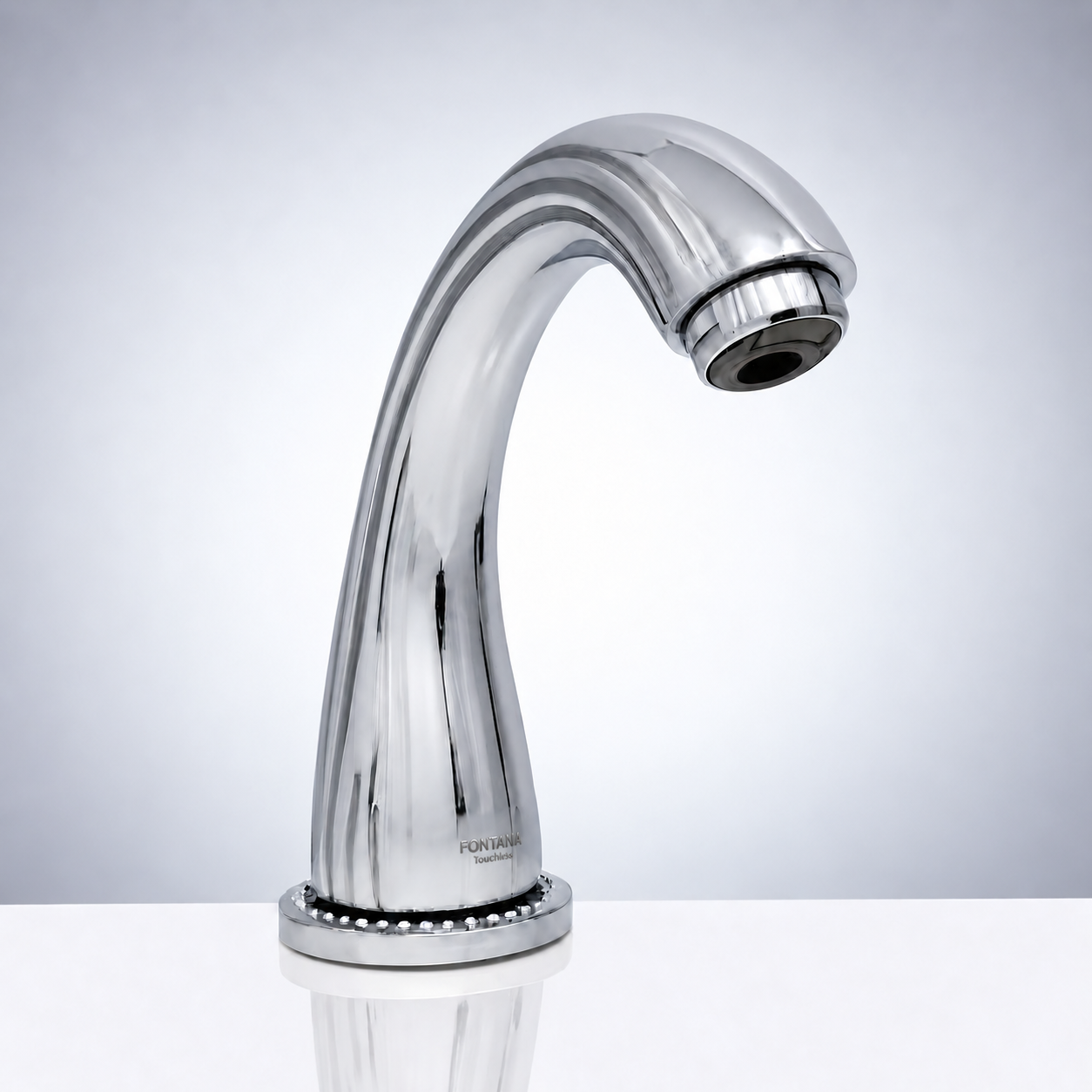

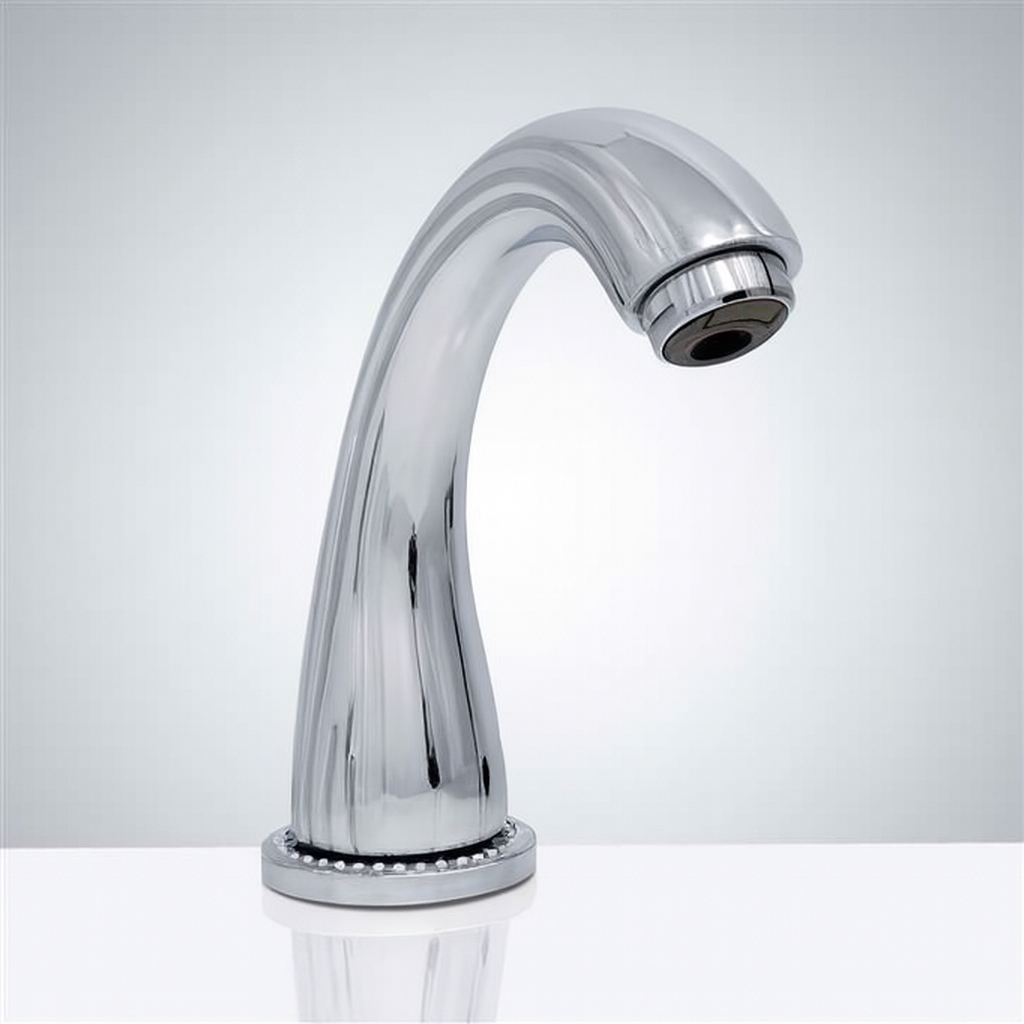

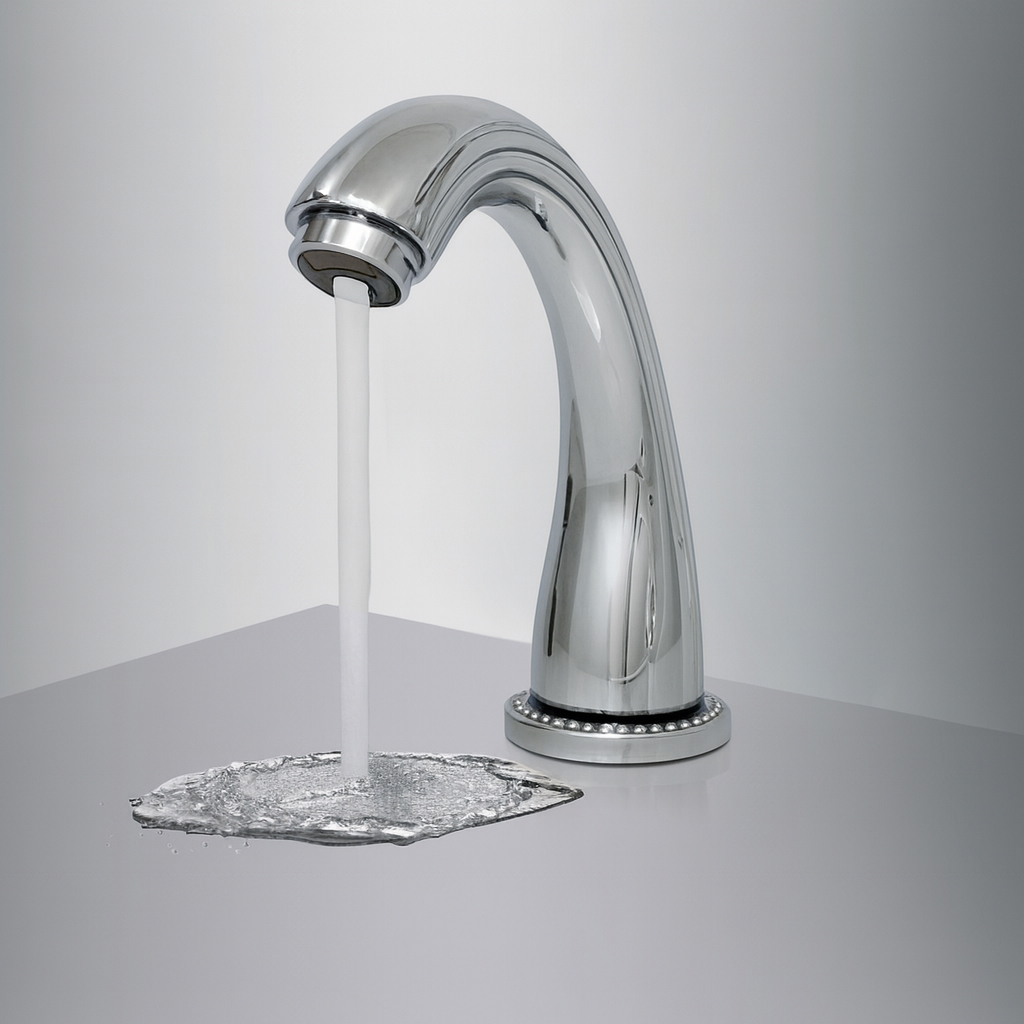

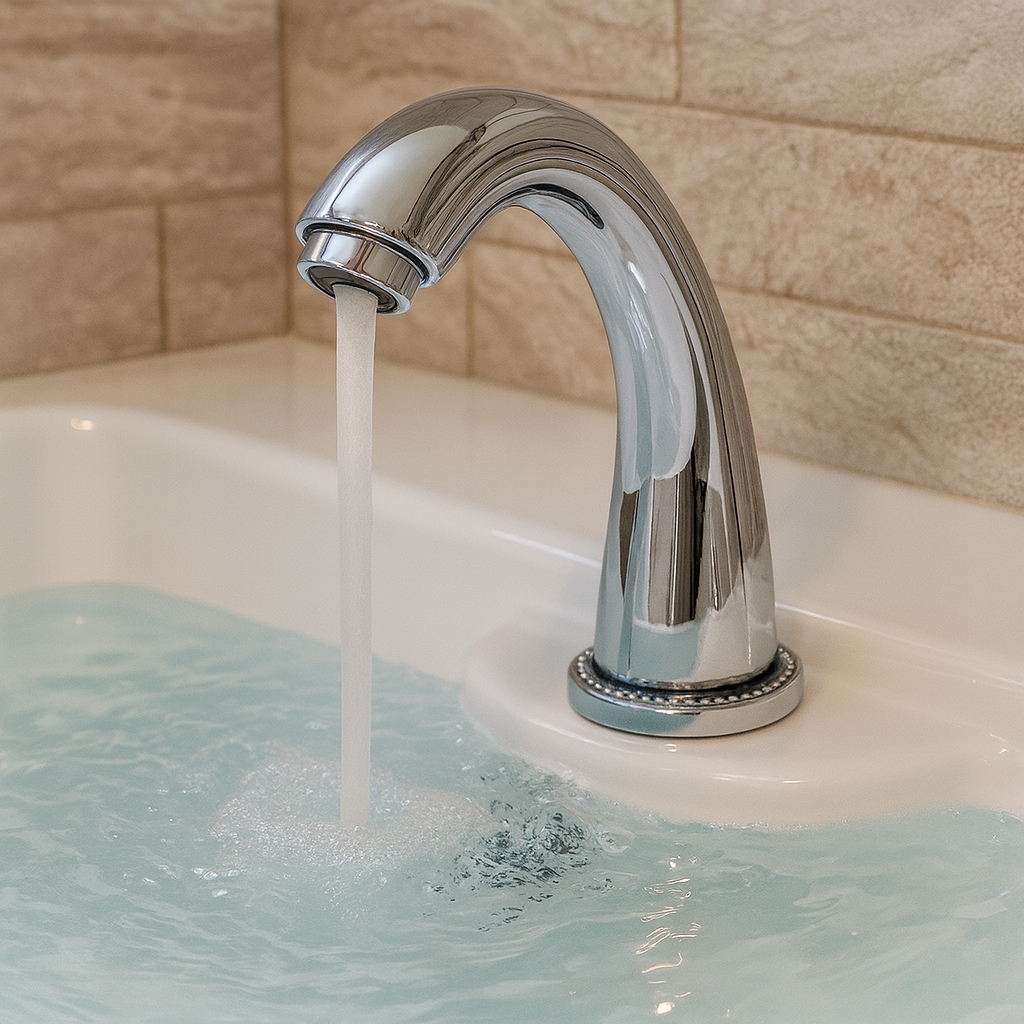

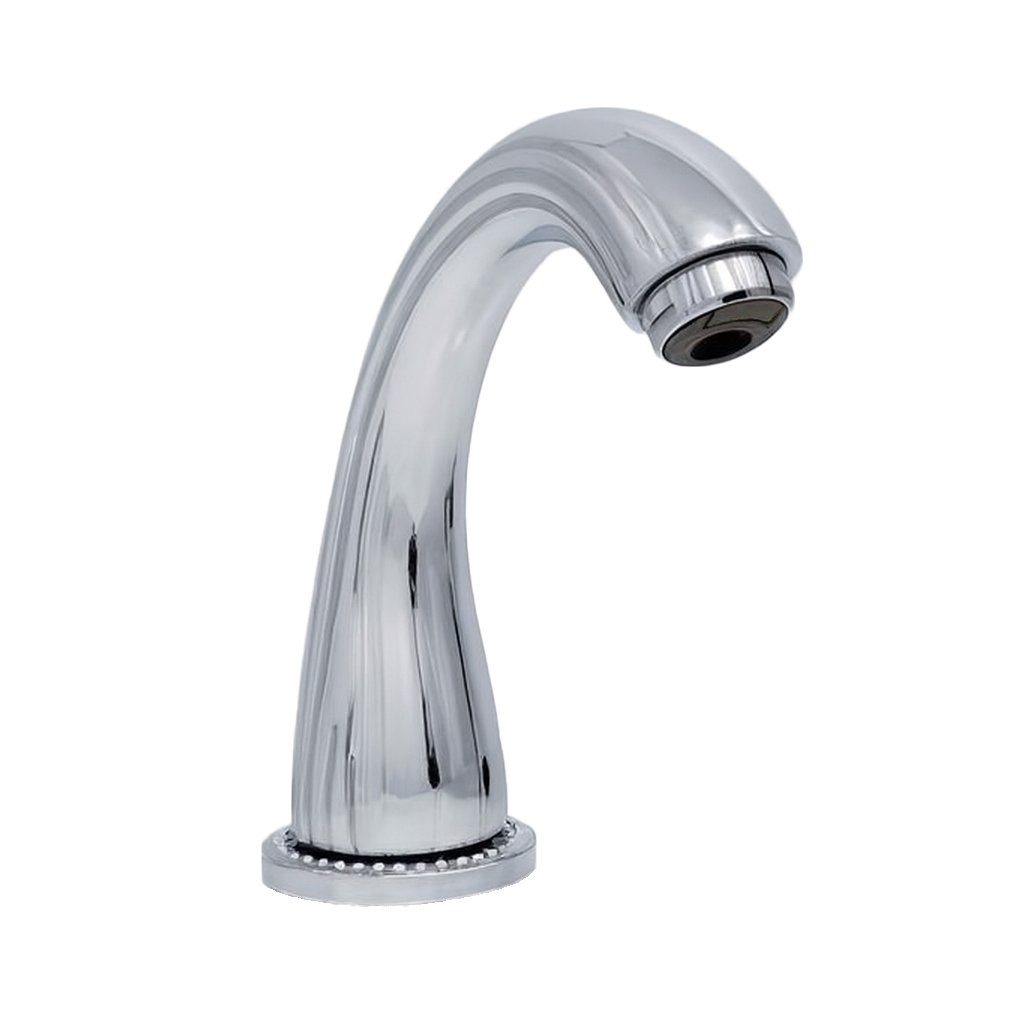

FontanaCeyora Chrome Smart Motion Sensor Faucet

One could see FontanaCesora™ as on the edge of the most exact of contemporary designs. It was a complete, pure chromed instrument conceived for use in exigent conditions. In profile, it presents an image of architectural elegance, while adaptive infrared recognition technology assures activation without physical contact. The brass composition provides for resistance against wear and tear, thus guaranteeing durable reliability amid incessant heavy traffic use. It is designed for single-aperture mounting, emphasizing uncomplicated installation to further increase compatibility through modern interiors. The smart-valve regulation technique provides for ecological conservation of the flow, with which every cycle is optimally dispenses the exact volume needed. It accommodates pressures ranging from 0.05MPa to 0.8MPa, further allowing it to function seamlessly under varying circumstances while maintaining uninterrupted delivery without compromise. The brushed finish augments its endurance by extending lifespan while enhancing the visual grandeur. It conserves scarce water and raises hygiene standards as it can have only 1.58 gallons or 6 liters per minute. Developed to reduce false triggers caused by cleaning staff movement or reflective flooring materials.

FontanaCeyora™ Chrome Smart Motion Sensor Faucet FAQ

Sensor Calibration, 0.05–0.8 MPa Pressure Stability; Chrome Surface Protection

The FontanaCeyora™ Chrome smart motion sensor faucet combines solid-brass construction, single-hole deck mounting, infrared hands-free activation, 6 L/min water delivery, and a contemporary commercial profile designed for reliable touchless washroom operation.

How should the infrared sensing zone be commissioned after installation?

Complete sensor testing after the basin, backsplash, mirror, lighting, soap dispenser, and surrounding accessories are installed. Verify repeated activation from normal hand-washing positions and confirm that reflective surfaces, nearby movement, or cleaning activity do not cause false triggering.

How should the faucet be tested across its 0.05–0.8 MPa pressure range?

Flush the supply line before final connection, inspect the inlet path for construction debris, and test the faucet under dynamic pressure. Confirm stable discharge, rapid sensor response, and complete automatic shutoff after hand removal while maintaining the specified 6 L/min flow.

How should the 4.92-inch spout length be coordinated with the basin?

Position the single mounting hole so the water stream lands near the basin drain rather than against the rear or curved bowl wall. Verify the actual stream landing point under operating pressure before final tightening to reduce splash and maintain comfortable hand-washing clearance.

How should the Chrome finish be cleaned without scratching or hazing it?

Remove fingerprints, water spots, and soap residue with a soft damp microfiber cloth, then dry the faucet immediately. Use diluted pH-neutral soap only and avoid abrasive pads, acidic descalers, bleach, ammonia, steel wool, polishing powders, aggressive metal polish, and concentrated disinfectants.

Chrome

• Brand Name: FontanaShowers®
• Model Number: FS47819CH
• Type: Motion Sensor Faucet
• Style: Contemporary
• Finish: Chrome
• Faucet Mount: Single Hole
• Installation Type: Deck Mounted
• Material: Brass
• Water Pressure: 0.05Mpa-0.8Mpa
• Surface Treatment: Brushed
• Water Flow: 1.58 gallons per minute/6 liter per minute
• Usage: Commercial
• Faucet Height: 6.69" (170mm)
• Spout Length: 4.92" (125mm)
• Spout Height: 3.93" (100mm)
