How to install Fontana Duo Shower Heads With Slidebar Handshower | FS1323


Easy step by steps installation instructions for Sensor Faucet

Visit Product Page
  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the products for any shipping damages. If you find damages, do not install.
  • Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
shower Fontana Duo Shower Heads With Slidebar Handshower


Shower Head Installation Instructions



Ceiling Mount Installation Instructions

Step 1:showerStep 2:

Step 3:Step 4:

Step 5:showerStep 6:

Step 7:


1. Remove the old shower head by using the channel lock pliers or monkey wrench. Be sure to turn the pliers counter-clockwise to loosen the old shower head. (Tip: Right is tight, left is loose.)
2. Remove the shower arm by turning it by hand counter-clockwise.Make sure you remember to apply putty or tape to the new arm. (Tip: Using teflon tape is less messy)
3. Apply teflon tape to the threading of the shower arm by wrapping it around the threads, go all the way around 3 or 4 times depending on the quality of the Teflon tape.
4. Install the new shower arm by going clockwise by hand until it is tight, then put painters tape around the arm and tighten the arm with the channel lock or monkey wrench.
5. Place Teflon tape around the threads on the shower head and then place the shower head onto the shower arm by turning the shower head clockwise after the shower arm is already in the wall.





Wall Mount Installation Instructions


Step 1:RoundShowerStep 2:
Wall Mount Round Showerhead
Step 3:Step 4:
Step 5:Step 6:


1. Remove the old shower head by using the channel lock pliers or monkey wrench. Be sure to turn the pliers counter-clockwise to loosen the old shower head. (Tip: Right is tight, left is loose.)
2. Remove the shower arm by turning it by hand counter-clockwise.Make sure you remember to apply putty or tape to the new arm. (Tip: Using teflon tape is less messy)
3. Apply teflon tape to the threading of the shower arm by wrapping it around the threads, go all the way around 3 or 4 times depending on the quality of the Teflon tape.
4. Install the new shower arm by going clockwise by hand until it is tight, then put painters tape around the arm and tighten the arm with the channel lock or monkey wrench.
5. Place Teflon tape around the threads on the shower head and then place the shower head onto the shower arm by turning the shower head clockwise after the shower arm is already in the wall.




Hand Held Shower Installation Instructions


Step 1: (Hand Shower Slide Rail Installation)Step 2:
hand
shower

Hand-Held Shower Installation Instructions
Step 3:Step 4:
Hand-Held Shower Installation Instructions
Step 5:Step 6:
Hand-Held Shower Installation Instructions
Step 7:Step 8:
Hand-Held Shower Installation Instructions
Step 9:Step 10:
Hand-Held Shower Installation Instructions
Step 11:Step 12:
Hand-Held Shower Installation Instructions
Step 13:Step 14:
Hand-Held Shower Installation Instructions
Step 15: (Hand Shower Elbow Installation)Step 16:
Hand-Held Shower Installation Instructions
Step 17:Step 18:
Hand-Held Shower Installation Instructions

Step 19:Step 20:
Hand-Held Shower Installation Instructions
Step 21:Step 22:

  • Open the closed cover of the shower holder and take out the screws.
  • Drill two holes size 0.2" (6mm) on the wall according to the hole position of the shower holder
  • Use a hammer to break 2 plastic wall plug into two holes. Tighten the screws with the plastic wall plug and locking with the shower holder.
  • Then install the closed cover
  • Connect the shower hose with the water outlet connection part and hand shower. Plug the hand shower in the shower holder.



Thermostatic Mixer Installation Instructions






Step 1:mixerStep 2:
Step 3:Step 4:
Step 5:Step 6:
Step 7:

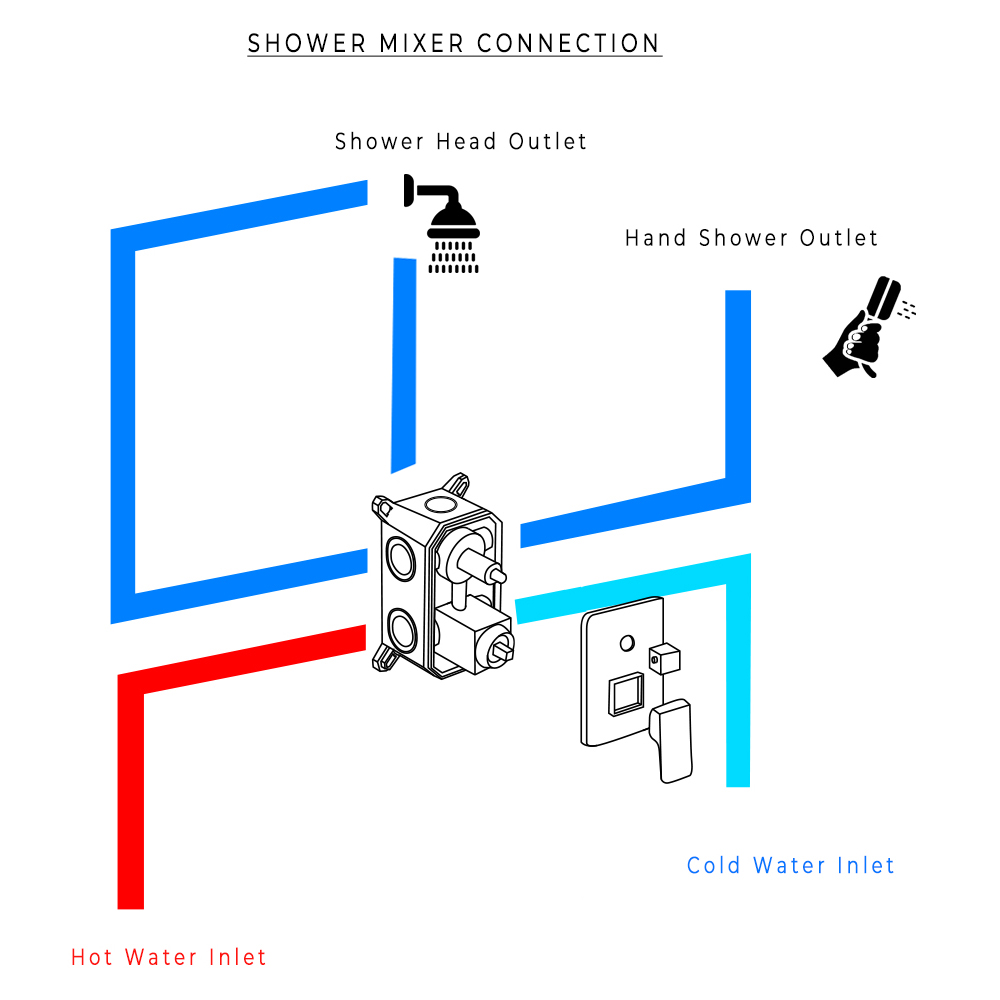

1) Fix the shower valve into the wall with screws. Use a level to ensure that the valve is straight and level. (Important: Flush the water supply pipes to remove any dirt and debris before installing the valve body)

2) Wrap Teflon tape around the pipe thread. Connect hot and cold water supply lines and all the in-wall pipes (not included) as desired to the valve. Turn on the water supply and open the cartridge to check for leaks. Then, put on the protective cover.

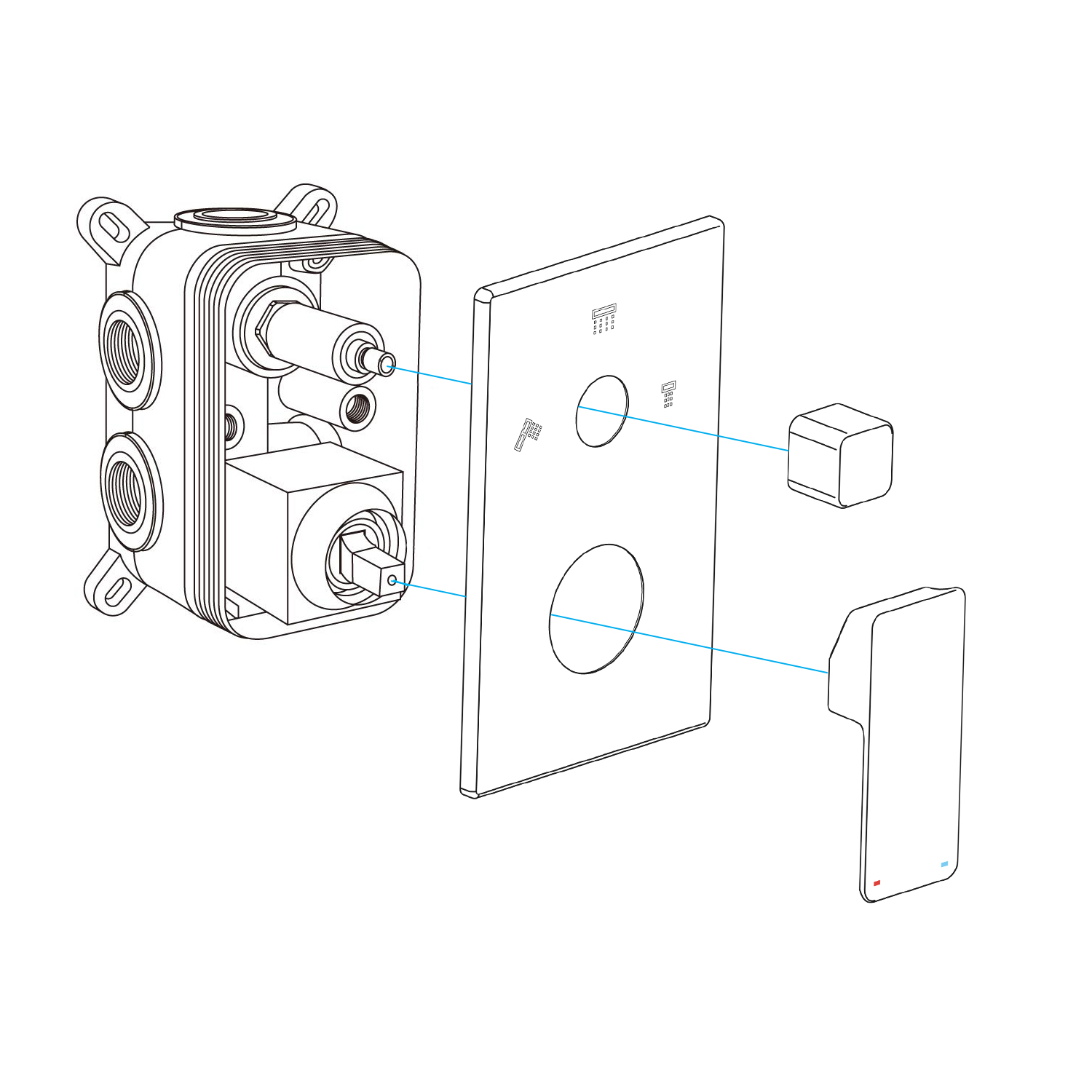

3) Remove the protective cover when the wall finished wall is completed. Install escutcheon onto the shower valve and press it against the finished wall. Then, install the handle and diverter knob to the valve and tighten set screws with the Allen key and put on the indication button.


Function: Check connections for leaks and check function of fitting. Flow is diverted automatically from shower outlet to bath inlet when the fitting is closed.

Specifications

Flow pressure: min. 0.5 bar (recommended 1 – 5 bar)
Operating pressure: max. 10 bar
Test pressure: 16 bar

Flow rate at 3 bar flow pressure
for bath: ≥ 19.8 L/min
for shower: ≥ 12 L/min

Hot water inlet temperature: max. 80 °C
Recommended (energy saving): 60 °C

If static pressure exceeds 5 bar, a pressure-reducing valve must be fitted.
Avoid major pressure differences between hot and cold water supply.

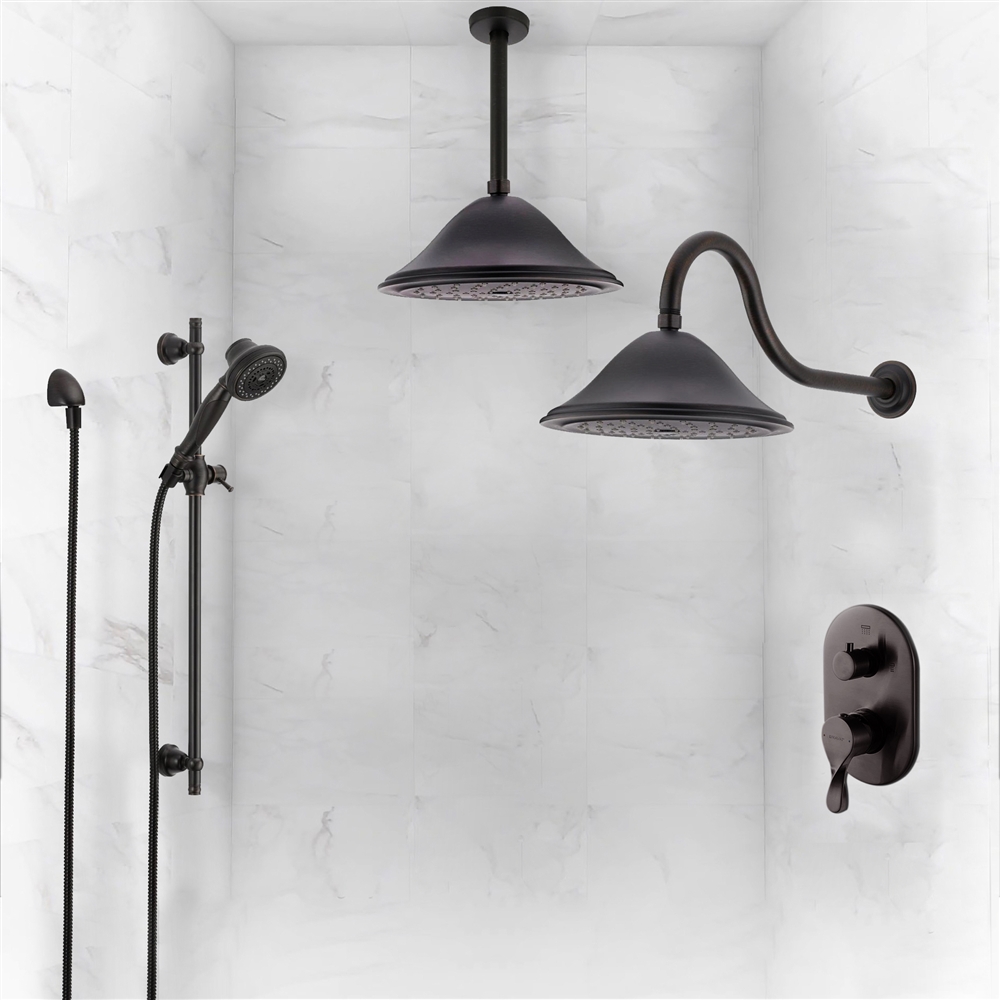

Fontana Duo Shower Heads With Slidebar Handshower


At Fontana Showers, we present you with the luxury of a dual shower system. Because taking a shower is such an essential part of our lives, so we have the right shower system to make your experience much more enjoyable. A must-have for great times in the shower with your partner. Now both of you can shower warm and comfortably. No more hogging all the water, now you can concentrate on each other.

Features:


Visit Product Page
  • Brand Name: FontanaShowers
  • Model Number: FS1323
  • Valve Core Material: Ceramic
  • Style: Contemporary
  • Single Handle Thermostatic Mixer
  • Handheld Material: Brass
  • Shower Head : Wall & Ceiling Mounted
  • Finish: Oil Rubbed Bronze
  • Connection: G1/2" Standards
  • Double Showerheads provide twice the water flow and comfort.
  • Great for two
  • What's included :
  • 2 x shower head
  • 1 x hand-held shower head
  • 2 shower arm
  • 1 shower hose
  • 1 x shower holder
  • 1 x slide bar
  • 1 x single handle thermostatic mixer valve
  • All parts & accessories required for installation of the shower system
