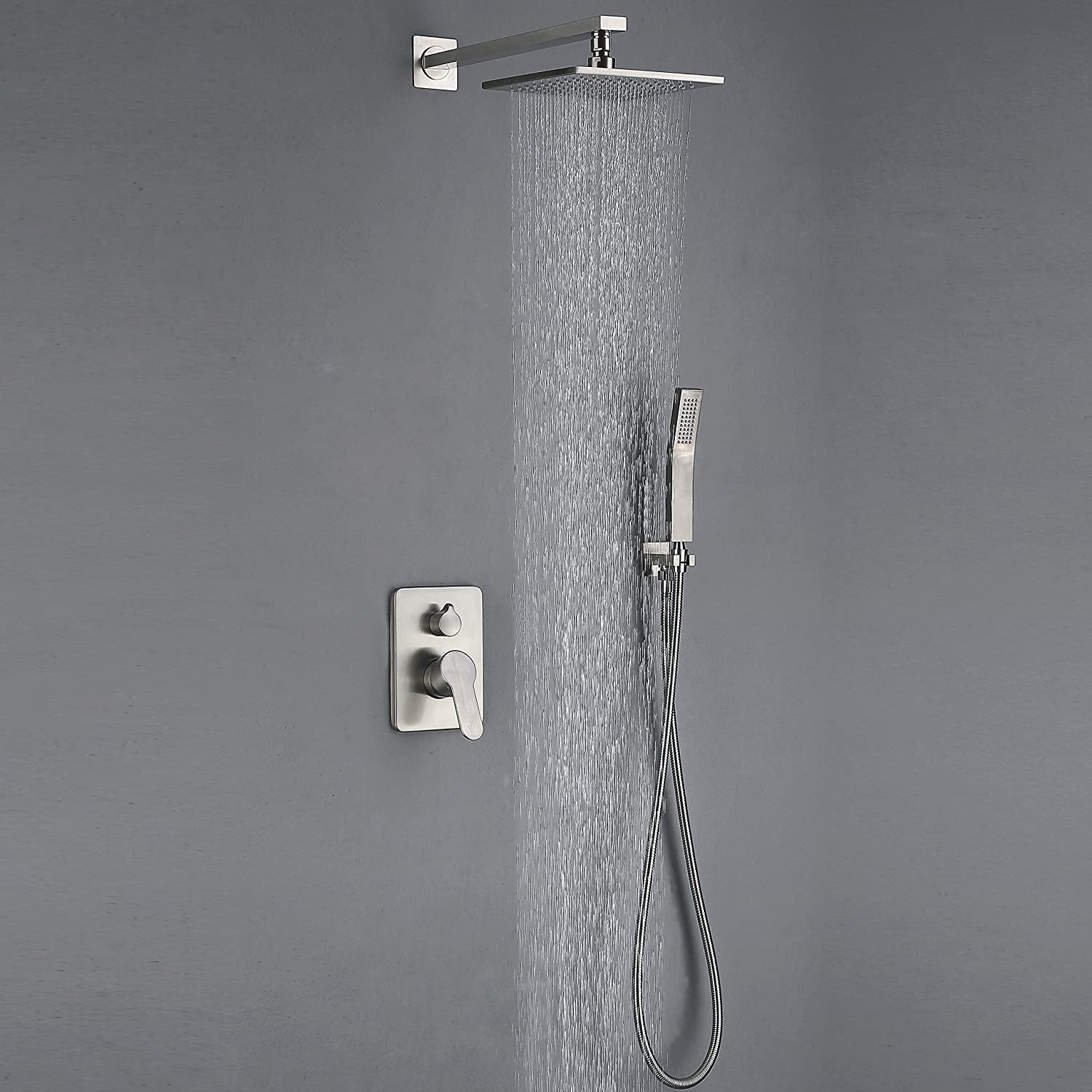

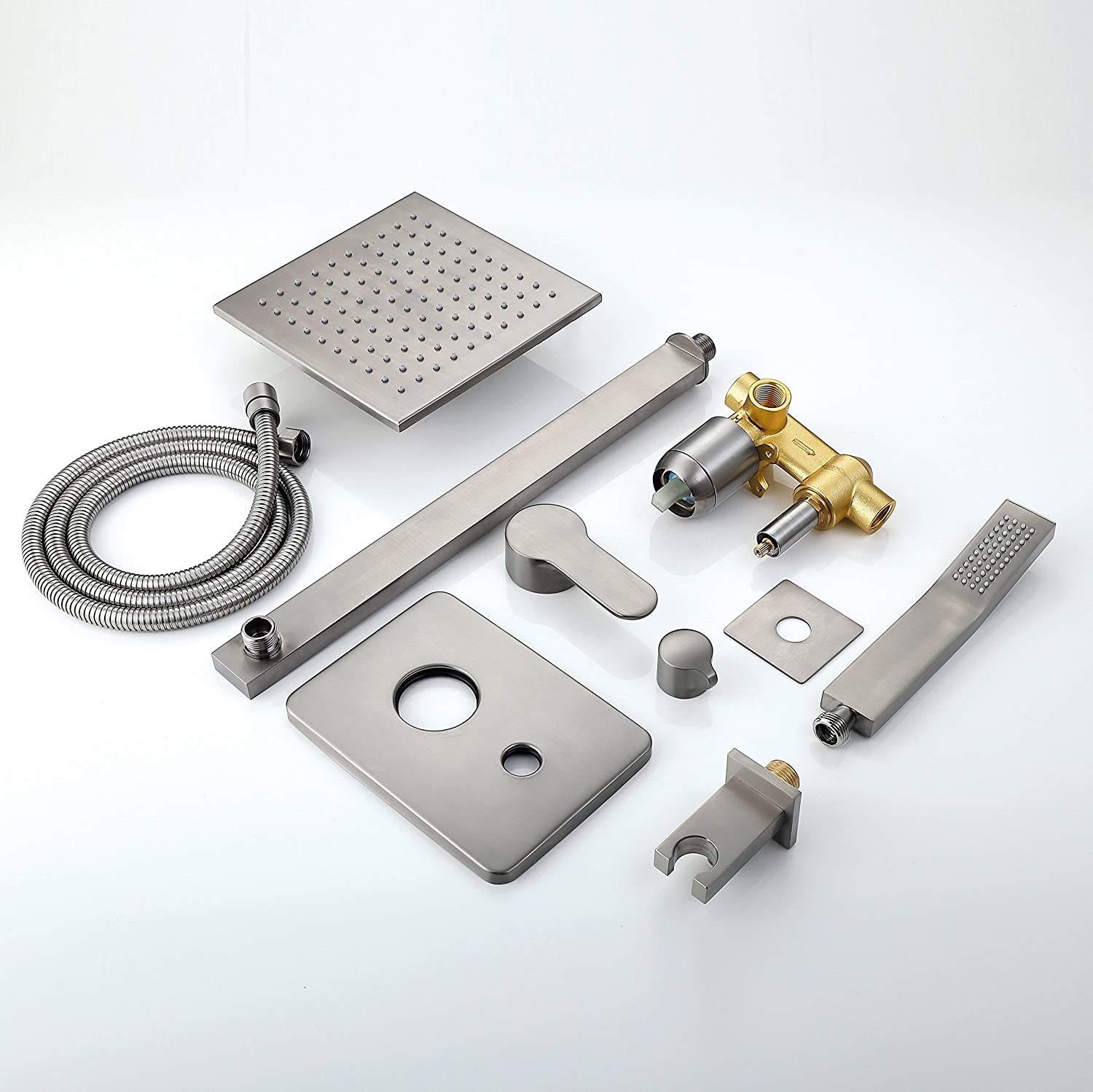

How to install FontanaShowers Rain Shower Set Single Handle Thermostatic Valve Brushed Nickel Wall Mount Shower with Handshower | FS1507BN
Installation Instructions for Bathroom Shower Set
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.
shower

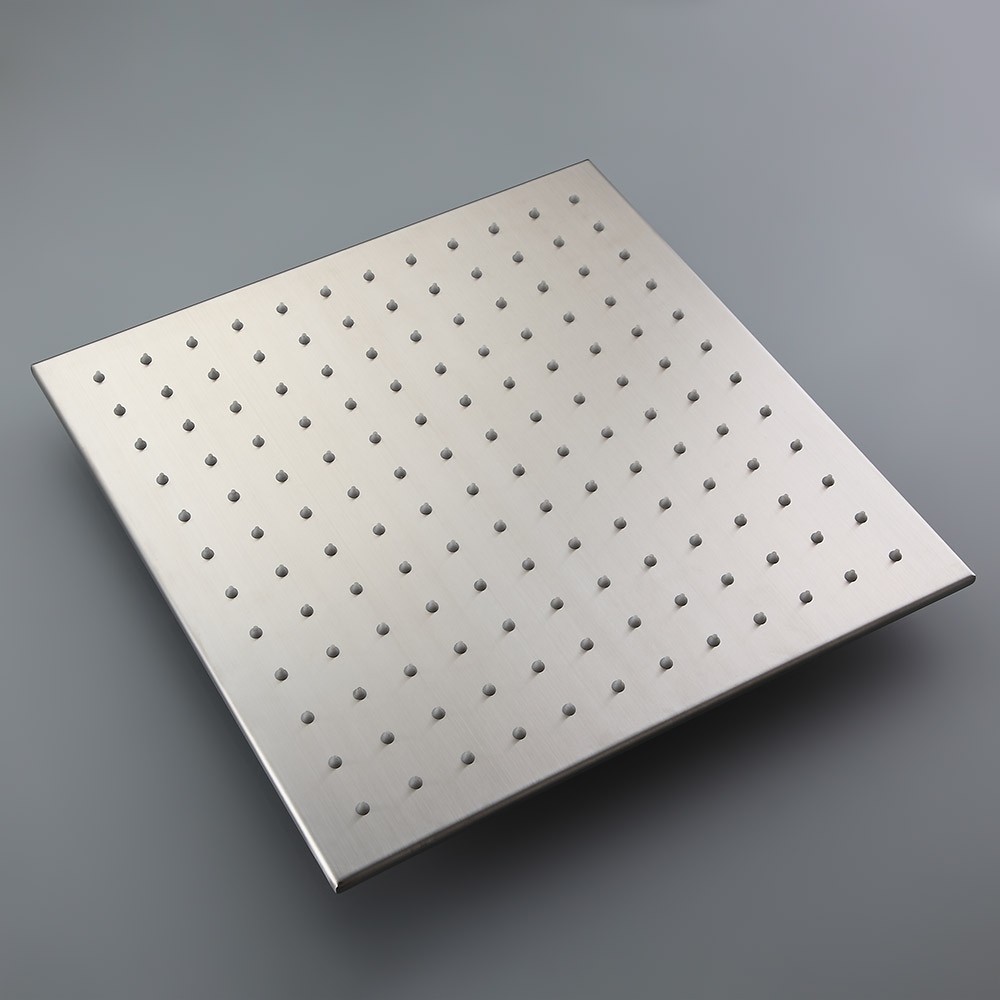

Wall Mount Shower Head Installation Instructions
Step 1:
shower
Step 2:
Step 3:
Step 4:
Step 5:
Step 6:
Step 7:
Step 8:
1. Apply plumber's tape to the threads on both ends of the shower arm and slide on the decorative escutcheon.
2. Insert the new arm into the fitting in the wall and twist to tighten. Finish tightening with your adjustable wrench. Wrap a dry cloth around the shower arm to protect the finish while tightening with an adjustable wrench.
3. Thread the new showerhead onto the arm and hand-tighten. Hold the shower arm in place with groove joint pliers and finish tightening the shower head with your adjustable wrench. Wrap both in a dry cloth to protect the finish.
4. Before securing the decorative escutcheon, turn on the water supply to make sure that all connections are tight and there is no leaking. If no leaks are detected, continue with the installation. If leakage does occur, use your adjustable wrench to tighten the connections as necessary.
5. Apply a bead if silicone sealant to the back of the escutcheon and press firmly into place against the installation surface. Wipe away any excess sealant with your damp cloth.
Hand Held Shower Installation Instructions
Fontana Thermostatic Valve Installation
Complete the Concealed Valve Rough-In
Connect this valve-focused guide with finished-wall depth, supply orientation, rain shower and handheld installation resources.
The trim and controls must engage the concealed valve correctly. Calculate depth from the finished surface, including waterproofing and tile buildup.
Open Valve Guide
How should the hot and cold supplies be connected?
Connect the supplies to their marked ports and flush both lines before installation. Reversed connections can prevent correct thermostatic operation.
View Rough-In Detail
When should the valve be calibrated?
Calibrate after flushing, pressure testing and connecting the outlets. Verify safe temperature control under normal operating conditions.
Review Mixer Installation
Where are related shower installation guides?
The installation hub connects this valve detail with showerhead, handheld, mixer and wall rough-in resources.
