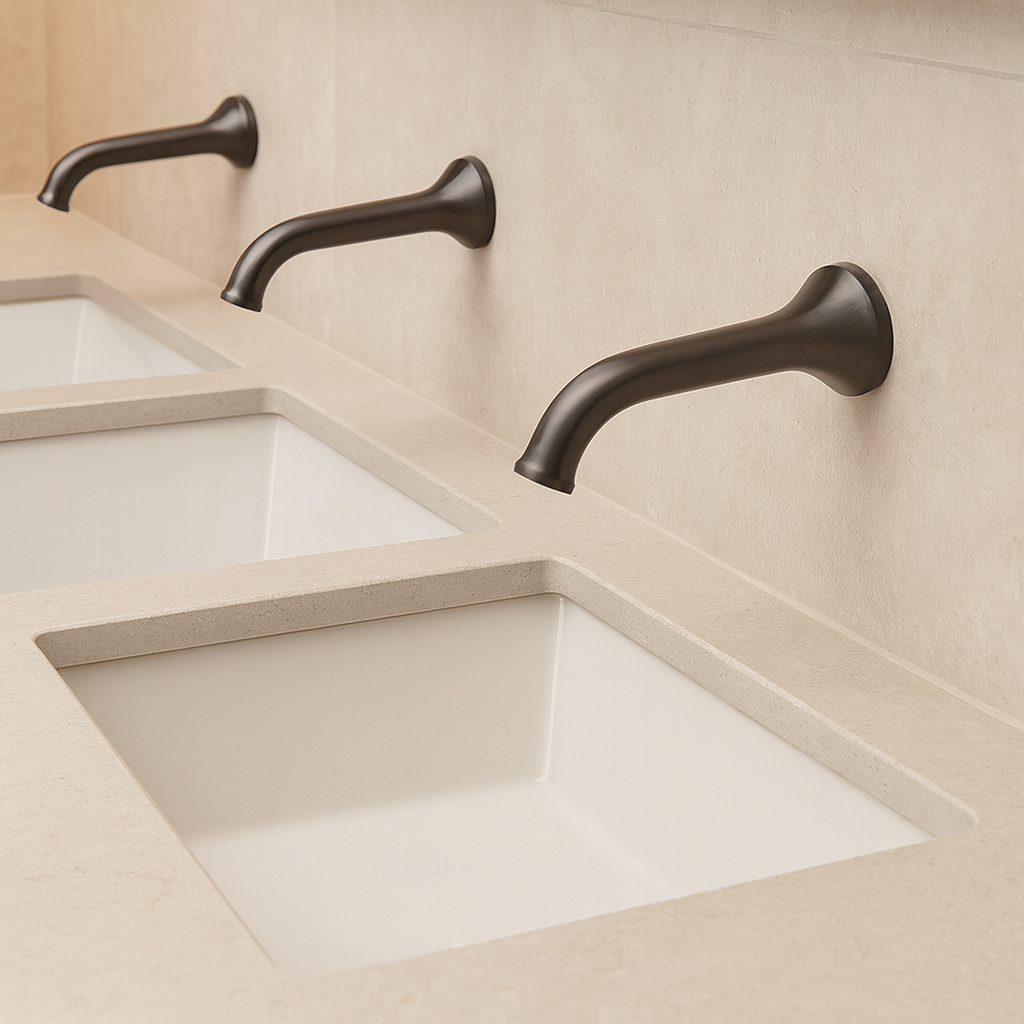

When mounted on the wall, this single-hole fixture allows flexibility of installation but leans to complement the very current architectural style. The solid brass construction makes the fixture practically wearproof and perfect for maintaining its beauty in high-traffic areas. The ceramic valve core is recognized for its longevity and smooth operation, coupled with very efficient leak prevention. Variable AC/DC power inputs allow the fixture to be fitted to a variety of commercial or hospitality applications. Simple setups are made available for these different installation projects with its G1/2" dimensional inlet and outlet diameters. The ADA compliance provides accessibility, making the coating an inviting option as well as stylish. Perfect glove fit for locations needing heavy-duty qualities with finesse, the FontanaShowers Faucet lends a timeless note to high-tech performance, setting new standards in the world of sensor-based restrooms worldwide.

FONTANA ZERAYA™ COLLECTION

Fontana Zeraya Touchless Faucet FAQs

Commercial wall-mounted infrared touchless faucet with solid brass construction, ceramic valve control, single-hole installation, AC/DC power capability, G1/2-inch plumbing connections, and ADA-compliant hands-free performance.

✥ Sensor Commissioning Procedure? +

Complete sensor commissioning after the basin, finished wall, backsplash, mirror, lighting, and nearby accessories are fully installed. Verify dependable hand detection within the intended washing zone and confirm reflective surfaces do not cause unintended infrared activation.

◇ Wall-Mount Installation Requirements? +

Coordinate the single-hole wall penetration, G1/2-inch inlet and outlet connections, sensor components, power supply, and future service access before completing the finished wall. Align the outlet carefully with the basin washing zone.

◯ G1/2-Inch Plumbing Connections? +

The Zeraya uses G1/2-inch inlet and outlet connections. Flush the water supply before final connection, verify secure fittings, inspect the water path for construction debris, and perform repeated sensor cycles before final project turnover.

↻ Continuous Water Flow Diagnostics? +

Clean the infrared sensor area and remove stationary or reflective objects from the detection field. Verify stable electrical power and inspect the ceramic valve and internal water path for debris, mineral buildup, or incomplete closure if shutoff becomes inconsistent.

⌁ Reflective Surface Interference? +

Mirrors, polished stone, metallic accessories, glossy basins, and strong lighting may influence infrared sensing. Perform final sensor testing only after the surrounding architectural environment is complete and verify activation occurs only within the intended zone.

⌂ Hot and Cold Water Configuration? +

The live Zeraya product page provides a selectable hot-and-cold option. When specified, flush both supplies, verify balanced water pressure, establish the required mixed-water temperature, and complete repeated touchless activation tests before occupancy.

⚡ AC and DC Power Options? +

The Zeraya supports AC/DC power operation. Confirm the selected electrical configuration before commissioning, protect electronic components from moisture, and maintain accessible service space for future sensor, valve, and power-system maintenance.

⌕ Routine Commercial Maintenance? +

Periodically clean the infrared sensor and faucet outlet, inspect G1/2-inch plumbing connections, remove mineral deposits, and verify dependable automatic shutoff. Clean decorative finishes with a soft cloth and mild non-abrasive cleaner.

‹ ›

Gun Metal Grey

Gun Metal Grey Chrome Brushed Nickel Gold Brushed Gold Rose Gold Oil Rubbed Bronze Champagne Matte White Matte Black

♧

G1/2" Inlet & Outlet

◇

Solid Brass Durable Construction

⌁

Infrared Sensor Hands-Free Operation

⚙

AC / DC Power Flexible Installation

◇

ADA Compliant Commercial Grade
