Fontana Round Thermostatic Mixer Shower Set with Optional LED Lighting- Installation
Fontana Thermostatic Mixer Installation Resources

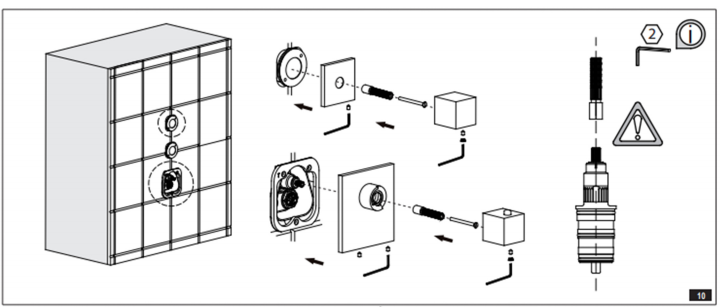

Install the Black Brass Thermostatic Mixer
Coordinate the concealed brass valve, hot and cold supplies, finished-wall depth, outlet routing and temperature calibration.
Installation Guides
All FontanaShowers Installation Guides Shower Mixer Installations
Thermostatic Mixer

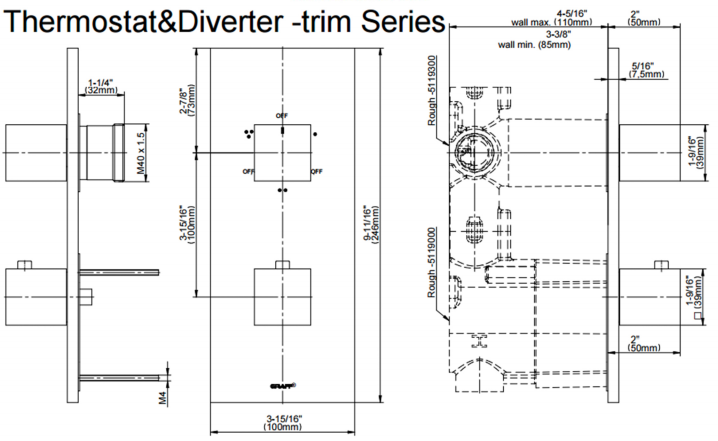

Valve Rough-In Detail Thermostatic Mixer Guide
Wall Rough-In
Wall Rough-In Dimensions Shower Installation Details
Water Outlets

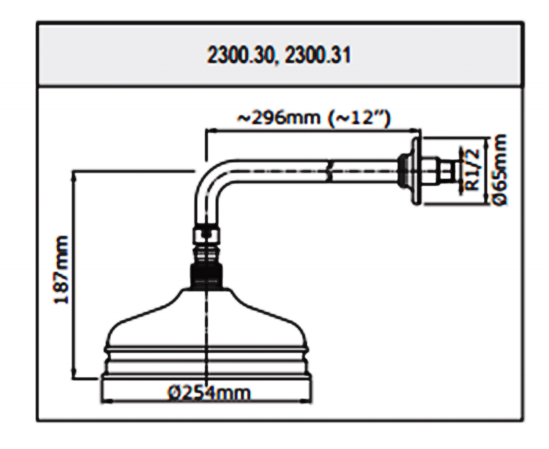

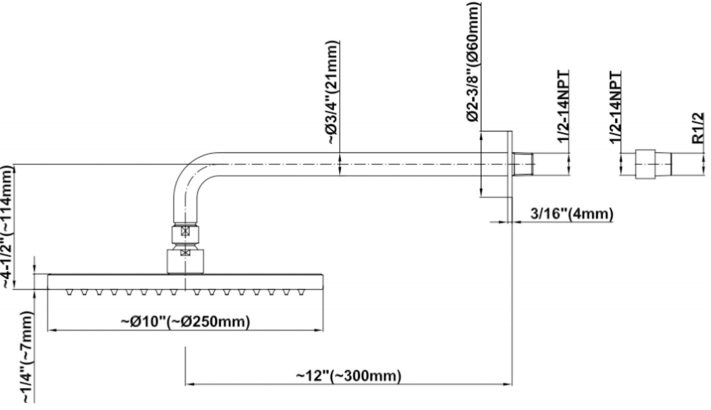

Shower-Head Requirements Handheld Installation
Technical Files
BIM / Revit Library Architect Resources
Project Support
Installation & Maintenance Compliance Records
ALL FONTANASHOWERS INSTALLATION GUIDES →

Thermostatic Mixer Installation Questions

What should be confirmed before securing the valve body?

Confirm hot and cold inlet orientation, approved mounting position, finished-wall depth and the destination of every outlet.

Should the supply lines be flushed first?

Yes. Flush the lines before connecting the mixer to prevent debris from obstructing the cartridge, filters or check valves.

How should the black trim be protected?

Use clean gloves and protected tools, and avoid abrasives, harsh chemicals and construction residue on exposed surfaces.

When should temperature calibration occur?

Calibrate the temperature limit after normal supplies are available and verify the delivered temperature with a thermometer. Review Valve Rough-In

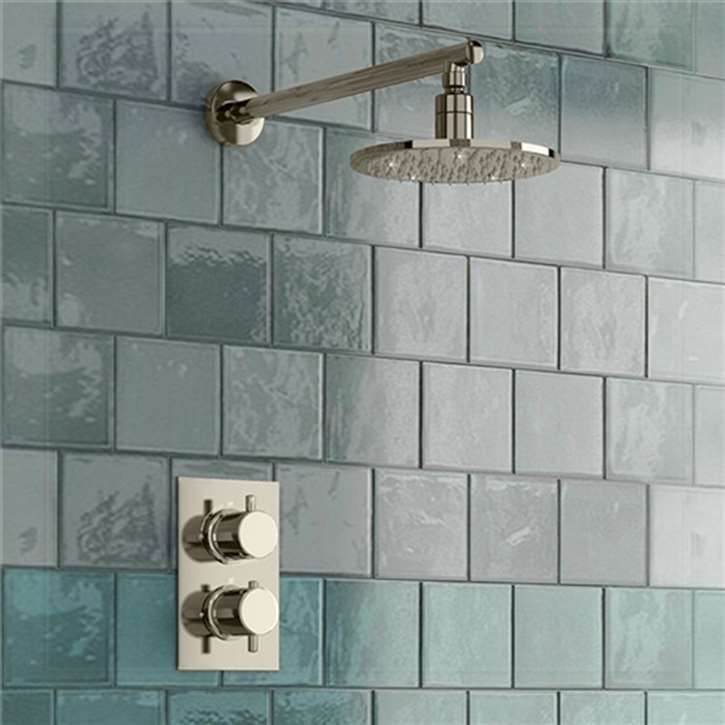

Black brass concealed thermostatic shower mixer installation planning
