How to install Fontana Shower Mixer Tap Concealed Faucets Diverter Mixing Hot Cold Mixing Valve | FS-1181HC

Easy step by step Installation Instructions for Shower Mixer Thermostatic Valve

Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.

Shower
Mixer

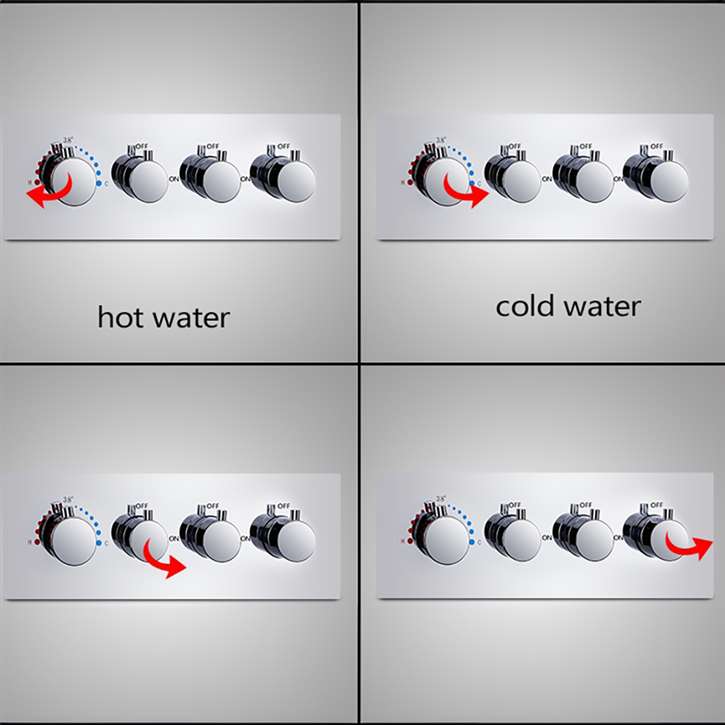

THERMOSTATIC MIXER INSTALLATION INSTRUCTIONS

Step 1:		Step 2:
	Shower Mixer

Shower Valve Mixer Installation Instructions
Step 3:		Step 4:

Please screw the handles out according to the above direction.		Take board and four handles out of the faucet body.
Shower Valve Mixer Installation Instructions
Step 5:		Step 6:

According to the actual size, get all pipe embedded mounts well ready.		According to the product basic size, dig four holes on the ideal place of the wall.
Shower Valve Mixer Installation Instructions
Step 7:		Step 8:

Place 4 tapping screws into the holes using a hammer.		Fix the faucet body by hand. And then take it into the four tapping screws.
Shower Valve Mixer Installation Instructions
Step 9:		Step 10:

FontanaShowers Thermostatic Mixer Installation Resources

Plan a Thermostatic Shower Mixer Installation

Review concealed-valve rough-in planning, mixer connections, temperature calibration and related shower installation resources.

Installation Guides

Mixer Planning

Installation

Coordination

Technical Resources

Project Support

ALL FONTANASHOWERS INSTALLATION GUIDES →

Thermostatic Mixer Installation Questions

What must be confirmed before installing the concealed mixer body?

Confirm the product-specific rough-in depth, finished-wall allowance, hot and cold inlet orientation, outlet assignments and service access before closing the wall. Review Valve Rough-In

Should the supply lines be flushed before connecting the valve?

Yes. Flush both supply lines before final connection so construction debris does not obstruct the cartridge, filters or check valves.

When should the temperature limit be calibrated?

Calibrate the temperature stop after the water heater is operating normally and the finished trim is installed. Verify the outlet temperature with a reliable thermometer.

Where can I find the broader mixer-installation cluster?

Use the shower mixer hub for related valve, diverter and thermostatic installation references. Open Mixer Installations
