Fontana Cote Brushed Gold Commercial Touchless Sensor Faucet FAQ
4.92-Inch Spout Reach, Infrared Activation;
Single-Hole Mounting & Commercial Brass Construction

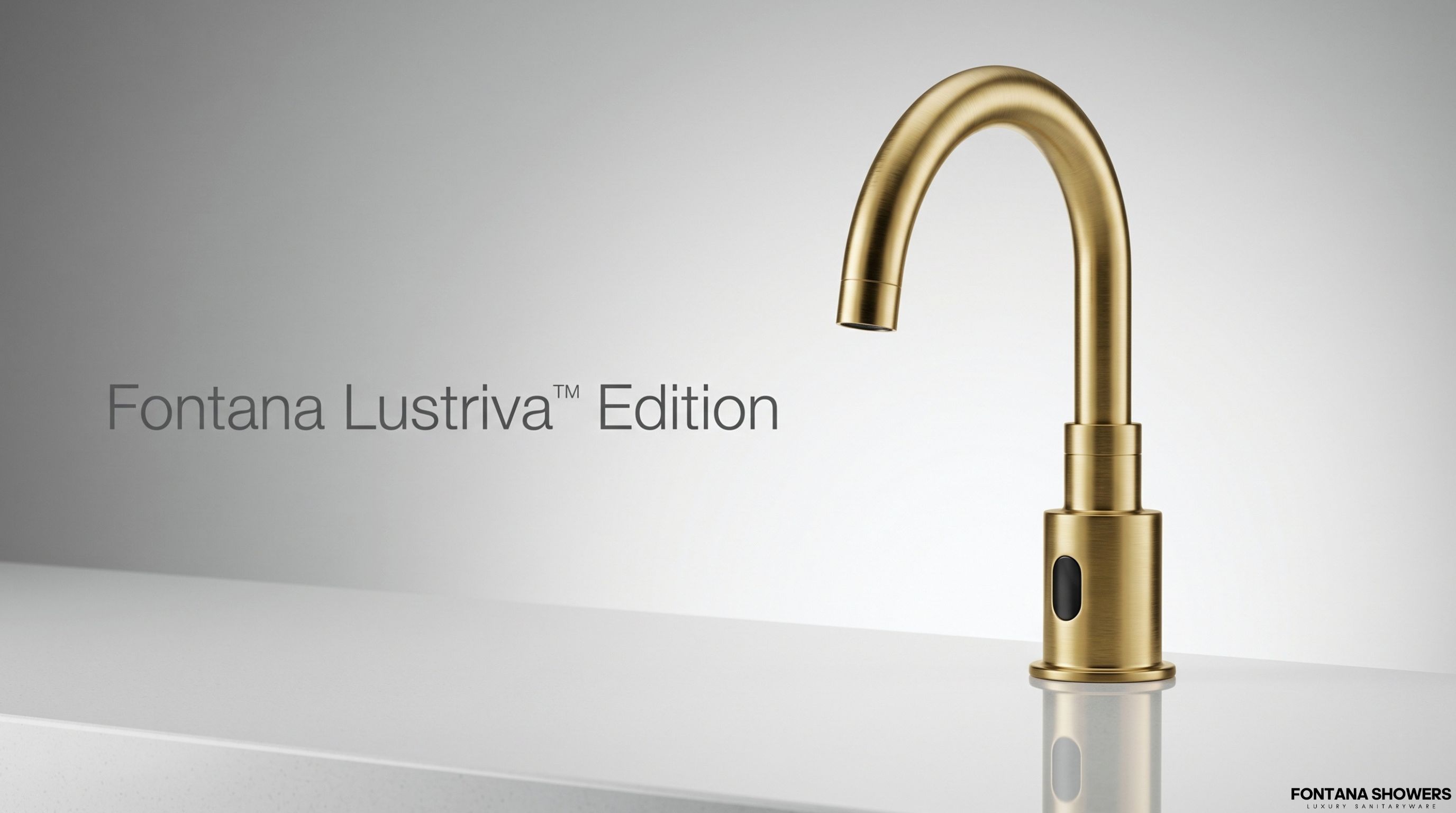

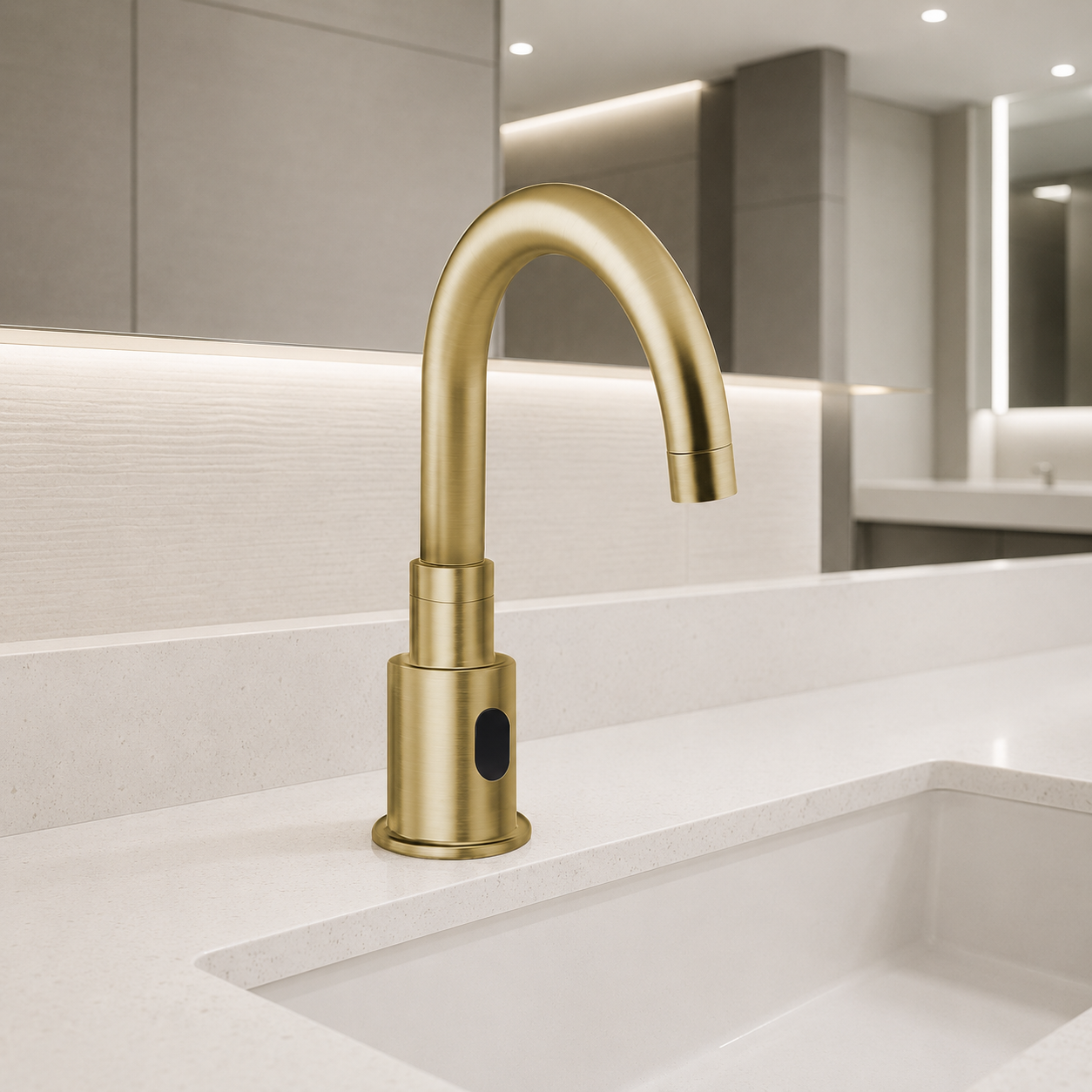

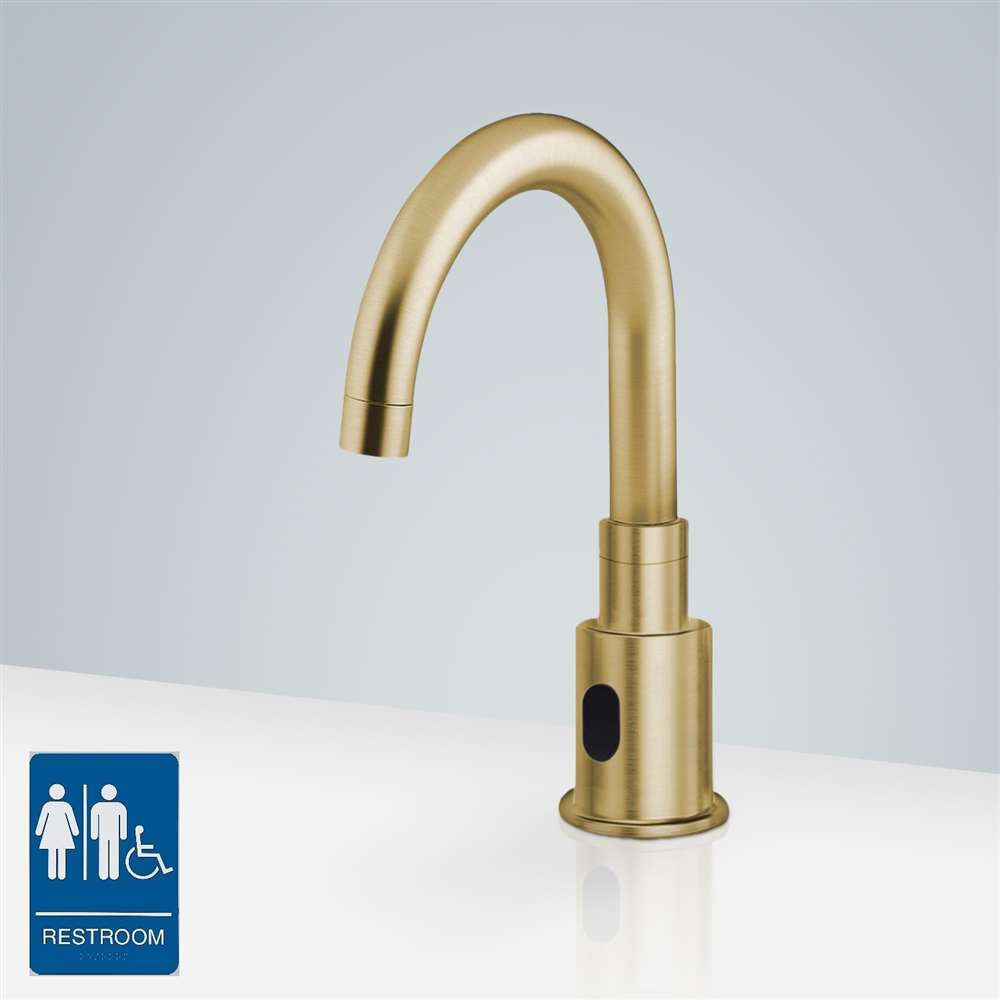

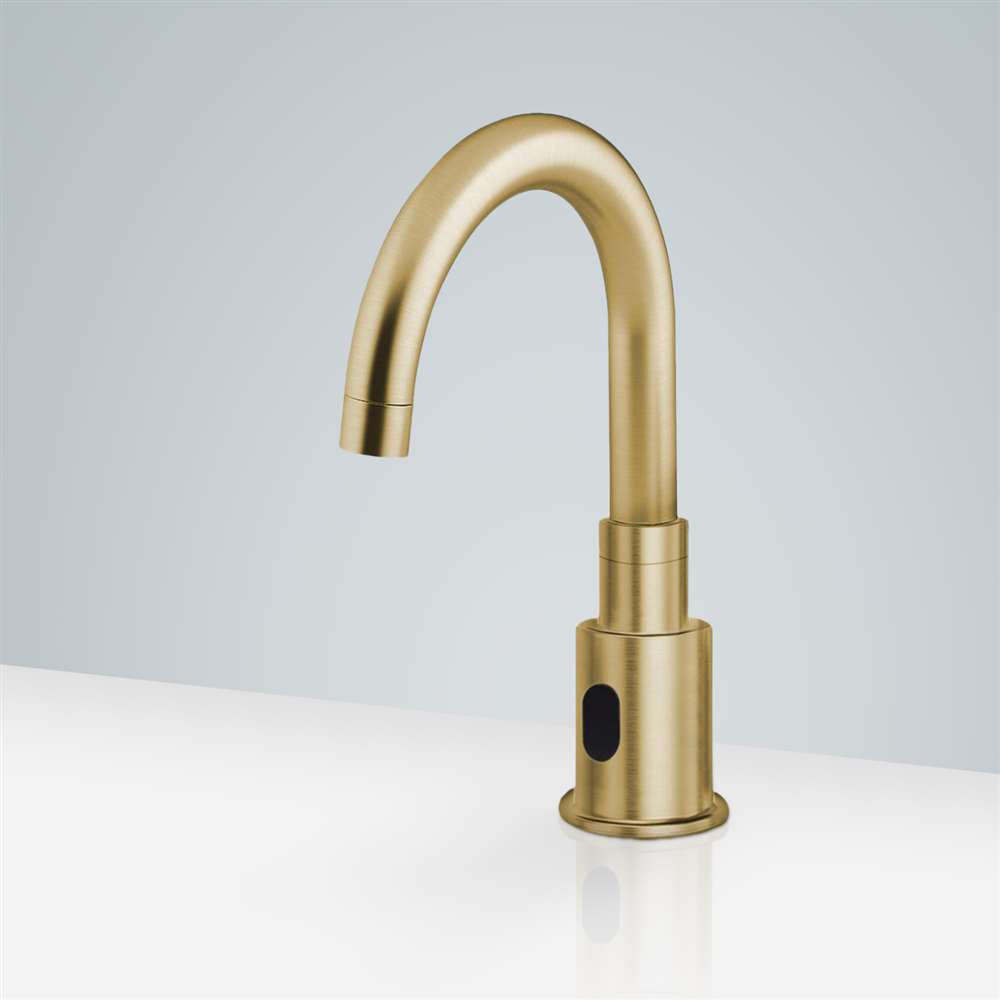

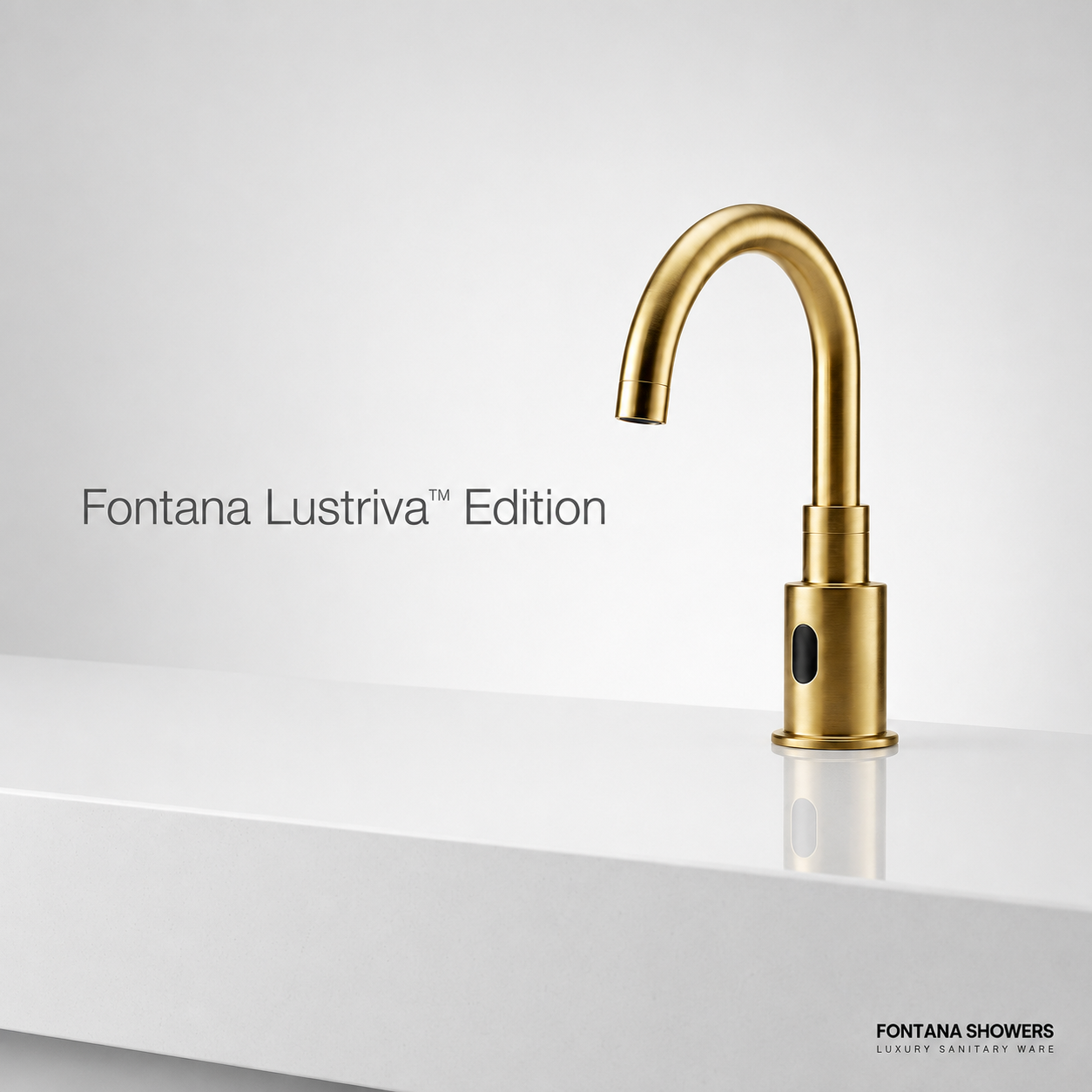

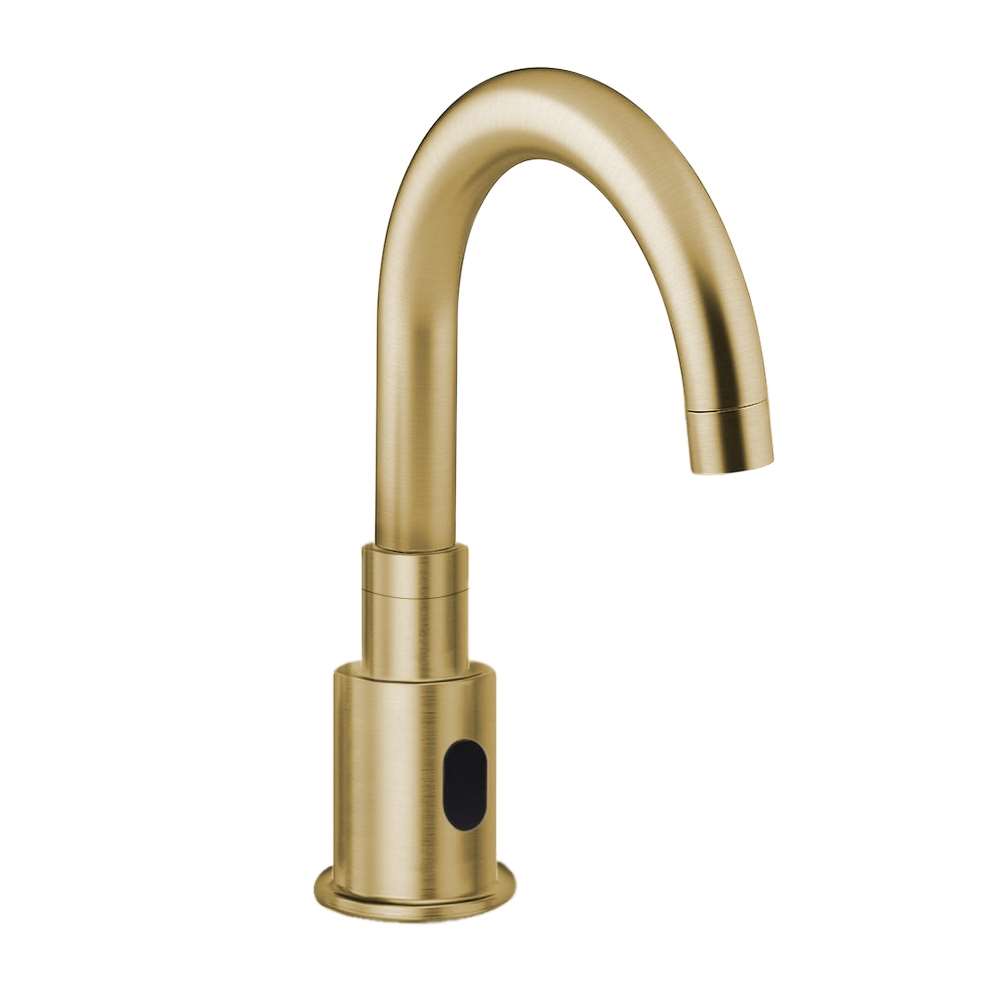

The Fontana FS1095G-S-G combines infrared touchless control,
brass construction, compact deck geometry, and commercial
automatic operation.
Which basin geometry best matches the 4.92-inch outlet projection?
Coordinate the 4.92-inch spout reach and 3.93-inch outlet height
with the actual bowl before drilling the countertop. The stream
should land inside the primary washing zone without striking a
steep rear wall or shallow basin edge. Verify the discharge position
under normal operating pressure before final turnover.
What should be evaluated when commissioning the infrared detection field?
Complete final sensor testing after the basin, countertop, mirror,
lighting, backsplash, and nearby accessories are installed. Cycle
the faucet from several realistic hand positions and confirm dependable
activation without false triggering from polished surfaces, the drain,
or objects outside the intended washing area.
Why does the 0.05–0.8 MPa pressure envelope matter during startup?
Commission the faucet under the building's actual dynamic pressure
rather than relying only on static readings. Flush the supply before
final connection, then verify stable discharge, leak-free fittings,
and positive automatic shutoff throughout repeated cycles. Pressure
instability or debris can affect both flow quality and valve response.
When should the optional hot-and-cold configuration be verified?
Where the hot-and-cold option is specified, flush both supply branches
before completing the final connections. Establish the intended outlet
temperature under normal operating pressure and perform repeated
touchless cycles to confirm stable delivery. Keep the mixing and
control components accessible for future balancing and service.
