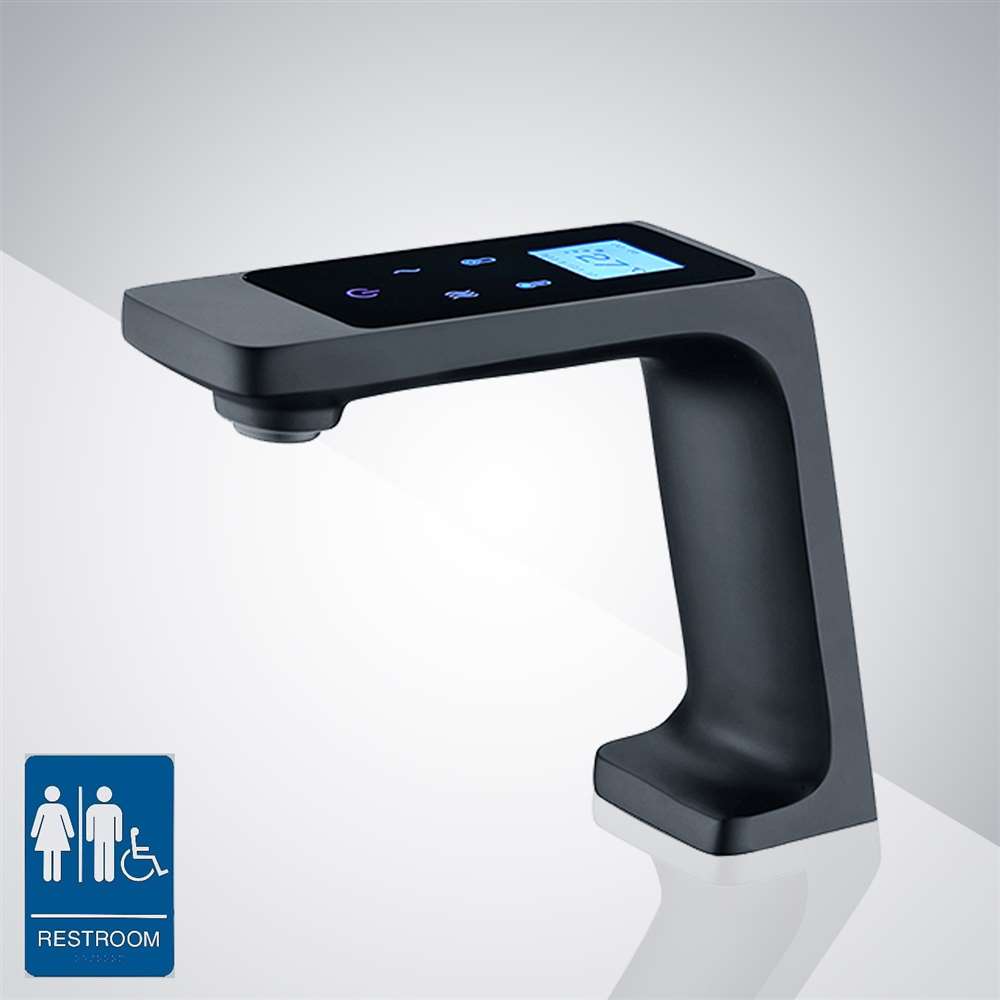

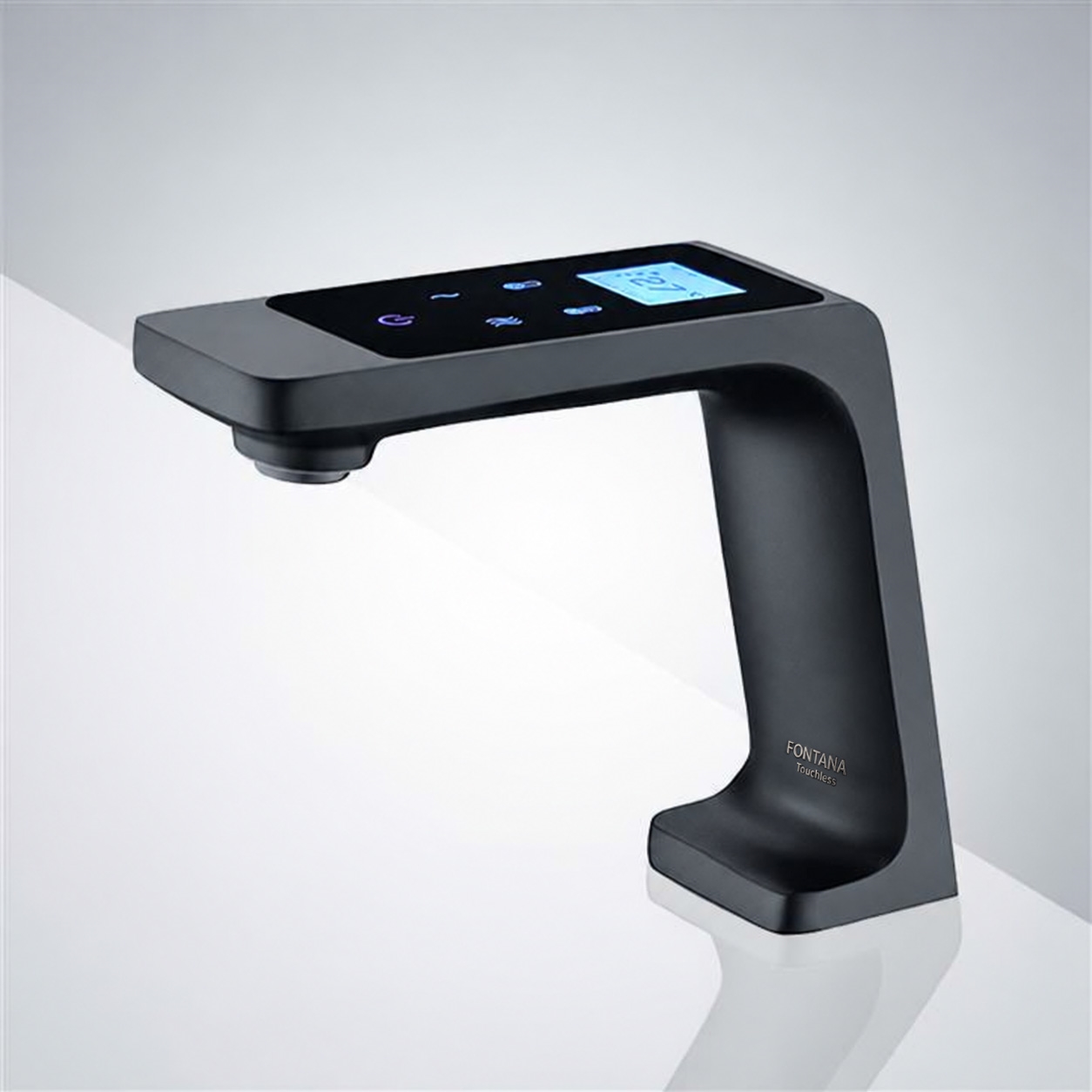

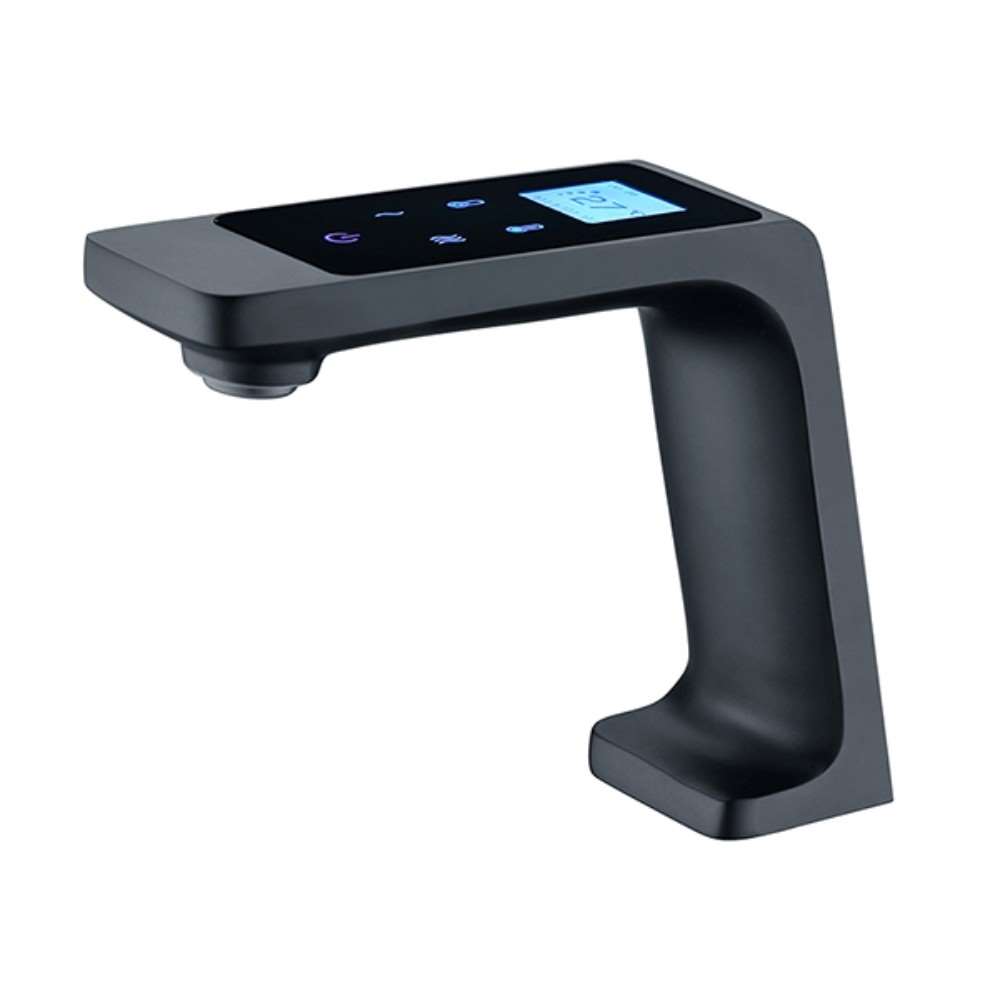

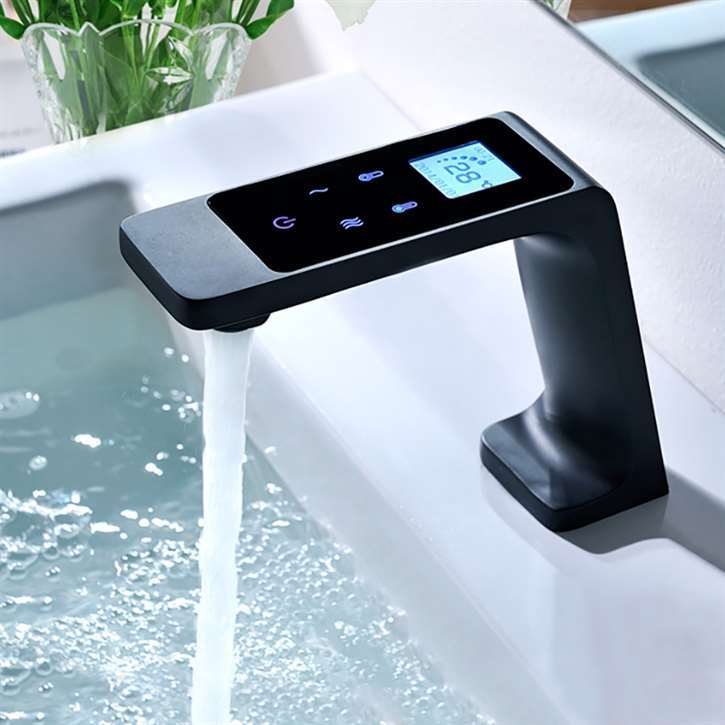

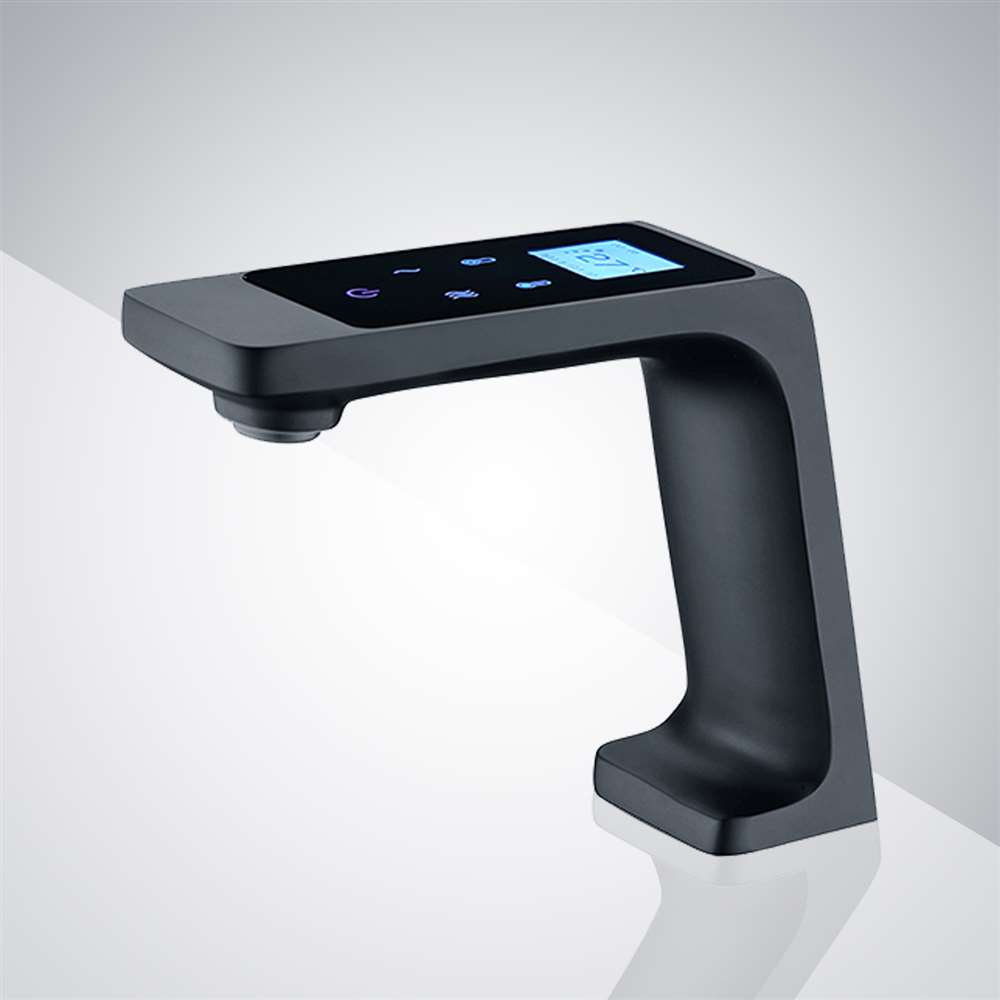

Fontana Sierra Digital Touch Commercial Motion Sensor Faucet in Matte Black
Digital Display Sensor Faucet; Advanced unit with real-time display, precise sensing, and controlled water output. Constructed of brass and complimented with a beautiful chrome finish, this digital automatic faucet prevents cross-contamination of germs
and bacteria by eliminating the need to touch the faucet or handles.
Ideal for any bathroom sink. Fits all standard US plumbing. Uses 4AA Alkaline Batteries (not included). Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.
Fontana Sierra Digital Touch Commercial Motion Sensor Faucet FAQ
Self-Adapting Detection, Line-Flush Logic & Battery Strength Diagnostics
The Fontana Sierra Digital Sensor Faucet combines intelligent motion detection, digital monitoring, and dual-power control for demanding commercial restroom environments.
How does the self-adapting 16–32 cm detection range affect commissioning accuracy?
The sensor operates across an adjustable detection zone of approximately 16–32 cm, allowing the activation field to be coordinated with the installed basin rather than relying on a universal fixed distance. Commissioning should include multiple hand-entry angles, withdrawal tests, and idle periods after all surrounding surfaces are installed. The objective is to maintain sub-second activation while preventing the basin, backsplash, or nearby objects from becoming persistent detection targets.
What is the engineering purpose of the hygienic line-flush function in a commercial sensor faucet?
The hygienic line-flush capability supports periodic movement of water through fixture piping rather than allowing prolonged stagnation within an infrequently used branch. Facility teams should coordinate this functionality with their plumbing water-management procedures and building occupancy patterns. It should be treated as part of the fixture's operational water-management strategy rather than as a replacement for system-level flushing, temperature management, or other facility water-quality controls.
How can battery-strength reporting improve preventive maintenance planning?
Battery-strength reporting allows maintenance personnel to identify declining power condition before voltage becomes insufficient for reliable sensing or motor-valve operation. Rather than waiting for intermittent activation, technicians can incorporate battery condition into scheduled fixture inspections. After battery replacement, several opening and closing cycles should be performed to verify that sensor response, valve travel, and automatic shutoff have returned to normal operating behavior.
Why should the 500,000-cycle motor-valve lifespan be considered together with actual restroom traffic?
The motor valve is specified for up to approximately 500,000 operating cycles, but calendar age alone does not indicate how quickly a heavily used fixture approaches that duty level. Airports, healthcare facilities, schools, and transportation buildings can accumulate activation cycles much faster than low-occupancy offices. Facilities should therefore combine usage estimates with inspections of opening speed, closing time, flow consistency, and valve sealing to establish condition-based maintenance intervals.
Sierra Sensor Faucet
- Diameter of inlet pipe:
DN15
-
Diameter of outlet pipe:
DN15
-
Water Pressure:
0.05Mpa - 0.7Mpa
-
Power and Voltage:
DC.6V, AC.110-220V - 50/60Hz
-
Power Consumption:
0.5MW, <2W
-
Detection Zone:
Factory set 25cm/10" (based on standard inductive board)
-
Ambient Temperature:
1 - 45 ℃ / 33.8 -113 °F
-
Degree of protection by enclosure:
1P56
Fontana Sierra Digital Touch Commercial Motion Sensor Faucet in Matte Black Feature:
- Motion detection provides touchless operation.
- Sensitive Sensor with Infrared AI Smart-Chip.
- Factory set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
- Easy to Install - Instructions Included
- Water-resistant solenoid enclosure
- Advanced energy-saving design for long-lasting battery life
- Sensor faucet comes complete with Hoses & Accessories
- Power Supply: AC110V And DC6V (batteries not included)
- AC/DC power option.
- Ideal for commercial use applications.
- ADA Complaint
- Can be installed easily in new or retrofit applications.
- Durable Vandal-Resistant Brass Body; Ideal for commercial high use applications
- Adjustable sensing range; while the factory range is set about 4" to 5" from the sensor, it can be adjusted.
- Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
- The meanings of the codes are described in the installation instructions.
- Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean.
- Batteries life is 8,000 cycles per month and with enough water pressure is the approx 5-year service life of the batteries.
- Usage: Commercial
- Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing.
Fontana Sierra Digital Touch Commercial Motion Sensor Faucet in Matte Black Specifications:
|
High Quality
