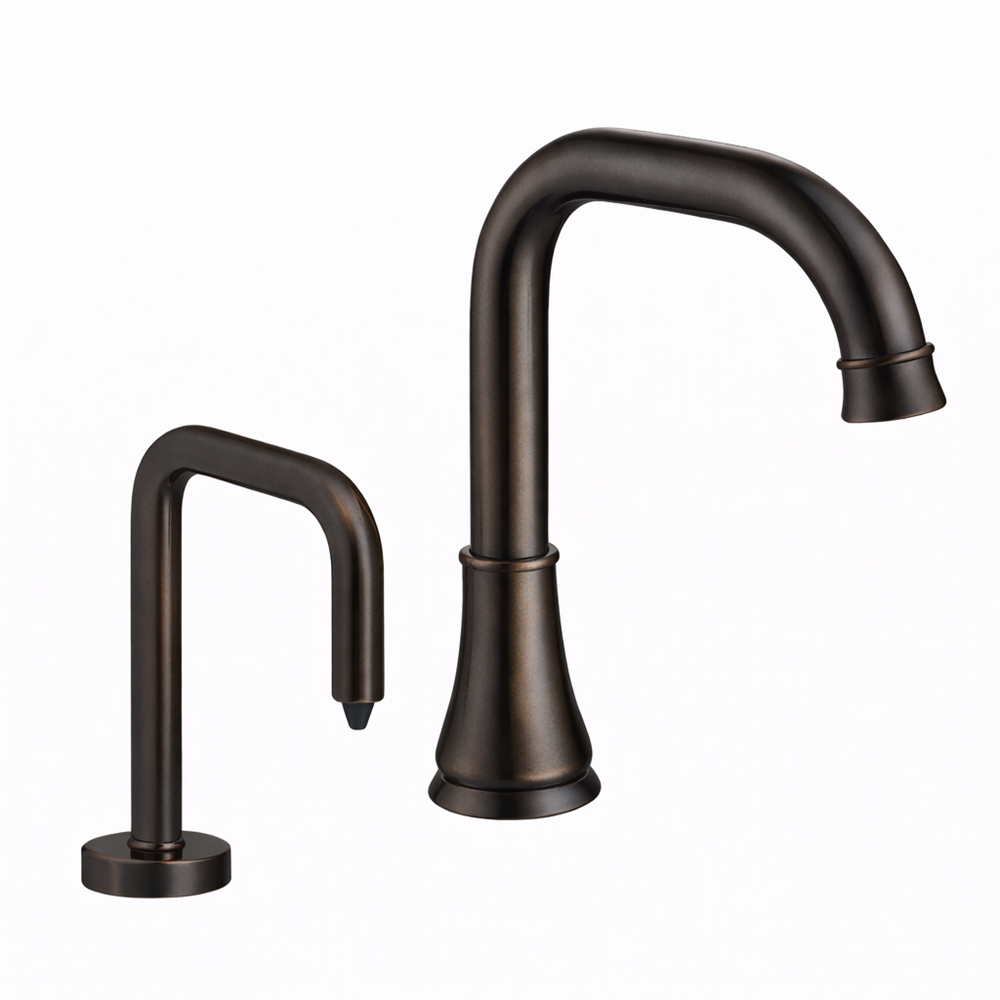

Fontana Arcelyn Oil Rubbed Bronze No-Touch Deck Mounted Faucet with Soap Dispenser

Fontana Arcelyn Oil Rubbed Bronze No-Touch Deck Mounted Faucet with Soap Dispenser is one of the products that has been very intelligently designed for the commercial restroom market with reliable hands-free hygiene, efficient water management, and sophisticated modern styling all in one. The brass used for the body is a tough material that offers durability and resistance to corrosion, making it ideal for the harshest daily use. A deck-mounted infrared sensor is responsible for reliable no-touch activation, and it is supported by a digital microprocessor that allows the system to be plug-and-play. Both the sensing range of 2" to 6" and the super quick 0.6-second response time assure the release of water whenever hands are placed underneath. The 2-second shut-off delay helps to avoid splashing, and at the same time, the maximum water running time of 60 seconds allows for conservation and controlled use. The product is designed for commercial use, so it can work with water pressures from 1 PSI up to 100 PSI, and the control is done by a 6-volt magnet latching solenoid valve, which is both reliable and precise. The battery life is estimated at up to 200,000 cycles, which means less maintenance is required in the long run. The faucet also has a built-in 50-mesh particle filter, which limits the amount of dirt and debris that gets into the faucet, thus ensuring smooth internal performance. A 2.2 GPM aerator is included with this, and the flow setting can also be changed to 1.0 GPM or 0.5 GPM for further efficiency. Easy installation is provided by a 1/2" NPT male supply inlet and a deck-mounted configuration with two holes.

• Brand Name: FontanaShowers®
• Model Number: FS10703ORB
• Finish: Oil Rubbed Bronze
• Type: Touchless Faucet With Soap Dispenser
• Style: Contemporary
• Installation Type: Deck Mounted
• Material: Brass
• Number of Holes: Two Holes
• Battery life expectancy: 200,000 cycles
• Solenoid valve: 6 Volt magnet latching
• Working Water Pressure: 1 PSI -100 PSI
• Supply Inlet Size: 1/2" NPT Male
• Sensor type and Location: Active Infrared, Deck mount
• Sensor Microprocessor: Digital, Plug and Play
• Sensing Range: 2" to 6"
• Response Time: 0.6 Second
• Shut-Off Delay Time: 2 seconds
• Maximum Running Time: 60 Seconds
• Particle filter size: 50 Mesh
• Aerator: 2.2 GPM. Optional 1.0 GPM, 0.5 GPM
• Automatic Dispenser: Yes
• Dispenser Feature: Foam Soap Dispenser
• Dispenser Application: Hygiene Hand Washing
• Compliant: ADA
• Uses: Commercial
